Description
The TRICONEX AI3351 is a high‑reliability analog input module designed for the Trident triple‑modular redundant safety instrumented system. It acquires 4‑20 mA analog signals from field transmitters such as pressure, temperature and flow sensors. When paired with model 2354 baseplate, it supports HART protocol for smart instrument asset management. Comprehensive channel‑level diagnostics detect open‑circuit, short‑circuit and out‑of‑range field faults. Hot‑swap capability allows online replacement without SIS shutdown. Widely used as spare‑part replacement for legacy Trident safety systems in process industries.
Series
Trident SIS Series by TRICONEX. The Trident platform delivers cost‑effective SIL 3 TMR safety control for medium‑size safety applications. The AI3351 analog input module cooperates with processor modules, other I/O cards and power supplies to build complete safety interlock protection loops. Different mating baseplates (2351, 2354, 2354A) provide standard or HART‑enabled field termination options.
Product Features
- 32 commoned analog input points for 4‑20 mA transmitter signals, operational range 2‑22 mA DC
- Optional HART‑pass‑through function when used with 2354 / 2354A baseplate for smart field device configuration and diagnostics
- Full channel diagnostics: open‑loop, short‑circuit, over‑range and under‑range fault detection
- Hot‑swap supported, online module replacement without interrupting safety‑system operation
- IEC 61508 SIL 3 safety certification for high‑risk process‑safety applications
- 12‑bit ADC resolution, 0.15% full‑scale absolute accuracy for stable measurement performance
- Front‑panel multi‑LED indicators: PASS, FAULT, FIELD ALARM for quick on‑site troubleshooting
- Rugged industrial rack‑mount design, suitable for harsh plant cabinet electromagnetic environments
Product Parameters
表格
| Item | Parameter |
|---|---|
| Input Points | 32 commoned analog input points |
| Nominal Input Signal | 4‑20 mA DC; operational range 2‑22 mA DC |
| Resolution | 12‑bit |
| Absolute Accuracy | 0.15 % of full scale (20 mA) |
| Input Bandwidth | 16 Hz (3dB) |
| Supported Baseplate | 2351 (standard), 2354 / 2354A (HART capable) |
| HART Support | Available with 2354 / 2354A termination baseplate |
| Safety Certification | IEC 61508 SIL 3 |
| Hot‑Swap Support | Yes |
| Diagnostics | Open‑circuit, short‑circuit, signal over‑range / under‑range detection |
| Operating Temperature | 0°C ~ +60°C |
| Storage Temperature | -40°C ~ +70°C |
Product Specifications
- Unit Model：AI3351
- Brand：TRICONEX (Schneider Electric)
- Series：Trident SIS Safety Instrumented System
- Weight：Approx.1.5 kg
Function
- Collect 4‑20 mA analog measurement signals from field process transmitters
- Convert analog field signals into digital data and transmit to Trident TMR controller via backplane bus
- Detect field‑channel faults including open‑circuit, short‑circuit and signal out‑of‑range conditions
- Support HART protocol data pass‑through for smart instruments when matched with corresponding baseplate
- Report module health and channel fault status via front‑panel LED indicators
- Support hot‑swap maintenance without affecting safety‑loop normal execution
Purpose
Serve as analog signal acquisition interface for Trident SIS safety instrumented system; replace defective I/O hardware on legacy Trident installations, guarantee reliable acquisition of process‑variable signals and maintain safety‑loop integrity.
Application Fields
Oil & gas production, petrochemical refineries, chemical process plants, thermal power generation, fertilizer plants, offshore platforms, safety interlock system analog signal monitoring, legacy Trident SIS maintenance & retrofitting.
Image search keyword:

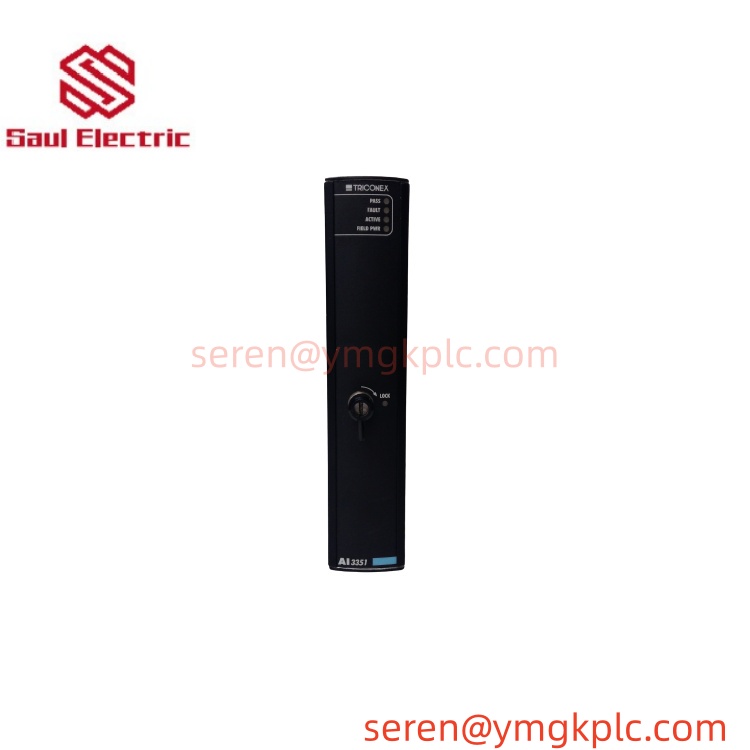

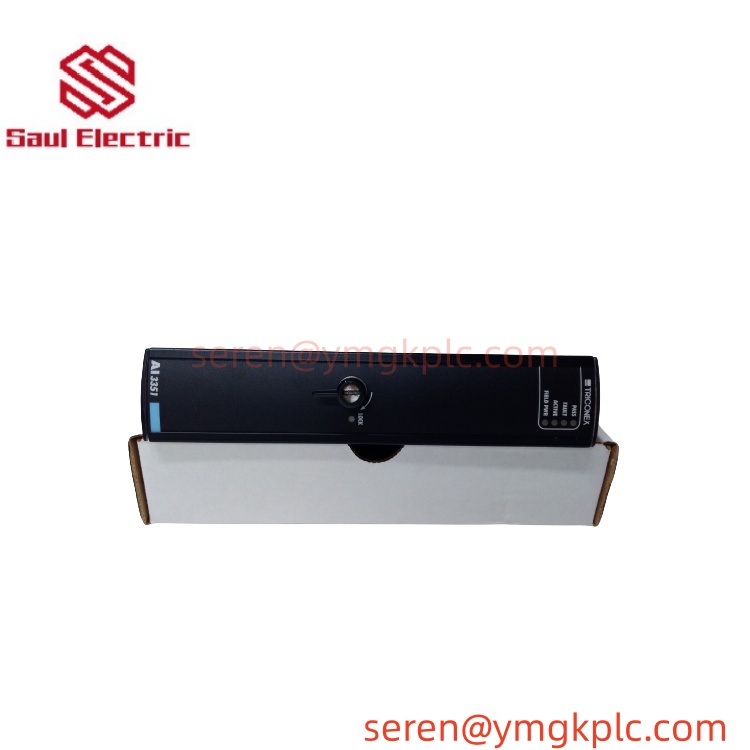

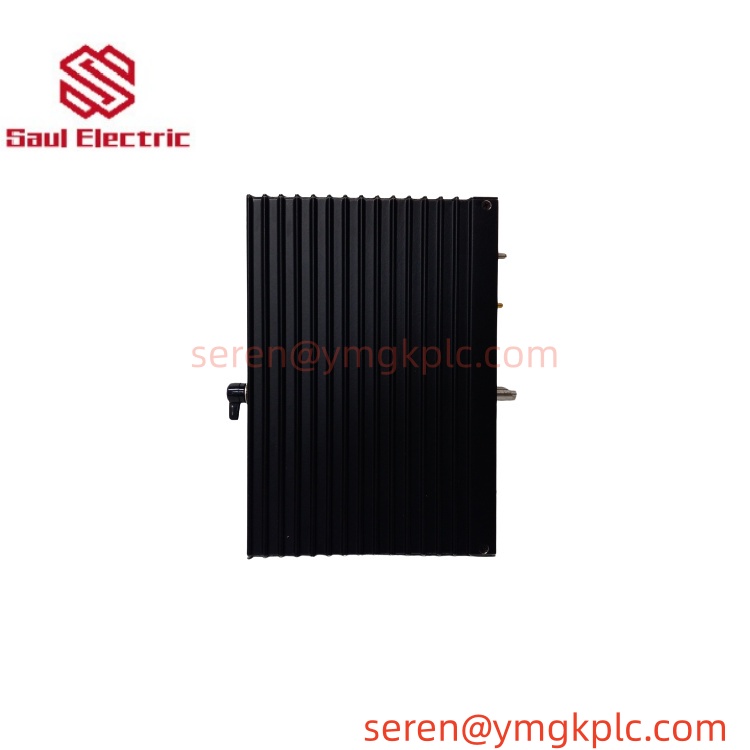

TRICONEX AI3351 Trident analog input module
