Description
Product Overview
The TRICONEX 8311N is a dedicated power supply unit for Tricon triple‑modular‑redundant (TMR) safety instrumented systems. It delivers stable, filtered power to the Tricon chassis, processors and I/O modules. Designed for hot‑swap operation, it allows module replacement online without shutting down the safety system. Built‑in hardware diagnostics monitor input voltage, internal temperature and battery status, reporting failures via front‑panel LED indicators. This unit is widely used for maintenance and spare‑part replacement of legacy Tricon safety systems in process industries.
Series
Tricon SIS Series by TRICONEX. This series adopts triple‑modular redundant (TMR) fault‑tolerant architecture for safety‑critical process control. The 8311N power supply installs in dedicated power slots of Tricon main chassis, works cooperatively with Tricon processor modules and various I/O modules to complete safety interlock and protection functions.
Product Features
- Hot‑swap capable, online replacement without system shutdown, reduces plant downtime risk

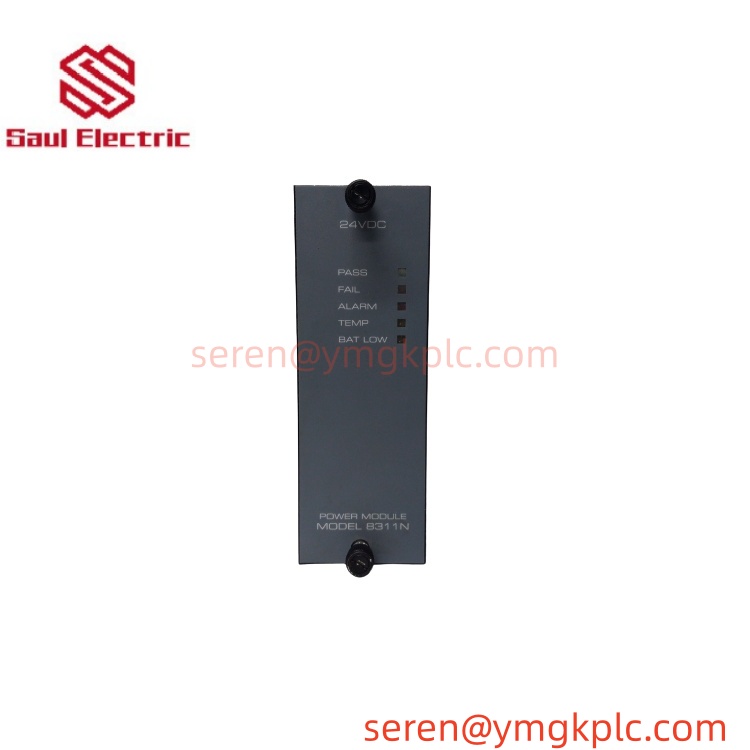

- Full‑set front‑panel LED status indicators: PASS, FAIL, ALARM, TEMP, BAT LOW for quick on‑site troubleshooting
- Comprehensive hardware diagnostics: input undervoltage, over‑temperature, internal fault and battery low detection
- Complies with IEC 61508 SIL 3 safety standard, suitable for high‑risk process safety applications
- Rugged industrial design, wide operating temperature range for harsh cabinet environments
- Standard chassis slot mounting, fits Tricon main rack power slot directly
- Supports redundant power configuration to eliminate single‑point power failure
Product Parameters
| Item | Parameter |
|---|---|
| Nominal Input Voltage | 24 VDC (22‑31 VDC operating range) |
| Installation | Dedicated power slot for Tricon main chassis |
| Hot‑Swap Support | Yes |
| Safety Certification | IEC 61508 SIL 3, FM, ATEX, CE |
| Indicator LED | PASS, FAIL, ALARM, TEMP, BAT LOW |
| Operating Temperature | 0°C ~ +60°C |
| Storage Temperature | -40°C ~ +70°C |
| Protection | Over‑temperature, input undervoltage, internal fault monitoring |
Product Specifications
- Unit Model：8311N
- Brand：TRICONEX (Invensys / Honeywell)
- Series：Tricon SIS Safety Instrumented System
- Mounting：Rack‑mount inside Tricon chassis
- Weight：Approx. 1.8 kg
Function
- Convert and provide stable working power for Tricon chassis, CPU and I/O modules
- Real‑time monitoring of power supply operating status, temperature and backup battery condition
- Visible LED alarm output when faults occur
- Support hot‑swap maintenance for redundant power supply configuration
- Cooperate with TMR system architecture to guarantee power reliability of safety instrumented system
Purpose
Supply reliable power for TRICONEX Tricon safety instrumented system; serve as spare‑part replacement for legacy safety control equipment, ensure continuous normal operation of safety interlock protection loops.
Application Fields
Oil & gas production, petrochemical refining, chemical process plants, thermal power generation, offshore platforms, fertilizer plants, hazardous‑area safety interlock systems, legacy Tricon SIS system retrofitting & maintenance.
Image search keyword:

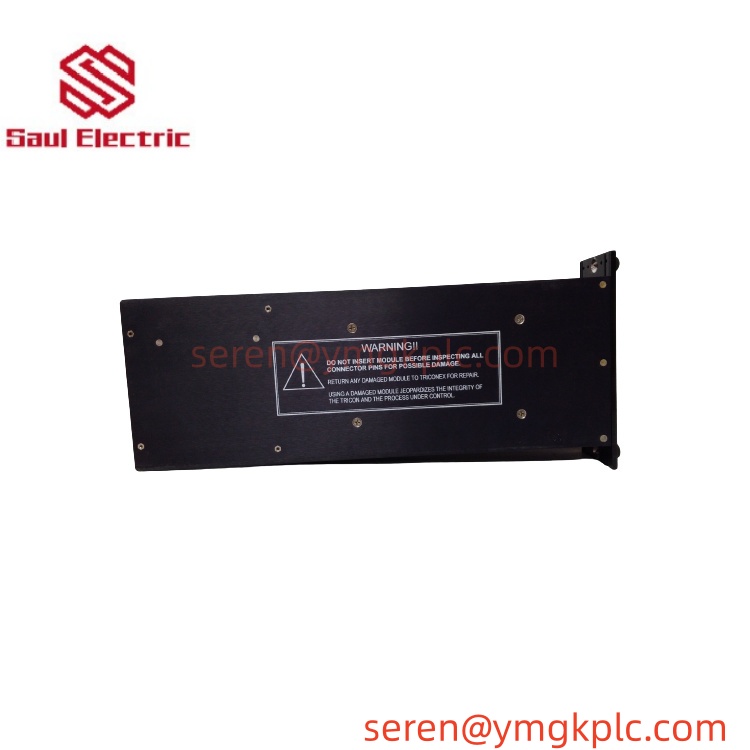

TRICONEX 8311N power supply module
