Description
Product Overview

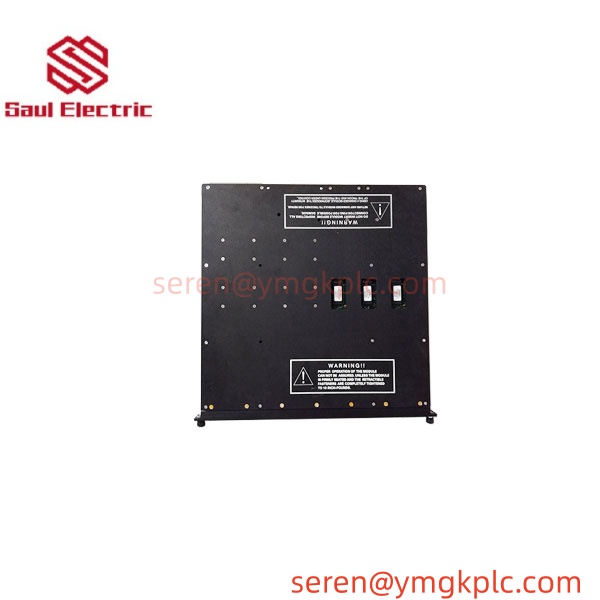

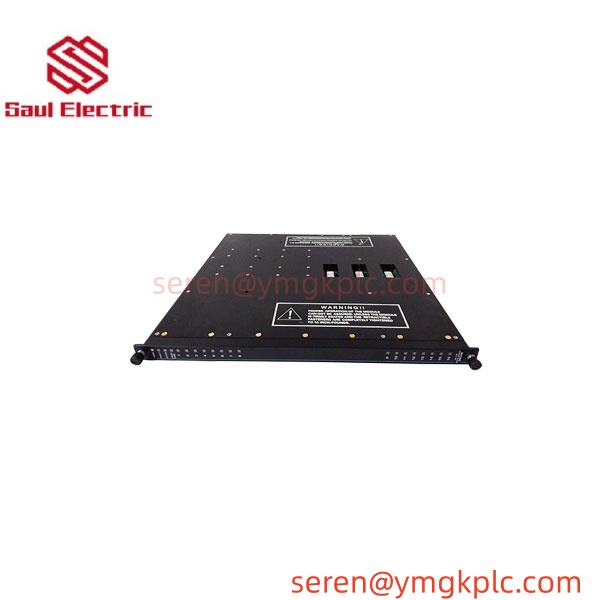

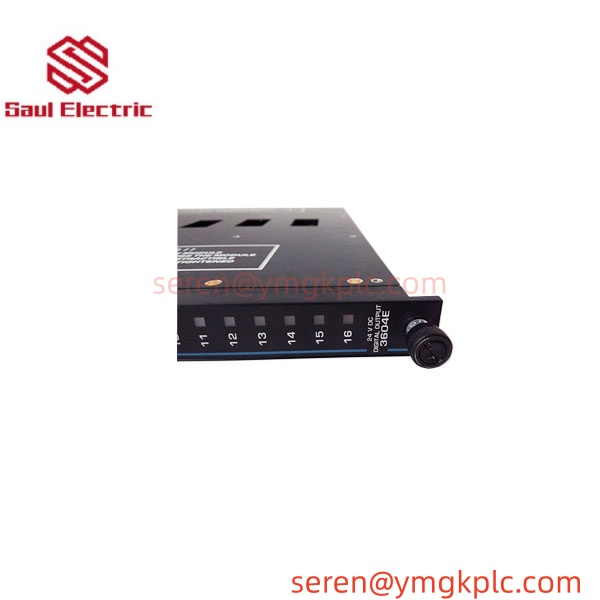

The TRICONEX 3604E is a hot‑swappable triple‑modular‑redundant digital output module for Tricon safety‑instrumented systems. It provides 16 independent non‑commoned opto‑isolated 24VDC output channels to drive field solenoid valves, safety relays and interlock actuators. Adopting TMR fault‑tolerant hardware architecture, the module performs internal voting logic; single‑slice hardware failure will not interrupt safety output function. It supports online hot‑swap replacement without system shutdown, and implements comprehensive channel‑level diagnostics for short‑circuit, overload and open‑load faults. Widely deployed for petrochemical, oil‑gas and power‑plant SIS system maintenance, retrofits and spare‑part replacement projects.
Series
Tricon V9 series safety‑instrumented system hardware, triple‑modular‑redundant fault‑tolerant platform, including CPU, digital input/output, analog I/O and communication modules, applied to SIL3‑grade ESD emergency shutdown, fire‑gas protection and safety interlock systems.
Product Features
- 16‑point non‑commoned opto‑isolated 24VDC digital output channels for field safety actuator driving
- Triple Modular Redundancy (TMR) fault‑tolerant architecture, meets SIL3 safety integrity‑level requirements
- Hot‑swap capable, supports module online replacement while SIS system remains operational
- Channel‑per‑channel hardware diagnosis: short‑circuit, overload, open‑load fault detection and alarm reporting
- LED status indicators for each channel and module health status for fast field troubleshooting
- Wide operating voltage range: 22‑45 VDC, adapts to fluctuating industrial‑site power‑supply conditions
- Non‑commoned channel design reduces cross‑channel fault propagation risk
- Strict industrial safety‑grade hardware design, long‑term continuous operation inside process‑control cabinets
- Matches Tricon main processor and dedicated backplane chassis
Product Parameters
| Item | Parameter |
|---|---|
| Model | 3604E |
| Module Type | TMR Digital Output Safety Module |
| Number of Output Channels | 16 channels, non‑commoned |
| Output Signal | 24 VDC opto‑isolated discrete output |
| Operating Field Voltage | 22‑45 VDC |
| Safety Architecture | Triple Modular Redundancy (TMR) |
| Safety Level | SIL 3 capable |
| Hot‑swap Function | Supported |
| Diagnostics | Short‑circuit, overload, open‑load detection; LED status indication |
| Compatible System | Tricon V9 SIS chassis backplane |
| Operating Temperature | 0℃ ~ +60℃ |
Product Specifications
- Physical form: Plug‑in safety I/O module for Tricon chassis
- Condition: New surplus / Tested used (stock subject to real‑time confirmation)
- Warranty: 365‑day warranty for supplied units
- Shipment: In‑stock goods ship within 3 working days after payment
Function
Receives safety‑logic output commands from Tricon main controller; executes TMR voting processing; outputs 24VDC discrete control signals to field safety actuators; detects channel‑side short‑circuit, overload and open‑load faults; uploads diagnostic alarm information to SIS operation station.
Purpose
Drive field‑site safety‑related actuators such as solenoid valves and safety relays; execute ESD emergency‑shutdown and safety‑interlock output actions for Tricon safety‑instrumented systems.
Application Fields
‑ Petrochemical plant ESD emergency‑shutdown safety‑interlock systems‑ Oil & gas production‑site SIS safety‑control cabinets‑ Refinery safety‑instrumented system retrofits & spare‑part replacement‑ Thermal power‑plant boiler‑protection interlock control‑ Chemical hazardous‑process safety‑control projects‑ Fire‑and‑gas (F&G) safety‑system output control
Image search keyword for reference:
TRICONEX 3604E Tricon digital output module
