Description
Product Overview

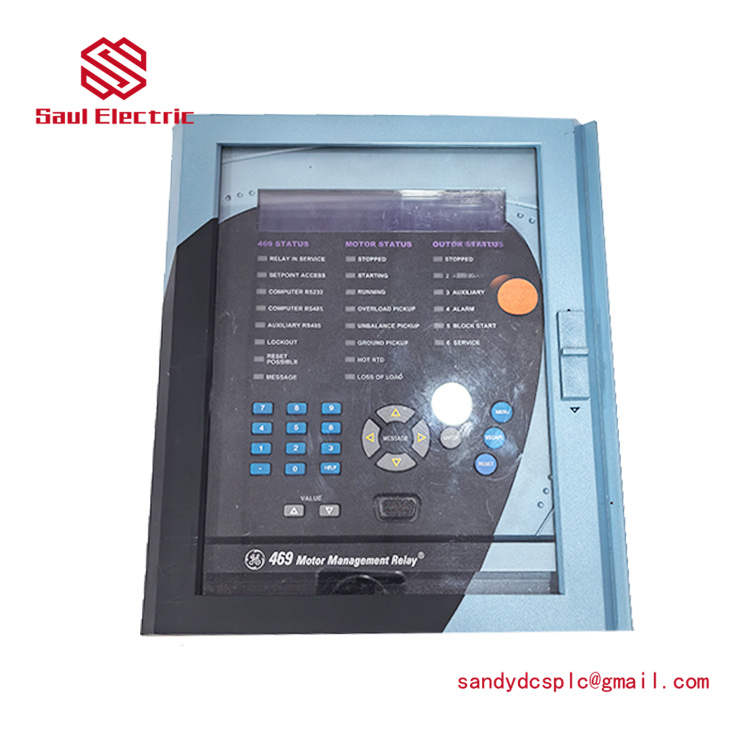

The SR469-P5-HI-A20-E is a sophisticated motor management relay from GE Multilin, designed for use with medium-voltage motors. It offers integrated management and protection, ensuring optimal performance and safety in industrial automation settings. This relay is part of the SR 469 series and is equipped with 5 amp phase CT secondaries. It provides reliable monitoring and control of motors, helping to prevent downtime and increase operational efficiency.
Application Scenarios
The SR469-P5-HI-A20-E is widely used in various industries for motor management and protection:
-
Power Generation: In power plants, it monitors and protects motors used in critical equipment such as pumps, fans, and feedwater systems. Its ability to detect faults and provide timely protection helps ensure the reliability of power generation processes.
-
Oil & Gas: In oil refineries and gas processing plants, the relay manages motors driving compressors, pumps, and other equipment. Its robust design and advanced protection features make it suitable for the harsh environments found in these industries.
-
Manufacturing: In manufacturing facilities, the SR469-P5-HI-A20-E is used to protect motors in production lines, conveyor systems, and material handling equipment. By preventing motor failures, it helps maintain production efficiency and quality.
-
Mining: In mining operations, it manages motors used in crushing equipment, conveyor belts, and ventilation systems. Its reliability and durability make it well-suited for the demanding conditions found in mining environments.
Related Models
-
SR469-P5-HI-A20-E-H: Similar to the SR469-P5-HI-A20-E, but with an additional harsh environment conformal coating for enhanced protection in extreme conditions.
-
SR469-P5-HI-A20: A standard version of the relay without the enhanced front panel features of the SR469-P5-HI-A20-E.
-
SR469-P5-HI-A20-H: A variant designed for harsh environments, offering similar functionality to the SR469-P5-HI-A20-E but with improved environmental protection.
-
SR469-P5-HI-A20-N: Another version of the relay, possibly with different configuration options or features compared to the SR469-P5-HI-A20-E.
Installation and Maintenance
Installation Preparation: Before installing the SR469-P5-HI-A20-E, ensure that the installation location meets the relay’s environmental requirements, including temperature and humidity specifications. The relay should be mounted in a clean, dry area with adequate ventilation to prevent overheating. Proper grounding is essential to ensure the relay’s reliable operation and to protect against electrical interference.
