Schneider NW-BM85C002 | BM85 Communication Module

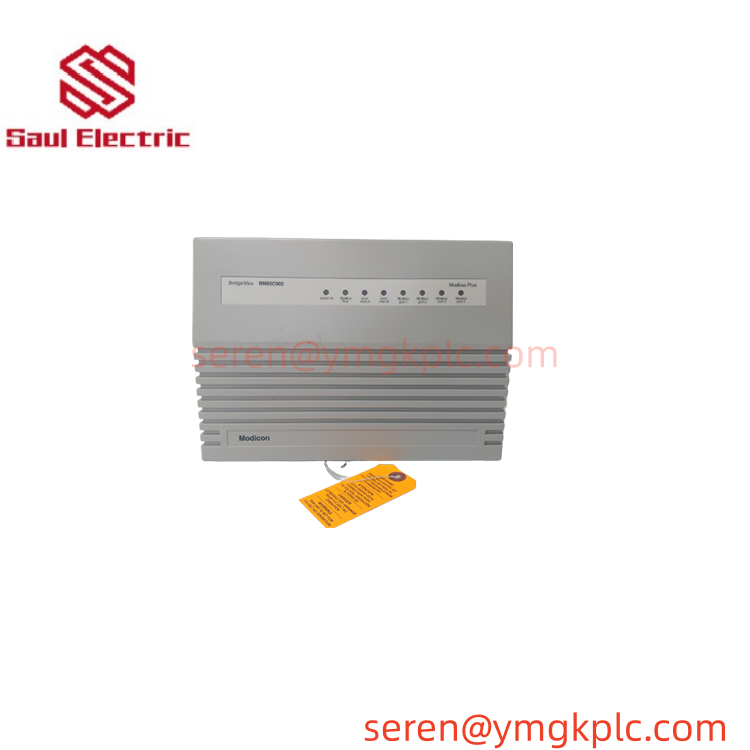

Description

The BM85 documentation identifies the NW-BM85C002 as a panel- or shelf-mounted model supporting either single- or dual-cable Modbus Plus networks and Modbus ASCII or RTU serial communication.

3. Key Technical Specifications

The BM85 manual specifies four serial ports for the Modbus models and identifies the NW-BM85C002 as supporting 115/230 VAC or 24 VDC power, with single- or dual-cable Modbus Plus networking.

For serial communications, the documented range is 300–19,200 baud, with odd/even/no parity options. The NW-BM85C002 does not use a configurable stop-bit setting; its default is 8 data bits and 1 stop bit.

4. Product Introduction (Anti-Template)

Unlike a simple serial converter, the NW-BM85C002 is designed to sit between Modbus serial devices and a Modbus Plus network. Its four serial ports can handle Modicon Modbus devices, while the BM85 architecture provides the routing and multiplexing needed to move messages between the serial side and Modbus Plus nodes.

This makes the unit particularly relevant to older Modicon installations where existing Modbus equipment still needs to communicate with a Modbus Plus control network. The configuration deserves attention, though. Baud rate, parity, port assignment, device addressing, and routing parameters all have to agree with the existing system. Honestly, most replacement headaches with older communication hardware come from configuration—not from the hardware itself.

5. QC, Procurement & Logistics SOP

1. Inbound Verification
   The model number, nameplate, serial information, hardware condition, and rear-panel configuration are checked against the purchase specification. For the NW-BM85C002, particular attention is given to the model suffix because the BM85 family contains multiple versions with different serial interfaces, power arrangements, and mounting formats.
2. Live Rig Testing

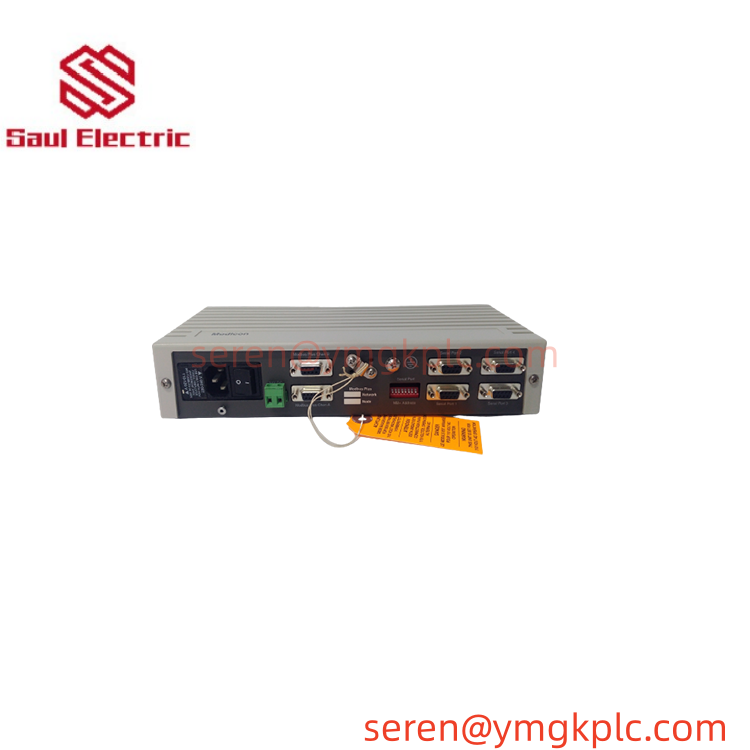

   Where suitable test equipment is available, the unit is powered under controlled conditions. Power-up behavior, status indicators, serial communication, Modbus configuration, and Modbus Plus communication are checked against the applicable BM85 documentation. Configuration mode is also verified when required. The BM85 documentation specifically describes rear-panel switches used for configuration and run operation.
3. QA & Anti-Static Packaging
   Electronic assemblies are handled using ESD precautions. The communication unit is protected against impact around the DB9 serial connectors, power connection, and network interface. Because the unit weighs approximately 2.5 kg net, sufficient internal cushioning is required to prevent the module from moving inside the carton during air or sea transportation.
4. Global Logistics & Export Compliance
   The commercial invoice and packing list should identify the equipment accurately as a Modbus Plus bridge/multiplexer. HS classification should be reviewed against the actual product function and destination customs requirements rather than copied blindly from a previous shipment. For urgent plant maintenance requirements, air freight is normally the practical option; sea freight can be considered for consolidated cargo. Secure export packaging is required in either case.

6. Technical Pitfalls & Integration Warnings

1. Firmware / Configuration Revision Mismatch
   The BM85 family contains several closely related models, but they are not interchangeable simply because the housing looks similar. A replacement configured for a different communication arrangement may power up while failing to exchange data correctly. Verify the existing port configuration before commissioning.
2. DIP Switch / Configuration Errors
   This is one of the main areas to check. The BM85 uses rear-panel switches for configuration mode, port selection, baud rate, parity, and related settings. For the NW-BM85C002, switch 8 must remain in the RUN position for normal operation.

   A technician can easily install the correct hardware and still leave the unit in the wrong operating mode. The result looks like a failed communication module when the actual problem is configuration.

3. Wiring / Terminal Incompatibility
   The NW-BM85C002 uses four serial connections, and the communication parameters must match the connected Modbus devices. RS232/serial wiring, port assignment, slave addresses, baud rate, and parity should all be checked. Do not copy the cable arrangement from another BM85 model without confirming the exact model.
4. ESD / Handling Damage
   The BM85 contains communication electronics that can be damaged by uncontrolled static discharge. Keep the unit in its protective packaging until installation is ready, use appropriate grounding procedures, and avoid unnecessary contact with exposed electronic components.

7. Frequently Asked Questions (FAQ)

Q1: “What exactly does the NW-BM85C002 do?”

It is a Modbus Plus bridge/multiplexer. It provides communication between Modbus serial devices and a Modbus Plus network, allowing Modbus messages to be routed through the BM85 architecture.

Q2: Does this model support both Modbus RTU and Modbus ASCII?

Yes. The BM85 documentation identifies the NW-BM85C002 as a Modbus model supporting both ASCII and RTU operation.

Q3: Can I use 24 VDC instead of 115/230 VAC?

Yes. Unlike the NW-BM85-000, the NW-BM85C002 supports 24 VDC as well as 115/230 VAC according to the BM85 specifications.

Q4: “Can you ship this internationally? I need it for an emergency replacement.”

Yes, subject to physical stock and final inspection. Air freight is normally the better choice for an urgent shutdown-related requirement, while sea freight is more suitable when delivery time is less critical or the unit is part of a larger shipment.

Q5: Is the NW-BM85C002 hot-swappable?

Do not assume it is. The BM85 is a powered communication bridge, and removing it from an operating network can interrupt communication with connected devices. Unless the plant’s approved maintenance procedure specifically permits live replacement, isolate the unit before removal.

Q6: Will this replace another BM85 model directly?

Not necessarily. The BM85 range includes models with different mounting arrangements, power supplies, serial protocols, and network configurations. For example, the NW-BM85D008 is a rack-mounted model with different power characteristics, while the NW-BM85E232 uses programmable RS232 communication rather than the Modbus configuration of the NW-BM85C002.

Q7: What should I send you to verify compatibility?

Please provide:

• Existing BM85 model number
• Nameplate or rear-panel photo
• Current power supply
• Number of connected serial devices
• Modbus Plus network configuration
• Current baud rate and parity settings
• Required quantity
• Destination country and required delivery date

For an older Modicon system, that information is usually enough to identify whether the proposed replacement is a true functional match before shipment.
