Description
Product Overview

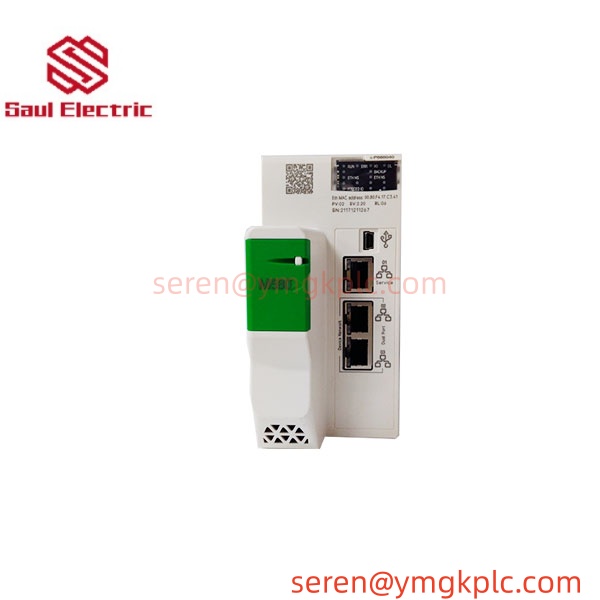

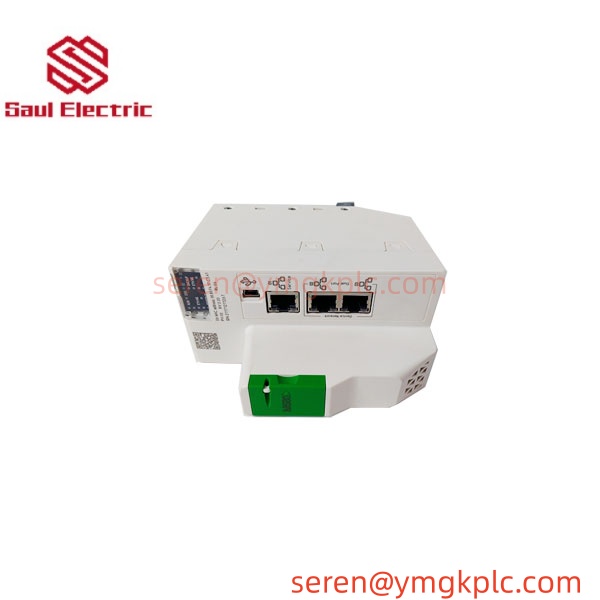

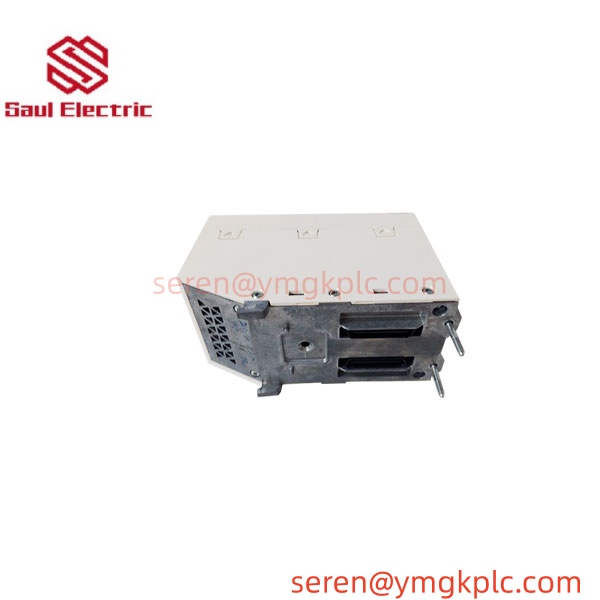

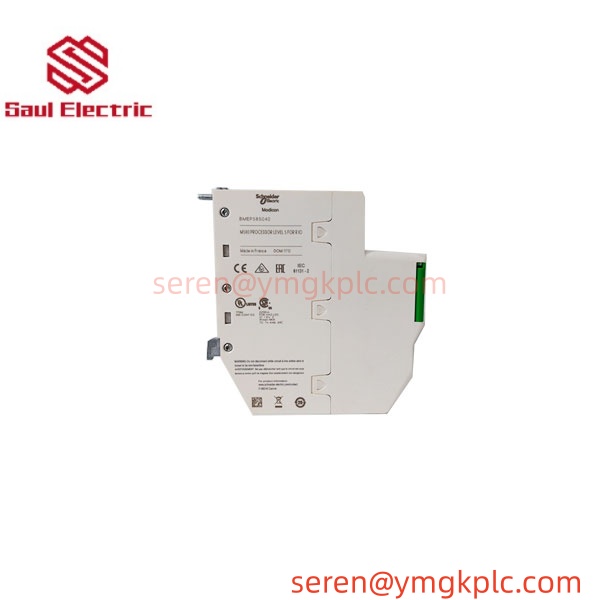

The Schneider BMEP585040 is a Level 5 high‑performance standalone processor within the Modicon M580 automation platform. Built for large‑scale distributed industrial control systems, this PAC CPU delivers powerful processing capacity, native Ethernet networking, embedded cybersecurity functions, and broad remote I/O expansion capability. It works with EcoStruxure Control Expert programming software and supports X80 and Quantum remote I/O racks for flexible plant‑wide automation deployment.
Series
Modicon M580 is Schneider Electric’s high‑end PAC platform with native Ethernet, cybersecurity protection, hot‑standby redundancy support, and scalable performance for process, manufacturing, and infrastructure automation projects.
Product Features
- High‑density program memory: 24 MB program RAM, 4096 kB data RAM, 4 GB expandable flash storage
- Multiple built‑in Ethernet TCP/IP ports plus USB mini‑B service port for commissioning and diagnostics
- Supports up to 31 remote I/O racks, 5120 discrete I/O points and 1280 analog I/O points for large‑size projects
- Embedded cybersecurity functions to manage access risk for industrial control operationsSchneider …
- Supports RIO/DIO scanner communication, hot‑standby redundancy architecture
- Wide industrial operating temperature range, high MTBF reliability of 600000 hours
- Compatible with Modicon X80 I/O system and Quantum remote racks
- Modular rack‑mount design, easy installation and field maintenance
Product Parameters
| Item | Details |
|---|---|
| Part Number | BMEP585040 |
| Brand | Schneider Electric |
| Series | Modicon M580 |
| Product Type | Processor Module |
| Program Memory | 24 MB RAM |
| Data Memory | 4096 kB RAM |
| Flash Storage | 4 GB expandable flash |
| Max Discrete I/O | 5120 points |
| Max Analog I/O | 1280 points |
| Max Remote I/O Racks | 31 racks |
| Communication Ports | 2×Ethernet device network,1×Ethernet service port, USB mini‑B |
| Supply Current | 295 mA @24 VDC (powered via backplane rack) |
| MTBF | 600000 hours |
| Certification | CE Marked |
| Programming Software | EcoStruxure Control Expert |
Product Specifications
- Installation: Standard rack mounting
- Task structure: Master cyclic task, fast periodic task, 128 event tasks, auxiliary tasks
- Instruction speed: Up to 60Kinst/ms for mixed boolean & arithmetic instructions
- Supported protocols: RIO, DIO, Ethernet‑based industrial communication
- Application‑specific channels: Max 180 channels for motion control, HART, counter, timestamping functions
Function
Execute user automation control logic, process field I/O signals, handle remote distributed I/O communication, perform data acquisition & calculation, support motion control, HART signal processing, event‑driven task scheduling, provide local & remote diagnostic information, support system redundancy and cybersecurity access management.
Purpose
Serve as the main control core for large‑scale automation systems, perform logic and process control, coordinate distributed remote I/O stations, realize real‑time data processing and plant‑wide device coordination.
Application Fields
- Process industry automation
- Large‑scale manufacturing production lines
- Water & wastewater treatment plants
- Energy & power plant control
- Oil & gas auxiliary control systems
- Infrastructure & building automation
- Heavy‑industry machine control
Image search keyword：Schneider BMEP585040 Modicon M580 processor module official product photoSchneider …
