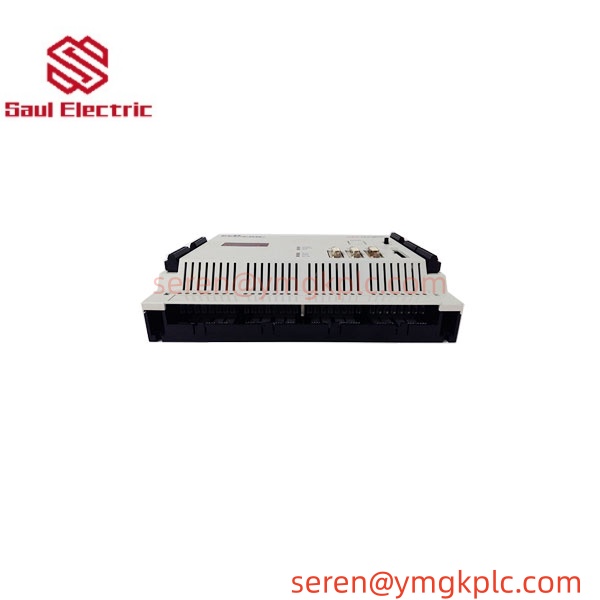

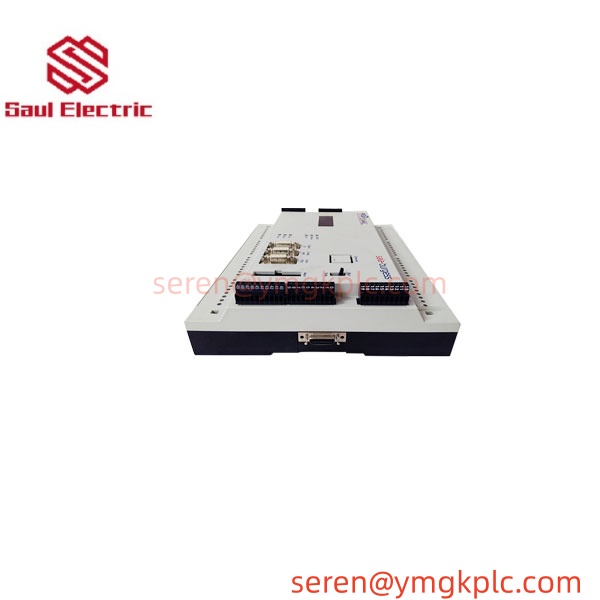

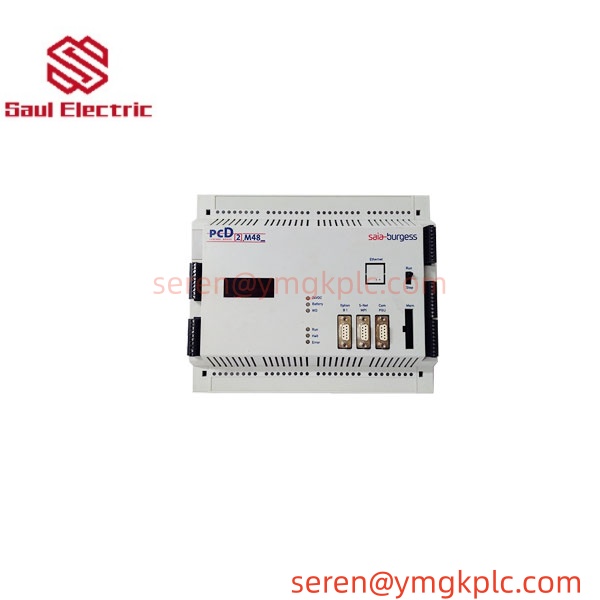

SAIA PCD2.M48X | Direct Replacement PCD2 Programmable Controller CPU

SAIA PCD2.M48X | Direct Replacement PCD2 Programmable Controller CPU

Original price was: $999.00.Current price is: $888.00.

  • Model: PCD2.M48X
  • Brand: SAIA Burgess Controls
  • Series: PCD2 Modular PLC System
  • Core Function: Executes user control programs, handles logic processing, and manages communication with local I/O modules and remote field devices
  • Category: PLC CPU Processor Module
  • Key Specs: Integrated Ethernet port, supports PCD2 I/O bus, program memory for automation logic
  • Availability & Condition: New Surplus, In Stock, Ready for immediate dispatch
Get a Quote
Category: SKU: PCD2.M48X Tags: Brand:
  • Need Help?
  • +86 13313703791
  • +86 13313703791
  • seren@ymgkplc.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

3. Key Technical Specifications

  • Processor Type: 32-bit industrial control CPU
  • Program Memory: Flash program memory with backup retention
  • Onboard Interfaces: 1 × Ethernet, serial communication port
  • Backplane Bus: PCD2 local I/O expansion bus
  • Supported Protocols: Modbus TCP, Modbus RTU, S-Bus
  • Operating Voltage: 24 VDC nominal
  • Operating Temperature: 0 °C to +55 °C, non-condensing
  • Humidity Tolerance: 5%–85% RH
  • Real-Time Clock: Built-in RTC with battery backup
  • Form Factor: Standard PCD2 rack-mount CPU
  • Protection Class: IP20 for cabinet installation
  • Weight: ~0.28 kg



4. Product Introduction

When building automation or industrial control panels experience sudden logic halt and loss of setpoint regulation, faulty CPU modules often remain undetected during basic power checks. The PCD2.M48X operates as the primary processing unit for SAIA PCD2 modular PLC systems, coordinating all I/O scans and data exchange across the control network.Unlike compact fixed controllers, this CPU supports flexible expansion via the PCD2 I/O bus to match varying field signal counts. Honestly, the native Modbus TCP implementation cuts extra gateway hardware costs in retrofit building control projects.

5. QC, Procurement & Logistics SOP

  1. Inbound Verification: Confirm full PCD2.M48X part marking, inspect front connector terminals and bus edge connector for scratches or pin damage. Cross-reference serial identifiers against global procurement portal records.
  2. Live Rig Testing: Complete power-on initialization, I/O bus recognition test, and Ethernet communication validation to confirm stable program download and protocol operation.
  3. QA & Anti-Static Packaging: Place CPU inside static shielding bag, add foam padding to protect edge connectors; attach signed bench test report to each shipment.
  4. Global Logistics & Export Compliance: Assign accurate HS classification for programmable logic controller spare parts. Reinforced carton packaging suitable for air freight or sea freight —though customs clearance in the EU might add 2 days to transit timelines.

6. Technical Pitfalls & Integration Warnings

  1. Firmware Rev Mismatch: Older PG5 programming software versions cannot fully configure newer PCD2.M48X firmware builds. A technician attempting to download existing project files will encounter compile or runtime errors.
  2. I/O Bus Configuration errors: Mismatched hardware index settings inside the project disable connected expansion modules. Copying configuration from other PCD2 CPU variants creates intermittent I/O faults.
  3. Network addressing incompatibility: Duplicate IP addresses on the control network trigger CPU communication lockups. No built-in isolation prevents broadcast overload from disrupting logic execution.
  4. ESD destruction during unboxing: The exposed backplane edge connector carries sensitive bus circuitry. Static discharge can cause silent hardware damage leading to random program crashes months after installation.



7. Frequently Asked Questions (FAQ)

Q: What global lead times apply if available inventory is depleted?A: Standard sourcing lead time runs 5–8 weeks. Expedited sourcing options can shorten delivery to 12–18 working days, subject to upstream stock availability.Q: Can I remove and insert this CPU module while the PCD2 rack remains energized?A: Hot swap is not supported. Cut 24 VDC rack supply before CPU replacement to avoid bus corruption and program memory risk.Q: Does PCD2.M48X work with all existing PCD2 series I/O modules?A: Compatible with most standard PCD2 expansion modules. Verify PG5 project hardware catalog entries to confirm support for older analog and communication I/O variants.Q: What shipping options exist for cross-border industrial spare shipments?A: Air express for urgent site breakdowns, standard air freight for scheduled maintenance, and sea freight for bulk spare part orders. Complete export documentation accompanies every shipment.Q: Is direct interchange possible between PCD2.M48X and PCD2.M480?A: Physical dimensions match, but onboard communication hardware differs. Direct swap without project reconfiguration leads to missing network functions.Q: What warranty coverage applies to New Surplus units?A: Each unit carries a 12-month limited warranty covering verified bench test failures. Warranty excludes damage caused by overvoltage, wiring shorts, or improper ESD handling.Q: Can this CPU run programs originally written for PCD1 controller families?A: Program code requires migration and hardware adaptation inside PG5. Binary project files cannot be loaded directly without modification.
