ABB S-073N 3BHB009884R0021 Phase Module Product Description
Product Overview
The ABB S-073N 3BHB009884R0021 represents a high-performance phase module designed for precision motor control in industrial automation systems. As part of ABB’s renowned ACS6000 series of frequency converters, this sophisticated component serves as a critical interface between control systems and motor-driven equipment, enabling precise regulation of motor speed and torque through advanced phase control technology. The S-073N 3BHB009884R0021 employs cutting-edge IGCT (Integrated Gate-Commutated Thyristor) semiconductor technology and three-level circuit design to deliver exceptional power conversion efficiency and operational reliability in demanding industrial environments.
This phase module occupies a strategic position in industrial automation architectures, functioning as the power regulation core within larger control systems. Its primary value proposition lies in its ability to optimize energy consumption while maintaining precise control over motor-driven processes, resulting in significant operational cost savings and enhanced process stability. The ABB S-073N 3BHB009884R0021 integrates seamlessly with distributed control systems (DCS), programmable logic controllers (PLC), and other automation components, providing a comprehensive solution for complex industrial applications requiring accurate motor synchronization and speed regulation across various operational scenarios.
The modular design philosophy behind the S-073N 3BHB009884R0021 ensures straightforward installation and maintenance while offering the flexibility to adapt to diverse application requirements. With its robust construction and advanced protection features, this phase module delivers uninterrupted performance even under challenging operating conditions, making it an ideal choice for continuous process industries where equipment reliability is paramount to operational success.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | S-073N 3BHB009884R0021 |
| Manufacturer | ABB |
| Product Type | Phase Module |
| Rated Power | 7.5 kW |
| Rated Voltage | 380 V |
| Rated Current | 15.4 A |
| Input Voltage Range | DC 200-750 V |
| Output Power | 750 W |
| Rated Speed | 2930 rpm |
| Control Modes | Position, Speed, Torque Control |
| Pulse Input Frequency | Up to 5 MHz |
| Encoder Input Frequency | Up to 30 MHz |
| Position Control Accuracy | 1 arc second |
| Speed Control Accuracy | 5 arc seconds |
| Protection Rating | IP55 |
| Operating Temperature Range | -40°C to 85°C |
| Dimensions | 100mm x 100mm x 50mm |
| Material | Aluminum Alloy |
| Cooling Methods | Forced Air Cooling or Liquid Cooling |

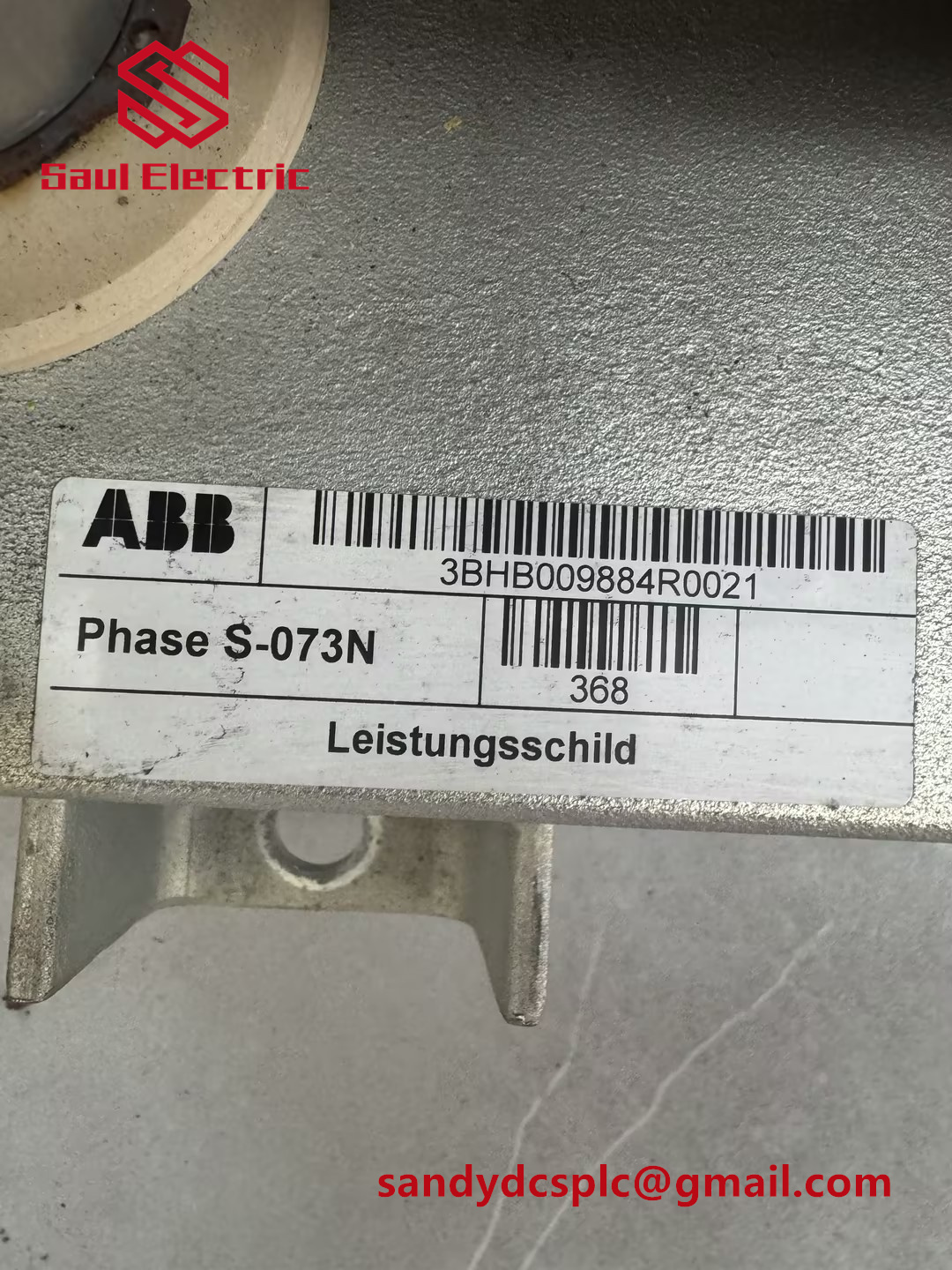

S-073N 3BHB009884R0021
Main Features and Advantages
The ABB S-073N 3BHB009884R0021 incorporates multiple advanced technologies that collectively deliver superior performance characteristics. Its high-precision control capability stands as a defining feature, achieving remarkable position control accuracy of 1 arc second and speed control accuracy of 5 arc seconds. This exceptional precision enables the module to maintain exacting standards in applications requiring precise motion control, such as positioning systems and synchronized conveyor operations.
Advanced Circuit Design: The module utilizes a sophisticated three-level circuit architecture based on IGCT technology, which significantly enhances power conversion efficiency while reducing switching losses. This design approach contributes to lower operating temperatures and extended component lifespan. The integration of intelligent protection functions, including comprehensive over-current, over-voltage, and overheating safeguards, ensures operational security by automatically disconnecting power during abnormal conditions, thereby protecting both the module itself and connected equipment from potential damage.
The S-073N 3BHB009884R0021 demonstrates exceptional adaptability through its support for multiple control modes, including position, speed, and torque control configurations. This flexibility allows the module to be deployed across diverse application scenarios without requiring hardware modifications. The inclusion of DCS-Link communication capability enables high-speed peer-to-peer data exchange between drives, facilitating coordinated multi-drive operations that are essential in complex automation systems. With its robust construction and wide operating temperature range, the module maintains stable performance across various industrial environments, from climate-controlled facilities to harsh operating conditions.
Application Fields
The ABB S-073N 3BHB009884R0021 finds extensive application across numerous industrial sectors where precise motor control is critical to operational efficiency. In industrial automation systems, the module serves as a key component in controlling motors for conveyor systems, robotic positioning mechanisms, and automated assembly lines. Its high-speed pulse processing capability (up to 5 MHz) and encoder feedback support make it particularly suitable for applications requiring precise synchronization and positioning accuracy.
Within the energy sector, the S-073N 3BHB009884R0021 plays a vital role in renewable energy applications, including wind turbine pitch control systems and solar tracking mechanisms. The module’s ability to maintain stable operation under variable load conditions makes it ideal for these applications where environmental factors constantly change. Additionally, the phase module contributes to power quality improvement through harmonic mitigation in electrical distribution systems, helping industrial facilities meet stringent power quality standards.
The component demonstrates significant value in heavy industries such as metallurgy, cement production, and mining, where it controls critical equipment including large fans, pumps, and compressors. By enabling precise speed regulation, the module helps optimize energy consumption in these high-power applications, resulting in substantial operational cost savings. In the infrastructure sector, the S-073N 3BHB009884R0021 is employed in elevator control systems, escalator drives, and building management systems, where reliability and precise speed control are essential for safety and passenger comfort.
