Description
Product Overview

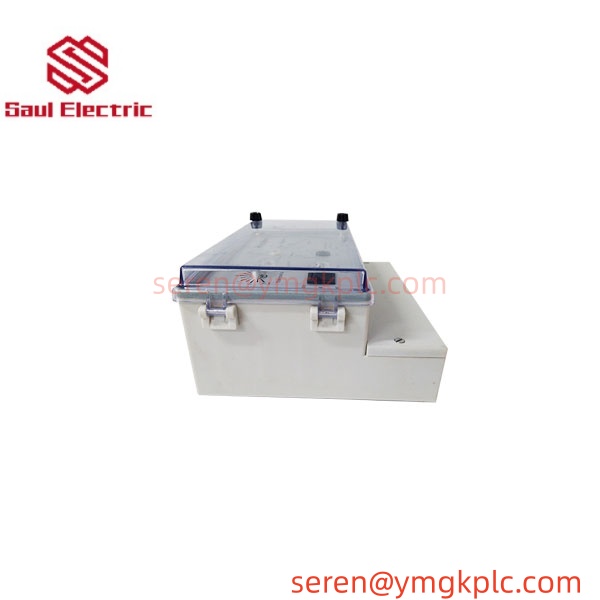

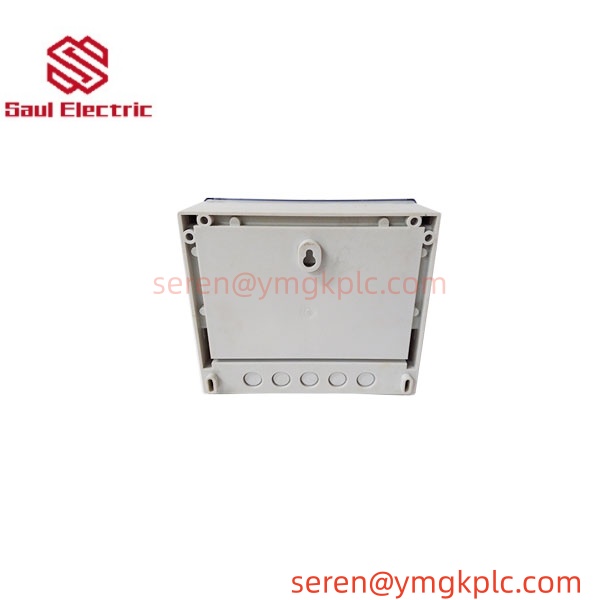

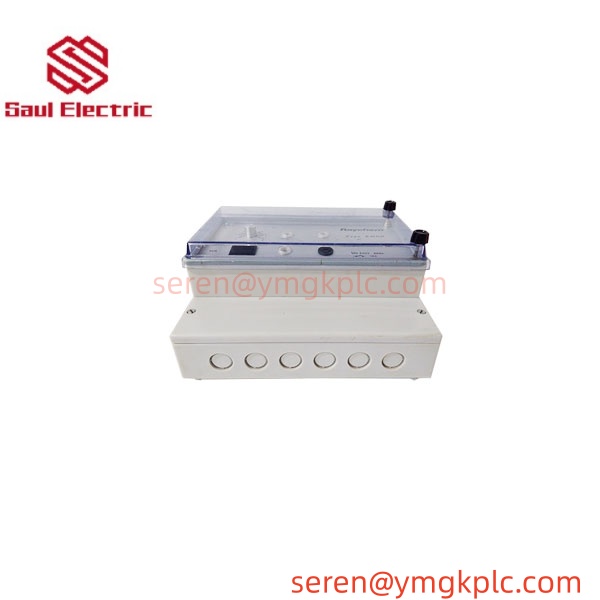

RAYCHEM EMDR‑10 is an intelligent energy‑saving control unit for nVent IceStop self‑regulating roof and gutter de‑icing heating cables (GM‑2X/T series)nVent. Instead of continuous heating, it triggers heating cable power supply only when ambient low temperature and gutter moisture are simultaneously detected, delivering substantial energy savings. It includes built‑in ambient temperature sensor and moisture sensor, potential‑free alarm contact for fault notification, DIN‑rail cabinet installation, widely deployed on commercial building roof, gutter and down‑pipe anti‑ice‑dam applications.
Series
IceStop series is nVent Raychem dedicated roof‑gutter snow‑melting & de‑icing solution, including self‑regulating heating cables, EMDR‑10 controller, installation accessories. The whole system is designed to eliminate ice‑dam and icicle hazards for building roofs.
Product Features
‑ Dual‑condition logic: heating output activates only when cold temperature AND moisture are detected, saves up to 80% energy vs constant‑on control‑ Equipped with ambient temperature sensor and gutter moisture sensor for field condition detection瑞侃Ray…‑ Adjustable frost protection threshold:‑3℃ ~ +6℃, configurable moisture sensitivity setting‑ Potential‑free SPDT alarm relay, reports sensor failure or unit fault to BMS or local alarm indicator‑ DIN‑rail mounting design for standard electrical cabinet installation‑ LED status indicators for power, heating output and fault diagnosis‑ 4W low standby power consumption, maintenance‑free long‑term operation‑ Compliant with European safety standard, IP20 indoor cabinet‑use protection grade
Product Parameters
| Item | Details |
|---|---|
| Part Number | EMDR‑10 (short‑name EMDR), 449554‑000 |
| Brand | RAYCHEM (nVent) |
| Series | IceStop Roof & Gutter De‑Icing |
| Product Type | De‑Icing Heat‑Tracing Controller |
| Supply Voltage | 230 VAC ±10%, 50 Hz |
| Frost‑Protection Adjustment Range | ‑3 ℃ ~ +6 ℃ |
| Sensor | Ambient temperature sensor + moisture sensor |
| Alarm Relay | SPDT potential‑free contact, max 1A @230VAC |
| Standby Power Consumption | 4 W |
| Mounting Method | DIN‑rail |
| Protection Class | IP20 (indoor cabinet installation) |
| Dimension(H×W×D) | 90 mm ×110 mm ×58 mm |
| Weight | Approx 0.38 kg |
| Certification | CE compliant |
Product Specifications
‑ Storage temperature:‑25 ℃ ~ +55 ℃‑ Relative humidity: 5‑95% non‑condensing‑ Max direct switch load:1A@230VAC; higher heating‑cable load must drive via external contactor‑ Post‑heating hold‑time: configurable 60‑minute after‑heat function‑ Installation note: moisture sensor shall be installed at gutter lowest position; ambient sensor install on building north side avoiding direct sunlightManualsLib
Function
Monitor ambient temperature and gutter moisture status; execute dual‑logic judgement to switch de‑icing heating cable ON/OFF; provide adjustable temperature and moisture sensitivity parameters; output fault alarm signal via dry‑contact relay; show real‑time operation and fault status via front‑panel LED indicators.
Purpose
Intelligent energy‑saving control unit for Raychem IceStop roof‑gutter self‑regulating heating cables, avoid ice‑dam and icicle risk for building roof drainage system.
Application Fields
‑ Commercial building roof & gutter anti‑icing / snow‑melting‑ Factory workshop roof drainage freeze prevention‑ Public facility building gutter de‑icing projects‑ Retrofit & maintenance of existing Raychem IceStop de‑icing systems
