Description
Product Overview

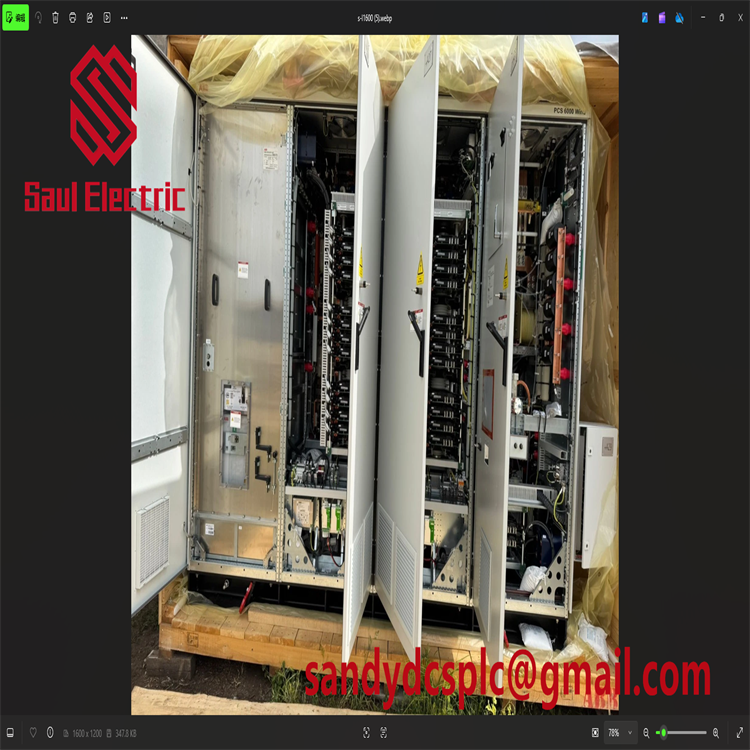

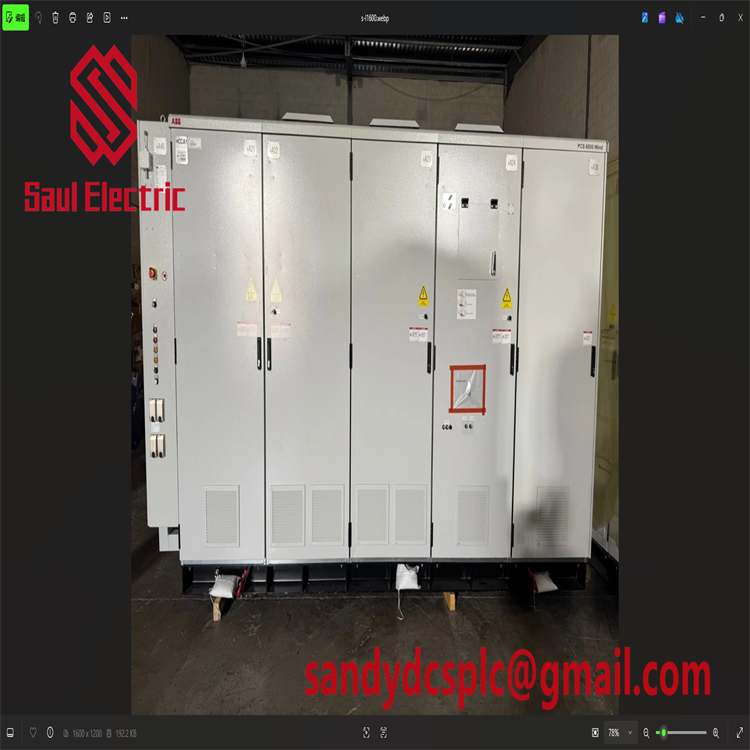

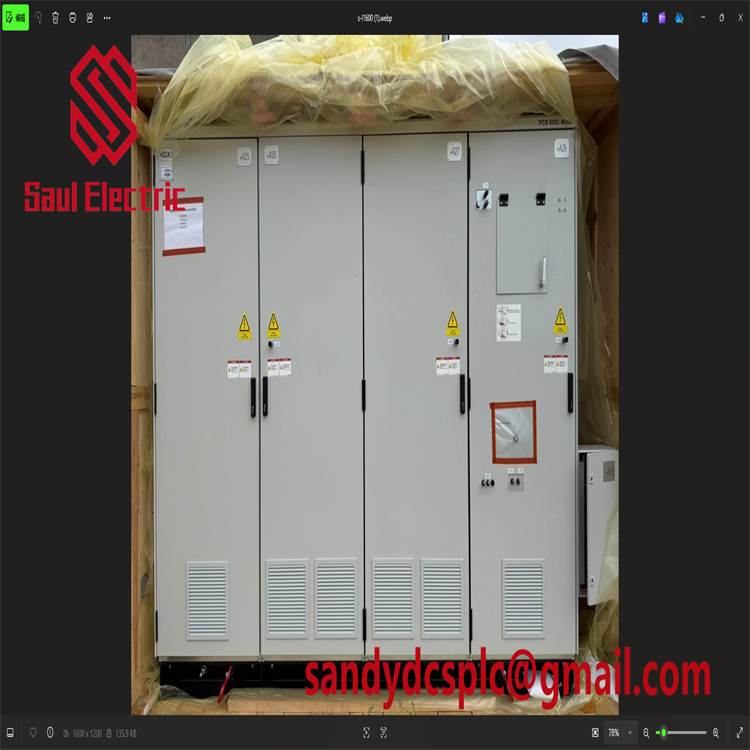

The ABB PCS6000 is a medium-voltage (MV) full-power converter engineered for large-scale wind turbines and industrial applications demanding high efficiency, reliability, and grid stability. As a cornerstone of ABB’s renewable energy portfolio, the PCS6000 integrates seamlessly with advanced turbine platforms, such as GE’s Haliade-X 13 MW turbines, to deliver scalable power conversion solutions for offshore wind farms, industrial automation, and marine propulsion . Built on a modular design and water-cooled architecture, the PCS6000 leverages IGCT (Integrated Gate-Commutated Thyristor) technology to achieve 98% efficiency across its 4–15 MVA power range, minimizing energy losses and operational costs. Its 3-level, 4-quadrant voltage-source inverter (VSI-NPC) topology ensures robust performance in harsh environments, while grid code compliance and fault ride-through capabilities enable stable grid integration even during voltage disturbances .
Key to its versatility is the PCS6000’s ability to support motor mode testing, allowing turbine manufacturers to perform heat-run trials and precise rotor positioning during blade installation. This feature, combined with its fuseless design, reduces maintenance complexity and downtime. The converter’s compact footprint (IP54-rated cabinets) and liquid-cooled closed-loop system further enhance its suitability for nacelle or tower base installations in space-constrained environments .
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | ABB PCS6000 |
| Manufacturer | ABB |
| Product Type | Medium-voltage full-power converter |
| Power Range | 4–15 MVA (per power module: 4–12 MVA) |
| Voltage Rating | 3.3 kV (higher voltages available on request) |
| Topology | 3-level, 4-quadrant VSI-NPC with fuseless design |
| Efficiency | Up to 98% at rated power |
| Cooling | Liquid-cooled (closed-loop system) |
| Control | Advanced algorithms for torque optimization and grid compliance |
| Communication | PROFIBUS DP, PROFINET IO, Modbus TCP, EtherCAT, CANopen |
| Environmental Ratings | IP54 protection, operating temperature: -10°C to +45°C |
| Certifications | DNV GL, UL, CGC (China General Certification Center) |
| Weight | Approximately 1,500 kg (3,307 lb) (varies by configuration) |
| Dimensions | Customizable (typical: 2,500 mm × 1,200 mm × 2,200 mm) |
pcs6000wind.pdf
Main Features and Advantages
Grid Stability & Fault Ride-Through: The ABB PCS6000 excels in maintaining turbine operation during grid disturbances through dynamic reactive power control and harmonic mitigation. Its brake chopper dissipates excess power during faults, ensuring safe shutdowns and rapid reconnection to the grid once stability is restored. This capability is critical for offshore wind farms, where grid conditions are often unpredictable .
Modular Flexibility: The converter’s scalable power configuration (4–15 MVA) and field-replaceable modules allow easy customization for specific applications. For example, its 4-quadrant operation supports motor mode testing, enabling manufacturers to validate turbine performance under controlled conditions. The fuseless design eliminates the need for on-site fuse replacements, reducing maintenance downtime by up to 30% .
High Power Density: With 98% efficiency even at partial loads, the PCS6000 minimizes energy waste and operational costs. Its water-cooled architecture and compact IP54 cabinets achieve unmatched power density, making it ideal for nacelle installations where space is limited. The integrated voltage limiting and precharging units further streamline system design .
Predictive Maintenance: ABB’s Ability™ Condition Monitoring and remote diagnostic tools enable real-time performance tracking, allowing proactive maintenance to prevent failures. This, combined with the converter’s low part count and rugged construction, ensures high availability and a service life of over 20 years in demanding environments .
Application Areas
Offshore Wind Farms: The ABB PCS6000 is deployed in projects like the Dogger Bank Wind Farm (UK), where it powers GE Haliade-X turbines to generate 1.2 GW of clean energy. Its high power handling and grid stability make it essential for offshore installations, where reliability and space efficiency are paramount .
Industrial Automation: In industries such as mining and metallurgy, the PCS6000 drives high-power motors, optimizing energy efficiency for crushers, mills, and conveyor systems. Its dynamic braking and torque control capabilities ensure smooth operation of heavy machinery, reducing mechanical wear and tear .
Marine Propulsion: The converter supports medium-voltage DC (MVDC) systems for ships, enabling efficient power distribution and propulsion control. Its IP54-rated enclosure and vibration resistance make it suitable for harsh marine environments .
Grid Stabilization: As a STATCOM (Static Synchronous Compensator), the PCS6000 provides reactive power support for weak grids in utility-scale applications. This is critical for integrating renewable energy sources into existing power networks, ensuring voltage and frequency stability .
Related Products
ABB PCS6000
ABB IGCT 5SHY4045L0006 3BHB030310R0001 Module
ABB PPD539A102 3BHE039770R0102
ABB PPD513 | AC800PEC | excitation controller | PP D513
PPD513A25-111615 3BHE039724R2565
ABB UAC318AE | HIEE300744R1 | Placa Para Inversor
ABB UAC326AE | HIEE401481R0001 | UA C326 AE
ABB UAC383AE01 HIEE300890R0001 binary input board …
UAC389 | High voltage inverter module | HIEE410506P104
ABB UAC389AE01 | HIEE300888R0001 | UA C389 AE01
Installation and Maintenance
Installation Preparation:
Professional installation is required due to the PCS6000’s high-voltage nature. Key steps include:
- Ensuring proper grounding and cable routing (shielded cables recommended for EMC compliance) .
- Connecting to the liquid-cooling systemand verifying hydraulic integrity .
- Commissioning with ABB’s Control Builder Msoftware to optimize parameters like DC-link voltage and switching frequency .
Maintenance Recommendations:
- Preventive Checks: Regularly inspect cooling systems for leaks, clean dust from heat sinks, and verify connector tightness.
- Component Replacement: Modular design allows quick replacement of faulty units (e.g., combi I/O modules or filter reactors) without system shutdown.
- Firmware Updates: Apply ABB’s periodic firmware updates to enhance performance and security.
- Predictive Maintenance: Use ABB Ability™ toolsto monitor temperature, vibration, and power output trends, identifying potential issues before they escalate .
Product Assurance
ABB provides a 1-year standard warranty for the PCS6000, covering defects in materials and workmanship. Authorized partners like AX Control offer 3-year extended warranties on refurbished units, including 48–72 hour rush repair services for urgent needs. ABB’s global technical support team delivers 24/7 assistance for installation, troubleshooting, and firmware updates. The company’s Predix platform enables remote monitoring and predictive analytics, further enhancing uptime and operational efficiency .
