Description
Product Overview

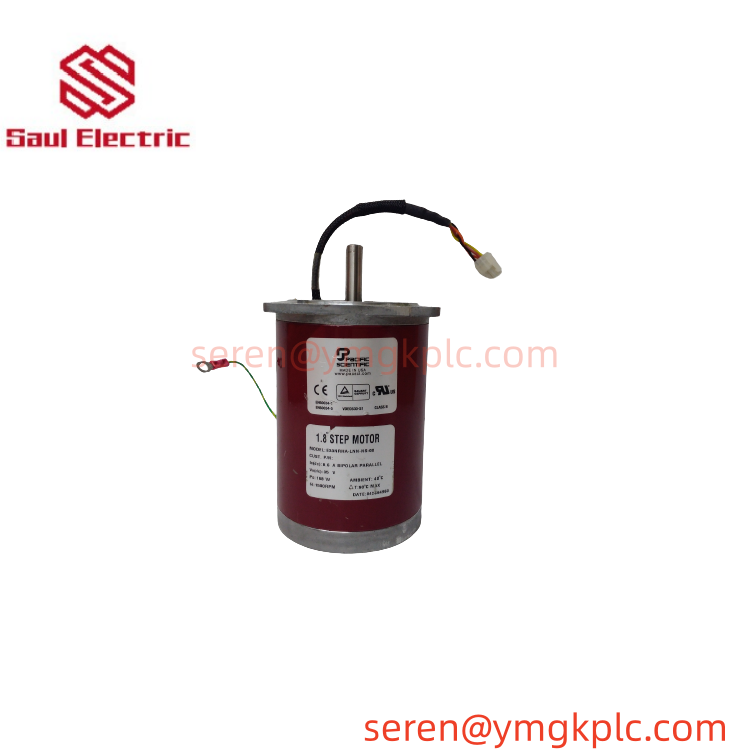

Pacific Scientific E33NRHA‑LNN‑NS‑00 belongs to E‑Series Sigmax hybrid stepper motor family, now under Kollmorgen brand ownership. Adopting Sigmax high‑performance magnetic‑circuit design, this NEMA34 frame stepper provides outstanding holding torque and acceleration performance compared with ordinary hybrid stepper motors. It uses connector‑style termination instead of flying leads, single smooth shaft and 3‑stack rotor construction, widely used for legacy automation equipment spare‑part replacement for multi‑axis positioning platforms, packaging machinery and material‑handling systems.
Series
E‑Series Sigmax stepper motor is Pacific Scientific classic high‑torque stepper platform. The Sigmax magnetic‑circuit greatly improves torque‑to‑volume ratio. Multiple frame sizes and stack‑length options are available for different torque‑demand automation equipment, supporting various termination and shaft configurations for field‑wiring requirements.
Product Features
‑ Sigmax optimized magnetic‑circuit technology for higher torque and acceleration output‑ NEMA34 standard flange mounting, 3‑stack rotor structure for high‑holding‑torque output‑ 1.8° step angle (200 steps/rev), high positioning repeatability‑ LNN termination: internal receptacle connector, no loose flying leads, stable field connection‑ Single smooth shaft configuration, convenient for coupling installation‑ Bipolar winding design, compatible with matching Pacific Scientific / Kollmorgen stepper drives‑ Rugged industrial mechanical structure, suitable for cabinet‑mount industrial equipment environment‑ End‑of‑life product; only new‑old‑stock / refurbished spare‑part supply for existing‑machine maintenance
Product Parameters
| Item | Details |
|---|---|
| Part Number | E33NRHA‑LNN‑NS‑00 |
| Brand | Pacific Scientific (Kollmorgen) |
| Series | E‑Series Sigmax Stepper Motor |
| Product Type | Hybrid Stepper Motor |
| Frame Size | NEMA 34 (86 mm) |
| Step Angle | 1.8° (200 steps per revolution) |
| Rotor Stack | 3‑stack |
| Shaft | Single smooth shaft |
| Termination | LNN‑connector receptacle (no flying leads) |
| Winding Mode | Bipolar |
| Typical Holding Torque | 1100‑1500 oz‑in (depends on drive current) |
| Operating Temperature | ‑20℃ ~ +50℃ |
| Protection Class | IP40 |
| Discontinued Status | Obsolete, spare‑part only |
Product Specifications
‑ Installation: Standard NEMA34 flange mounting‑ Storage temperature:‑40℃ ~ +70℃‑ Relative humidity: 5‑95% non‑condensing‑ Compatibility: Matches Pacific Scientific / Kollmorgen E‑series stepper drives‑ Note: Not recommended for new‑project design, only for replacement of original‑installed equipment
Function
Convert electrical pulse signal into precise mechanical rotary motion; provide high‑torque output for positioning and transmission; realize accurate angle and displacement control for automation axes; support multi‑axis coordinated motion with stepper drive system.
Purpose
High‑torque stepper power unit for industrial positioning‑equipment, drives ball‑screw tables, conveyor mechanisms and actuator axes for legacy automation machines.
Application Fields
‑ Packaging & converting machinery maintenance‑ Multi‑axis positioning table spare‑part replacement‑ Material‑handling and automated assembly‑lines‑ Semiconductor & electronic processing old‑equipment retrofit‑ Printing‑industry motion‑control equipment repair
