Description

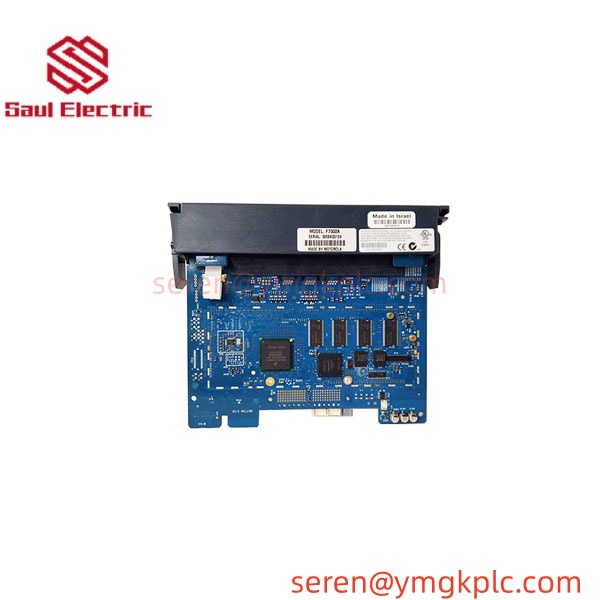

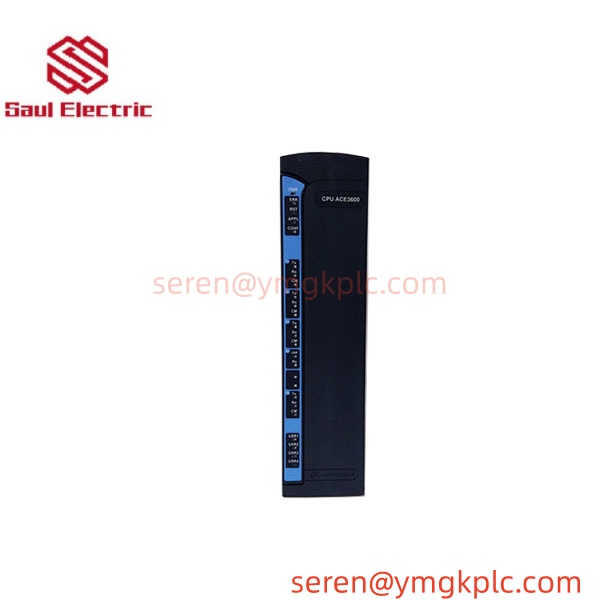

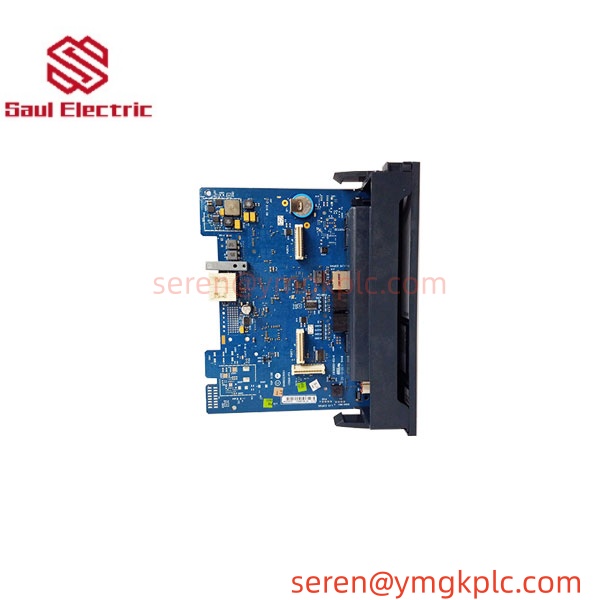

Motorola FLN3524A CPU3640 is a high-performance rack processor module designed for the Motorola ACE3600 automation control system. As the core controller, it runs real-time control applications, collects and processes I/O data, and communicates with remote I/O racks, HMI workstations and third-party field devices. The module adopts standard Eurocard rack structure and is widely used as replacement spare hardware for legacy industrial control systems in power, oil & gas and process industries.
Series
ACE3600 is Motorola’s modular distributed control platform for heavy-duty industrial automation. The hardware lineup includes CPU processors, analog/digital I/O modules, communication adapters and power supplies, supporting centralized and decentralized control architecture.
Product Features
- Dedicated CPU3640 processing core for cyclic control task execution and real-time data calculation.
- Onboard high-speed memory for program storage and process data buffering.
- Multiple built-in communication interfaces supporting serial protocols and Ethernet communication.
- High-speed internal backplane bus for data exchange with I/O and communication modules inside the rack.

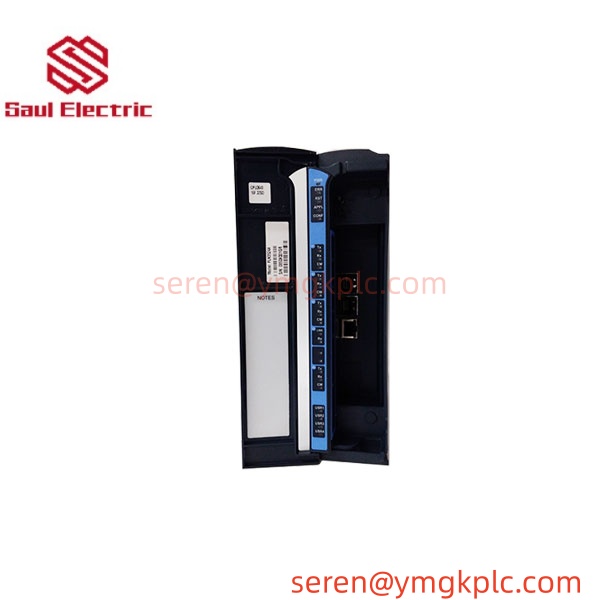

- Front panel LED indicators for module running status, network activity and fault diagnosis.
- Standard rack slot mounting structure, supporting direct hot-swap replacement during maintenance.
- Rugged industrial PCB assembly suitable for cabinet installation in harsh industrial environments.
- Legacy end-of-life hardware, not available for new project deployment.
Product Parameters
| Item | Details |
|---|---|
| Part Number | FLN3524A |
| Brand | Motorola |
| Series | ACE3600 Control System |
| Product Type | CPU Processor Module (CPU3640) |
| Installation | Standard ACE3600 rack slot mount |
| Power Supply | 24VDC backplane powered |
| Operating Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Humidity | 5–95% RH, non-condensing |
| Discontinued Status | Obsolete, spare-part only |
Product Specifications
- Certification: CE compliant
- Remark: Must match original ACE3600 rack firmware version; not recommended for new engineering projects.
Function
- Execute user automation control programs and real-time closed-loop control algorithms.
- Exchange input/output data with all I/O modules via system backplane bus.
- Establish communication connections with upper monitoring systems and field devices.
- Detect module hardware failures and upload diagnostic alarms to the control system.
- Store runtime parameters and historical process data within onboard memory.
Purpose
Main processor unit for Motorola ACE3600 control racks, responsible for overall logic operation and data management of on-site automation equipment.
Application Fields
- Power plant legacy control system maintenance
- Oil & gas onshore production automation retrofit
- Petrochemical plant distributed control spare-part replacement
- Water treatment industrial control system repair
- Existing Motorola ACE3600 platform site equipment maintenance
