Description
PRODUCT OVERVIEW
MOOG 312A6077P007 belongs to the classic MOOG 31 series compact two-stage flow control servo valve, adopting double nozzle-flapper pilot stage + mechanical feedback main spool structure with integrated sealed torque motor component. It converts analog current control signals into precise proportional hydraulic flow output, featuring ultra-small volume, fast dynamic response, low hysteresis and high resolution. The valve body is made of stainless steel with good shock resistance, vibration resistance and medium pollution resistance. Widely used in thermal power DEH turbine governing systems, material mechanics test benches, aerospace simulation loading equipment, metallurgical precision rolling control and hydraulic fatigue test platforms for equipment overhaul replacement and spare parts backupMoog Inc..
TECHNICAL SPECIFICATIONS
| Item | Parameter Details |
|---|---|
| Part Number | MOOG 312A6077P007 |
| Structural Form | Two-stage servo valve, double nozzle baffle, mechanical feedback, sealed torque motor |
| Mounting Standard | ISO 10372-02 Size 2 standard mounting surface |
| Max Working Pressure | 210 bar (3000 psi) |
| Rated Flow Range | 3.8 ~ 15 L/min (under 70bar pressure drop) |
| Frequency Response | Up to 200Hz (90° phase lag) |
| Rated Control Current | Standard single coil 10/20/40mA optional |
| Working Temperature | -40℃ ~ +125℃ long-term stable operation |
| Storage & Transport Temperature | -40℃ ~ +85℃ |
| Structural Advantage | Compact lightweight, fully sealed motor cavity, strong environmental adaptability |
| Fail-Safe Design | Automatically reset to zero position to cut off hydraulic flow when control signal is lost |
| Certifications | CE international safety certification |
| Product Attribute | Original genuine industrial precision servo spare part |
COMMERCIAL PROCUREMENT PROTOCOL
- Matching Confirmation: Our technicians verify your hydraulic system parameters, controller signal mode and installation size to realize plug-and-play replacement.
- Tiered bulk pricing: Favorable unit price for bulk orders, real-time stock data and international freight fees are updated synchronously.
- Export document support: Provide complete customs clearance materials and unified HS code declaration to ensure smooth customs clearance in various countries worldwide.
- Formal PI issuance: Issue official proforma invoice to cooperate with your internal financial approval and payment procedures.
- Payment method: Secure transaction via T/T wire transfer and other formal enterprise settlement methods.
- Strict pre-delivery inspection: Each servo valve passes hydraulic tightness test, full flow characteristic calibration and dynamic response curve detection before shipment.
- Export packaging solution: ESD anti-static sealed bag + high-density shockproof foam + thickened reinforced carton to protect precision internal spool components from collision damage during long-distance transportation.
- Global logistics delivery: Shipped via official DHL, FedEx, UPS channels; tracking number will be provided immediately after goods dispatch.
VISUAL PRODUCT SHOWCASE

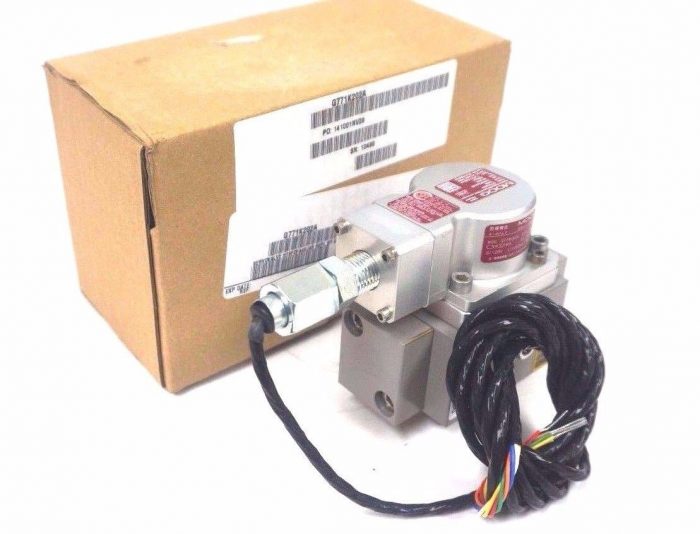

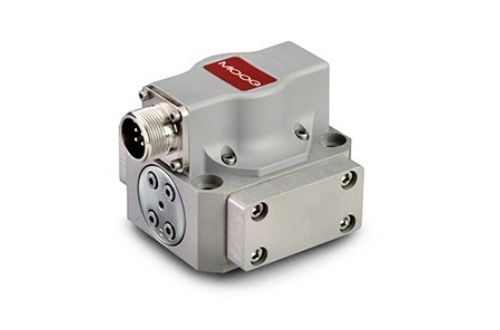

- Product Photo 1: Overall physical appearance of MOOG 312A6077P007 servo valve
- Product Photo 2: Close-up of valve nameplate, oil ports and electrical plug interface
MATCHING SPARES & ACCESSORIES
Servo amplifier module, integrated hydraulic manifold block, high-pressure hydraulic pipeline, precision hydraulic filter element, sealing repair kit, system debugging software, valve installation drawing and professional maintenance manual，Moog G771K203 ，MOOG G771K200A
AFTER-SALES GUARANTEES
12-month warranty coverage for inherent hardware defects under standard rated operating conditions. All supplied servo valves are original genuine products (brand new original parts or disassembled second-hand products after full bench calibration testing), completely consistent with original factory flow performance and installation dimensional standards. We provide official datasheets, wiring specifications and on-site installation safety guidelines via email. Free remote technical support covers valve field commissioning, hydraulic system parameter matching and routine fault troubleshooting.
FAQ
What core value does 312A6077P007 bring to precision hydraulic closed-loop control system?As the key electro-hydraulic conversion execution unit of the system, it quickly tracks the command signal output by the upper controller, accurately adjusts the hydraulic flow and pressure of the actuator, ensures high-precision stable operation of test benches, turbine governing systems and rolling equipment, and improves the stability and consistency of industrial production and test data.Does replacing this servo valve require overall shutdown for long-time system debugging?The installation hole position and oil circuit layout are fully matched with the original valve. Only simple zero-point correction is needed after physical installation, and the system can be put into normal operation quickly without modifying the original control program logic.Are recycled second-hand servo valves required to complete full performance calibration before delivery?All disassembled recycled valves will complete professional oil circuit cleaning, internal leakage inspection, full-scale flow calibration and dynamic frequency response testing item by item on a dedicated servo test bench to fully restore the original factory performance indicators before shipment.Delivery lead time for spot inventory products?Spot products are stored in domestic warehouse, all delivery formalities can be fully complet
