Description
Product Overview

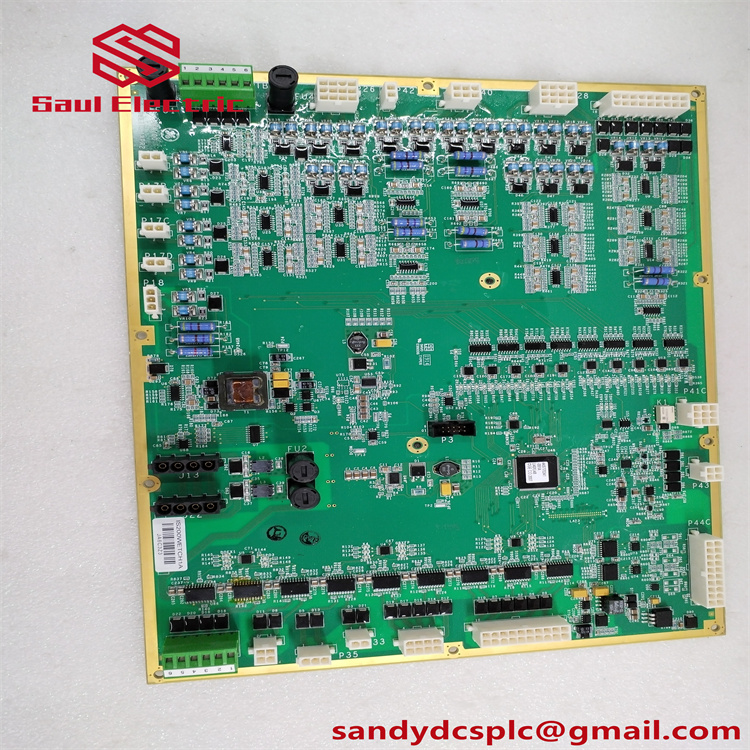

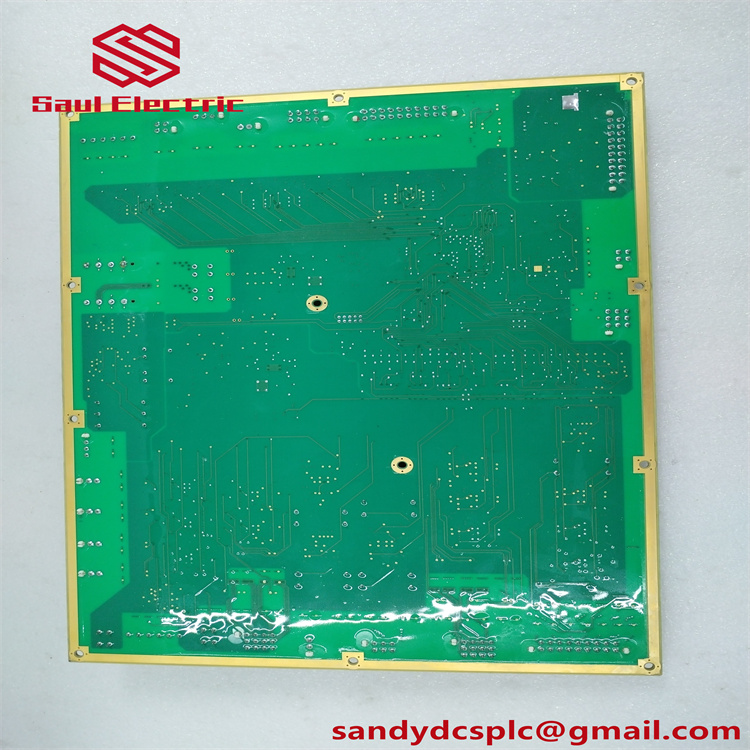

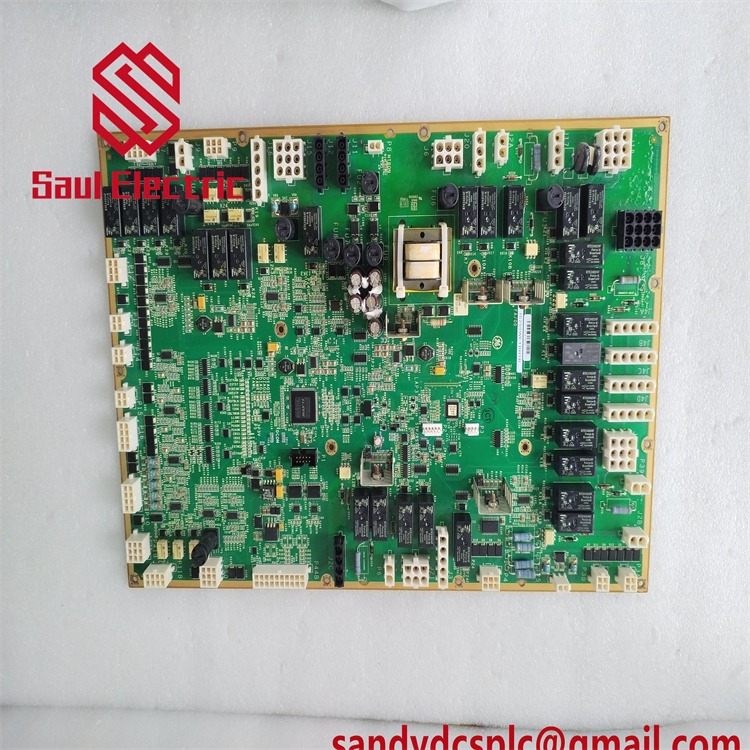

The GE IS200PSCDG1ADB is a high-reliability Power Supply/Contactor Driver Board designed for GE’s Mark VI Speedtronic Turbine Control System, widely used in power generation, oil & gas, and heavy industrial environments. As a critical component in turbine excitation systems, this module provides regulated power distribution, contactor control, and diagnostic feedback for Silicon-Controlled Rectifier (SCR) bridges and auxiliary equipment. It interfaces with the EX2000 PWM Exciter and Mark VIe controllers, ensuring stable operation in electrically noisy or harsh conditions .
Featuring dual redundant 14–32V DC inputs and advanced surge protection (MOVs), the IS200PSCDG1ADB supports a wide range of power bridge configurations, including three-phase rectifiers and inverters. Its rugged design includes conformal coating to mitigate EMI/RFI interference and protect against dust, moisture, and chemical contaminants. The module’s single-board architecture integrates high-reliability drivers for contactor coils and SCR gating, making it ideal for applications requiring fail-safe operations, such as generator field current regulation and emergency shutdown systems (ESD) .
With compatibility with GE’s ToolboxST software, the IS200PSCDG1ADB enables remote configuration of power thresholds, diagnostic parameters, and firmware updates. Its compact form factor (16.2 cm × 8.6 cm) allows for flexible mounting (DIN rail or wall), making it suitable for space-constrained control cabinets in offshore platforms or high-vibration industrial settings .
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS200PSCDG1ADB |
| Manufacturer | General Electric (GE) |
| Product Type | Power Supply/Contactor Driver Board for Mark VI Speedtronic Systems |
| Input Voltage | 14–32V DC ±10% (via dual redundant terminals) |
| Output Voltages | ±24V DC, ±15V DC, +5V DC (regulated) |
| Power Consumption | 12W max (including contactor driver circuits) |
| Contactor Control | 0.75A DC max (100V DC output for MDA contactor coils) |
| Communication | GE Mark VIe fieldbus, Modbus RTU (via adapter) |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Ingress Protection | IP54 (dust and water splash resistance) |
| Dimensions | 16.2 cm (height) × 8.6 cm (width) × 4.8 cm (depth) |
| Weight | 0.6 kg |
| Certifications | CE, RoHS, UL, CSA (Class I, Division 2) |
| EMI/RFI Protection | Integrated filters and shielding for industrial EMI environments |
| Redundancy Support | System-level redundancy via Mark VIe dual controllers |
| Thermal Protection | Built-in thermal switches (alarm at 77°C, trip at 88°C) |
Key Features and Advantages
Precision Power Regulation: The IS200PSCDG1ADB provides microsecond-level power delivery for SCR bridges, ensuring smooth voltage regulation in generator excitation systems. Its adaptive voltage control algorithm optimizes efficiency across varying load conditions, reducing harmonic distortion by up to 30% .
Comprehensive Monitoring: The module integrates Hall-effect sensors for real-time current feedback and RTD inputs for bridge temperature monitoring. This data is transmitted to the controller via the Mark VIe fieldbus, enabling predictive maintenance and fault isolation .
Fail-Safe Design: Certified to IEC 61508 SIL 2 standards, the IS200PSCDG1ADB incorporates redundant power supplies and self-diagnostic circuitry. In the event of a fault, it automatically triggers a controlled SCR shutdown to prevent equipment damage .
Fieldbus Integration: Seamless compatibility with GE’s Mark VIe system allows remote configuration of contactor timing parameters, diagnostic thresholds, and firmware updates. This reduces downtime during system commissioning or upgrades .
Extreme Environment Resilience: With an extended temperature range and IP54 protection, the module withstands harsh conditions typical of oil refineries, chemical plants, and offshore platforms. Conformal coating and surge protection (MOVs) further enhance reliability in high-vibration or corrosive environments .
Application Areas
Power Generation:
- Steam/Gas Turbines: Controls generator field current to maintain voltage stability during load fluctuations, ensuring grid synchronization and optimal energy output.
- Hydroelectric Plants: Manages SCR-based excitation systems for precise speed regulation and power factor correction in variable-speed turbines .
Oil & Gas:
- Offshore Platforms: Monitors and regulates power bridges in gas compressor drives, ensuring reliable operation in saltwater mist and high-humidity environments.
- Pipeline Pump Stations: Provides fail-safe contactor control for motor drives, minimizing downtime during pipeline pressure adjustments .
Industrial Manufacturing:
- Metal Processing: Regulates DC motor speed in rolling mills and extrusion presses, ensuring consistent product quality under heavy loads.
- Mining Equipment: Supports SCR-based drives for conveyor systems and crushers, enhancing energy efficiency in dusty, high-vibration environments .
Renewable Energy:
- Wind Turbines: Controls grid-tie inverters to maintain power quality during variable wind conditions, reducing harmonic distortion in electrical outputs.
- Solar Inverters: Manages SCR-based DC-AC conversion for utility-scale solar farms, ensuring efficient energy transfer to the grid .
Related Products
- IS200EROCG1A: Exciter Regulator Options Card providing core control logic for the IS200PSCDG1ADB and other Mark VIe components .
- IS200EPDMH1A: Exciter Power Distribution Module delivering redundant 14–32V DC power to the IS200PSCDG1ADB and EX2000 exciter .
- IS200GDDDG1A: Gate Driver and Diode Detection Board expanding SCR control capacity for multi-bridge configurations .
- IS200TRLYH1BGG: Relay Output Module managing discrete control signals for auxiliary equipment like cooling fans .
- ToolboxST: GE’s configuration software for programming, calibrating, and diagnosing the IS200PSCDG1ADB and Mark VIe components .
Installation and Maintenance
Installation Preparation:
- ESD Precautions: Handle the IS200PSCDG1ADB with anti-static gloves and store it in ESD-protective packaging. Use shielded cables for power wiring, grounding shields at both ends to minimize EMI .
- Physical Mounting: Secure the module on a DIN rail within the Mark VIe power conversion cabinet, ensuring at least 2 cm of clearance for airflow. Connect redundant 14–32V DC power cables and fieldbus connections to the EPDM module .
- Software Setup: Use ToolboxST to configure power thresholds, enable thermal alarm triggers, and verify communication with the EROC. Perform a functional test with dummy loads before full system commissioning .
Maintenance Recommendations:
- Routine Checks: Inspect LED indicators monthly for power, communication, or fault status. Clean dust from vents and connectors using a dry, lint-free cloth .
- Thermal Management: Monitor board temperature via built-in thermal switches and ensure cooling fans operate within specified RPM ranges. Replace fan filters every 6 months in dusty environments .
- Firmware Updates: Schedule annual firmware updates via ToolboxST to address security patches and enhance compatibility with newer Mark VIe components.
- Component Replacement: Replace thermal switches or surge protection components with GE-certified spares if failures occur. For board-level repairs, contact GE-authorized service centers to ensure compliance with safety standards .
Product Warranty and Support
GE guarantees the IS200PSCDG1ADB against defects for 1 year from purchase. Customers receive:
- Global Technical Support: 24/7 access to GE-certified engineers for remote diagnostics and troubleshooting.
- Comprehensive Documentation: Datasheets, wiring diagrams, and safety manuals available via GE’s online portal.
- Upgrade Path: Transition to the IS200PSCDG2A for advanced cybersecurity features or integrate with GE’s Predix IoT platform for predictive analytics .
