Product Overview

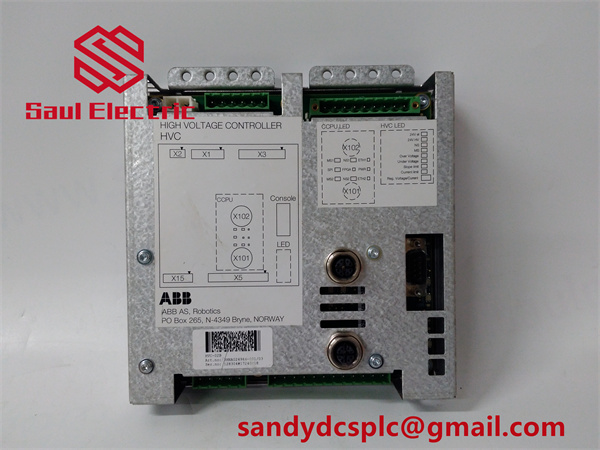

The ABB HVC-02B 3HNA024966-00103 is a high-voltage controller module designed specifically for ABB’s robotic painting systems, particularly within the Integrated Painting System (IPS) platform. This critical component functions as a Central Control Processing Unit (CCPU), responsible for generating and regulating the high voltage required for electrostatic painting applications. The HVC-02B module drives the cascade circuit to produce the necessary high voltage for electrostatic bells or guns, ensuring efficient paint atomization and transfer. It is an integral part of the IRC5P robot controller system, seamlessly interfacing with other IPS components via built-in Ethernet and CAN interfaces. The module is designed for high reliability in demanding industrial environments, offering features like comprehensive diagnostics and support for various IPS software versions. Its role is pivotal in achieving high-quality, uniform paint finishes with minimal overspray, contributing significantly to production efficiency and cost savings in automated painting lines. The ABB HVC-02B exemplifies engineering precision for critical automation tasks where consistent high-voltage control is paramount .

Technical Specifications

Parameter Name	Parameter Value
Product Model	HVC-02B 3HNA024966-00103
Manufacturer	ABB
Product Type	High-Voltage Controller Module (CCPU)
Compatible Systems	ABB IRC5P, Integrated Painting System (IPS)
Input Power	24 V DC (max 30 V DC)
Power Consumption	150W
Output Voltage	0-130V (Cascade drive)
Communication Ports	Ethernet (X101, X102), CAN (X5, X15)
IPS Software Compatibility	IPS 4.60.07, IPS 4.50.26, IPS 4.30.34, IPS 4.27.50
Board Type	Central Control Processing Unit (CCPU)
Safety Standards	Meets relevant industrial safety and EMC directives

Main Features and Advantages

The ABB HVC-02B offers several key advantages for electrostatic painting applications. Its high-voltage generation capability ensures optimal paint charging for superior finish quality and material efficiency. The module supports multiple IPS software versions, providing flexibility for system integration and upgrades. Advanced diagnostic features, including status LEDs, allow for quick troubleshooting and minimize downtime. The HVC-02B is designed with robust industrial-grade components to ensure reliable operation in challenging manufacturing environments. Its integrated design simplifies installation and maintenance within the ABB robot controller cabinet.

Application Areas

The ABB HVC-02B 3HNA024966-00103 is primarily used in industries utilizing automated electrostatic painting processes. Its main application is in automotive manufacturing for painting vehicle bodies and parts, ensuring a high-quality finish with efficient paint usage. It is also employed in aerospace for coating aircraft components, in general industrial manufacturing for painting consumer goods and machinery, and in wood processing for finishing furniture and architectural elements. The module is essential in any scenario requiring precise and reliable high-voltage control for electrostatic application of coatings .
