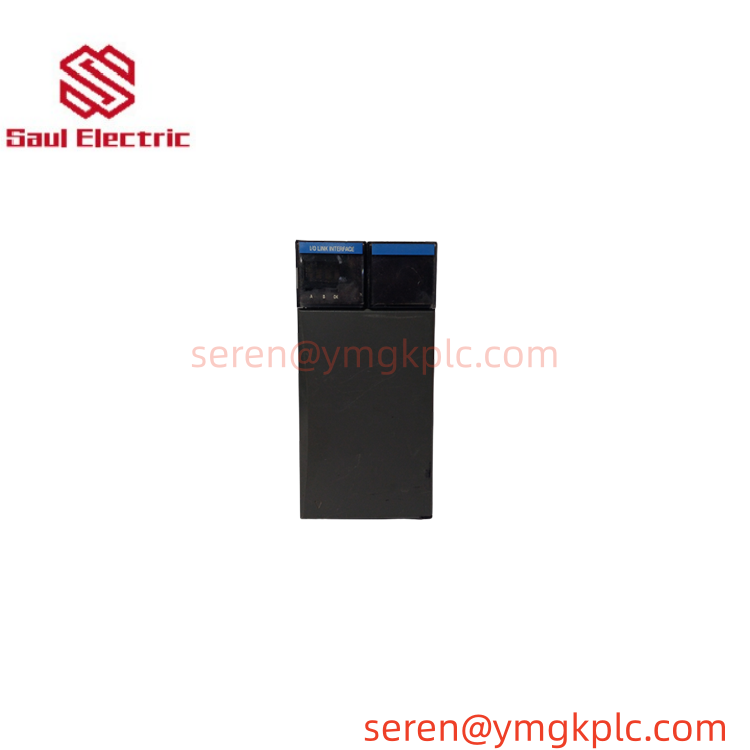

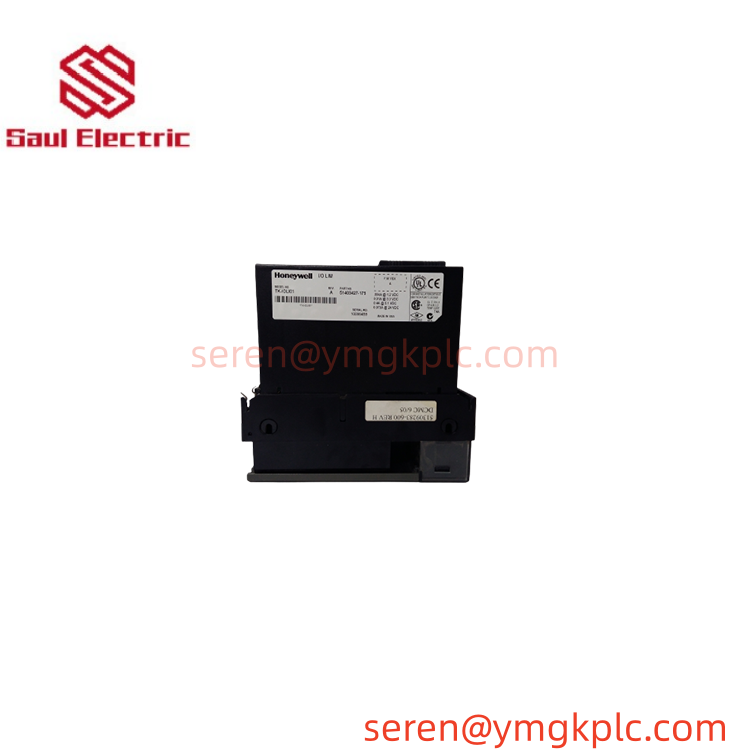

Honeywell TK-IOLI01 | I/O Link Interface Module

Description

3. Product Introduction (Anti-Template)

When a legacy control system depends on PMIO field I/O, the I/O link is a critical communication path rather than just another rack component. Honeywell TK-IOLI01 is the I/O Link Interface Module (IOLIM) used to interface the Series-A control environment with PMIO.

Honeywell’s own system documentation lists TK-IOLI01 specifically as the IOLIM, or I/O Link Module, Interface for PMIO. Two TK-IOLI01 modules can be installed in the documented Series-A chassis architecture, making the module relevant to both replacement and spare-parts planning.

4. Key Technical Specifications

Honeywell’s Series-A documentation identifies TK-IOLI01 as the IOLIM used as an interface for PMIO, while the same chassis documentation lists a maximum of two such modules in the relevant architecture.

The part is also documented under the alternate Honeywell number 51403427-175. Published inventory references put the module’s net weight around 0.41–0.45 kg, so for freight planning I would allow approximately 0.8–1.0 kg gross packed weight rather than using the bare-module figure.

5. Field Application & Technical Pitfalls (The Engineer’s Guide)

TK-IOLI01 is mainly a legacy PMIO interface component. Its importance comes from where it sits in the architecture: a failure can interrupt the control system’s access to an entire group of field I/O rather than taking down only one analog or digital channel.

1. PMIO field I/O integration
   The module provides the I/O Link interface required between the control system and PMIO architecture. Honeywell specifically describes it as the interface for PMIO.
2. Series-A chassis installations
   TK-IOLI01 is listed as a supported module in Series-A chassis configurations. Honeywell’s documentation shows it alongside communication and I/O interface modules.
3. Legacy plant maintenance
   For plants still operating older Series-A equipment, retaining a tested TK-IOLI01 spare can be more economical than troubleshooting an intermittent I/O-link fault during production.

Three replacement pitfalls deserve attention:

• PMIO architecture mismatch: Do not purchase TK-IOLI01 merely because the chassis is Honeywell Series-A. Verify that the installed system actually uses PMIO and requires the IOLIM function.
• Part-number confusion: The module is also identified as 51403427-175 in inventory documentation. Match the complete number and physical identification rather than assuming every similarly labeled I/O interface is equivalent.
• Link-level troubleshooting: If field I/O disappears, the TK-IOLI01 should not automatically be blamed. Check the complete path—power supply, module seating, I/O Link connections, PMIO equipment, and controller diagnostics.

Do not hot-swap the module simply because the chassis remains powered. Unless the specific Series-A configuration explicitly supports live replacement, isolate the relevant equipment before removing the IOLIM.

Lesson learned: A maintenance engineer sees multiple field signals disappear simultaneously and replaces an I/O module at random. The new module does not solve the problem because the actual fault is upstream in the I/O Link path. When many unrelated channels fail together, think architecture first—not individual field devices.

6. Quality Control (QC) SOP & Transparency

1. Inbound Verification
   • Verify the exact model TK-IOLI01.
   • Cross-check the alternate identification 51403427-175 where applicable.
   • Inspect connectors, housing, PCB condition, labels, and mounting points.
   • Check for corrosion, damaged pins, cracked components, or previous repair work.
   • Record the actual condition as New Original, New Surplus, or Refurbished.
2. Live Rig Testing
   • Install the module in a compatible Series-A test chassis where available.
   • Apply the required 24 VDC supply under controlled conditions.
   • Verify startup and module diagnostic behavior.
   • Establish the I/O Link connection with a compatible PMIO test environment.
   • Confirm stable communication rather than relying solely on power-on status.
3. Parameter Testing
   • Verify the 24 VDC supply and current consumption.
   • Check I/O Link communication stability.
   • Monitor for intermittent link loss or diagnostic faults.
   • Test connector continuity and mechanical seating.
   • Where the complete test environment is available, verify representative PMIO data transfer through the module.
4. Final QA & Packaging
   • Record model, alternate part number, serial information, and test results.
   • Apply a QC-passed identification label.
   • Package the module in anti-static protective material.
   • Protect connectors from bending and impact during transportation.
   • Provide the applicable test record and a 12-month warranty under the agreed warranty terms.

7. Frequently Asked Questions (FAQ)

Q1. What exactly is Honeywell TK-IOLI01?
It is a Honeywell I/O Link Interface Module (IOLIM) used as an interface for PMIO within the Series-A architecture.

Q2. Is TK-IOLI01 an analog or digital I/O module?
Neither in the conventional sense. It is an I/O interface module, not a 16-point digital input or 8-channel analog output card. Its job is to provide the I/O Link interface to PMIO.

Q3. What is the alternate part number?
A commonly documented alternate number is 51403427-175. Before ordering, compare the complete nameplate because legacy Honeywell parts can have multiple identification numbers.

Q4. How many TK-IOLI01 modules can be installed?
Honeywell’s Series-A documentation lists two TK-IOLI01 modules in the applicable chassis configuration. The actual number required depends on the system architecture.

Q5. Can I hot-swap TK-IOLI01?
Do not assume so. The safe procedure depends on the exact Series-A chassis and system configuration. Unless live replacement is explicitly supported by the applicable maintenance documentation, power down and isolate the equipment before replacement.

Q6. How can I verify compatibility before purchasing?
The most useful information is the existing module’s complete part number, nameplate photograph, chassis model, and whether the system uses PMIO. If you provide those four items, compatibility can be checked much more reliably than by model number alone.

Q7. What warranty is available?
A 12-month warranty can be provided under the agreed supply terms. For this legacy interface module, I would also recommend confirming the PMIO architecture and existing I/O Link arrangement before finalizing the replacement.
