Description
3. Key Technical Specifications
- Number of outputs: 8 points (source type)
- Rated output voltage: 24 V DC nominal (operating range 15–30 V DC)
- Max output current: 0.5 A per channel / 4 A per module
- ON-state voltage drop: 0.3 V DC @ 25 °C; 0.5 V DC @ 70 °C
- Min ON-state current: 1 mA
- Max OFF-state leakage: 5 µA
- Output response time: OFF→ON 0.3 ms max; ON→OFF 0.3 ms max
- Indicators: 8 green LEDs (logic-side output status)
- Protection: Overcurrent limit (min 6.5 A @ 25 °C per channel), thermal shutdown, short-circuit protection
- Commons: 8 points / 2 COM
- Typical weight / dimensions (field variants): approx. 0.2–0.35 kg; compact module form factor
4. Product Introduction (Anti-Template)

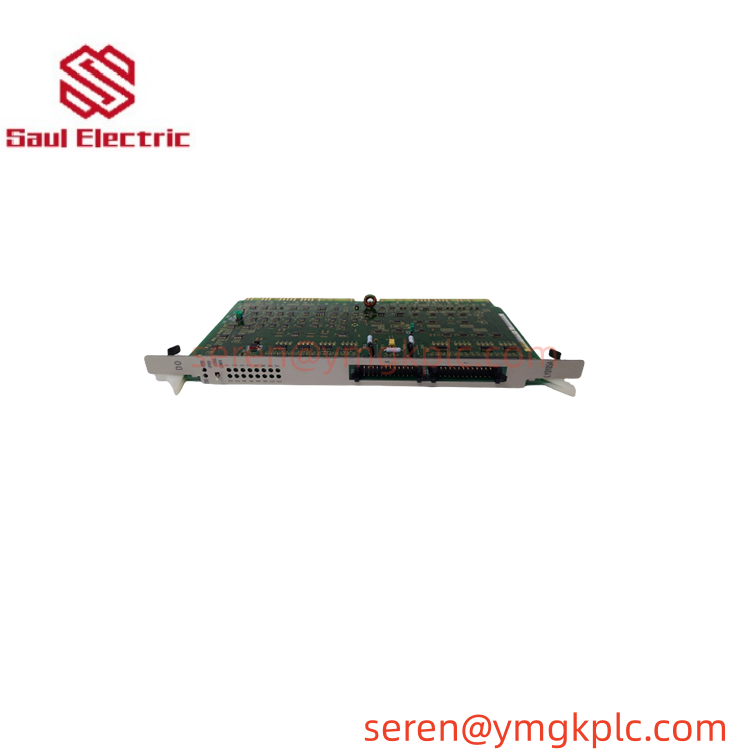

When a main CPU trips and downtime costs thousands per minute, the last thing you need is an unresponsive output card. The Hitachi LYD105A steps in as an 8-point source-type digital output module built for exactly those control cabinets. It switches 24 V DC loads with sub-millisecond response and built-in overcurrent and thermal protection, keeping field devices—solenoids, indicator lamps, small contactors—under tight command.
Honestly, this design choice saves hours of rewiring when you stay inside the same Hitachi I/O family. Photocoupler isolation and dual commons keep noise from jumping channels, while the status LEDs give technicians an instant visual check without opening a laptop.
5. QC, Procurement & Logistics SOP
- Inbound Verification: Origin tracing against Hitachi part labeling, OEM seal and date-code inspection, visual check for bent pins or damaged connectors.
- Live Rig Testing: Power-on self-test in a compatible rack, verification of all eight channels under load, confirmation of LED indication and response timing.
- QA & Anti-Static Packaging: Final functional sign-off, conformal inspection, sealed in anti-static bags with desiccant and foam support.
- Global Logistics & Export Compliance: Optimized HS code classification for industrial electronic modules, double-boxed with shock indicators, documented for air or sea freight to minimize customs holds.
6. Technical Pitfalls & Integration Warnings
Firmware or system revision mismatch can drop communication. Picture a plant running an older Hitachi CPU that expects a specific I/O protocol handshake—swap in an LYD105A from a later production lot and the outputs stay dark until the backplane firmware is aligned.
DIP switch or address configuration errors are classic. A technician sets the wrong base address, the module powers up with green LEDs, yet the PLC never sees the points; hours later the root cause is a single switch that should have been left at factory default.
Wiring or terminal incompatibility bites hard. Source-type outputs expect the load connected to the negative rail; wire them as sink and nothing moves—or worse, you reverse polarity and stress the protection circuits.
ESD during unboxing still kills modules. Dry winter air, no wrist strap, a quick touch on the edge connector, and one channel fails intermittent weeks later. Always ground before handling.
7. Frequently Asked Questions (FAQ)
How long does global shipping usually take once the unit clears QA? Most regions see 3–7 business days by air after export docs are complete. Sea freight stretches that to 3–5 weeks depending on port congestion—customs clearance in the EU might add 2 days.
What shipping and customs options do you support? We handle air freight for urgency and sea for bulk. All shipments carry optimized HS classification and full commercial invoice so clearance stays predictable.
Can I hot-swap the LYD105A while the rack is live? Not recommended. Removing or inserting under power risks backplane arcing and can take out adjacent modules. Power down the I/O base first.
Is the LYD105A backward-compatible with older Hitachi racks? In most cases yes within the same family, provided voltage, commons, and addressing match. Always confirm the exact backplane revision and firmware before the swap.
What happens if the load exceeds 0.5 A on one channel? The overcurrent and thermal protection kick in. The channel shuts down until the fault clears and the module cools; repeated overloads can permanently degrade that output.
Do you supply the terminal blocks or just the module? Module only unless specified. Match the original terminal style or use the Hitachi-compatible blocks rated for the current.
Any special storage or handling notes before installation? Keep in original anti-static packaging until ready. Avoid condensation; bring the unit to ambient temperature before powering up in a humid plant.
