Description
Product Overview

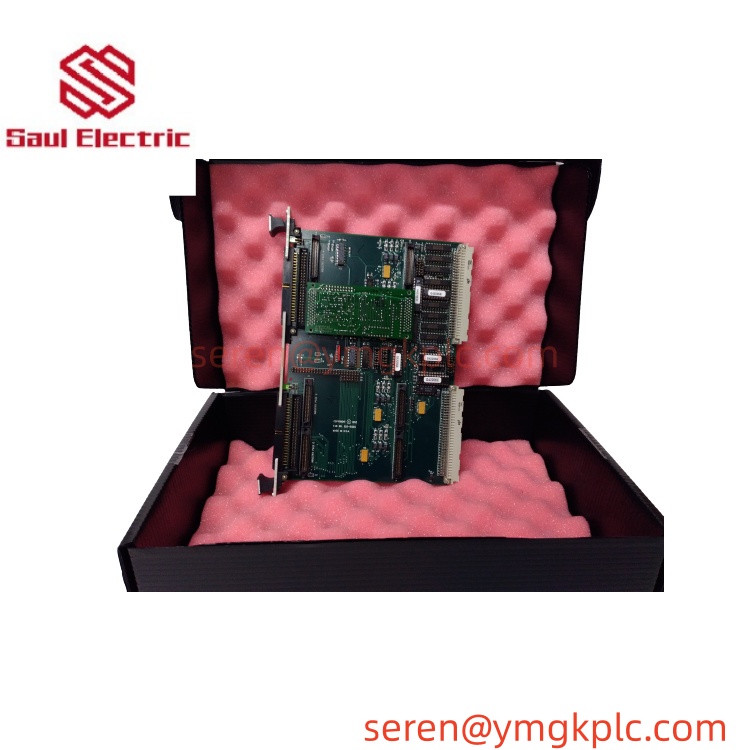

The GREENSPRING 320‑1026C is a high‑performance Industry‑Pack‑form‑factor analog‑to‑digital converter mezzanine card, originally manufactured by Greenspring Computers (Curtiss‑Wright). Following VITA‑4 Industry Pack mechanical and electrical standards, this module plugs into IP carrier boards for VME or VXI embedded systems. It delivers 16‑bit high‑accuracy sampling for analog voltage signals, supporting 16 single‑ended or 8 differential input channels with software‑selectable voltage ranges. Built‑in FIFO buffer handles burst high‑speed sampling data to avoid data loss. Widely deployed in legacy industrial test‑equipment, embedded real‑time control and measurement‑system retrofit projects for spare‑part replacementnewplcdcs…..
Series
Industry Pack (IP) mezzanine card series, compact modular auxiliary boards for VME/VXI embedded platforms, providing ADC, DAC, digital I/O and communication functions for real‑time data‑acquisition hardware.
Product Features
- 16‑bit high‑resolution ADC for precision analog voltage sampling
- Flexible channel configuration: 16‑channel single‑ended or 8‑channel differential input
- Multiple programmable input voltage ranges (±10V, ±5V, 0‑10V, 0‑5V etc.)
- On‑board FIFO data buffer for high‑speed burst‑sampling scenarios
- Complies with VITA‑4 Industry Pack mechanical & electrical specification
- Low‑power CMOS circuit design, suitable for embedded rack‑based systems
- Compact mezzanine‑card structure, installs onto compatible IP carrier host boards
- Designed for long‑term continuous operation in industrial and test‑system cabinets
Product Parameters
| Item | Parameter |
|---|---|
| Model | 320‑1026C |
| Module Type | Industry‑Pack ADC Mezzanine Module |
| ADC Resolution | 16‑bit |
| Input Channels | 16 single‑ended / 8 differential |
| Programmable Input Range | ±10V, ±5V, 0‑10V, 0‑5V |
| Data Buffer | On‑board FIFO |
| Bus Interface | VITA‑4 Industry‑Pack IP bus |
| Compatible Host | VME / VXI IP carrier boards |
| Operating Temperature | 0℃ ~ +70℃ |
| Form Factor | Industry‑Pack mezzanine card |
Product Specifications
- Physical form: Standard Industry‑Pack mezzanine auxiliary card
- Condition: New surplus / Tested used (stock subject to real‑time confirmation)
- Warranty: 365‑day warranty for supplied units
- Shipment: In‑stock goods ship within 3 working days after payment
Function
Receives analog voltage signals from field sensors; performs 16‑bit analog‑to‑digital conversion; temporarily stores sampled data via onboard FIFO; transmits digital sampling data to host VME/VXI carrier board through IP bus interface for real‑time calculation and recording.
Purpose
Complete multi‑channel high‑precision analog signal collection for legacy VME / VXI embedded measurement‑control systems, implement signal acquisition for test equipment and industrial monitoring devices.
Application Fields
‑ VME / VXI embedded real‑time data‑acquisition systems‑ Industrial automatic test equipment (ATE)‑ Aerospace & defense measurement‑control cabinets‑ Scientific research laboratory measurement instruments‑ Legacy Greenspring Industry‑Pack system maintenance & spare‑part replacement‑ Heavy‑industry special‑purpose embedded control‑system retrofits
Image search keyword for reference:
GREENSPRING 320‑1026C Industry Pack ADC module
