Description

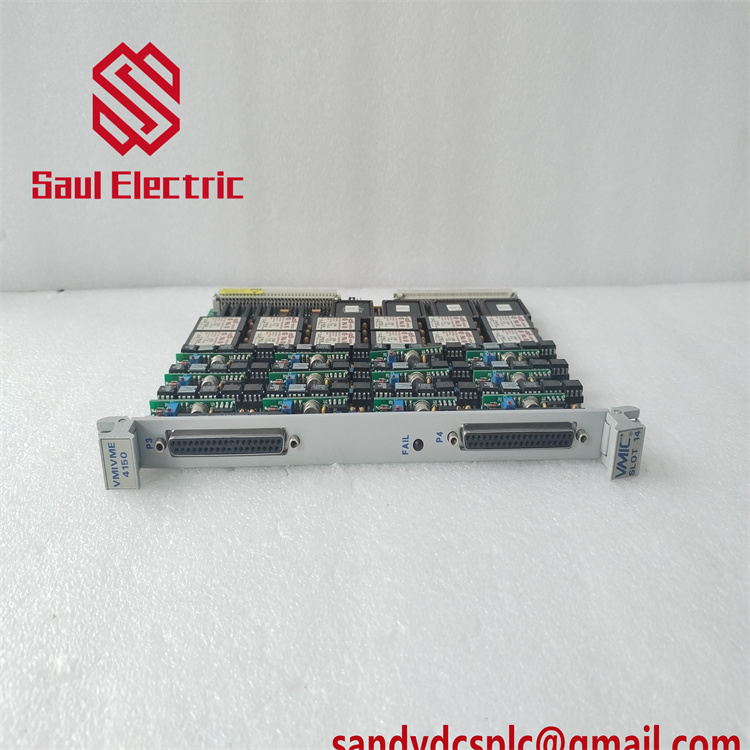

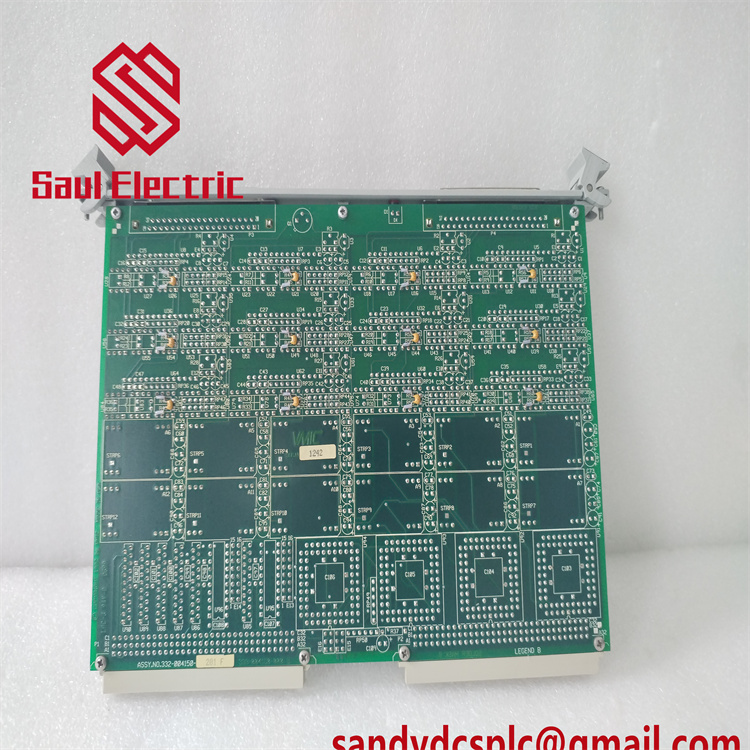

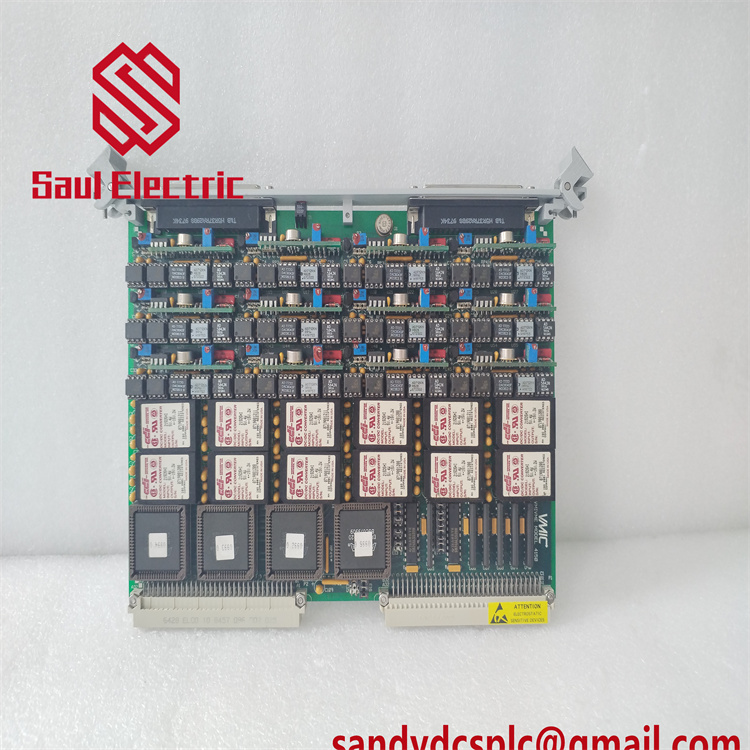

Product Overview
The GE VMIVME-4150 is a high-performance 12-channel isolated analog output module designed for industrial automation systems, specifically within GE’s VMIC/GE Fanuc VMEbus platform. Engineered to deliver precise control signals for critical processes, this module bridges the gap between digital control systems and analog actuators, ensuring seamless integration in applications requiring high-speed, high-accuracy signal generation.
Featuring 12 independent channels with 12-bit resolution, the GE VMIVME-4150 supports software-selectable voltage ranges (±10 V, ±5 V, ±2.5 V, 0–10 V, 0–5 V, 0–2.5 V) and current loop outputs (4–20 mA, 0–20 mA, 5–25 mA) to accommodate diverse industrial sensors and actuators 111. Each channel includes a dedicated 12-bit DAC (Digital-to-Analog Converter) with 0.8 Ω output impedance and 1,000 Vpk isolation between channels and the VMEbus, enabling stable and reliable signal transmission even in electrically noisy environments 111. The module’s dual-buffered architecture supports both random updates and software/external synchronous updates, ensuring real-time control with minimal latency.
Within GE’s automation ecosystem, the GE VMIVME-4150 serves as a core component for process control, robotics, and test systems. Its VMEbus slave interface ensures compatibility with GE’s VME-based controllers, while the command-driven memory-mapped design simplifies programming and diagnostics. By combining advanced signal conditioning with industrial-grade durability, this module enhances system efficiency and minimizes downtime, aligning with GE’s commitment to innovation in industrial automation.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | VMIVME-4150 |
| Manufacturer | GE |
| Product Type | 12-Channel Isolated Analog Output Module |
| Output Channels | 12 (single-ended, configurable as 4/8/12 channels) |
| Resolution | 12-bit |
| Voltage Range | ±10 V, ±5 V, ±2.5 V, 0–10 V, 0–5 V, 0–2.5 V |
| Current Range | 4–20 mA, 0–20 mA, 5–25 mA |
| Isolation | 1,000 Vpk (channel-to-channel and channel-to-bus) 111 |
| Output Accuracy | Voltage: ±0.05% of full scale; Current: ±0.08% of full scale 111 |
| Update Rate | Up to 10 kHz |
| Power Supply | +5 VDC ±10% (400 mA) +12 VDC ±10% (125 mA) 211 |
| Operating Temperature | 5°C to 50°C |
| Storage Temperature | -25°C to 60°C |
| Physical Dimensions | 6U form factor (233.35 mm × 160 mm) 312 |
| Weight | 1.02 kg |
| Interface | VMEbus Slave |
| Calibration | Automatic calibration via system reset or software command |
| Self-Test | Onboard diagnostics with fault detection and channel-level reporting |
Main Features and Advantages
High-Precision Signal Generation:
The GE VMIVME-4150 offers 12-bit resolution and channel-level isolation, ensuring accurate analog output for applications requiring sub-millivolt precision. Its software-configurable voltage and current ranges support direct compatibility with industrial standards, eliminating the need for external signal conditioning 111.
The GE VMIVME-4150 offers 12-bit resolution and channel-level isolation, ensuring accurate analog output for applications requiring sub-millivolt precision. Its software-configurable voltage and current ranges support direct compatibility with industrial standards, eliminating the need for external signal conditioning 111.
Flexible Configuration:
With 12 independent channels and dual-buffered outputs, this module supports both continuous and triggered control strategies. Users can program individual channels for unipolar or bipolar operation, enabling dynamic adjustment of actuator responses in real time. The 4/8/12-channel scalability further optimizes system design for varying application needs 19.
With 12 independent channels and dual-buffered outputs, this module supports both continuous and triggered control strategies. Users can program individual channels for unipolar or bipolar operation, enabling dynamic adjustment of actuator responses in real time. The 4/8/12-channel scalability further optimizes system design for varying application needs 19.
Industrial-Grade Reliability:
Designed for harsh environments, the GE VMIVME-4150 operates reliably in temperatures up to 50°C and features rugged EMI/RFI shielding. The isolated channels protect against ground loops and voltage spikes, ensuring stable performance in oil refineries, power plants, and manufacturing facilities 111.
Designed for harsh environments, the GE VMIVME-4150 operates reliably in temperatures up to 50°C and features rugged EMI/RFI shielding. The isolated channels protect against ground loops and voltage spikes, ensuring stable performance in oil refineries, power plants, and manufacturing facilities 111.
Efficient Integration:
The module’s memory-mapped interface simplifies integration with VMEbus systems, allowing direct access to output registers via standard programming languages. GE’s 配套 software tools (e.g., Proficy Machine Edition) further streamline configuration and diagnostics 111.
The module’s memory-mapped interface simplifies integration with VMEbus systems, allowing direct access to output registers via standard programming languages. GE’s 配套 software tools (e.g., Proficy Machine Edition) further streamline configuration and diagnostics 111.
Cost-Effective Solution:
By combining high-channel density with advanced signal conditioning, the GE VMIVME-4150 reduces system complexity and lowers hardware costs. Its long lifespan and minimal maintenance requirements contribute to a low total cost of ownership 19.
By combining high-channel density with advanced signal conditioning, the GE VMIVME-4150 reduces system complexity and lowers hardware costs. Its long lifespan and minimal maintenance requirements contribute to a low total cost of ownership 19.
Application Areas
Process Automation:
The GE VMIVME-4150 is widely used in chemical and petrochemical plants for controlling valve positions, regulating temperature profiles, and managing pressure differentials. Its high-resolution outputs ensure precise control of critical processes, such as distillation and polymerization 111.
The GE VMIVME-4150 is widely used in chemical and petrochemical plants for controlling valve positions, regulating temperature profiles, and managing pressure differentials. Its high-resolution outputs ensure precise control of critical processes, such as distillation and polymerization 111.
Robotics and Motion Control:
In robotics applications, this module provides analog control signals for servo drives and hydraulic systems, enabling smooth and accurate movement of robotic arms and automated guided vehicles (AGVs). Its dual-buffered architecture supports synchronous updates, ensuring coordinated motion across multiple axes 111.
In robotics applications, this module provides analog control signals for servo drives and hydraulic systems, enabling smooth and accurate movement of robotic arms and automated guided vehicles (AGVs). Its dual-buffered architecture supports synchronous updates, ensuring coordinated motion across multiple axes 111.
Power Generation:
For power plants and test facilities, the GE VMIVME-4150 manages turbine speed, generator excitation, and auxiliary equipment. Its high-temperature resilience and EMI immunity ensure stable performance in power generation environments 111.
For power plants and test facilities, the GE VMIVME-4150 manages turbine speed, generator excitation, and auxiliary equipment. Its high-temperature resilience and EMI immunity ensure stable performance in power generation environments 111.
Test and Measurement:
In research laboratories and testing facilities, this module generates precise analog signals for simulating real-world conditions. Its random update capability supports high-frequency signal capture in applications like materials testing and automotive crash simulations 111.
In research laboratories and testing facilities, this module generates precise analog signals for simulating real-world conditions. Its random update capability supports high-frequency signal capture in applications like materials testing and automotive crash simulations 111.
Nuclear and High-Security Environments:
The GE VMIVME-4150’s 1,000 Vpk isolation and compliance with IEEE-472 standards make it ideal for nuclear instrumentation and intersystem data transmission where electrical isolation and safety are paramount 1115.
The GE VMIVME-4150’s 1,000 Vpk isolation and compliance with IEEE-472 standards make it ideal for nuclear instrumentation and intersystem data transmission where electrical isolation and safety are paramount 1115.
Related Products
- GE VMIVME-4140: A 32-channel 12-bit analog output module that complements the VMIVME-4150 by providing higher channel density for large-scale automation systems 56.
- GE VMIVME-3122: A 16-bit analog-to-digital converter module that pairs with the VMIVME-4150 to create closed-loop control systems, enabling real-time feedback and adjustment 111.
- GE VMIVME-7807: A VME single-board computer with a Pentium M processor, offering advanced computational power for complex control algorithms 协同 with the VMIVME-4150 111.
- GE VMIVME-3456: A companion module that enhances the VMIVME-4150’s compatibility with IEEE-472 standards for high-interference environments 1115.
- GE IC697CPM791-FD: A PLC controller that integrates with the VMIVME-4150 for distributed control systems, enabling centralized monitoring and command execution 111.
Installation and Maintenance
Installation Preparation:
Before installing the GE VMIVME-4150, verify the VMEbus backplane’s power supply (+5 VDC ±10%, +12 VDC ±10%) and ensure the environment meets the module’s temperature and humidity requirements. Use ESD protection during handling and securely mount the module in a VMEbus rack, aligning it with the backplane connectors. The front panel design facilitates on-site wiring and maintenance 111.
Before installing the GE VMIVME-4150, verify the VMEbus backplane’s power supply (+5 VDC ±10%, +12 VDC ±10%) and ensure the environment meets the module’s temperature and humidity requirements. Use ESD protection during handling and securely mount the module in a VMEbus rack, aligning it with the backplane connectors. The front panel design facilitates on-site wiring and maintenance 111.
Maintenance Recommendations:
Regularly inspect the module for loose connections or signs of overheating. Clean dust from the enclosure using compressed air to maintain optimal thermal performance. Update firmware periodically via GE’s software tools to access new features and security patches. For fault diagnosis, utilize the module’s built-in diagnostic LEDs and memory-mapped status registers. The isolated channel design simplifies troubleshooting by isolating faulty channels without disrupting the entire system 111.
Regularly inspect the module for loose connections or signs of overheating. Clean dust from the enclosure using compressed air to maintain optimal thermal performance. Update firmware periodically via GE’s software tools to access new features and security patches. For fault diagnosis, utilize the module’s built-in diagnostic LEDs and memory-mapped status registers. The isolated channel design simplifies troubleshooting by isolating faulty channels without disrupting the entire system 111.
Product Assurance
GE guarantees the VMIVME-4150 with a 1-year warranty covering defects in materials and workmanship. Our global network of certified service centers provides 24/7 technical support, spare parts, and repair services. For mission-critical applications, extended service agreements are available to maximize uptime and system longevity. The module’s compliance with industrial standards (e.g., IEEE-472) ensures compatibility and reliability in diverse environments 111.
