3. Product Introduction
When a substation protection relay needs extra breaker status monitoring points to meet grid code requirements, this module adds 16 reliable digital inputs without replacing the entire main relay unit.
It slots directly into the rear expansion slot of UR series universal relays, with built-in per-channel surge protection to withstand substation electrical transients. Its rugged metal housing is designed for continuous 24/7 operation in high-voltage substation environments.

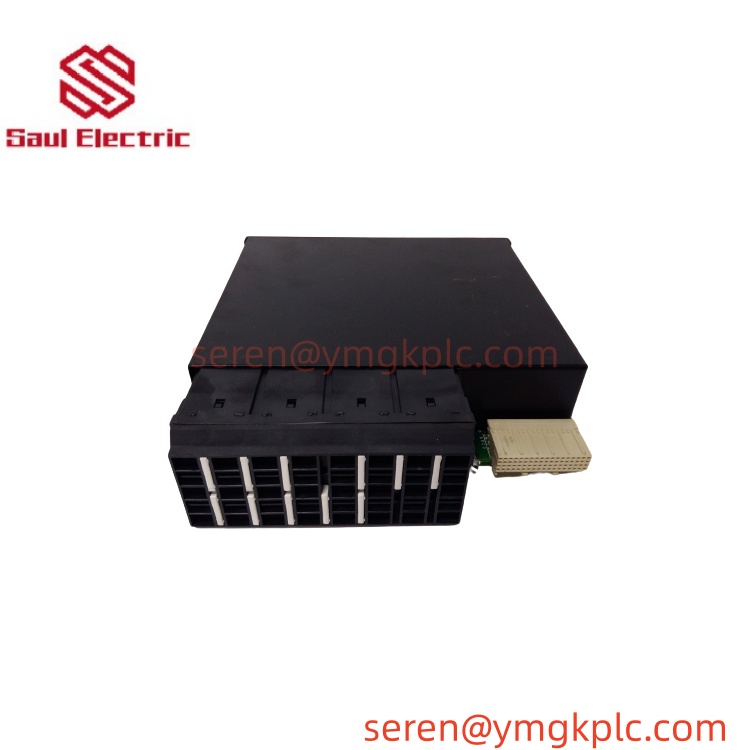

GE UR6DH | 120V AC/DC 16-Channel Protection Relay I/O Unit
4. Key Technical Specifications
| Parameter | Value |
|---|---|
| Rated Input Voltage | 120V AC / DC |
| Number of Digital Input Channels | 16 independent fully isolated channels |
| Maximum Response Time | 2ms |
| Surge Protection | Built-in per-channel 2kV surge suppression |
| Operating Temperature Range | -20°C ~ 70°C |
| Installation | Rear expansion slot of GE Multilin UR series relays |
| Communication Interface | Dedicated UR backplane bus |
| Isolation Rating | 2.5kV between field side and relay logic side |
| Protection Grade | IP20 for module housing |
| Certifications | IEEE C37.90.1, IEC 61850 compliant |

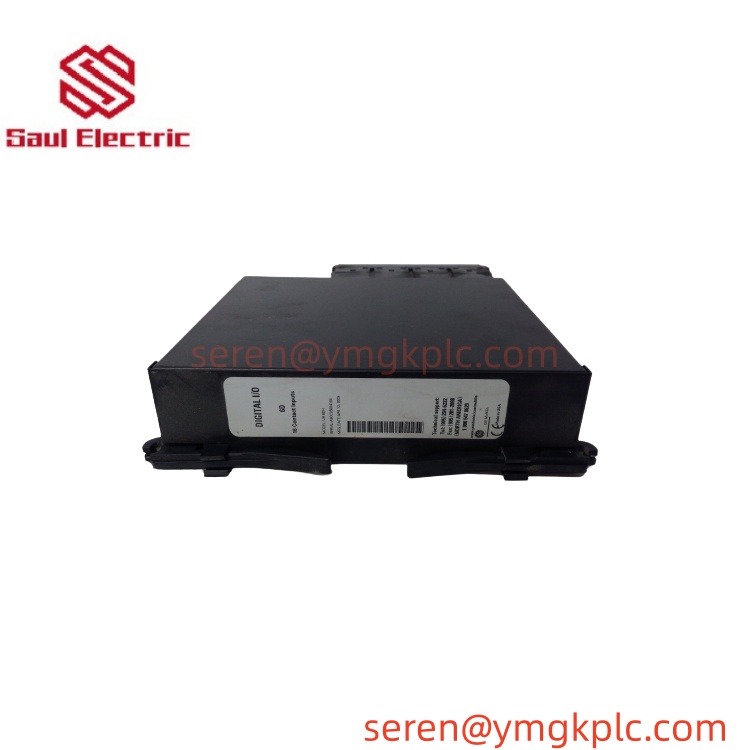

GE UR6DH | 120V AC/DC 16-Channel Protection Relay I/O Unit
5. Field Application & Technical Pitfalls
Critical Industrial Scenarios
- High-Voltage Substation Protection: Monitors breaker position, disconnect switch status and protection relay trip contact signals for 110kV and above substation systems.
- Power Plant Generator Protection: Captures auxiliary contact status from generator excitation system breakers and field switches for full generator protection logic.
- Railway Traction Substation Control: Tracks high-speed circuit breaker status in railway traction power supply systems to ensure reliable traction power operation.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never connect 220V DC substation signals directly to these inputs. The third terminal block from the left has a 140V maximum continuous rating that will burn out the input conditioning circuit instantly.
- ⚠️ Bold Warning 2: Firmware revision mismatch will disable 4 diagnostic channels. This unit requires UR series relay firmware v7.8+; it will not report full channel health status on v6.x legacy relays.
- ⚠️ Bold Warning 3: Skipping the 10-minute post-installation surge test will leave you with uncaught weak input channels. The fault will only surface when a real substation switching transient hits the module.
A substation maintenance team once swapped a UR6DH module and skipped the full post-installation surge test. A weak input channel failed during a 110kV breaker switching operation, causing the protection relay to miss a breaker position signal and trigger an unnecessary 2-hour line outage.
GE UR6DH | 120V AC/DC 16-Channel Protection Relay I/O Unit
6. Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against GE Multilin’s official part registry, inspect the anti-counterfeit hologram, and confirm no bent pins on the backplane connector.
- Live Rig Testing: Seat the unit in a calibrated UR series relay test bench, apply 120V AC/DC power, and confirm full backplane handshake and all 16 channel toggle detection for 2 continuous hours.
- Parameter Testing: Inject 120V AC/DC signals into every channel, verify response time stays within 2ms, and confirm 2.5kV isolation resistance between field side and logic side meets IEEE C37.90.1 standards.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
7. Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the UR protection relay is powered on? No. You must first place the relay in maintenance mode and disable all protection interlocks before removing the unit to avoid unintended protection trip actions.
- What exact GE systems is this module compatible with? It works natively with all GE Multilin UR series universal protection relays. It will not operate correctly with older F650 / F35 feeder relays without a custom firmware patch.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by overvoltage, miswiring, or lightning surge events in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine GE UR6DH units have a laser-etched part number on the side metal housing, not a printed sticker. Clone units almost always fail the 2.5kV isolation resistance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official GE Multilin factory test documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older UR6IH 240V digital input unit? Well, technically it fits the same rear expansion slot, but you will need to add external step-down resistors on all field input lines to bring 240V signals down to the 120V rated input range.
