Key Technical Specifications
| Parameter | Value |
|---|---|
| Output Configuration | 8 Form‑C (SPDT) relay contacts |
| Continuous Output Rating | 8A per channel |
| Momentary Make‑Carry Rating | 30A (ANSI/IEEE C37.90) |
| Dielectric Withstand Isolation | 2 kV AC, 1‑minute rating |
| Host Communication | Internal Tri‑Bus backplane interface |
| Operating Temperature | ‑40 °C to +70 °C |
| Mounting | Slot‑in vertical installation for UR chassis |
| Physical Dimensions | 152 mm × 178 mm × 38 mm |
| Unit Weight | 1.16 kg |
| Configuration Tool | EnerVista UR Setup software |
| Enclosure Rating | IP20 for internal cabinet deployment |

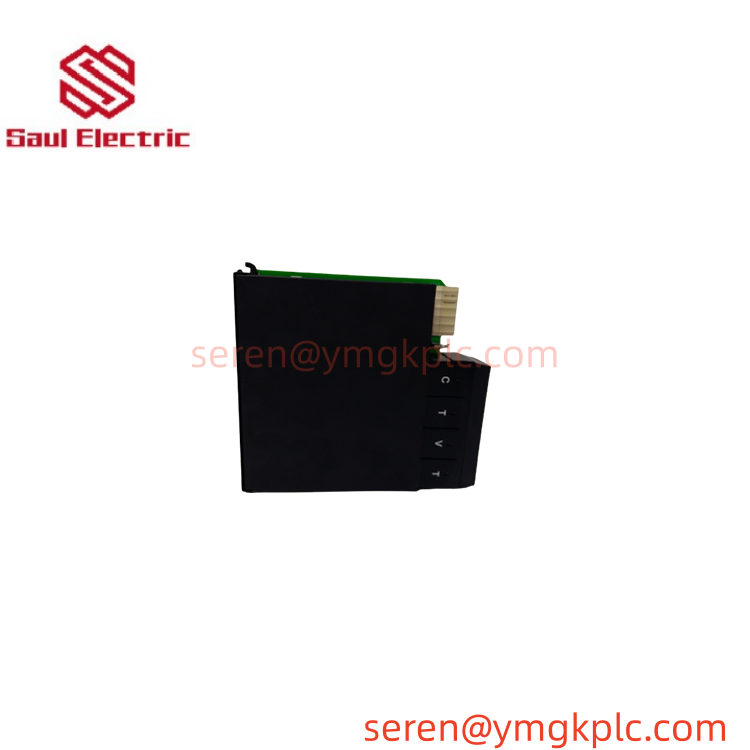

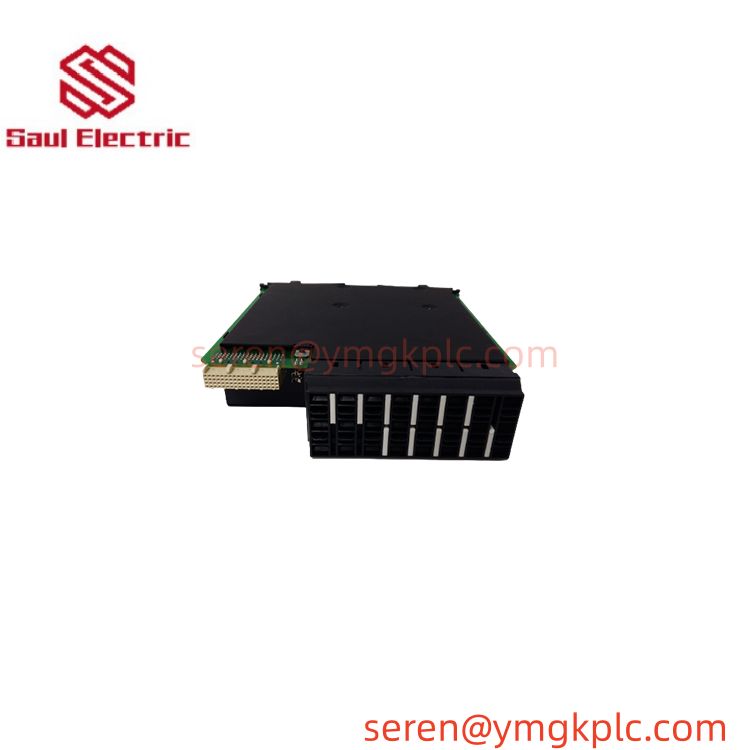

GE UR6CH | UR Series Direct‑Replacement Input Output Module
Product Introduction
Operating as the backbone of the UR platform’s field signal interface, the UR6CH adds discrete I/O capacity to Multilin protective relays without main CPU hardware changes. It picks up binary status signals from switchgear hardware and drives trip, alarm, and auxiliary control commands through electromechanical relay contacts.
Every contact path is isolated to cut down ground‑loop noise common inside substation cabinets. Honestly, this design choice saves hours of rewiring when retrofitting older UR bay controllers. It fits standard UR chassis slots and draws operating power directly from the backplane, eliminating separate external power wiring for the module itself.
QC, Procurement & Logistics SOP
- Inbound Verification. Trace original part origin; inspect OEM physical markings and seal integrity. Match serial numbers against internal inventory logs to rule out counterfeit or altered units.
- Live Rig Testing. Complete power‑on self‑test on UR series test chassis. Validate Tri‑Bus communication, input channel response, and relay output actuation. Log all test results for buyer reference.
- QA & Anti‑Static Packaging. Apply visual inspection for board scratches or connector damage. Seal unit inside ESD‑shielded bag, nest inside foam‑lined rigid carton.
- Global Logistics & Export Compliance. Apply optimized HS code classification for industrial control modules to hold back customs hold risks. Secure internal cushioning built for air or sea freight —though customs clearance in the EU might add 2 days. All shipping documentation aligns with cross‑border export requirements.
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch. A host relay running firmware V5.40 paired with UR6CH calibrated for V6.22 can trigger intermittent channel time‑outs. A field tech might swap the module, see partial channel activity, and assume hardware works, only to get random output dropout during fault events. Always cross‑reference module hardware revision against host relay firmware before power‑up.
- Backplane Configuration Register Errors. This unit has no physical DIP switches; all addressing lives in relay firmware. A technician cloning settings from a different UR chassis can write incorrect slot assignment values. Result: host CPU detects the module but cannot map I/O points to logic routines. Confirm slot position inside EnerVista after physical insertion.
- Wiring/Terminal incompatibility. Re‑using old field wiring crimped for earlier UR‑6RH terminals will cause partial pin contact. The install may pass quick visual check, yet produce unstable input readings under high‑noise substation conditions. Use correct lug sizes matched to UR6CH terminal block pitch.
- ESD destruction during unboxing. Field staff grabbing the gold‑plated backplane edge connector with bare hands can inflict hidden ESD harm. The module may boot and pass basic bench check, then fail weeks later under thermal cycling. Mandate grounded wrist straps any time the circuit board is exposed.

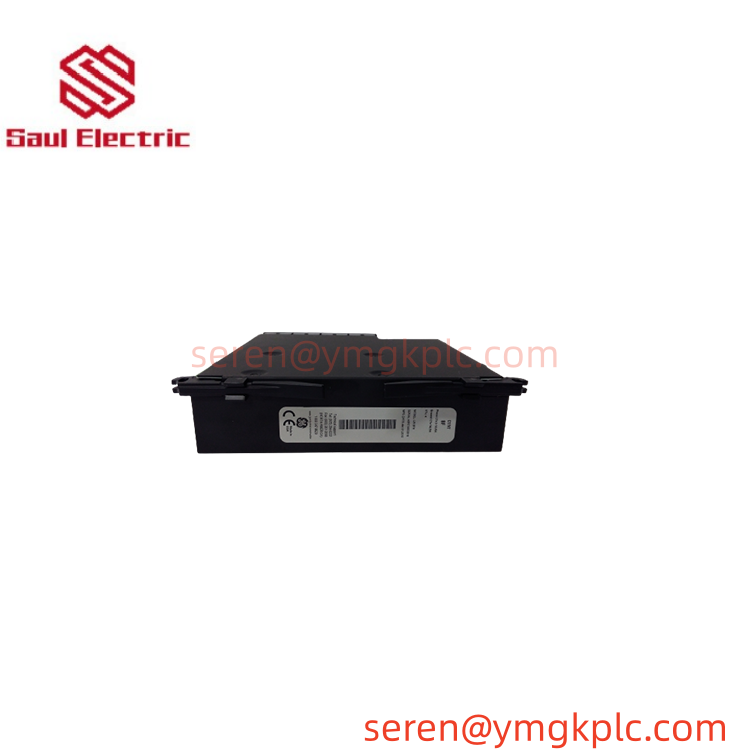

GE UR6CH | UR Series Direct‑Replacement Input Output Module
Frequently Asked Questions (FAQ)
What global lead times should I budget for this UR6CH order? Stocked units ship within 1‑3 business days. For destinations outside main trade zones, add 7‑14 days transit. Final arrival shifts based on local customs processing.
Can you walk through available shipping and customs options? Air freight moves faster for urgent outages. Sea freight cuts cost for large spare‑part batches. We submit pre‑classified commodity data, but local import rules remain the destination buyer’s responsibility.
Is hot‑swapping safe for the UR6CH inside a live energized chassis? Do not hot‑swap. Even though the physical slot supports insertion under power, Tri‑Bus bus glitches can crash the active protective CPU. Always place the bay in maintenance state and remove chassis power before module removal or insertion.
Does UR6CH offer backward compatibility with older UR hardware generations? It physically fits most UR chassis slots. Still, older CPU firmware revisions can limit available I/O mapping features. Pull host relay firmware revision before purchase to confirm full feature support.
What documentation ships with the unit? Test summary report, packing list, and compliance paperwork are provided. Original manufacturer printed manuals are not included, digital datasheet references can be shared upon request.
What happens if one relay output channel fails on‑site? Remaining channels keep working. Isolate the faulted output point inside EnerVista logic to avoid false commands. Plan module replacement at next scheduled maintenance window.
Can I mix UR6CH alongside other UR‑family I/O cards within one chassis? Mixed‑module chassis setups work. Keep total backplane load limits in mind; stacking many high‑density I/O cards can create subtle current draw constraints for the chassis power supply.
