Description
Product Overview

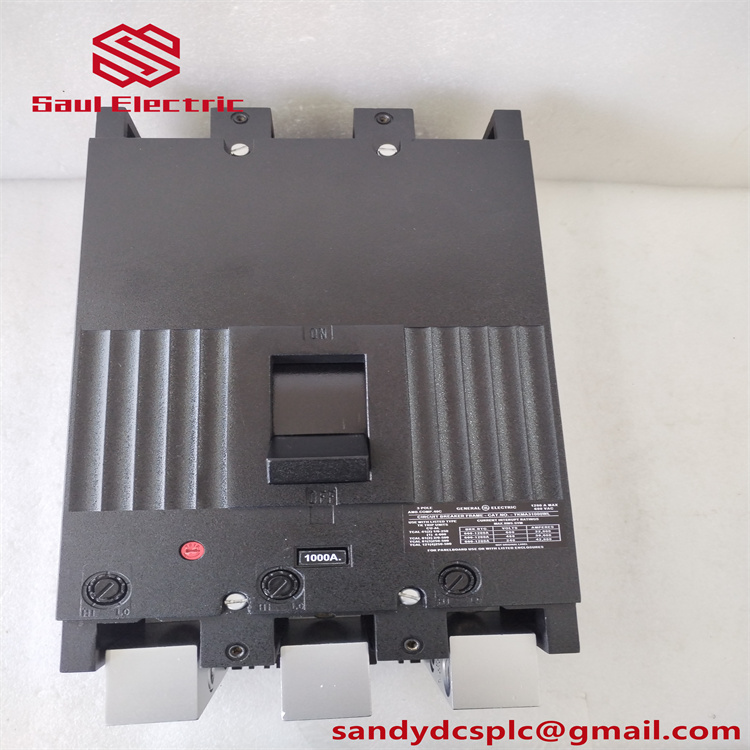

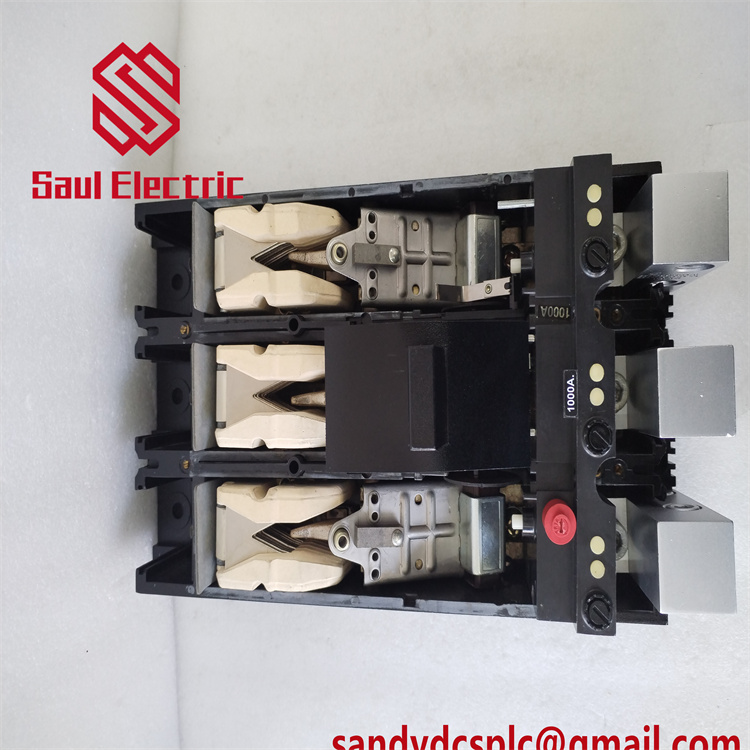

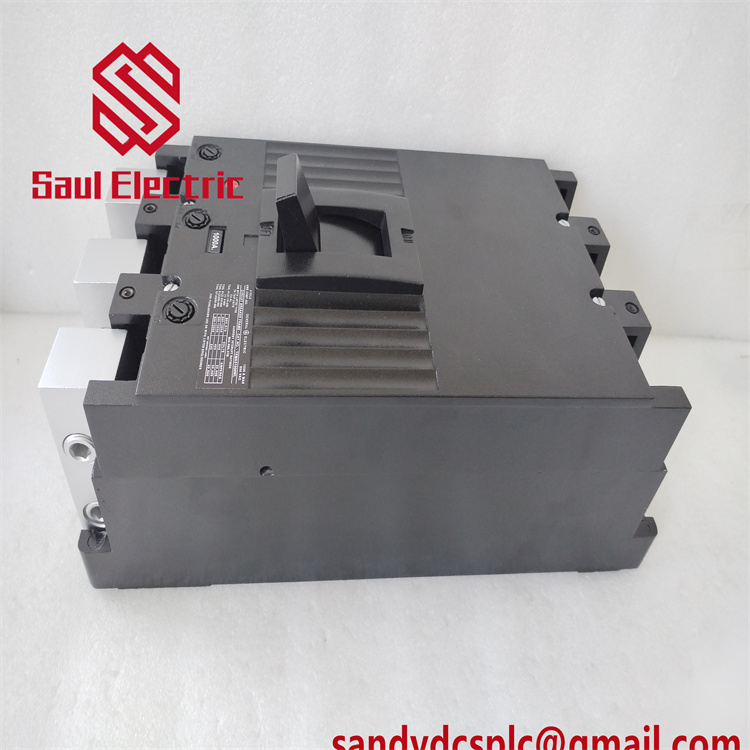

The GE TKMA31000WL is a molded case circuit breaker belonging to the K1200 line of General Electric1. It is designed to provide reliable electrical protection and control in industrial and commercial applications. With a 3 – pole, 3 – phase configuration, it can handle a substantial current of 1000A and operates at 600V1. This circuit breaker features a thermal – magnetic protection mechanism, offering both long – time and instantaneous trip functions1. It is equipped with interchangeable trip options, enhancing its versatility. The GE TKMA31000WL also has line & load side lug terminals, which improve its connectivity, making it suitable for a wide variety of electrical systems.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | TKMA31000WL |
| Manufacturer | General Electric |
| Product Type | Molded Case Circuit Breaker |
| Frame Amps | 1200 |
| Trip Amps | 1000 |
| Poles | 3 |
| Voltage Rating | 600V |
| Phase | 3 |
| Interrupting Rating at 240V | 42kA |
| Interrupting Rating at 480V | 30kA |
| Interrupting Rating at 600V | 22kA |
| Connection | Feed – thru |
| Dimensions (HxWxD) | 5.5 x 8.25 x 15.5 inches |
| Weight | 54.26 lb |
Main Features and Advantages
- High – Capacity Protection: The GE TKMA31000WL is capable of handling high currents, with a 1000A rating, making it suitable for heavy – duty electrical applications. Its thermal – magnetic protection mechanism provides reliable protection against overloads and short circuits.
- Versatile Design: It features interchangeable trip options, allowing for customization to meet different application requirements. The 3 – pole, 3 – phase configuration and feed – thru design offer flexibility in electrical system layouts.
- Good Connectivity: The inclusion of line & load side lug terminals simplifies the connection process and ensures a secure electrical connection, reducing the risk of electrical failures due to poor connections.
Application Areas
The GE TKMA31000WL is widely used in various industrial and commercial applications. In factories, it is used to protect and control the electrical supply to large – scale machinery and equipment. In shopping malls, it can be found in the electrical distribution systems, ensuring the safe and reliable operation of lighting, air – conditioning, and other electrical equipment. It is also suitable for use in heavy – industry settings, such as power plants and steel mills, where high – capacity circuit breakers are required to handle the large amounts of electrical current. Additionally, it can be used in office buildings and hospitals to protect the electrical systems and ensure the continuous operation of critical equipment.
Related Products
- GE TKL4V4612: A 3 – pole circuit breaker with a 1200A rating, suitable for applications requiring higher current handling capacity4.
- GE TKM826300: A 2 – pole, 300A circuit breaker, which can be used in smaller – scale electrical systems4.
- GE TKM826350: Similar to the TKM826300, but with a 350A rating for applications with slightly higher current demands4.
- GE TKM826500: A 2 – pole, 500A circuit breaker for medium – sized electrical loads4.
- GE TKM826700: A 2 – pole, 700A circuit breaker suitable for applications requiring higher current – carrying capacity4.
- GE TKM826800: A 2 – pole, 800A circuit breaker for larger – scale electrical systems4.
- GE TKM836150: A 3 – pole, 150A circuit breaker for applications with lower current requirements4.
- GE TKM836175: A 3 – pole, 175A circuit breaker for use in electrical systems with moderate current demands4.
- GE TKM836200: A 3 – pole, 200A circuit breaker for applications requiring a higher current – carrying capacity than the TKM836150 and TKM8361754.
Installation and Maintenance
- Installation Preparation: Before installing the GE TKMA31000WL, make sure the installation site is clean and dry. Check the electrical system to ensure that the voltage, current, and other parameters are within the range specified by the product. Ensure that the installation space is sufficient to accommodate the circuit breaker and allow for proper heat dissipation.
- Maintenance Advice: Regularly inspect the GE TKMA31000WL for any signs of damage or wear, such as cracks in the casing or loose connections. Clean the circuit breaker regularly to remove dust and debris. Check the trip settings periodically to ensure they are still appropriate for the application. If any problems are detected, contact a professional electrician or the manufacturer’s customer service for assistance.
Product Guarantee
General Electric offers a comprehensive product guarantee for the GE TKMA31000WL. The company ensures the highest quality of the product, with a strict quality control process in place during manufacturing. In case of any quality issues, General Electric provides a one – year warranty. The company also offers excellent after – sales service and technical support. Customers can contact the customer service team for any questions or problems related to the product, and the team will provide timely and professional assistance to ensure the proper operation of the GE TKMA31000WL.
Brand model: GE TKMA31000WL
Product Name: Molded Case Circuit Breaker
Warranty: 1 year
Size: 5.5 x 8.25 x 15.5 inches
Weight: 54.26 lb
Origin: [Not provided]
Inventory: [Not provided]
Delivery time: Goods in stock will be dispatched within 3 days after payment
Order time: Goods will be dispatched within one month after payment
Product Name: Molded Case Circuit Breaker
Warranty: 1 year
Size: 5.5 x 8.25 x 15.5 inches
Weight: 54.26 lb
Origin: [Not provided]
Inventory: [Not provided]
Delivery time: Goods in stock will be dispatched within 3 days after payment
Order time: Goods will be dispatched within one month after payment
