Description
Product Overview

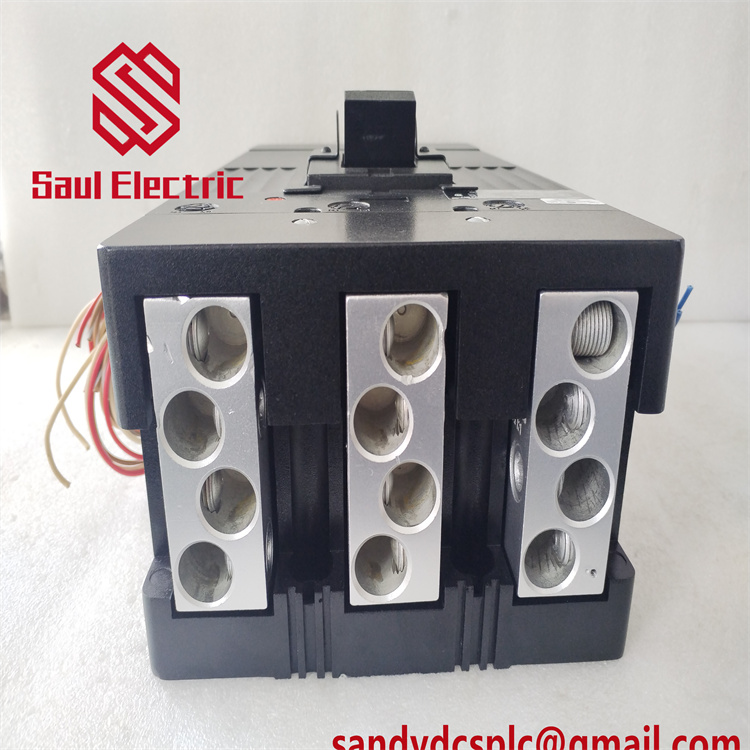

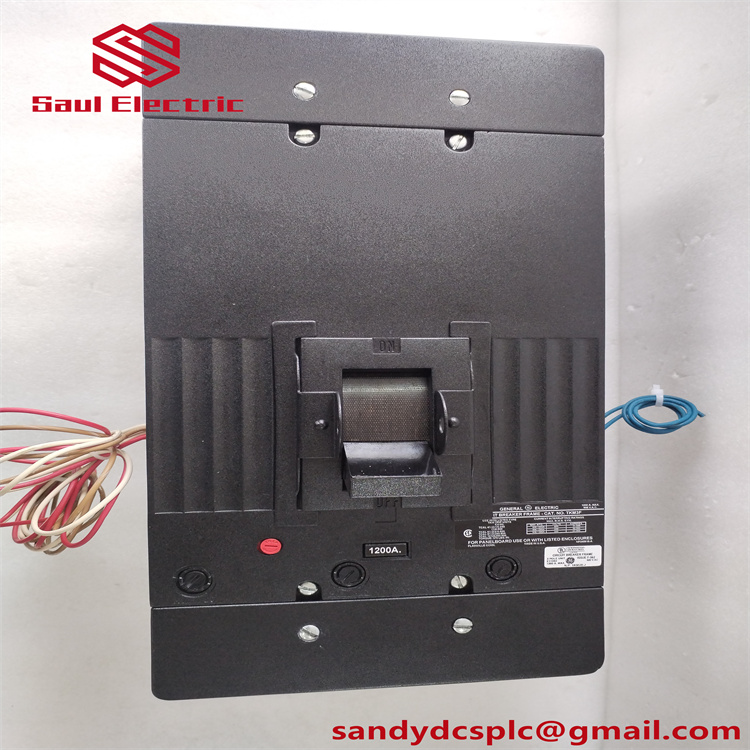

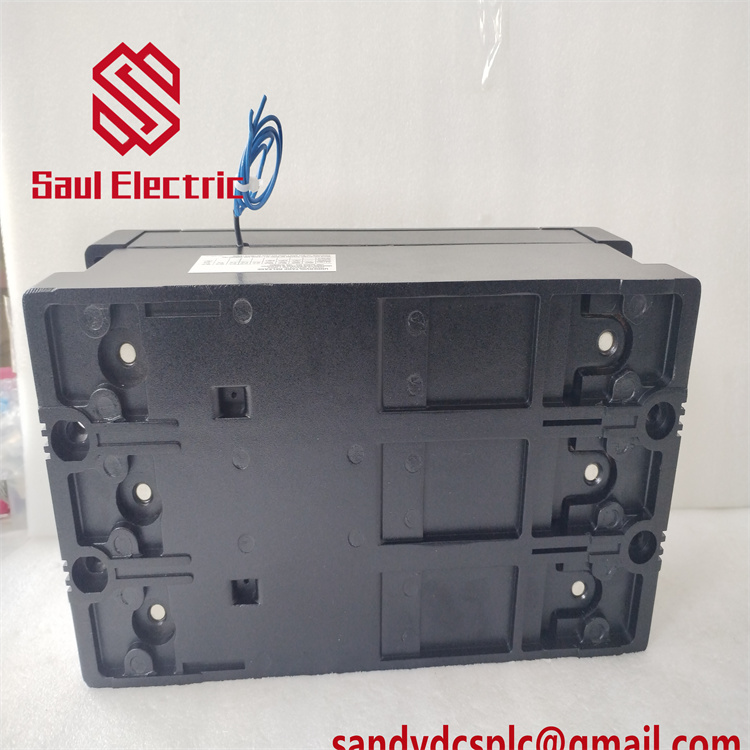

The GE TKM3F1200 is a molded – case circuit breaker belonging to the TKM series of General Electric1. It is designed to protect electrical circuits from overcurrents and short circuits, playing a crucial role in industrial and commercial electrical distribution systems. With a rated current of 1200 amps and a voltage rating of 600V AC, the GE TKM3F1200 can handle high – power electrical loads effectively1. It features thermal – magnetic protection, which combines the advantages of both thermal and magnetic tripping mechanisms to provide reliable and accurate overcurrent protection2. This circuit breaker is of the 3 – pole type, suitable for three – phase electrical systems, and is equipped with bolt – on connections for easy installation and connection to the electrical system2.
Technical Specifications
- Product Model | TKM3F1200
- Manufacturer | General Electric
- Product Type | Molded – Case Circuit Breaker
- Rated Current | 1200 A
- Voltage Rating | 600 V AC
- Number of Poles | 3
- Phase | 3
- Interrupting Rating | 30 kA @ 480 V
- Connection Type | Bolt – on
- Protection Type | Thermal – Magnetic
- Dimensions (HxWxD) | 8.25″ x 5.5″ x 15.5″
- Standards | Conforms to UL, CSA standards
Main Features and Advantages
- High Current Capacity: The GE TKM3F1200 has a high – current – handling capacity of 1200 amps, making it suitable for large – scale industrial and commercial applications where high – power electrical equipment is used.
- Reliable Protection: Its thermal – magnetic protection mechanism offers reliable protection against overcurrents and short circuits. The thermal element responds to gradual increases in current, while the magnetic element quickly trips the circuit in the event of a sudden short – circuit current, ensuring the safety of the electrical system and equipment.
- Easy Installation: With its bolt – on connection type, the GE TKM3F1200 is easy to install and connect to the electrical system. This allows for quick and convenient installation, reducing installation time and costs.
- Wide Voltage Range: It can operate within a voltage range of 240 – 600V AC, providing flexibility in different electrical system setups6. This wide voltage range makes it suitable for use in various applications with different voltage requirements.
Application Areas
The GE TKM3F1200 is widely used in industrial and commercial applications. In industrial settings, it is commonly used in factories, power plants, and manufacturing facilities to protect high – power electrical equipment such as motors, transformers, and switchgear. In commercial buildings, it is used in shopping malls, office buildings, and hotels to protect the electrical distribution systems that supply power to various electrical appliances and equipment. It is also suitable for use in data centers, hospitals, and other critical applications where reliable electrical protection is essential. The GE TKM3F1200 can effectively protect the electrical circuits in these applications, ensuring the safe and stable operation of the electrical systems.
Related Products
- GE TKM1F600: A 600 – amp version of the TKM series circuit breaker, similar in function to the GE TKM3F1200 but with a lower current rating, suitable for applications with lower power requirements.
- GE TKM2F800: An 800 – amp circuit breaker in the TKM series, offering a medium – level current – handling capacity for applications that require more power than the 600 – amp model but less than the 1200 – amp GE TKM3F1200.
- GE TKM4F1600: A 1600 – amp circuit breaker, which is a higher – current – capacity option in the TKM series for applications with extremely high – power demands.
- GE THKM3F: Similar to the GE TKM3F1200, but with some differences in trip characteristics or other features. It may be a specific version or modification of the TKM3F for certain applications or customer requirements6.
- GE TKM3F – X: An upgraded or modified version of the GE TKM3F1200, with possible improvements in performance, reliability, or additional features to meet specific market demands.
Installation and Maintenance
Installation 前准备: Before installing the GE TKM3F1200, make sure the electrical system is properly grounded and that all connections are clean and free of debris. Check the voltage and current ratings of the circuit to ensure they are within the operating range of the circuit breaker. Also, ensure that the installation location is dry, well – ventilated, and free from excessive heat and moisture.
维护建议: Regularly inspect the GE TKM3F1200 for any signs of wear, damage, or overheating. Check the connections for tightness and clean any dirt or dust that may have accumulated. Periodically test the trip function of the circuit breaker to ensure it is operating properly. If any issues are detected, contact a qualified electrician or service technician for repair or replacement.
Product Guarantee
GE offers a comprehensive product guarantee for the GE TKM3F1200. The company provides a one – year quality assurance, ensuring that the product is free from defects in materials and workmanship. In case of any problems during the warranty period, GE will repair or replace the product free of charge. Additionally, GE offers excellent after – sales service and technical support. Customers can contact GE’s professional technical team for any questions or concerns regarding the installation, operation, or maintenance of the GE TKM3F1200. The company is committed to providing customers with reliable products and services to ensure the safe and stable operation of their electrical systems.
Brand model: GE TKM3F1200
Product Name: Molded – Case Circuit Breaker
Warranty: 1 year
Size: 8.25″ x 5.5″ x 15.5″
Weight: [Not specified]
Origin: [Not specified]
Inventory: Spot/Futures
Delivery time: Goods in stock will be dispatched within 3 days after payment
Order time: Goods will be dispatched within one month after payment
Product Name: Molded – Case Circuit Breaker
Warranty: 1 year
Size: 8.25″ x 5.5″ x 15.5″
Weight: [Not specified]
Origin: [Not specified]
Inventory: Spot/Futures
Delivery time: Goods in stock will be dispatched within 3 days after payment
Order time: Goods will be dispatched within one month after payment
