Description

Product Overview

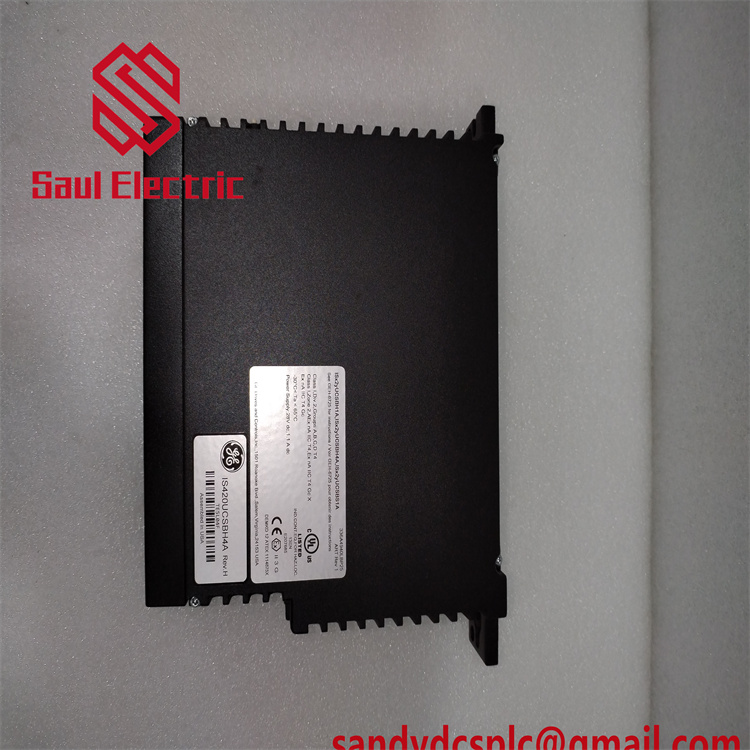

The GE IS420UCSBH4A is a high-performance embedded controller module designed for GE’s Mark VIe Speedtronic Turbine Control System, specializing in real-time control logic execution for mission-critical applications in power generation, oil & gas, and industrial automation. As part of the Mark VIe ecosystem, this controller provides deterministic control for gas/steam turbines, auxiliary systems, and safety-critical processes, ensuring high reliability and fault tolerance .

Powered by a 1066 MHz Intel EP80579 processor (upgraded from the 600 MHz in earlier UCSB models), the GE IS420UCSBH4A delivers 2x faster processing performance for complex control algorithms. It features 256 MB DDR2 ECC RAM, 2 GB NAND flash storage, and runs the QNX Neutrino real-time operating system, enabling sub-millisecond response times and deterministic data handling. The controller communicates with I/O modules via Ionet (a proprietary industrial Ethernet network) and supports IEEE 1588 Precision Time Protocol for clock synchronization across distributed systems, ensuring ±100 µs accuracy .

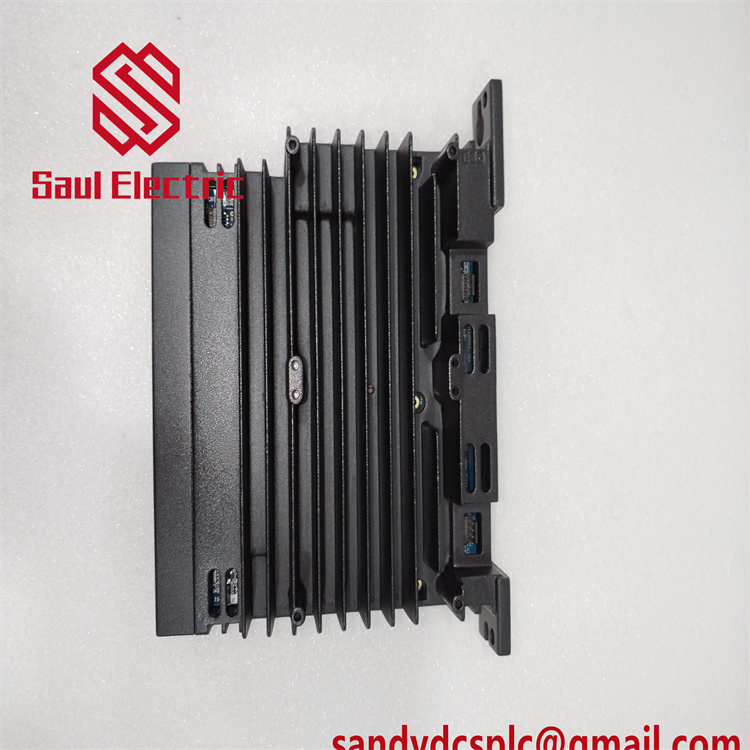

Featuring a fanless and battery-free design, the controller eliminates moving parts and maintenance requirements, enhancing longevity in harsh environments. Its conformal-coated circuitry and wide temperature range (-30°C to +65°C) enable operation in offshore platforms, desert conditions, and high-vibration settings. The module is ATEX Zone 2 and UL E207685 certified, making it suitable for hazardous locations with explosive gas or dust .

Technical Specifications

Parameter	Value
Product Model	GE IS420UCSBH4A
Manufacturer	General Electric (GE)
Product Type	Embedded Controller Module
Series	Mark VIe (Turbine Control)
Processor	Intel 1066 MHz EP80579
Memory	256 MB DDR2 ECC RAM, 2 GB NAND flash
Operating System	QNX Neutrino RTOS

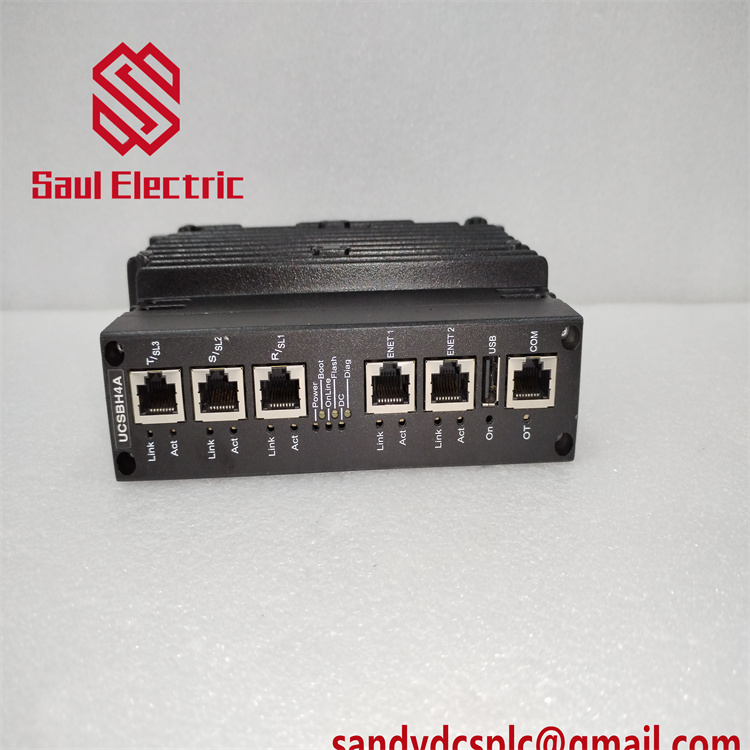

Communication	2x 10/100Base-TX Ethernet (Ionet), IEEE 1588 PTP
Power Supply	24/28 V DC ±10% (non-redundant)
Power Consumption	≤17.3 W (nominal), ≤28.7 W (peak)
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to +85°C
Dimensions	18.8 cm (H) x 8.6 cm (W) x 5.6 cm (D)
Weight	~0.68 kg (1.5 lbs)
Mounting	DIN-rail
Certifications	ATEX Zone 2, UL E207685, CE, RoHS

Key Features & Advantages

High-Reliability Control Architecture:

Single-module design with no external batteries or fans reduces failure points and maintenance needs. Supports Triple Modular Redundancy (TMR) in safety-critical applications, ensuring fault tolerance and continuous operation .
Dual Ionet interfaces provide redundant communication paths to I/O packs, ensuring seamless data exchange even during network disruptions.

Enhanced Processing Performance:

1066 MHz Intel EP80579 processor delivers faster data processing for real-time control logic, ideal for turbine speed regulation, fuel management, and emergency shutdown systems.
IEEE 1588 synchronization ensures precise timing across distributed I/O and controllers, critical for coordinated operations in power plants and industrial processes .

Rugged Design for Harsh Environments:

Conformal coating protects against moisture, dust, and chemical corrosion. Wide temperature range (-30°C to +65°C) suits offshore, desert, and high-temperature industrial settings.
EMI/RFI shielding minimizes interference from adjacent equipment, ensuring stable performance in electrically noisy environments .

Scalable System Integration:

DIN-rail mounting allows flexible installation in compact control cabinets. Integrates seamlessly with GE’s ControlST v04.03.18C software for configuration and diagnostics.
Supports SIL 2/3 safety applications when paired with Mark VIES safety I/O modules, enabling functional safety loops for critical processes .

Cybersecurity Compliance:

Secure boot technology and firmware signature verification prevent unauthorized access. Complies with IEC 62443 and NERC CIP standards for industrial cybersecurity .
GE’s secure development lifecycle (certified to IEC 62443-4-1) ensures robust protection against cyber threats throughout the product’s lifecycle .

Application Areas

Power Generation:
- Gas/steam turbine control systems for speed regulation, load balancing, and generator synchronization. Monitors real-time data from sensors to optimize fuel efficiency and reduce emissions .
- Microgrid management, enabling coordination between distributed energy resources (DERs) and utility grids.
Oil & Gas:
- Offshore platforms for wellhead control, pump monitoring, and flare system activation in hazardous zones. ATEX certification ensures compliance with safety standards .
- Refineries and petrochemical plants for process optimization, predictive maintenance, and emergency shutdown systems.
Industrial Automation:
- Manufacturing facilities (e.g., automotive, food processing) for conveyor control, machine safety interlocks, and quality inspection triggers.
- Water treatment plants for pump control, valve actuation, and alarm signaling in critical infrastructure applications .

Installation & Maintenance

Installation Preparation:

Verify the installation environment meets temperature (-30°C to +65°C) and humidity requirements. Use GE-approved DIN-rail brackets and shielded cables to minimize EMI interference. Ground the controller chassis properly to prevent static discharge .
Configure the controller via ControlST v04.03.18C software to define control logic, network parameters, and diagnostic thresholds. Follow GE’s GEH-6725 manual for wiring diagrams and safety guidelines .

Maintenance Recommendations:

Routine Checks: Inspect for loose connections, corrosion, or thermal stress on components. Clean dust from vents to maintain cooling efficiency. Test redundancy functionality quarterly to ensure fault isolation capabilities .
Firmware Updates: Regularly update firmware to the latest version (available through GE’s support portal) to access new features and security patches. Replace electrolytic capacitors every 5–7 years as part of preventive maintenance .
Component Replacement: Use only GE-certified spare parts. Coordinate with GE’s technical support for advanced troubleshooting or hardware repairs .

Product Warranty & Support

The GE IS420UCSBH4A comes with a 1-year warranty covering defects in materials and workmanship. For immediate deployment, the module is available in spot inventory and ships within 3–5 business days of payment. Backorders are fulfilled within 1 month, ensuring timely delivery for large-scale projects .

GE offers 24/7 technical support through its global network of certified engineers, providing assistance with system integration, troubleshooting, and training. Comprehensive documentation, including datasheets and installation manuals, is accessible via GE Vernova’s official support portal. With a commitment to reliability, GE ensures the GE IS420UCSBH4A delivers long-term performance in the most demanding industrial environments .
