Description

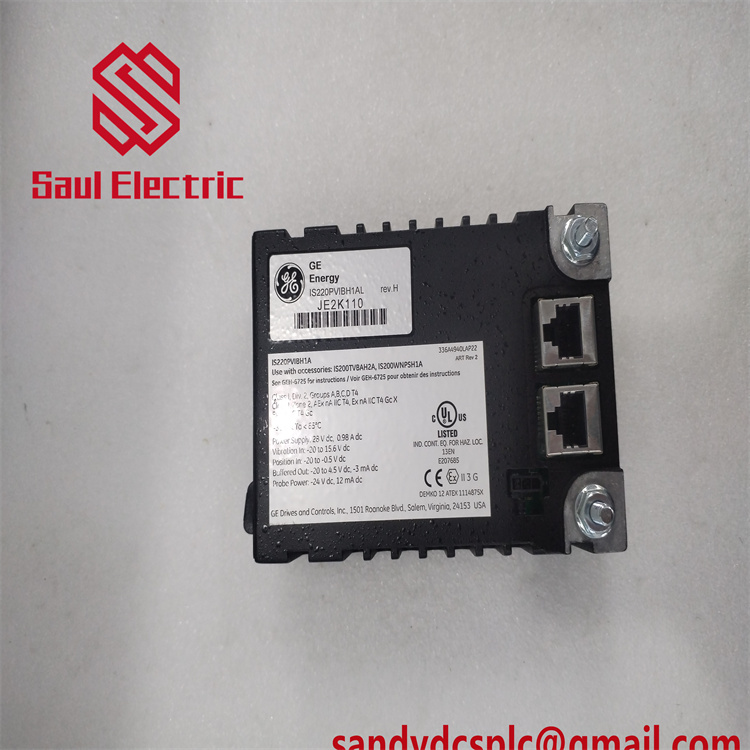

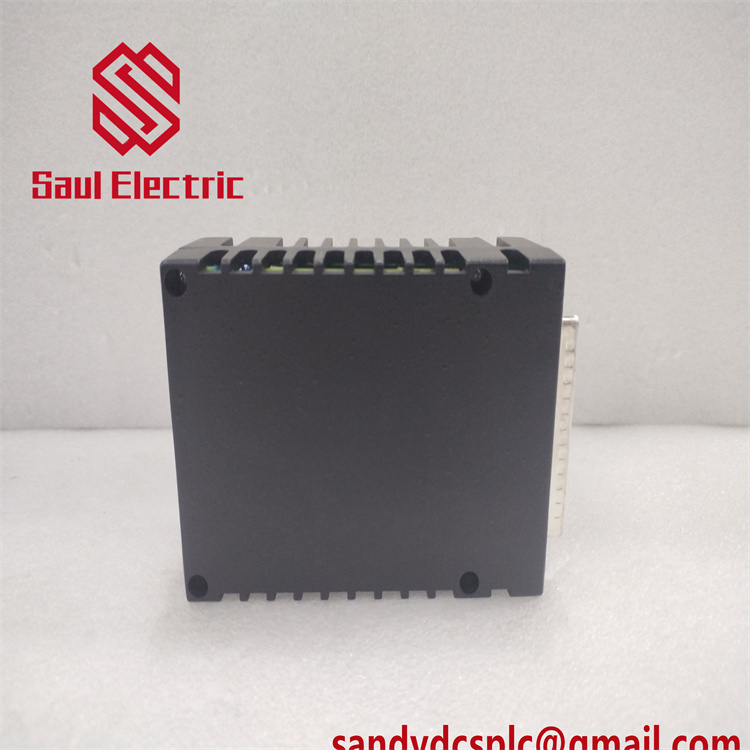

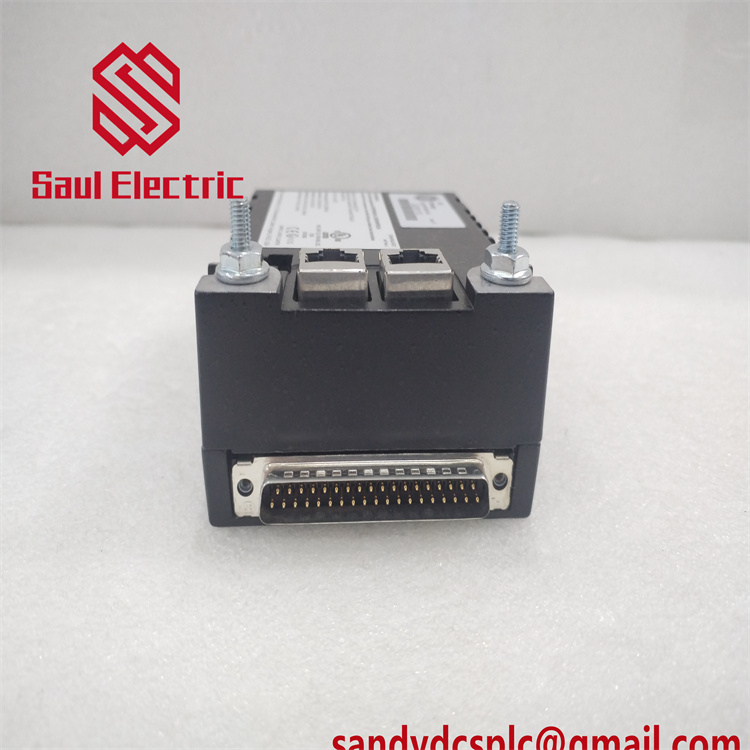

GE IS220PVIBH1A is a vibration monitor pack developed by GE under the Mark VIe control system1. It serves as a crucial component in the turbine control system, responsible for connecting vibration sensors to the system through two Ethernet networks, enabling real – time monitoring of turbine vibration data2. This allows the Mark VIe system to promptly detect potential turbine issues, helping to prevent equipment failures and ensure stable operation2.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS220PVIBH1A |
| Manufacturer | General Electric |
| Product Type | Vibration monitor pack |
| Channel Quantity | 13 |
| Sensor Types Supported | Proximitors, accelerometers, velomitors, seismic sensors |
| Ethernet Ports | Dual RJ45 |
| Power Input | 3 – pin |
| Frame Rates Supported | 3.125, 6.25, 12.5, 25, 50, and 100 Hz |
| Common Mode Voltage | Min. 5 VDC |
| Probe Power | – 24 VDC, 12 mA load per transducer |
| Dimensions | 263×58×28 mm |
| Ambient Temperature Range | – 30 to 65 °C |
Main Features and Advantages
High Compatibility: GE IS220PVIBH1A supports various sensors, including accelerometers, proximitors, and seismic sensors, offering great flexibility in different application scenarios. Reliable Data Acquisition: With 13 channels, it can accurately collect vibration and proximity information. The built – in DAC is used for bias adjustment, which can eliminate the DC content of the signal and improve the accuracy of data acquisition. Dual – Ethernet Redundancy: It has dual 100mb full – duplex Ethernet ports. When operating from two Ethernet inputs, the network paths necessary for proper operation are active at all times. If one network fails, it will not affect the operation of the I/O pack, ensuring the reliability of data transmission. Visual Diagnosis: It is equipped with LED indicators for visual diagnosis, which can quickly identify the operating status and fault information of the device, facilitating maintenance and troubleshooting.
Application Areas
GE IS220PVIBH1A is mainly used in the vibration monitoring of gas and steam turbines in the power generation industry. It can be applied to various turbine – driven generator units and mechanical drive applications to monitor the vibration status of turbines in real time. By accurately collecting and analyzing vibration data, it helps operators promptly detect potential faults, such as unbalanced rotor, bearing wear, and blade damage. This enables timely maintenance and repair, reducing equipment downtime and improving the reliability and efficiency of power generation equipment. In addition, it can also be used in some industrial scenarios where high – precision vibration monitoring is required, such as large – scale rotating machinery and industrial automation production lines.
Related Products
- IS210AEBIH1B: It may be another type of I/O module in the Mark VIe series, which may have different functions or interface types, and is used in conjunction with IS220PVIBH1A to complete more complex control and monitoring tasks.
- IS200TRLYS1B: Probably belongs to the same family of products. It may be used for other aspects of turbine control, such as trip logic control, and cooperates with the vibration monitoring function of IS220PVIBH1A to improve the overall performance of the turbine control system.
- GE Speedtronic Mark VIe R Controller: The core controller of the Mark VIe system, which coordinates and controls various I/O modules including IS220PVIBH1A to achieve the overall monitoring and control of the turbine.
- TVBA Vibration Terminal Board: It is a terminal board specifically used for vibration signal connection, which is directly connected to IS220PVIBH1A to provide an interface for vibration sensors.
- GE IS220PTURH1A: May be related to the processing and transmission of turbine vibration data, and works with IS220PVIBH1A to complete the acquisition, processing, and transmission of vibration information.
Installation and Maintenance
Installation Preparation: First, determine the installation location and fix the terminal board to be used. Then, connect the GE IS220PVIBH1A I/O pack directly to the terminal board connector and mechanically fix the pack using the studs near the Ethernet port. Connect the Ethernet cable and power according to the system configuration, and finally configure the I/O pack through the ToolboxST* application.
Maintenance Advice: Regularly check the connection status of the GE IS220PVIBH1A to ensure that the Ethernet cable and power connection are firm and there is no looseness or oxidation. Clean the surface of the device regularly to prevent dust and dirt from affecting heat dissipation and performance. Check the LED indicator lights to see if there are any abnormal indications. If a fault is found, contact a professional maintenance personnel in a timely manner for repair and troubleshooting.
Maintenance Advice: Regularly check the connection status of the GE IS220PVIBH1A to ensure that the Ethernet cable and power connection are firm and there is no looseness or oxidation. Clean the surface of the device regularly to prevent dust and dirt from affecting heat dissipation and performance. Check the LED indicator lights to see if there are any abnormal indications. If a fault is found, contact a professional maintenance personnel in a timely manner for repair and troubleshooting.
Product Guarantee
GE provides a quality guarantee for GE IS220PVIBH1A. The product comes with a one – year warranty. During this period, if there is a quality problem with the product itself, GE will provide free repair or replacement services. In addition, GE also provides comprehensive after – sales service and technical support. Customers can get timely technical consultation and problem – solving services. GE’s professional technical team can provide remote diagnosis and on – site support as needed to ensure the normal operation of the product and the satisfaction of customers.
