Description
Product Overview

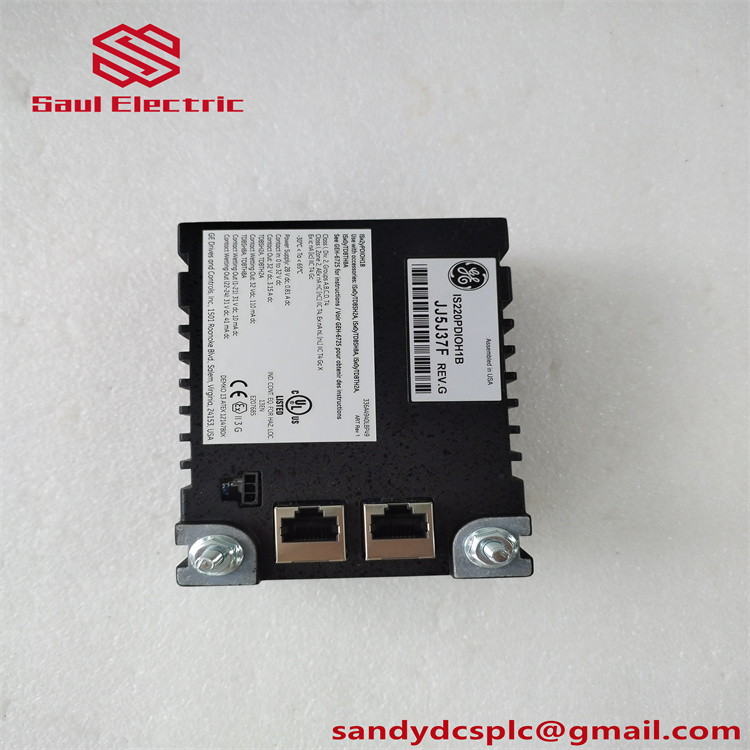

The GE IS220PDIOH1B is an advanced Discrete Input/Output (DIO) Control Board designed for GE’s Mark VIe Speedtronic Turbine Control System, engineered to provide high-speed digital signal management and interface control for critical industrial applications. As the successor to the IS220PDIOH1A, this module builds on its predecessor’s capabilities with enhanced cybersecurity features, extended compatibility with newer ControlST software versions, and improved diagnostic tools. Its rugged design with conformal coating ensures resilience against moisture, dust, and electromagnetic interference (EMI), making it ideal for offshore wind farms, oil & gas platforms, and high-vibration industrial environments .
Featuring 24 digital inputs and 12 relay outputs, the GE IS220PDIOH1B supports hot-swappable redundancy (simplex/DMR configurations) and integrates seamlessly with GE’s ControlST v11.0+ software for programmable logic control and diagnostics. The board interfaces with dual Ethernet ports (10/100 Mbps) and Ionet communication networks, enabling real-time data exchange with distributed I/O systems and plant-wide SCADA platforms. Its 4 ms hardware filtering and optical isolation (1500 VAC) ensure accurate signal acquisition and noise immunity, critical for maintaining system reliability in harsh conditions .
As part of the Mark VIe HazLoc-certified subseries, the GE IS220PDIOH1B is approved for use in hazardous locations when paired with compatible terminal boards (e.g., IS200TDBSH2A or IS200TDBTH2A). This modular design allows for flexible system expansion, supporting up to three redundant modules in Triple Modular Redundancy (TMR) architectures for SIL-rated safety applications .
Technical Specifications
Parameter | Value |
---|---|
Product Model | GE IS220PDIOH1B |
Manufacturer | General Electric (GE) |
Product Type | Discrete Input/Output (DIO) Control Board |
Series | Mark VIe (Turbine Control) |
PCB Coating | Conformal coating (anti-moisture, dust, EMI) |
I/O Configuration | 24 digital inputs (24 VDC), 12 relay outputs (32 VDC/3.15 A per channel) |
Communication | Ionet, Modbus TCP, EtherNet/IP, Profibus DP |
Power Supply | 28 V DC ±2.1% (nominal, 27.4–28.6 VDC) |
Operating Temperature | -40°C to +70°C (industrial grade) |
Dimensions | ~15.88 cm (H) x 10.80 cm (W) x 5.10 cm (D) (approximate) |
Weight | ~0.8 kg (1.76 lbs) |
Compatibility | GE Mark VIe systems, ControlST v11.0+, terminal boards IS200TDBSH2A/IS200TDBTH2A |
Redundancy Support | Simplex, Dual Modular Redundancy (DMR), Triple Modular Redundancy (TMR) |
Certifications | HazLoc-approved for hazardous environments, CE, UL, RoHS |
Cybersecurity | Enhanced secure boot, firmware signature verification, and data encryption |
Key Features & Advantages
Enhanced Cybersecurity:
- Incorporates secure boot technology and firmware signature verification to prevent unauthorized access and protect against cyber threats. Data encryption ensures secure communication between modules, critical for industrial control systems in regulated environments .
- Complies with industry cybersecurity standards (e.g., NERC CIP, IEC 62443), providing peace of mind for operators in power generation and critical infrastructure sectors .
High-Density Digital Signal Management:
- 24 digital inputs with hardware filtering (4 ms) and 12 relay outputs provide granular control over field devices, supporting applications such as turbine safety interlocks, valve control, and equipment status monitoring. The module’s optical isolation (1500 VAC) ensures immunity to ground loops and voltage spikes .
- Supports hot-swappable redundancy, allowing seamless replacement of faulty modules without system downtime. Redundant Ethernet ports ensure continuous data transmission even in the event of network failures .
Rugged Design for Harsh Environments:
- Conformal-coated circuitry and wide temperature range (-40°C to +70°C) enable reliable operation in offshore, desert, and high-altitude environments. EMI shielding minimizes interference from adjacent equipment, ensuring signal integrity in noisy industrial settings .
- HazLoc certification (when paired with compatible terminal boards) makes it suitable for explosive gas or dust environments, critical for oil & gas and chemical processing applications .
Advanced Diagnostics & Integration:
- Enhanced diagnostic tools provide real-time monitoring of input/output status, communication health, and component temperature. Fault codes and warnings are logged for predictive maintenance, reducing mean time to repair (MTTR) .
- Integrates with GE’s ControlST v11.0+ software for intuitive configuration of I/O mapping, filter settings, and diagnostic thresholds. Supports industry-standard protocols (EtherNet/IP, Modbus TCP, Profibus DP) for seamless integration with third-party SCADA systems .
Application Areas
-
Wind Energy Generation:
- Onshore/offshore wind turbines (2MW–6MW class) for blade pitch control, generator synchronization, and emergency shutdown systems. Monitors sensor inputs (e.g., wind speed, blade angle) and actuates relays to adjust turbine operation dynamically .
- Hybrid wind-solar systems requiring discrete control of energy storage systems (ESS) and grid interconnection switches.
-
Power Generation & Distribution:
- Gas/steam turbine power plants for turbine safety interlocks, fuel valve control, and generator breaker management. Ensures reliable operation in combined-cycle plants by managing discrete signals from temperature/pressure sensors .
- Microgrid applications, regulating power flow between distributed energy resources (DERs) and utility grids.
-
Industrial Automation:
- Manufacturing facilities (e.g., automotive, food processing) for conveyor system control, machine safety interlocks, and quality inspection triggers.
- Oil & gas platforms for wellhead control, pump monitoring, and flare system activation in hazardous zones .
Related Products
- GE IS220PDIOH1A:
- Predecessor model with similar functionality but without enhanced cybersecurity features. Backward compatible with IS220PDIOH1B for legacy system upgrades .
- GE IS200TDBSH2A/IS200TDBTH2A:
- Terminal boards specifically designed for the IS220PDIOH1B, providing field wiring connections and HazLoc certification for hazardous environments .
- GE IS215WETAH1A:
- Wind Energy Torque Axis Control Board for torque management, complementary to the IS220PDIOH1B in comprehensive turbine control systems .
- GE IS220PSUAH1A:
- Power Supply Unit designed for Mark VIe systems, providing stable power to the IS220PDIOH1B and other control modules .
- GE IS215WEMAH1A:
- Wind Energy Main Cabinet Board for central data processing, forming a core trio with IS220PDIOH1B and pitch/torque control boards .
Installation & Maintenance
Installation Preparation:
- Verify the installation environment meets temperature (-40°C to +70°C) and humidity requirements. Use GE-approved mounting brackets and shielded cables to minimize EMI interference. Ground the board chassis properly to prevent static discharge .
- Configure the board via ControlST v11.0+ software to define I/O mapping, filter settings, and redundancy modes. Follow GE’s GEH-6721G manual for wiring diagrams and terminal board compatibility guidelines .
Maintenance Recommendations:
- Routine Checks: Inspect for loose connections, corrosion, or thermal stress on components. Clean dust from vents to maintain cooling efficiency. Test redundancy functionality quarterly to ensure fault isolation capabilities .
- Firmware Updates: Regularly update firmware to the latest version (available through GE’s support portal) to access new features and security patches. Replace electrolytic capacitors every 5–7 years as part of preventive maintenance .
- Component Replacement: Use only GE-certified spare parts (e.g., relays, fuses). Coordinate with GE’s technical support for advanced troubleshooting or hardware repairs .
Product Warranty & Support
The GE IS220PDIOH1B comes with a 1-year warranty covering defects in materials and workmanship. For immediate deployment, the module is available in spot inventory and ships within 3–5 business days of payment. Backorders are fulfilled within 1 month, ensuring timely delivery for large-scale projects .
GE offers 24/7 technical support through its global network of certified engineers, providing assistance with system integration, troubleshooting, and training. Comprehensive documentation, including datasheets and installation manuals, is accessible via GE Vernova’s official support portal. With a commitment to reliability, GE ensures the GE IS220PDIOH1B delivers long-term performance in the most demanding industrial environments .
