Description
Product Overview

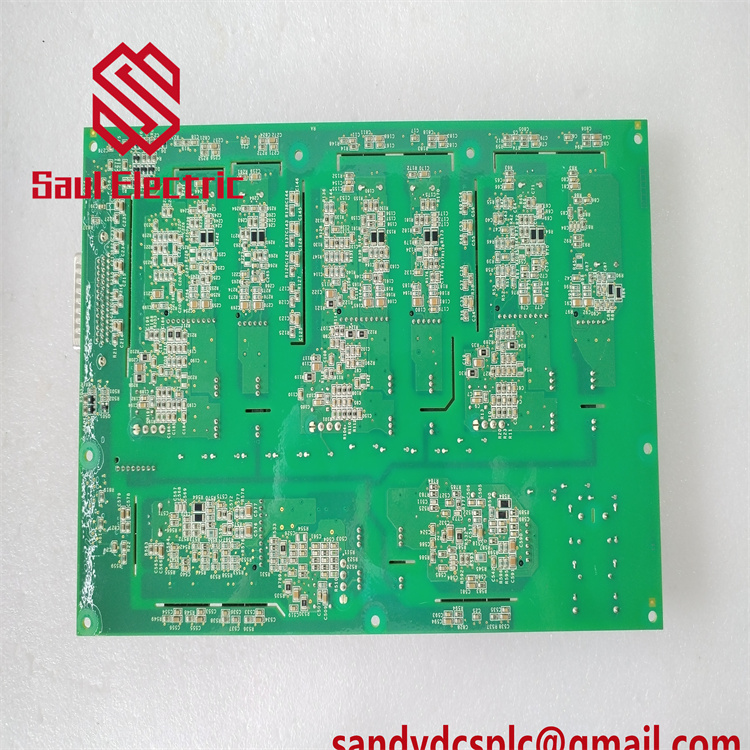

The GE IS210AEDBH4AGD is a high-performance Alternative Energy Dynamic Brake (AEDB) Gate Driver PCB designed for GE’s Mark VI/Mark VIe Speedtronic turbine control systems. Engineered to manage dynamic braking and grid synchronization in wind energy and power generation applications, this module interfaces between the turbine control system and field devices, ensuring precise signal conditioning and fault isolation. Its rugged design with conformal coating protects against environmental stressors like moisture, dust, and electromagnetic interference (EMI), making it suitable for offshore wind farms and harsh industrial environments 12.
Key components include four Bicron B9718 encapsulated switch mode/pulse transformers (rated for 5 kVAC and switching frequencies of 10 kHz to 500 kHz), over 175 integrated circuits (including read-only and oscillating chips), metal film resistors, capacitors, diodes, and transistors. The module features multiple connectors (right-angled, vertical pin, and three-position plugs) for versatile signal routing, supporting analog/digital signal management for turbine excitation systems and grid interfaces 312.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | GE IS210AEDBH4AGD |
| Manufacturer | General Electric (GE) |
| Product Type | Alternative Energy Dynamic Brake (AEDB) Gate Driver PCB |
| Series | Mark VI/Mark VIe Speedtronic |
| PCB Coating | Conformal coating for environmental protection |
| Components | 4 x Bicron B9718 transformers, 175+ ICs, metal film resistors, capacitors |
| Connectors | Right-angled connector, seven vertical pin connectors, three-position plugs |
| Mounting Options | Rack or panel mounting via factory-drilled holes |
| Operating Temperature | -30°C to +70°C (industrial grade) |
| Physical Dimensions | ~135 mm x 186 mm x 119 mm (approximate) |
| Weight | ~0.34 kg (0.75 pounds) |
| Compatibility | GE Mark VI/Mark VIe systems, ControlST software |
| Functional Revision | 1A |
| Hipot Level | 5 kVAC |
| Switching Frequency | 10 kHz to 500 kHz |
Key Features and Advantages
Rugged Environmental Protection: The conformal coating and robust PCB design shield the module from contaminants, ensuring longevity in offshore and high-vibration settings. Its exposed copper band perimeter provides enhanced grounding and insulation 312.
Precision Signal Management: With multiple terminal strips and connectors, the IS210AEDBH4AGD supports dynamic braking control, grid synchronization, and fault isolation for wind turbines. Its differential inputs and advanced filtering minimize noise, critical for maintaining grid stability during rapid power fluctuations 125.
Seamless System Integration: As part of GE’s Mark VI/Mark VIe series, the module interfaces seamlessly with ControlST software and other modules like the IS210AEAAH2B (Conformal Coated I/O Board) and IS210AEDBH3A (DB Bridge Interface). This compatibility streamlines system setup and reduces integration complexity 912.
High-Speed Data Processing: Optimized for real-time data transmission, the IS210AEDBH4AGD ensures rapid signal processing for dynamic braking, essential for protecting turbine components during grid disturbances or emergency shutdowns 312.
Redundancy and Fault Isolation: The module supports simplex and redundant configurations, with diagnostic LEDs for real-time status monitoring. Its hot-swappable design allows online maintenance without disrupting operations 1225.
Application Areas
The GE IS210AEDBH4AGD excels in industries requiring reliable dynamic braking and grid synchronization:
- Wind Energy: Integrates with Mark VIe Wind systems to manage turbine dynamic braking, pitch control, and grid synchronization, particularly in offshore wind farms 125.
- Power Generation: Supports gas and steam turbine control systems, monitoring parameters like generator load and grid frequency to ensure stable power output 212.
- Industrial Automation: Deployed in manufacturing plants for process control and equipment monitoring, especially in high-EMI environments 25.
- Oil and Gas: Used in offshore platforms and refineries to manage I/O signals for pumps, compressors, and safety systems 12.
Related Products
- GE IS210AEDBH3A: DB Bridge Interface Board for Mark VIe Wind systems, offering similar functionality with a different series grouping (Group 3) 9.
- GE IS210AEAAH2B: Conformal Coated I/O Board for Mark VI systems, providing additional analog/digital signal management 1.
- GE IS210AEBIH3B: Alternative Energy Bridge Interface Module for Mark VIe Wind systems, supporting turbine excitation control 2.
- GE IS210AEPSG1A: AE Power Supply Board for stable power distribution to I/O modules 1.
- GE IS210AEPCH1A: Non-ESS Wind Pitch Center Control module for wind turbine pitch axis management 1.
Installation and Maintenance
Installation Preparation:
- Verify the installation environment meets temperature (-30°C to +70°C) and humidity requirements.
- Ensure proper grounding and surge protection to prevent EMI.
- Use GE-approved mounting brackets and cables for secure installation.
- Configure the module via GE’s ControlST software to match system I/O requirements and signal types 312.
Maintenance Recommendations:
- Routine Checks: Inspect for physical damage, loose connections, or overheating. Clean dust from vents to maintain cooling efficiency.
- Firmware Updates: Regularly update firmware to access new features and security patches.
- Redundancy Testing: Simulate signal failures to validate fault isolation capabilities.
- Component Replacement: Replace worn-out components (e.g., relays, capacitors) with GE-certified parts 1225.
Product Warranty and Support
The GE IS210AEDBH4AGD comes with a 1-year warranty covering defects in materials and workmanship. For immediate deployment, the module is available in spot inventory and ships within 3–5 days of payment. Backorders are fulfilled within 1 month 1223.
GE offers 24/7 technical support and access to a global network of certified engineers for system integration, troubleshooting, and training. Comprehensive documentation, including datasheets and installation manuals, is provided to facilitate seamless deployment. With a commitment to quality and reliability, GE ensures the IS210AEDBH4AGD delivers long-term performance in the most demanding industrial environments 1225.
