Description
Product Overview

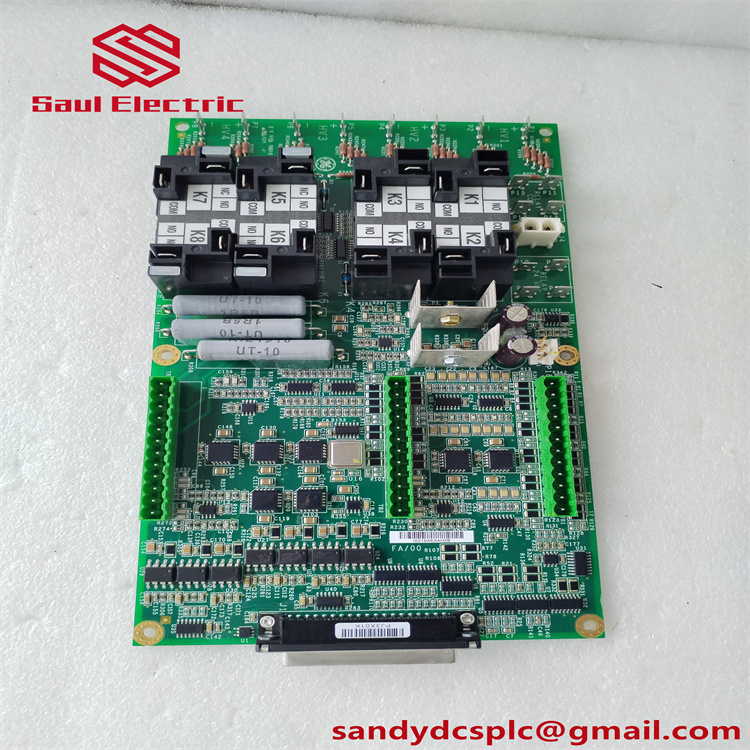

The GE IS210AEAAH2B is a high-performance conformal coated Input/Output (I/O) board engineered for critical industrial control systems, particularly within GE’s Mark VI Speedtronic platform. Designed to interface with field devices and control systems, this module plays a pivotal role in managing analog and digital signals for gas turbines, steam turbines, and wind energy applications. As part of the IS210 series, the GE IS210AEAAH2B integrates seamlessly with GE’s Mark VI systems, delivering reliable performance in harsh environments such as offshore wind farms, power plants, and industrial facilities.
Featuring a conformal-coated PCB for enhanced protection against dust, moisture, and chemical exposure, the GE IS210AEAAH2B incorporates multiple terminal strips and connectors, enabling flexible signal routing for diverse industrial requirements . Its modular design supports easy integration with other GE components, including controllers and power modules, ensuring scalable system configurations. The board’s surface-mount technology (SMT) and robust components, such as relays and voltage regulators, optimize signal conditioning and fault isolation, critical for maintaining continuous operation in mission-critical applications like turbine control and grid synchronization.
With a functional revision of 2B, the GE IS210AEAAH2B supports high-speed data processing and real-time monitoring, ensuring precise control over turbine operations. It interfaces with GE’s ControlST software suite for advanced configuration and diagnostics, allowing users to customize signal parameters and troubleshoot efficiently. The module’s rugged construction, including heat sinks and wire-wound resistors, ensures stable performance under extreme temperatures (-30°C to +70°C) and vibrations, making it ideal for deployment in demanding industrial settings.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | GE IS210AEAAH2B |
| Manufacturer | General Electric (GE) |
| Product Type | Conformal Coated Input/Output (I/O) Board |
| Series | Mark VI Speedtronic |
| PCB Coating | Conformal Coating |
| Functional Revision | 2B |
| Input/Output Channels | Multiple terminal strips for analog/digital signals |
| Connector Types | Right-angled connectors, plug-in terminals |
| Components | Relays, voltage regulators, resistors, capacitors, integrated circuits |
| Mounting Options | Rack or panel mounting via factory-drilled holes |
| Operating Temperature | -30°C to +70°C |
| Physical Dimensions | 135 mm x 186 mm x 119 mm (W x H x D) |
| Weight | 0.3 kg |
| Compatibility | GE Mark VI Speedtronic systems, ControlST software |
| Communication | RS485, Modbus (proprietary GE protocols) |
Key Features and Advantages
Rugged Environmental Protection: The GE IS210AEAAH2B’s conformal coating and robust PCB design shield against environmental contaminants, ensuring longevity in harsh conditions like offshore wind farms or industrial plants with high humidity and dust levels. This protection minimizes downtime and reduces maintenance costs.
Flexible Signal Management: With multiple terminal strips and connector types, the module supports diverse signal configurations, including analog voltage/current inputs/outputs and digital signals. Its differential inputs and advanced filtering capabilities minimize noise interference, ensuring accurate data transmission for turbine sensors and actuators.
Seamless System Integration: As part of GE’s Mark VI series, the GE IS210AEAAH2B integrates seamlessly with ControlST software and other modules like the IS210AEBIH2B (AE Bridge Interface) and IS210DTRTH1A (Compact Terminal Board). This compatibility streamlines system setup and reduces integration complexity.
Reliable Fault Isolation: The module’s diagnostic LEDs and relay groups enable rapid fault detection and isolation, minimizing downtime. Its hot-swappable design allows for online maintenance without disrupting system operations, enhancing operational efficiency.
High-Speed Data Processing: Optimized for real-time data transmission, the GE IS210AEAAH2B ensures timely signal processing for precise turbine control, critical for grid stability and power generation efficiency in wind energy applications.
Application Areas
The GE IS210AEAAH2B excels in industries where reliable I/O management is essential:
- Power Generation: Integrates with Mark VI systems to manage gas and steam turbine controls, monitoring critical parameters like temperature, pressure, and rotational speed to optimize performance and safety.
- Wind Energy: Supports wind turbine control systems, enabling grid synchronization, pitch control, and blade monitoring in both onshore and offshore wind farms.
- Industrial Automation: Used in manufacturing plants for process control, signal routing, and equipment monitoring, particularly in environments with high electromagnetic interference.
- Oil and Gas: Deployed in offshore platforms and refineries to manage I/O signals for pumps, valves, and safety systems, ensuring compliance with stringent operational standards.
- Water Treatment: Manages control signals for filtration systems and pumps, maintaining consistent water quality and system reliability.
Related Products
Installation and Maintenance
Installation Preparation:
Ensure the installation environment meets the module’s temperature and humidity requirements. Verify proper grounding and surge protection to prevent electromagnetic interference. Use GE-approved mounting brackets and cables for secure installation. Before powering up, configure the module via GE’s ControlST software to match the system’s I/O requirements and signal types.
Ensure the installation environment meets the module’s temperature and humidity requirements. Verify proper grounding and surge protection to prevent electromagnetic interference. Use GE-approved mounting brackets and cables for secure installation. Before powering up, configure the module via GE’s ControlST software to match the system’s I/O requirements and signal types.
Maintenance Recommendations:
- Routine Checks: Inspect for physical damage, loose connections, or signs of overheating. Clean dust from the module’s vents to maintain optimal cooling.
- Firmware Updates: Regularly update firmware to access new features and security patches, ensuring compatibility with the latest system upgrades.
- Redundancy Testing: Periodically test the module’s fault isolation capabilities by simulating signal failures to validate system continuity.
- Component Replacement: Replace worn-out relays or capacitors as needed, using GE-certified spare parts to maintain performance.
The GE IS210AEAAH2B’s modular design simplifies component replacement, and its diagnostic LEDs provide real-time status updates for quick troubleshooting.
Product Warranty and Support
The GE IS210AEAAH2B comes with a 1-year warranty covering defects in materials and workmanship. For immediate deployment, the module is available in spot inventory and ships within 3 days of payment. Backorders are fulfilled within 1 month, ensuring timely delivery for large-scale projects.
GE offers 24/7 technical support and access to a global network of certified engineers for system integration, troubleshooting, and training. Comprehensive documentation, including datasheets and installation manuals, is provided to facilitate seamless deployment. With a commitment to quality and reliability, GE ensures the GE IS210AEAAH2B delivers long-term performance in the most demanding industrial environments.
