Description

Product Overview

The GE IS200WEORG1A is a high-performance excitation control interface module designed for critical industrial applications within GE’s Mark VIe Speedtronic turbine control system. Engineered for wind turbine and gas/steam turbine management, this module serves as a vital interface between the excitation system and the control platform, ensuring precise signal conditioning and fault-tolerant operation. As part of the Mark VIe series, the GE IS200WEORG1A supports seamless integration with GE’s advanced turbine control architecture, delivering robust performance in harsh industrial environments such as offshore wind farms and power generation facilities.

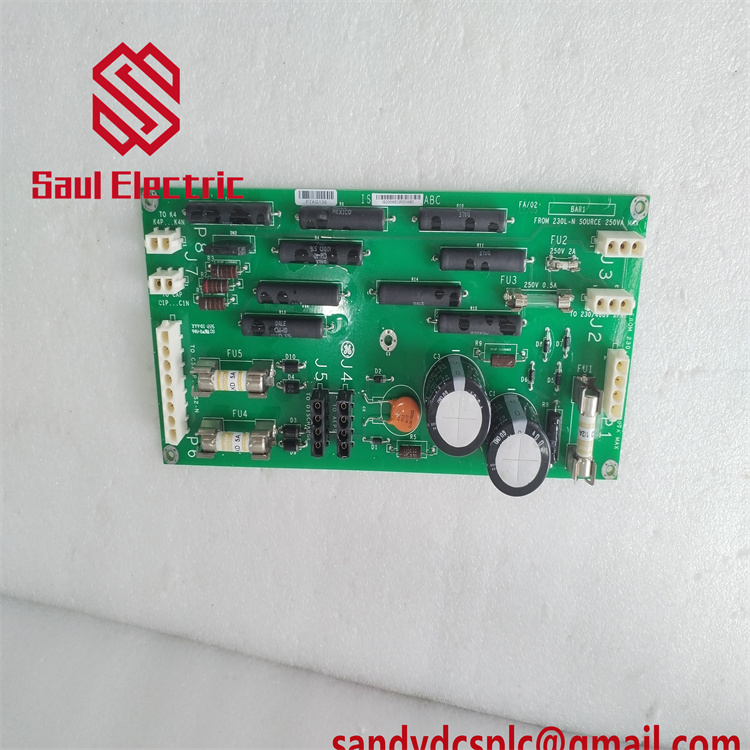

Featuring a conformal-coated PCB and rugged construction, the GE IS200WEORG1A incorporates dual drum-style capacitors (C1, C3) and a smaller orange-coated capacitor (C2) for stable voltage regulation 3. Its design includes 15 resistors, five fuses (250V and 3600V), and factory-drilled mounting holes for secure installation. The module supports high-speed data processing and real-time monitoring, with a functional revision of 1A optimizing its performance for wind turbine excitation control 3. Its right-angled connectors and relay groups enable efficient signal routing and fault isolation, critical for maintaining continuous operation in mission-critical systems.

Certified for industrial use and compliant with GE’s stringent quality standards, the GE IS200WEORG1A interfaces with the exciter regulator backplane (ERBP) and redundant relay backplane (ERRB) in both simplex and redundant configurations 6. Its modular architecture allows for easy integration with other GE components, such as the IS200ERIOH1A (Exciter Regulator I/O) and IS200EHPRG1CCB (Exciter Collector Board), enabling scalable system configurations 12. By combining advanced diagnostics, high-speed signal conditioning, and rugged design, the GE IS200WEORG1A sets a benchmark for reliability in turbine excitation control.

Technical Specifications

Parameter	Value
Product Model	GE IS200WEORG1A
Manufacturer	General Electric (GE)
Product Type	Excitation Control Interface Module
Series	Mark VIe Speedtronic
Functional Revision	1A
PCB Coating	Conformal coating for environmental protection
Components	2 drum-style capacitors, 15 resistors, 5 fuses (250V/3600V), integrated circuits
Input/Output	Multiple analog/digital signal interfaces via terminal strips and connectors
Mounting Options	Rack or panel mounting with 5 factory-drilled holes
Operating Temperature	-30°C to +70°C 19
Physical Dimensions	25 cm x 18 cm x 5 cm (W x H x D) (approximate)
Weight	1.2 kg (approximate)
Compatibility	GE Mark VIe Speedtronic systems, EX2100 excitation control
Communication	Supports GE proprietary ISBus protocol for controller integration 26

Key Features and Advantages

Rugged Environmental Protection: The GE IS200WEORG1A’s conformal coating and robust PCB design protect against dust, moisture, and chemical exposure, ensuring longevity in offshore wind farms or industrial plants with high humidity 3. Its heat sinks and wire-wound resistors enable stable performance under extreme temperatures and vibrations.

Precision Signal Conditioning: Equipped with dual capacitors and precision resistors, the module ensures accurate voltage regulation and noise suppression, critical for maintaining stable excitation control in turbine systems. Its differential inputs and advanced filtering minimize common-mode interference, ensuring reliable signal integrity 3.

Seamless System Integration: As part of GE’s Mark VIe series, the GE IS200WEORG1A interfaces seamlessly with GE’s ControlST software and other modules like the IS200ERIOH1A (Exciter Regulator I/O) and IS200EHPRG1CCB (Exciter Collector Board). This compatibility streamlines system setup and reduces integration complexity 612.

Redundancy and Fault Isolation: The module supports both simplex and redundant configurations, with diagnostic capabilities enabling rapid fault detection and isolation. Its hot-swappable design allows for online maintenance without disrupting system operations, enhancing operational efficiency 36.

High-Speed Data Processing: Optimized for real-time data transmission, the GE IS200WEORG1A ensures timely signal processing for precise turbine excitation control, critical for grid stability and power generation efficiency 3.

Application Areas

The GE IS200WEORG1A excels in industries where reliable excitation control is essential:

Wind Energy: Integrates with Mark VIe Wind systems to manage turbine excitation, ensuring efficient power generation and grid synchronization. Critical for offshore wind farms requiring high reliability in harsh environments.
Power Generation: Supports gas and steam turbine control systems, monitoring and regulating excitation levels to optimize generator output voltage and stability.
Oil and Gas: Deployed in offshore platforms and refineries to manage excitation signals for pumps, compressors, and safety systems, ensuring compliance with operational standards.
Industrial Automation: Used in manufacturing plants for process control and equipment monitoring, particularly in environments with high electromagnetic interference.
Water Treatment: Manages excitation signals for pumps and filtration systems, maintaining consistent water quality and system reliability.

Its compatibility with GE’s EX2100 excitation control system makes it a preferred choice for applications requiring fail-safe operation and precise voltage regulation 621.

Installation and Maintenance

Installation Preparation:
Ensure the installation environment meets the module’s temperature and humidity requirements (-30°C to +70°C). Verify proper grounding and surge protection to prevent electromagnetic interference. Use GE-approved mounting brackets and cables for secure installation. Before powering up, configure the module via GE’s ControlST software to match the excitation system’s signal requirements and redundancy settings 36.

Maintenance Recommendations:

Routine Checks: Inspect for physical damage, loose connections, or signs of overheating. Clean dust from the module’s vents to maintain optimal cooling.
Firmware Updates: Regularly update firmware to access new features and security patches, ensuring compatibility with the latest system upgrades.
Redundancy Testing: Periodically test the module’s fault isolation capabilities by simulating signal failures to validate system continuity.
Component Replacement: Replace worn-out capacitors or resistors as needed, using GE-certified spare parts to maintain performance.

The GE IS200WEORG1A’s modular design simplifies component replacement, and its diagnostic LEDs provide real-time status updates for quick troubleshooting 36.

Product Warranty and Support

The GE IS200WEORG1A comes with a 1-year warranty covering defects in materials and workmanship. For immediate deployment, the module is available in spot inventory and ships within 3 days of payment. Backorders are fulfilled within 1 month, ensuring timely delivery for large-scale projects 3.

GE offers 24/7 technical support and access to a global network of certified engineers for system integration, troubleshooting, and training. Comprehensive documentation, including datasheets and installation manuals, is provided to facilitate seamless deployment. With a commitment to quality and reliability, GE ensures the GE IS200WEORG1A delivers long-term performance in the most demanding industrial environments.
