Description

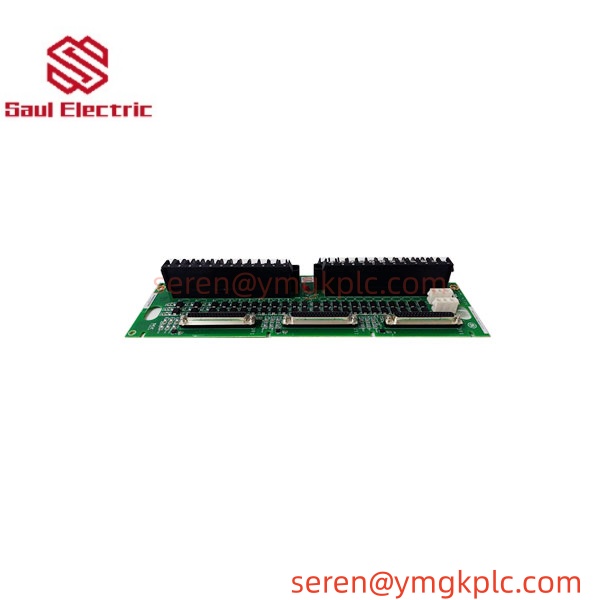

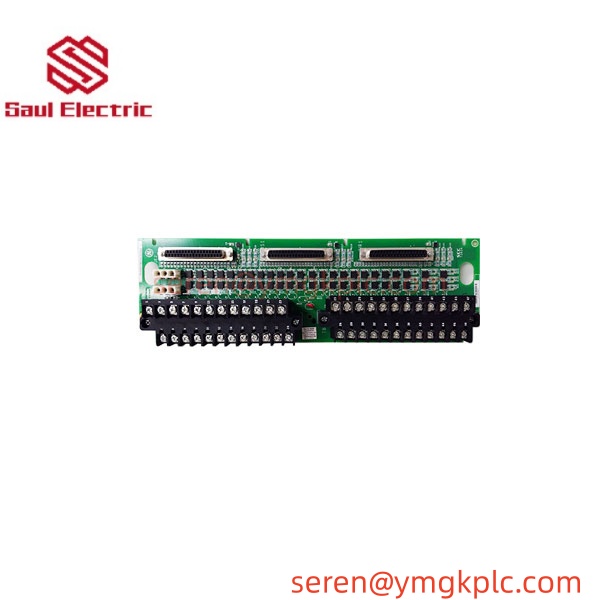

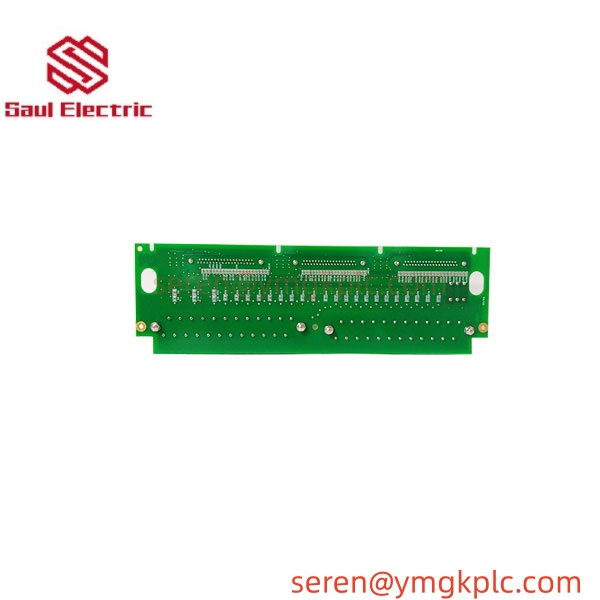

GE IS200TBCIS2CCD is a dedicated contact input termination board developed for the GE Speedtronic Mark VI gas and steam turbine control platform. It acts as the physical interface between field-mounted contact switches, limit switches and auxiliary relays and the internal I/O processing modules inside the control rack. Onboard filtering circuits suppress electromagnetic interference and transient voltage spikes to improve signal stability in noisy power plant environments. This board is widely used as replacement spare hardware for legacy turbine control systems in thermal power plants, refineries and combined-cycle power facilities.
Series
The Speedtronic Mark VI platform is GE’s mature turbine control solution for rotating machinery. The system consists of main control processors, I/O packs and matching terminal boards including IS200 series termination assemblies to realize field signal wiring and signal conditioning.
Product Features
- Screw terminal block design for convenient field wiring of discrete contact input signals.
- Integrated RC filter and surge protection circuits to reduce high-frequency noise and transient disturbances.
- Grouped signal isolation design to minimize cross-channel interference.
- Multiple high-density ribbon connectors to establish communication with corresponding Mark VI I/O packs.
- Standard horizontal rack mounting structure matching Mark VI control cabinet layout.
- Rugged industrial PCB construction suitable for continuous operation in power plant control rooms.
- Supports both simplex and TMR (Triple Modular Redundant) Mark VI control architectures.
- End-of-life legacy component; not available for new turbine control project deployment.
Product Parameters
| Item | Details |
|---|---|
| Part Number | IS200TBCIS2CCD |
| Brand | General Electric |
| Series | Speedtronic Mark VI Turbine Control System |
| Function | Discrete Contact Input Termination Board |
| Field Connection | Screw terminal blocks |
| Internal Interface | High-density ribbon connectors |
| Signal Protection | Built-in noise filter and surge suppression |
| Operating Temperature | -30℃ ~ +65℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Humidity | 5–95% RH, non-condensing |
| Discontinued Status | Obsolete, spare-part only |
Product Specifications
- Certification: CE, UL compliant
- Remark: Must be matched with corresponding Mark VI I/O packs; wiring shall strictly follow GE Mark VI control drawing specifications.
Function
- Provide physical termination points for field contact input signals from turbine auxiliary equipment.
- Filter out electrical interference and transient voltage noise to guarantee reliable discrete signal acquisition.
- Route conditioned contact signals to Mark VI I/O processing modules via ribbon cable connectors.
- Maintain stable signal transmission between field devices and the turbine main controller.
- Simplify on-site wiring inspection and fault troubleshooting for discrete control loops.
Purpose
Signal termination and conditioning interface board for Mark VI turbine control systems, used to collect discrete contact status signals from gas turbine and steam turbine auxiliary systems.
Application Fields
- Combined-cycle power plant Mark VI turbine control maintenance
- Refinery gas turbine control system spare-part replacement
- Thermal power plant steam turbine automation retrofit
- Industrial cogeneration unit rotating machinery control cabinet repair
- Legacy GE Speedtronic Mark VI control platform equipment maintenance
Image search keyword：GE IS200TBCIS2CCD Mark VI contact input termination board
