GE IS200AEADH1A Input/Output Grid Fork Module(XIONGBA)

Price:$999

Brand Model: GE IS200AEADH1A
Product Name: Input/Output Grid Fork Module
Warranty: 1 year
Size: 25 cm x 18 cm x 5 cm
Weight: 1.2 kg
Origin: USA
Inventory: Spot
Delivery Time: Goods in stock will be dispatched within 3 days after payment
Order Time: Goods will be dispatched within one month after payment

Category: Brand:
  • Need Help?
  • +86 18030182217
  • +86 18030182217
  • sandydcsplc@gmail.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

Product Overview

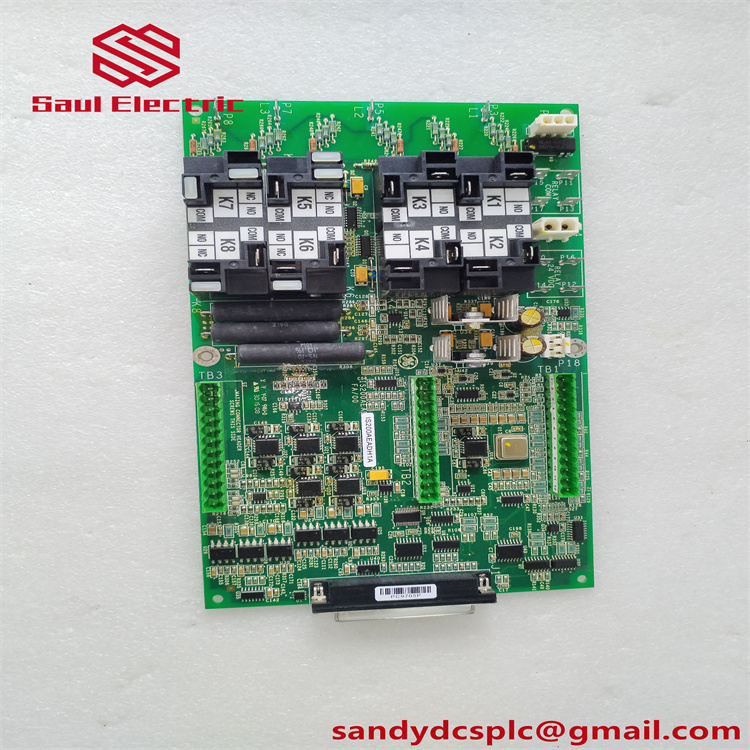

The GE IS200AEADH1A is a high-performance Input/Output (I/O) Grid Fork Module designed for critical industrial control systems, particularly within GE’s Mark VIe Speedtronic platform. Engineered for wind turbine and gas/steam turbine applications, this module serves as a vital interface between field devices and the control system, ensuring reliable signal transmission and system integrity. As part of the Mark VIe Wind series, the GE IS200AEADH1A supports seamless integration with GE’s advanced turbine control systems, delivering robust performance in harsh industrial environments.



Featuring a conformal-coated PCB for enhanced protection against dust, moisture, and chemical exposure14, the GE IS200AEADH1A incorporates three vertical-pin terminal strips with 12 pins each, facilitating flexible connectivity for analog and digital signals. Its modular design allows for easy integration with other GE components, such as controllers and power modules, enabling scalable system configurations. The module’s right-angled connector and multiple relay groups ensure efficient signal routing and fault isolation, critical for maintaining continuous operation in mission-critical applications like wind farm management and power generation.



With a functional revision of 1A1, the GE IS200AEADH1A is optimized for high-speed data processing and real-time monitoring. It supports a wide range of signal types, including voltage and current inputs/outputs, and is compatible with GE’s ControlST software suite for advanced configuration and diagnostics. The module’s rugged construction, including heat sinks and wire-wound resistors4, ensures stable performance under extreme temperatures and vibrations, making it ideal for deployment in demanding industrial settings.

Technical Specifications

Parameter Value
Product Model GE IS200AEADH1A
Manufacturer General Electric (GE)
Product Type Input/Output Grid Fork Module
Series Mark VIe Wind
PCB Coating Conformal Coating
Functional Revision 1A
Input/Output Channels 3 vertical-pin terminal strips (12 pins each)
Connector Types Right-angled connector, plug-in connectors
Components 8 relays, 2 heat sinks, wire-wound resistors, capacitors, integrated circuits
Mounting Options Rack or panel mounting via factory-drilled holes
Operating Temperature -30°C to +70°C (estimated based on similar GE modules)519
Physical Dimensions 25 cm x 18 cm x 5 cm (W x H x D) (approximate)
Weight 1.2 kg (approximate)
Compatibility GE Mark VIe Speedtronic systems, BOP control systems

Key Features and Advantages

Rugged Environmental Protection: The GE IS200AEADH1A’s conformal coating and robust PCB design protect against environmental contaminants, ensuring longevity in harsh conditions such as offshore wind farms or industrial plants with high humidity and dust levels14.



Flexible Signal Management: With three terminal strips and multiple connector types, the module supports diverse signal configurations, including analog and digital inputs/outputs. This flexibility allows it to interface with sensors, actuators, and other field devices across various industrial applications.



Seamless System Integration: As part of GE’s Mark VIe series, the GE IS200AEADH1A integrates seamlessly with GE’s ControlST software and other modules like power amplifiers and communication boards622. This compatibility streamlines system setup and reduces integration complexity.



Reliable Fault Isolation: The module’s relay groups and diagnostic capabilities enable rapid fault detection and isolation, minimizing downtime. Its hot-swappable design allows for online maintenance without disrupting system operations, enhancing operational efficiency.



High-Speed Data Processing: Optimized for real-time data transmission, the GE IS200AEADH1A ensures accurate and timely signal processing, critical for applications requiring precise turbine control and load management.

Application Areas

The GE IS200AEADH1A excels in industries where reliable I/O management is essential:



  • Wind Energy: Integrates with Mark VIe Wind systems to manage turbine controls, grid connections, and BOP operations, ensuring efficient power generation and grid stability.
  • Power Generation: Supports gas and steam turbine control systems, monitoring critical parameters like temperature, pressure, and rotational speed to optimize performance and safety.
  • Industrial Automation: Used in manufacturing plants for process control, signal routing, and equipment monitoring, particularly in environments with high electromagnetic interference.
  • Oil and Gas: Deployed in offshore platforms and refineries to manage I/O signals for pumps, valves, and safety systems, ensuring compliance with stringent operational standards.
  • Water Treatment: Manages control signals for filtration systems and pumps, maintaining consistent water quality and system reliability.

Related Products

  1. IS200WEORG1A
  2. IS200WETBHIB
  3. IS200WETCH1A
  4. IS210AEAAH2B
  5. IS210AEBIH3B

Installation and Maintenance

Installation Preparation:
Ensure the installation environment meets the module’s temperature and humidity requirements. Verify proper grounding and surge protection to prevent electromagnetic interference. Use GE-approved mounting brackets and cables for secure installation. Before powering up, configure the module via GE’s ControlST software to match the system’s I/O requirements and signal types.



Maintenance Recommendations:



  • Routine Checks: Inspect for physical damage, loose connections, or signs of overheating. Clean dust from the module’s vents to maintain optimal cooling.
  • Firmware Updates: Regularly update firmware to access new features and security patches, ensuring compatibility with the latest system upgrades.
  • Redundancy Testing: Periodically test the module’s fault isolation capabilities by simulating signal failures to validate system continuity.
  • Component Replacement: Replace worn-out relays or capacitors as needed, using GE-certified spare parts to maintain performance.



The GE IS200AEADH1A’s modular design simplifies component replacement, and its diagnostic LEDs provide real-time status updates for quick troubleshooting.

Product Warranty and Support

The GE IS200AEADH1A comes with a 1-year warranty covering defects in materials and workmanship9. For immediate deployment, the module is available in spot inventory and ships within 3 days of payment. Backorders are fulfilled within 1 month, ensuring timely delivery for large-scale projects.



GE offers 24/7 technical support and access to a global network of certified engineers for system integration, troubleshooting, and training. Comprehensive documentation, including datasheets and installation manuals, is provided to facilitate seamless deployment. With a commitment to quality and reliability, GE ensures the GE IS200AEADH1A delivers long-term performance in the most demanding industrial environments.
