Product Overview

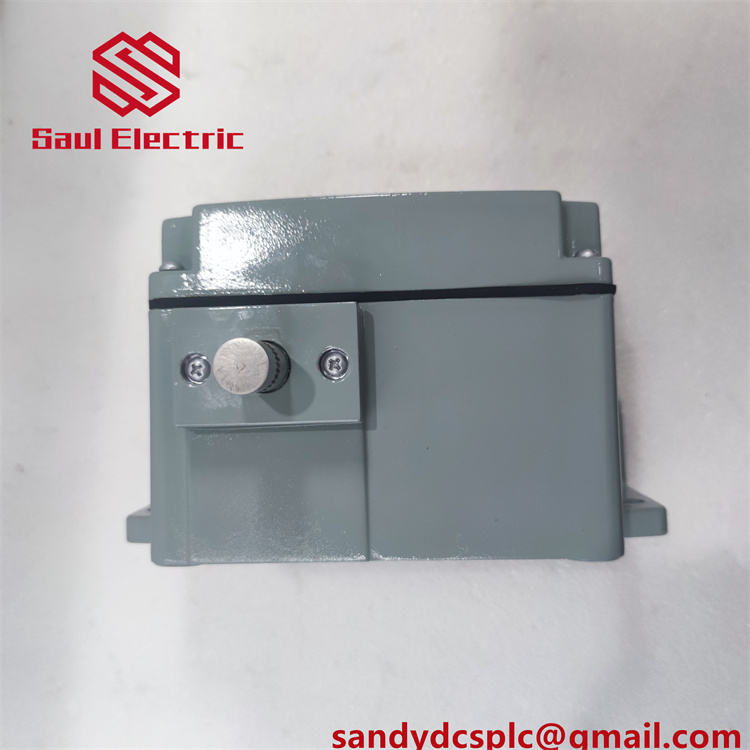

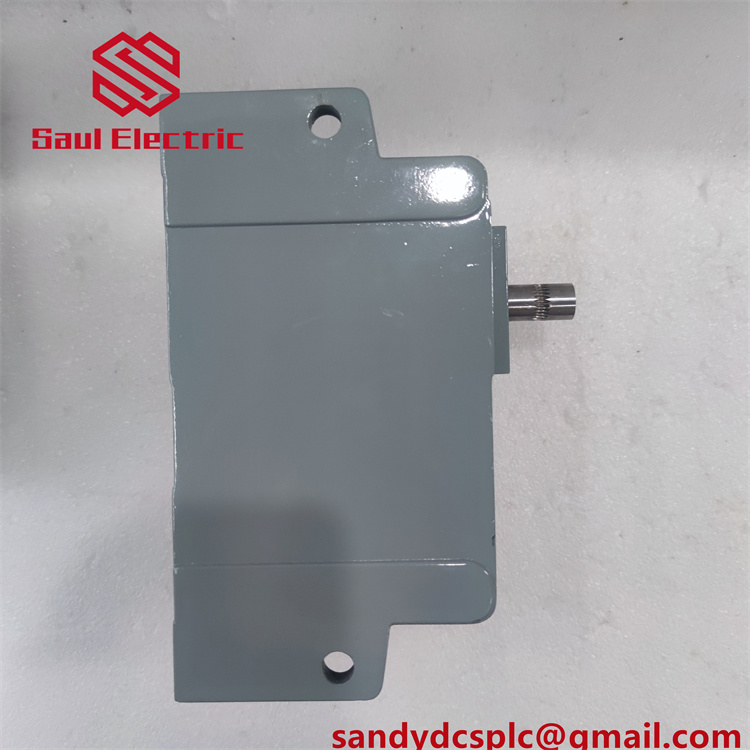

The GE IC9445B200AB is a robust and high – performance waterproof lever limit switch from General Electric, engineered to provide precise position sensing and reliable operation in industrial automation systems. As a key component in the safety and control infrastructure, the GE IC9445B200AB plays a crucial role in detecting the presence, position, or absence of objects, ensuring that machinery and equipment operate within safe and predefined parameters.
This limit switch belongs to GE’s industrial automation product line, designed to withstand harsh environmental conditions. It is built to endure exposure to dust, moisture, and mechanical stress, making it suitable for a wide range of industrial applications. With its 600VAC rated voltage and 15A rated current, the GE IC9445B200AB can be integrated into various electrical circuits to provide accurate switching signals, enabling seamless control and monitoring of automated processes. Whether it’s used to control the movement of conveyor belts, the operation of robotic arms, or the positioning of industrial machinery, this limit switch offers reliable performance, contributing to enhanced productivity and safety in industrial environments.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC9445B200AB |
| Manufacturer | General Electric |
| Product Type | Waterproof Lever Limit Switch |
| Rated Voltage | 600VAC |
| Rated Current | 15A |
| Contact Type | Non – Overlapping Circuit |
| Operating Temperature Range | -20°C to +70°C |
| Protection Rating | IP67 |
| Actuator Type | Lever |
| Mounting Style | Panel Mount |
| Electrical Life | Up to 1,000,000 operations |
| Mechanical Life | Up to 10,000,000 operations |
Main Features and Advantages
High Durability
The GE IC9445B200AB is constructed to last, with an IP67 protection rating that safeguards it against dust ingress and temporary immersion in water. This makes it ideal for use in challenging industrial settings where exposure to the elements is common. Its robust build quality ensures a long mechanical life of up to 10,000,000 operations and an electrical life of up to 1,000,000 operations, reducing the need for frequent replacements and minimizing maintenance costs.
Precise Sensing
Equipped with a sensitive lever actuator, this limit switch provides highly accurate position sensing. It can detect the slightest movements of objects, allowing for precise control of industrial processes. The non – overlapping circuit design ensures reliable switching, preventing electrical malfunctions and ensuring the safety of connected equipment.
Versatile Compatibility
With a rated voltage of 600VAC and a current rating of 15A, the IC9445B200AB can be easily integrated into a wide variety of electrical systems. Its panel – mount design offers flexible installation options, making it suitable for different types of machinery and equipment. Whether in new automation setups or retrofitting existing systems, this limit switch can be quickly and easily incorporated.
Application Areas
The GE IC9445B200AB finds extensive use across multiple industries. In the manufacturing sector, it is employed to control the movement of conveyor systems, ensuring that products are accurately positioned for assembly, packaging, or inspection. For instance, in automotive manufacturing plants, it can be used to monitor the movement of car bodies along the production line, triggering actions such as robotic welding or painting at the right positions.
In the material handling industry, the IC9445B200AB is crucial for the operation of cranes, lifts, and automated guided vehicles (AGVs). It helps in preventing over – travel and ensuring safe positioning of loads, enhancing the overall efficiency and safety of the material handling process.
Moreover, in the food and beverage industry, where equipment needs to withstand frequent washdowns, the waterproof feature of this limit switch makes it an excellent choice. It can be used to control the operation of filling machines, bottling lines, and other processing equipment, ensuring consistent and reliable performance even in wet and harsh environments.
Related Products
- GE IC9445B100AB: Similar to the IC9445B200AB, but with different mechanical and electrical specifications, potentially offering a lower current rating or different actuator style, suitable for applications with less demanding requirements.
- GE IC9445B300AB: A more heavy – duty variant, designed for applications that require higher current handling capabilities or more robust mechanical construction, providing enhanced performance in extreme industrial conditions.
- GE IC9445R200AB: This model might feature a different contact configuration or response time, offering alternative solutions for specific sensing needs in industrial automation systems.
- GE IC9445P200AB: Could have a different mounting design or protection features, providing options for installation in various industrial setups where the standard panel – mount of the IC9445B200AB might not be suitable.
- GE IC9445D200AB: Potentially designed with enhanced diagnostic capabilities, allowing for easier troubleshooting and monitoring of the limit switch’s performance in complex industrial applications.
Installation and Maintenance
Installation Preparation: Before installing the GE IC9445B200AB, ensure that the power to the relevant electrical circuit is turned off to prevent electrical shock. Select an appropriate mounting location on the equipment or panel, ensuring that the lever actuator has a clear range of motion without any obstructions. Use the provided mounting hardware to securely fasten the limit switch in place, and make sure all electrical connections are properly terminated according to the wiring diagram provided in the product manual.
Maintenance Advice: Regularly inspect the IC9445B200AB for any signs of physical damage, such as cracks in the housing or wear on the lever actuator. Clean the switch periodically to remove dust, debris, or any substances that could affect its performance. Check the electrical connections for tightness and signs of corrosion. If the switch is not operating correctly, refer to the troubleshooting section of the manual. In case of persistent issues, consider replacing the switch to ensure the continued safe and reliable operation of the automated system.
Product Guarantee
General Electric stands firmly behind the quality of the GE IC9445B200AB. The product is backed by a comprehensive 1 – year warranty, which covers any manufacturing defects that may arise during normal use. In the unlikely event of a problem, GE’s dedicated customer support team is available to provide prompt assistance, guiding customers through troubleshooting steps or arranging for repair or replacement services. Our commitment to quality and customer satisfaction extends beyond the warranty period, with continuous technical support and access to genuine spare parts, ensuring that your investment in the IC9445B200AB delivers reliable performance for years to come.
