Description

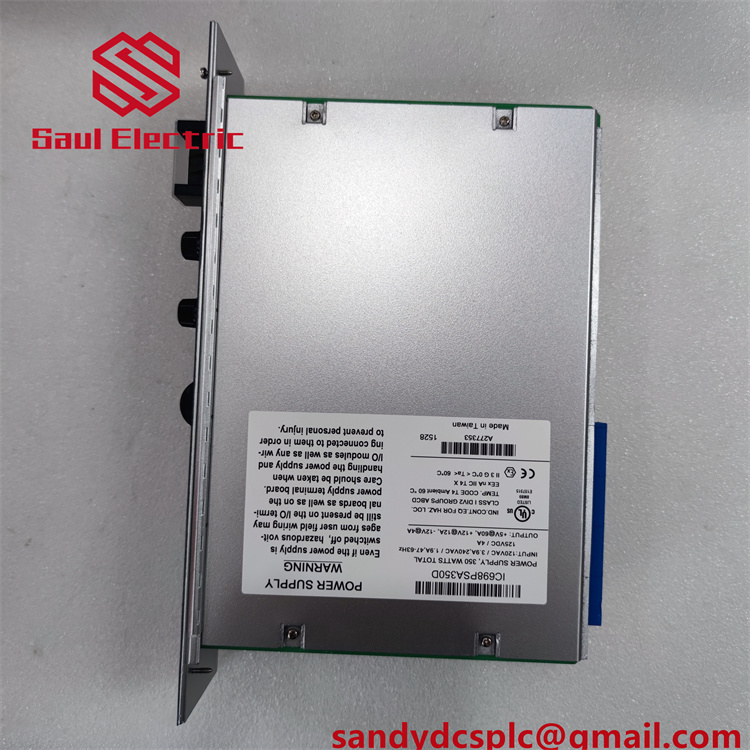

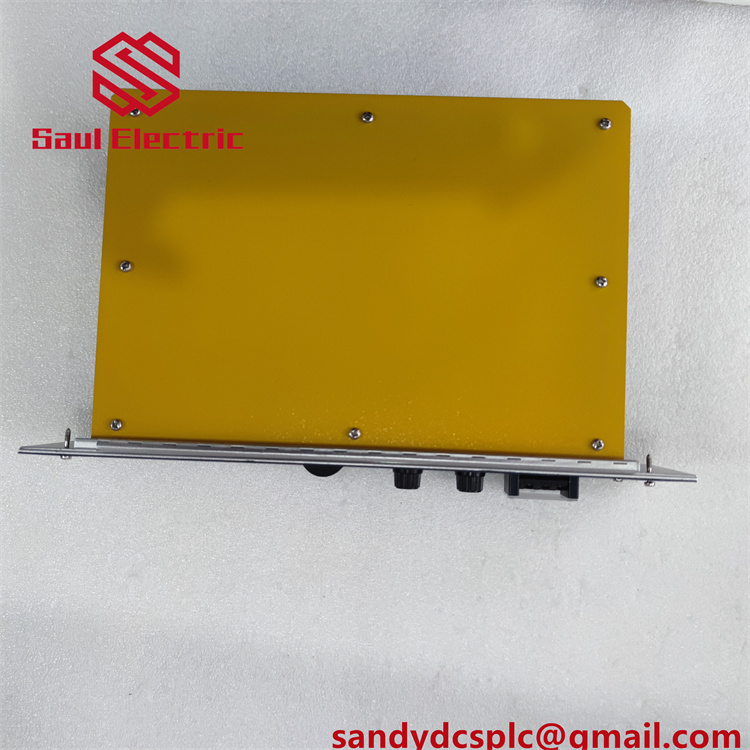

Product Overview

The GE IC698PSA350 is a power supply module designed for the PACSystem RX7i platform1. It is an essential component in industrial automation systems, responsible for providing stable power to the connected devices and I/O on the RX7i backplane1. With a modular design, it can be easily installed in the leftmost slot (slot 0) of the RX7i rack1. This module offers multiple output voltages, including +5 VDC, +12 VDC, and -12 VDC, meeting the diverse power requirements of different modules in the system1. It features built – in protection mechanisms such as overcurrent, overvoltage, and short – circuit protection, ensuring the safety and reliability of the power supply1. Additionally, it supports both AC and DC input, with power factor correction for AC operation, enhancing the efficiency and stability of the power supply.

Technical Specifications

Parameter Name Parameter Value
Product Model IC698PSA350
Manufacturer GE
Product Type Power supply module
Nominal Rated Voltage 120/240 VAC or 125 VDC
Input Voltage Range 85 – 264 VAC (47 – 63 Hz) or 100 – 150 VDC
Input Power 437 W (typical), 500 W (maximum)
Output Voltage +5 VDC, +12 VDC, -12 VDC
Output Current +5 VDC @ 60 A, +12 VDC @ 12 A, -12 VDC @ 4 A
Output Power 350 W
Maximum Surge Rating 30 A at 115 VAC (cold start), 60 A at 230 VAC (cold start), for 100 ms
Power Factor 0.99 (90 – 260 VAC only)
Isolation Rating 1500 VAC between input and all outputs for 1 minute
Operating Temperature Range 0 – 60 °C
Rack Position Slot 0

Main Features and Advantages

  • Wide Input Voltage Range: The GE IC698PSA350 can operate over a wide input voltage range, from 85 to 264 VAC or 100 to 150 VDC, accommodating various power sources and enhancing the adaptability of the system1.
  • High – Power Output: It provides a total output power of 350 W, with output currents of up to 60 A at +5 VDC, 12 A at +12 VDC, and 4 A at -12 VDC, meeting the high – power demands of industrial equipment1.
  • Reliable Protection: Equipped with built – in overcurrent, overvoltage, and short – circuit protection, it can effectively prevent damage to the module and other connected devices caused by power surges or faults, ensuring the stable operation of the system1.
  • Convenient Installation: The module features a slide – in rack mount construction, which can be easily installed in the slot 0 of the RX7i rack, facilitating system integration and maintenance1.
  • Status Monitoring: It is equipped with LED indicators, including “FIELD OK”, “OUTPUT OK”, and “OVER TEMP”, which allow operators to quickly understand the operating status of the module and promptly detect and handle faults1.

Application Areas

The GE IC698PSA350 power supply module is widely used in various industrial automation fields. In the manufacturing industry, it powers programmable logic controllers (PLCs), distributed control systems (DCSs), and other control devices, ensuring the stable operation of production lines. In the field of process control, it provides reliable power for sensors, actuators, and control valves, enabling precise control of process parameters. In power plants, it is used to supply power to monitoring and control equipment, helping to ensure the safe and efficient operation of the power generation process. In the transportation industry, it can be applied to the control systems of railways and subways, providing stable power for signal control and vehicle operation control. Overall, wherever the PACSystem RX7i platform is used, the GE IC698PSA350 power supply module plays a crucial role in ensuring the normal operation of the system.

Related Products

  • IC698PSA100: It is a low – capacity power supply module in the same series as the GE IC698PSA350, with a total output of 100 W, suitable for applications with lower power requirements5.
  • IC697PWR711: This is another power module of GE, which may be used in other series of systems and has different technical parameters and application scenarios from the GE IC698PSA350.
  • IC698CHS217: It is a communication module of the RX7i series, which works together with the GE IC698PSA350 power supply module to realize the communication function in the system.
  • IC698CPE030 – HN: It is a processor module of the RX7i series. The GE IC698PSA350 provides power for it to ensure its normal operation and data processing.
  • IC698MDL940: It is an I/O module of the RX7i series. The GE IC698PSA350 supplies power to this module to enable it to receive and send signals from field devices.

Installation and Maintenance

  • Installation Preparation: Before installing the GE IC698PSA350 module, make sure the RX7i rack is properly grounded and all other modules in the rack are installed correctly. Check the input power source to ensure it is within the specified voltage range. Clean the installation slot to ensure there is no debris or dust. Align the module with the slot 0 of the RX7i rack and gently slide it in until it is firmly seated. Connect the input power cable to the terminals on the front panel of the module, making sure the connections are secure.
  • Maintenance Advice: Regularly check the status of the LED indicators on the front panel of the GE IC698PSA350 module. If the “OVER TEMP” LED is on, check the cooling fan and airflow to ensure proper heat dissipation. Clean the dust on the module regularly to prevent overheating. Periodically measure the output voltage to ensure it is within the specified range. If any abnormalities are found, promptly check the power supply module and related circuits to identify and resolve the problem in a timely manner.

Product Warranty

GE provides a quality assurance for the GE IC698PSA350 power supply module. The product comes with a one – year warranty. During this period, if there is any quality problem with the module under normal use conditions, GE will provide free repair or replacement services. In addition, GE offers comprehensive after – sales service and technical support. Customers can contact the GE technical support team at any time for help with installation, operation, and troubleshooting. GE is committed to ensuring the reliable operation of the product and the satisfaction of customers.
