Description

Product Overview

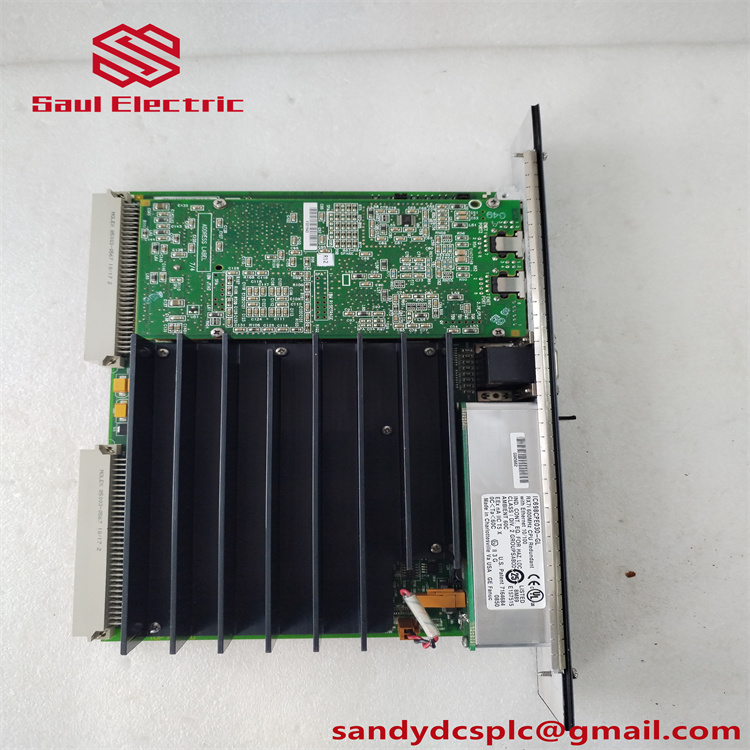

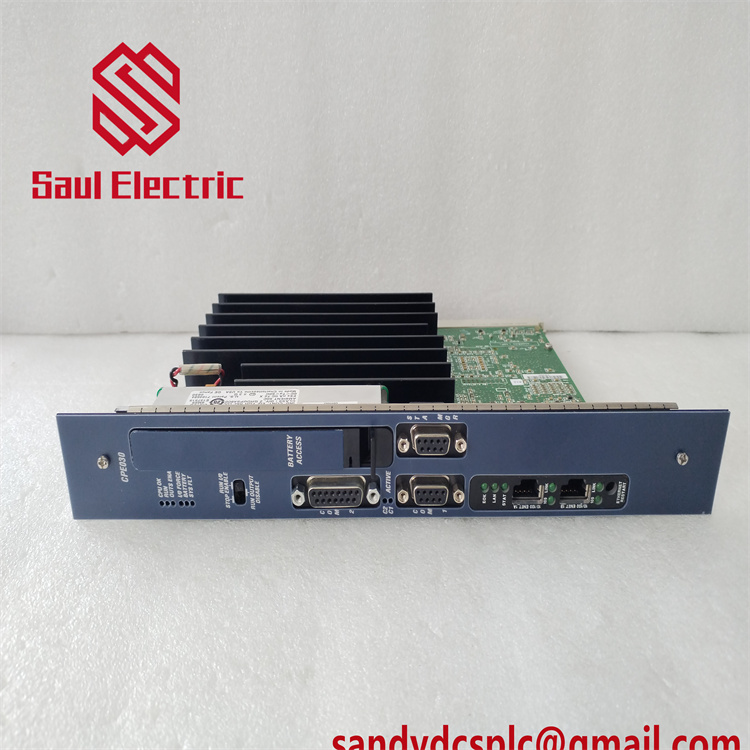

The GE IC698CPE030 is a high – performance central processing unit (CPU) belonging to the PACSystems RX7i series, designed and produced by GE Fanuc, now under Emerson Automation Solutions4. It is equipped with a 600 MHz Pentium – M microprocessor, which ensures fast processing speeds1. With 64 MB each of battery – backed user memory and non – volatile flash user memory, it can store and manage data effectively1. This CPU comes standard with three isolated serial ports (RS – 485, RS – 232, and RS – 232 Ethernet station manager serial port) and dual embedded Ethernet ports, supporting multiple communication protocols such as Modbus RTU slave, SNP, and Serial I/O1. It plays a crucial role in industrial automation systems, undertaking real – time control of processes, machines, and material handling systems1.

Technical Specifications

Parameter Name	Parameter Value
Product Model	IC698CPE030
Manufacturer	GE Fanuc (Now Emerson Automation Solutions)
Product Type	Central Processing Unit
Processing Speed	600 MHz
CPU Memory	64 Mbytes
Floating Point	Yes
Serial Ports	3
Serial Protocols	Modbus RTU slave, SNP, Serial I/O
Embedded Comms	RS – 232, RS – 485, Ethernet interface
Power Requirements	+5 VDC: 3.2 amps nominal; +12 VDC: 0.003 amps nominal; -12 VDC: 0.003 amps nominal
Operating Temperature	0 to 50 °C (32 °F to 122 °F); up to 60 °C (140 °F) with fan tray
Boolean Execution Speed	0.069 ms per 1000 boolean contacts/coils
Time of Day Clock Accuracy	Maximum drift of ±2 seconds per day
Elapsed Time Clock Accuracy	±0.01% maximum
Ethernet Ports	Embedded auto – sensing 10/100 Mbps half/full – duplex Ethernet interface
VME Compatibility	Supports VME64 standard ANSI/VITA 1

Main Features and Advantages

High – speed Processing: The GE IC698CPE030‘s 600 MHz Pentium – M microprocessor enables rapid execution of programs, with a boolean processing speed of 0.069 milliseconds per 1000 boolean contacts/coils, which is suitable for complex and time – sensitive control tasks.
Rich Memory Configuration: With 64 MB of battery – backed user memory and 64 MB of non – volatile flash user memory, it can ensure data security and integrity, even in the event of a power outage.
Versatile Communication Capabilities: It is equipped with multiple communication ports, including Ethernet and serial ports, supporting a variety of communication protocols. This allows for seamless integration with different devices and systems in the industrial automation environment, facilitating efficient data exchange and remote monitoring.
Wide Compatibility: As part of the RX7i series, the IC698CPE030 is compatible with a wide range of modules, such as Series 90 – 70 discrete and analog I/O modules and VME modules, providing flexibility for system expansion and upgrade.

Application Areas

The GE IC698CPE030 is widely used in various industrial automation scenarios. In manufacturing plants, it can be used to control production lines, manage the operation of robots and automated handling equipment, and ensure the efficient and stable operation of the entire production process. In the field of process control, such as in chemical plants and power plants, it can monitor and control process parameters in real time, adjust process variables, and ensure the safety and reliability of the process. In addition, in smart factories, the IC698CPE030 can be integrated with other intelligent systems to achieve the integration of production, management, and logistics, helping enterprises improve production efficiency and management level.

Installation and Maintenance

Installation – before Preparation: Before installing the GE IC698CPE030, make sure the installation environment meets the requirements, including appropriate temperature, humidity, and dust – free conditions. Check the integrity of the module and the connection ports, and ensure that the power supply voltage is stable and within the specified range. Read the installation manual carefully to understand the installation steps and precautions.
Maintenance Advice: Regularly check the operating status of the IC698CPE030, including the status of indicator lights and the temperature of the module. Replace the lithium – battery pack (IC698ACC701) according to the recommended time to avoid memory loss due to battery failure. Keep the module clean and free of dust and dirt to ensure good heat dissipation. Regularly back up the program and data in the CPU to prevent data loss in the event of a failure.

Product Guarantee

GE Fanuc (now Emerson Automation Solutions) stands behind the quality of the GE IC698CPE030 with a comprehensive product guarantee. There is a one – year quality assurance period, during which any quality – related issues will be addressed promptly. The company also provides professional after – sales service and technical support. Customers can get timely help and guidance from experienced technical personnel when they encounter problems. Whether it is software configuration or hardware troubleshooting, the technical support team will do its best to ensure the normal operation of the product, demonstrating the company’s confidence in the product and its commitment to customer satisfaction.

Brand model: GE IC698CPE030
Product Name: Central Processing Unit
Warranty: 1 year
Size: 32 * 3 * 1 (cm)4
Weight: 0.1 kg4
Origin: USA4
Inventory: Spot/Futures
Delivery time: Goods in stock will be dispatched within 3 days after payment
Order time: Goods will be dispatched within one month after payment
