Description
Product Overview

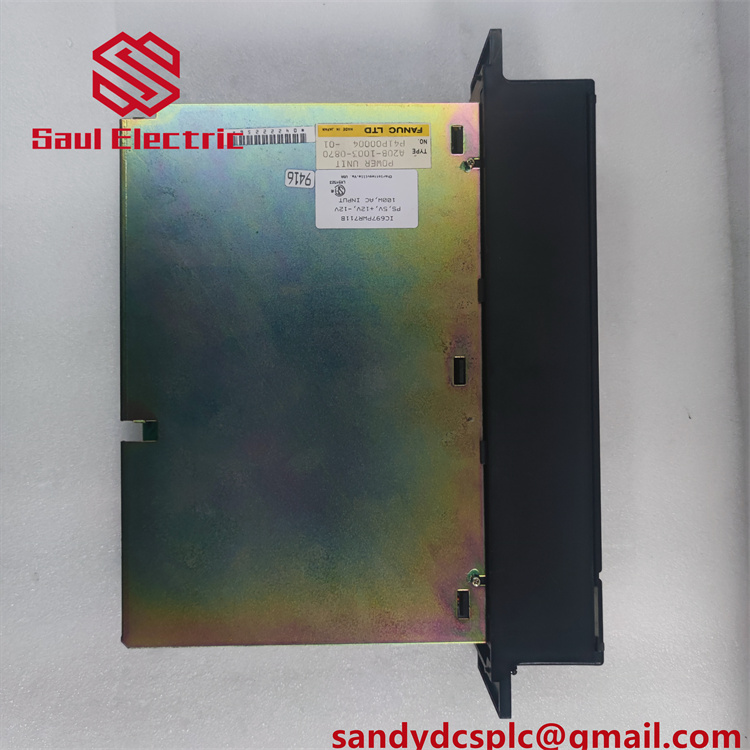

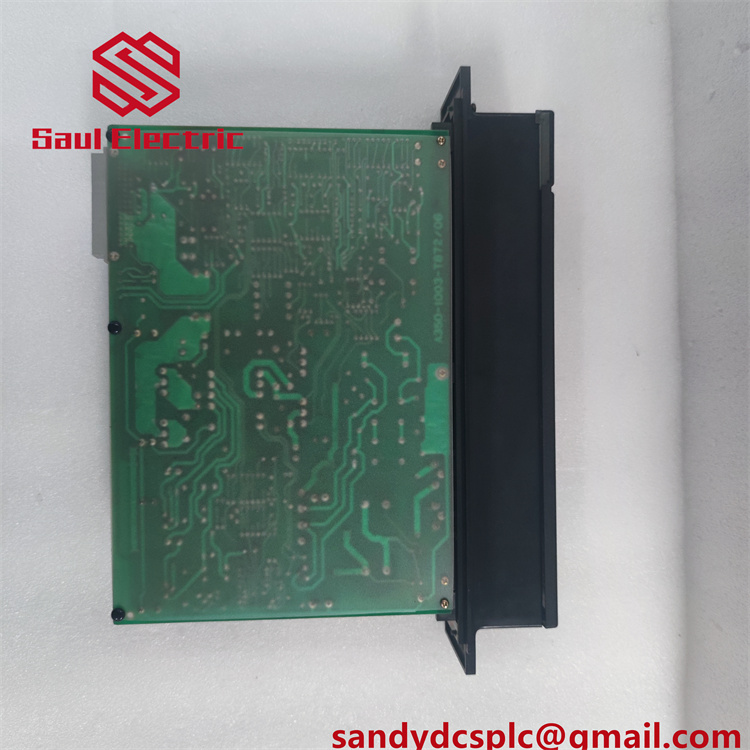

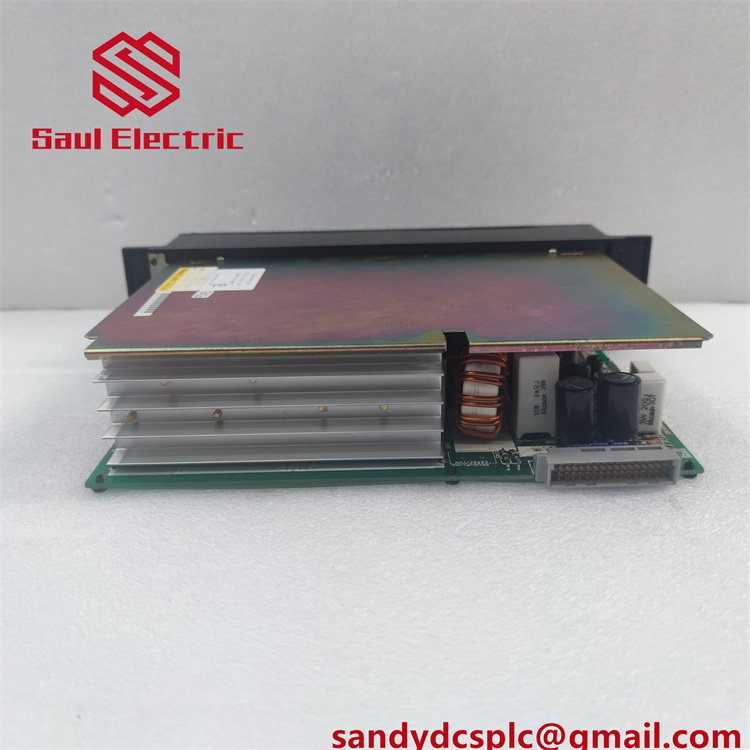

The GE IC697PWR711 is a high-performance 100-watt power supply module belonging to GE’s Fanuc 90 – 70 series, designed to provide reliable and stable power for industrial automation systems. As a crucial component in automation setups, the GE IC697PWR711 ensures that connected devices such as programmable logic controllers (PLCs), input/output modules, and other critical equipment operate smoothly.
This power supply module features a wide input voltage range, accepting 120VAC, 240VAC, or 125VDC as nominal inputs, with an operating range of 90VAC – 264VAC and 100VDC – 150VDC. It offers multiple output voltages including +5VDC, +12VDC, and -12VDC, with the +5VDC output capable of delivering up to 20 amps, +12VDC up to 2 amps, and -12VDC up to 1 amp. The GE IC697PWR711‘s robust design, with built-in protection mechanisms, makes it suitable for harsh industrial environments. Its slide-in rack mount structure simplifies installation, and its power sequencing control feature enhances the reliability of the overall automation system by ensuring that connected modules power up and down in the correct order.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC697PWR711 |
| Manufacturer | GE |
| Product Type | Power Supply Module |
| Input Voltage Range | 90VAC – 264VAC, 100VDC – 150VDC |
| Nominal Input Voltage | 120VAC, 240VAC, 125VDC |
| Output Voltages | +5VDC, +12VDC, -12VDC |
| Output Current (+5VDC) | Up to 20A |
| Output Current (+12VDC) | Up to 2A |
| Output Current (-12VDC) | Up to 1A |
| Total Output Power | 100W |
| Input Power (Typical) | 135W |
| Input Power (Peak) | 160W |
| Dimensions | Approximately 8.83 in × 3.58 in × 4.7 in |
| Operating Temperature | 0°C – 60°C (32°F – 140°F) |
| Storage Temperature | -40°C – 85°C (-40°F – 185°F) |
| Mounting Method | Slide-in rack mount |
Main Features and Advantages
Flexible Input and Robust Output
The GE IC697PWR711‘s wide input voltage range allows it to adapt to various power sources commonly found in industrial settings, reducing the need for additional voltage conversion equipment. With its multiple output voltages and high current-carrying capacity, it can power a diverse range of devices simultaneously, making it highly versatile for complex automation systems.
Enhanced Protection
Equipped with electronic short-circuit and over-current protection, the GE IC697PWR711 safeguards connected equipment from damage caused by electrical faults. The built-in electronic shut-off circuit and back-up voltage clamp prevent overvoltage situations, ensuring the longevity of both the power supply and the connected modules.
Simplified Installation and Management
Its slide-in rack mount design enables quick and easy installation, replacement, and maintenance. The power sequencing control feature ensures that all connected modules power on and off in an orderly manner, preventing potential damage due to improper power cycling and enhancing system stability. Additionally, the ability to power two racks with a single GE IC697PWR711 module (when within the power rating) further simplifies system architecture and reduces costs.
Power Factor Correction
For AC operation, the power factor correction feature improves the efficiency of power usage, reducing power losses and minimizing the impact on the electrical grid. This not only helps in saving energy but also ensures compliance with electrical regulations in many industrial applications.
Application Areas
Industrial Automation
In manufacturing plants, the GE IC697PWR711 is essential for powering PLCs, HMIs, and a variety of sensors and actuators that control production lines. Whether it’s an automotive assembly line, a food processing plant, or an electronics manufacturing facility, this power supply module ensures the continuous and stable operation of critical automation equipment, contributing to increased productivity and reduced downtime.
Power Systems
In power generation and distribution systems, the GE IC697PWR711 powers monitoring and control systems. It is used in substations to supply power to devices that monitor electrical parameters, control circuit breakers, and manage power flow. In renewable energy plants such as wind and solar farms, it provides reliable power to the control systems that regulate energy production and grid integration.
Transportation
In the transportation industry, the GE IC697PWR711 is utilized in railway signaling systems, traffic control centers, and airport automation. It powers the equipment that controls signals, monitors train movements, manages traffic lights, and operates baggage handling systems, ensuring the smooth and safe operation of transportation infrastructure.
Related Products
- GE IC697PWR721: This is an upgraded version of the GE IC697PWR711 with higher power output capabilities, suitable for larger and more power-hungry automation systems.
- GE IC693PWR330: A power supply module from GE’s other product line, it offers different voltage outputs and power ratings, and can be an alternative choice for smaller-scale automation projects.
- GE IC695PWR330: Designed for GE’s VersaMax series, it has similar functions to the GE IC697PWR711 but is tailored for a different platform, providing power to VersaMax-based automation systems.
- GE IC698PWR724: A high-power power supply module that can be used in conjunction with the GE IC697PWR711 in large industrial setups to meet higher power demands, especially in applications where multiple racks and a large number of modules need to be powered.
- GE IC697PWR712: It shares many features with the GE IC697PWR711 but may have slight differences in output characteristics or additional functions, offering users more options based on specific application requirements.
Installation and Maintenance
Installation Preparation
Before installing the GE IC697PWR711, ensure that the power to the system is completely turned off to avoid electrical shock and damage to the module. Check the compatibility of the module with the existing rack and backplane. Clean the installation area to remove any dust or debris that could affect the electrical connections. Use the appropriate tools to secure the GE IC697PWR711 in the leftmost slot of the rack, connecting it to the 48-pin backplane mounting connector. Make sure all electrical connections are tight and properly insulated.
Maintenance Advice
Regularly inspect the GE IC697PWR711 for any signs of physical damage, such as cracks or burn marks on the housing. Check the status indicators (if available) to ensure the module is operating normally. Clean the module periodically using a dry, non-conductive cloth to remove accumulated dust, which can affect heat dissipation. Monitor the input and output voltages and currents regularly to detect any abnormalities. In case of a fault, refer to the product manual for troubleshooting steps. If necessary, replace the module with a new one to ensure the continued reliable operation of the automation system.
Product Guarantee
GE stands firmly behind the quality of the GE IC697PWR711 with a comprehensive 1-year warranty. This warranty covers any defects in materials and workmanship that may occur during normal use. In the event of a problem within the warranty period, GE’s dedicated technical support team is available to provide prompt assistance, whether it’s through remote diagnostics or on-site service. Additionally, GE offers continuous software and firmware updates (if applicable) to enhance the performance and functionality of the GE IC697PWR711. With a global network of service centers, customers can rest assured that they will receive timely support, ensuring the long-term reliability and optimal performance of their industrial automation systems powered by the GE IC697PWR711.
Brand model: GE IC697PWR711
Product Name: 100-watt Power Supply Module (Fanuc 90 – 70 series)
Warranty: 1 year
Size: Approximately 8.83 in × 3.58 in × 4.7 in
Weight: [Not specified, needs to be supplemented according to actual situation]
Origin: USA
Inventory: Spot/Futures
Delivery time: Goods in stock will be dispatched within 3 days after payment
Order time: Goods will be dispatched within one month after payment
Product Name: 100-watt Power Supply Module (Fanuc 90 – 70 series)
Warranty: 1 year
Size: Approximately 8.83 in × 3.58 in × 4.7 in
Weight: [Not specified, needs to be supplemented according to actual situation]
Origin: USA
Inventory: Spot/Futures
Delivery time: Goods in stock will be dispatched within 3 days after payment
Order time: Goods will be dispatched within one month after payment
