Description
Product Overview

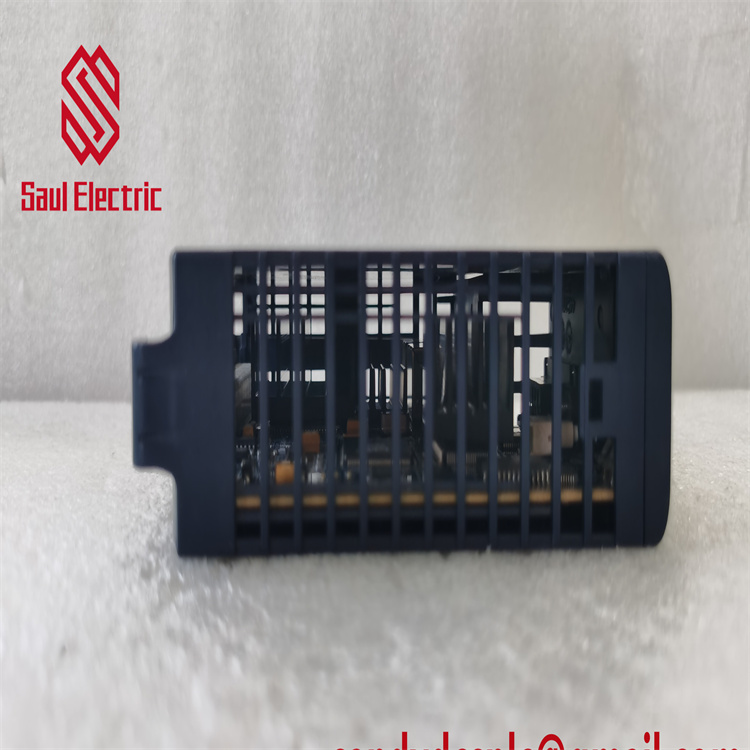

The GE IC695ETM001ER is an Ethernet interface module designed for PACSystems RX3i in industrial control systems1. It serves as a crucial bridge to connect the PACSystems RX3i controller to an Ethernet network, enabling seamless communication with other PACSystems equipment, Series 90, and VersaMax controllers1. This module supports communication protocols such as Service Request Transport Protocol (SRTP), Modbus TCP, and Ethernet Global Data (EGD) over a four – layer TCP/IP stack, facilitating efficient data exchange and interaction among different devices in the network1. With its full programming and configuration services, as well as firmware upgrade capabilities, the IC695ETM001ER offers great convenience and flexibility for system integration and maintenance1.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC695ETM001ER |
| Manufacturer | GE |
| Product Type | Ethernet Interface Module |
| Ethernet Processor Speed | 200 MHz |

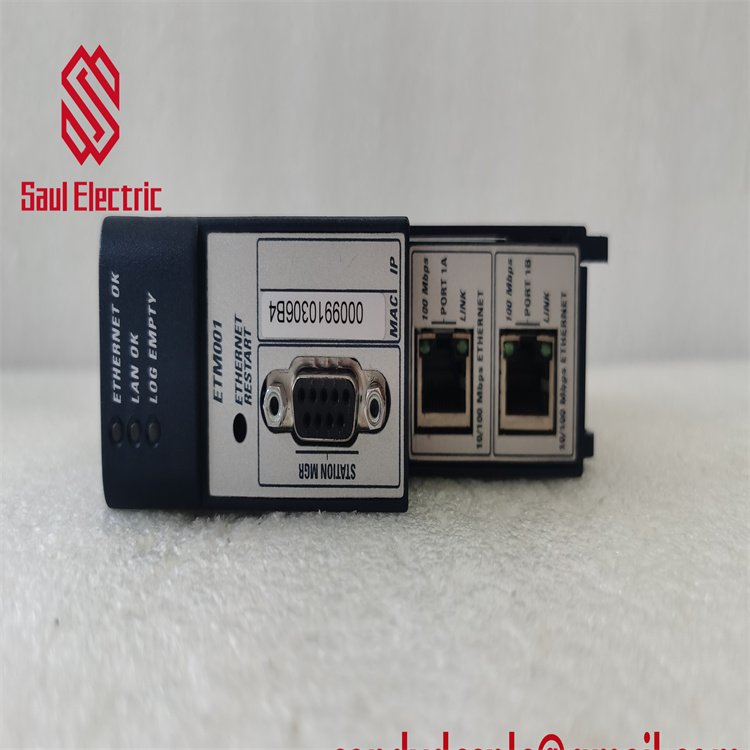

| Connectors | Station Manager (RS – 232) port: 9 – pin female D – connector; Two 10BaseT/100BaseTX ports: 8 – pin female shielded RJ – 45 |
| IEEE Standards | 802.2 Logical Link Control Class I, 802.3 CSMA/CD Medium Access Control |
| Communication Protocols | SRTP, Modbus TCP, Ethernet Global Data (EGD) |
| Data Rate | 10/100 Mbps |
| Power Supply | 24 VDC |
| Operating Temperature Range | – 40 °C to + 85 °C |
| Humidity Range | 5% to 95% non – condensing |
| Weight | 0.2 kg |
| Dimensions | 170 x 90 x 70 mm |
Main Features and Advantages
- High – speed Communication: The GE IC695ETM001ER supports 10/100 Mbps data rates, enabling fast and efficient data transmission in industrial networks2. Its Ethernet processor, running at 200 MHz, ensures smooth processing of communication tasks1.
- Rich Protocol Support: It can execute multiple protocols like SRTP, Modbus TCP, and EGD over a four – layer TCP/IP stack, which allows for seamless integration with a variety of industrial devices and systems1.
- Convenient Configuration and Management: The module has a built – in station manager that provides online supervisory access through both serial and Ethernet connections2. It offers services such as polling and control commands, password security, and access to monitoring logs and configuration parameters2. Moreover, it supports firmware upgrades from the RX3i CPU using the WinLoader software utility, facilitating easy system updates and maintenance1.
- Reliable and Stable: With features like redundant IP addressing and an internal network switch with auto – negotiation, sensing, speed, and crossover detection, the IC695ETM001ER ensures reliable network connections and stable operation even in complex industrial environments1.
Application Areas
The GE IC695ETM001ER is widely used in various industrial automation scenarios. In manufacturing plants, it is employed to connect different controllers and devices in the production line, enabling centralized monitoring and control of the production process. In power plants, it helps in integrating power generation, transmission, and distribution systems, facilitating efficient data exchange and ensuring the stable operation of the power grid. In the oil and gas industry, it is utilized to connect field – based sensors, actuators, and control systems, enabling real – time monitoring and control of oil and gas production processes. Additionally, it finds applications in water treatment plants, transportation systems, and other industrial fields where reliable Ethernet – based communication between control systems is required.
Related Products
- IC695CPU310 – GV: A CPU module of the PACSystems RX3i series, which works with the IC695ETM001ER to form a complete control system, with the CPU being responsible for overall system operation and the Ethernet module for network communication.
- IC695CPU315: Another CPU module in the RX3i series, similar to the IC695CPU310 – GV, but with different performance and function levels, and can also be used in conjunction with the IC695ETM001ER.
- IC695CPU320HU: A high – performance CPU module of the RX3i series, suitable for applications that require more powerful processing capabilities. When used with the IC695ETM001ER, it can meet the communication and control needs of complex industrial systems.

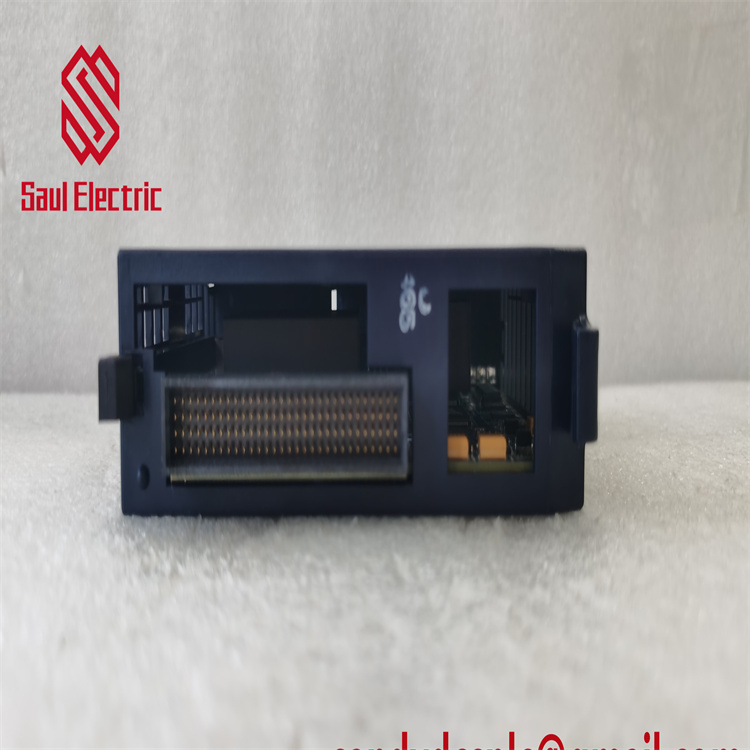

- IC695CHS007: A compatible backplane with the IC695ETM001ER, which provides the necessary mechanical and electrical connections for the module to be installed in the RX3i system.
- IC695CHS012: Similar to the IC695CHS007, it is another type of backplane that can be used with the IC695ETM001ER to build an RX3i – based industrial control system.
- IC695CHS016: Also a backplane product for the RX3i system, compatible with the IC695ETM001ER, offering different slot configurations and capabilities to meet various system integration requirements.
Installation and Maintenance
Installation Preparation: Before installing the GE IC695ETM001ER, make sure to power off the RX3i system. Check that the backplane is compatible, such as the IC695CHS007, CHS012, or CHS016 backplanes2. The module is designed to be installed in any empty RX3i slot2. If the hot – swap function is required, ensure that the firmware version is 2.51 or later2.
Maintenance Recommendations: Regularly check the status of the IC695ETM001ER through the built – in station manager or relevant monitoring software2. Monitor the LED indicators to check for any abnormal conditions, such as the Ethernet OK, LAN OK, and port activity LEDs1. Keep the module clean and free from dust and debris. For firmware upgrades, follow the instructions provided by GE Fanuc and use the WinLoader software utility to ensure the system is updated to the latest version for optimal performance and reliability1.
Product Warranty
GE stands behind the quality of the IC695ETM001ER with a comprehensive product warranty. We offer a one – year warranty from the date of purchase, covering any defects in materials and workmanship. Our professional technical support team is available to assist customers with any issues that may arise during the product’s operation. We are committed to providing timely and effective 售后服务 to ensure the smooth operation of your industrial control system. Whether it’s technical consultation or on – site support, we strive to meet our customers’ needs and ensure their satisfaction with our products.
