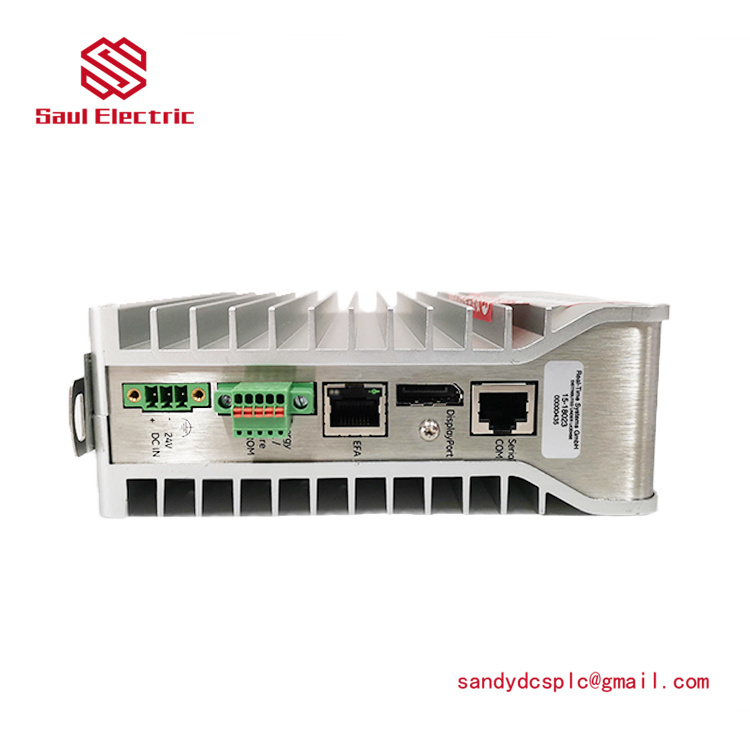

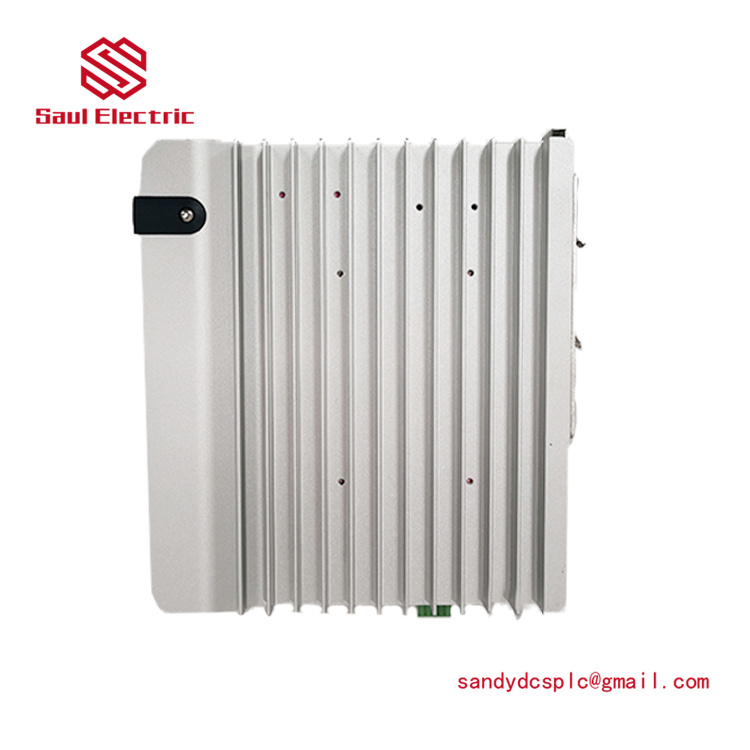

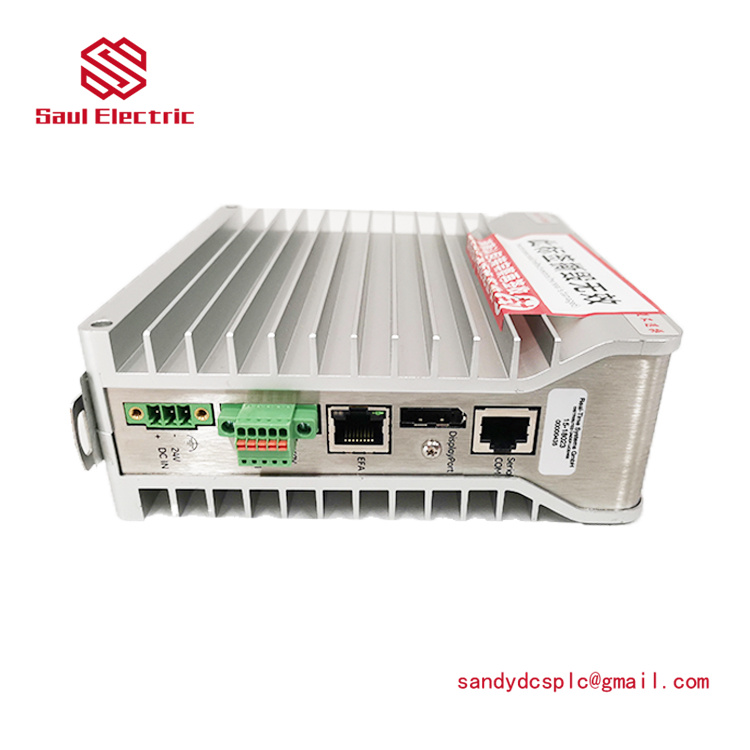

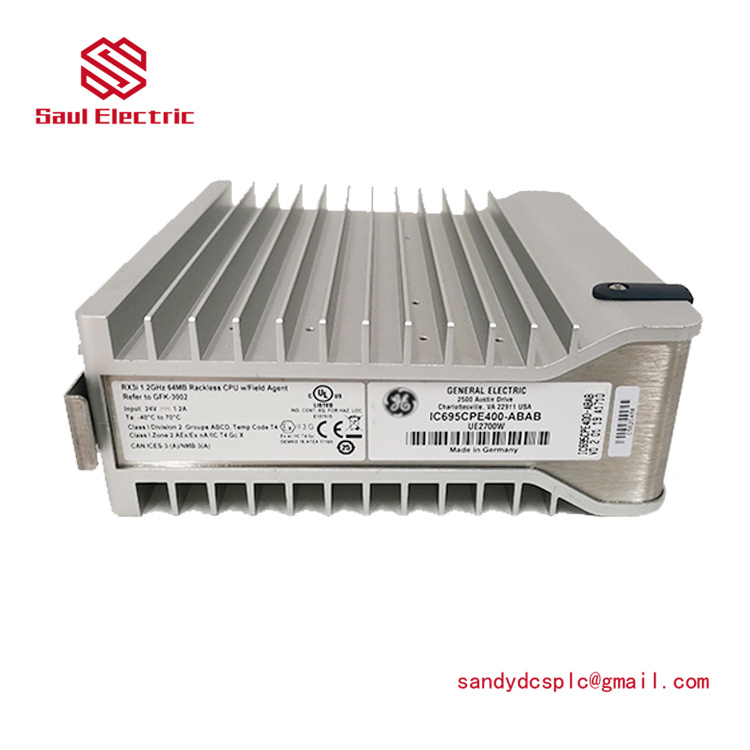

GE IC695CPE400-ABAB | IC695CPE330

Technical Specifications
Type: CPU Module
Compatibility: GE RX3i Series PLC
Processor: 32-bit RISC microprocessor
Memory: 64 MB RAM, 32 MB Flash
Communication Ports:
1 Ethernet port (10/100 Mbps)
1 serial port (RS-232/RS-422)
Operating Temperature: 0°C to 60°C
Power Supply: 5V DC
Dimensions: 140mm x 120mm x 30mm
Weight: 0.5 kg
Protection Class: IP20

Category: Brand:
  • Need Help?
  • +86 18030182217
  • +86 18030182217
  • sandydcsplc@gmail.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

Product Description

IC695CPE305 CPU MODULE 1.1GHZ PROCESSOR 5M MEMORY 1 RS-232 PORT 1 ETHERNET PORT The IC695CPE305 is a versatile and high-performance CPU module designed for GE’s RX3i Series of programmable logic controllers (PLCs). This module offers robust processing capabilities, high-speed operation, and advanced features to handle complex automation tasks and real-time data processing. It is ideal for use in demanding industrial environments where reliability and efficiency are critical for controlling machinery and processes.

IC695CPE400

IC695CPE400

IC695CPL410
The PACSystems RX3i CPL410 is a controller with integrated Linux. It augments real-time deterministic control with
an Ubuntu 16.04 LTS server Linux, open to modifications and enhancements. With the product, customers can
implement custom data processing like Edge- or Cloud-based analytics, Cloud storage, WEB visualization and much
more. Full Linux root access is granted, allowing the user to enhance the CPL410 in a virtually limitless manner,
thereby achieving outcomes that today’s businesses require. Use cloud services which best fit your application; install
freely-available data visualization tools and analytics programs or use professional software to turn the CPL410 into your custom controller.

IC695CPE400

IC695CPE400

With the CPL410, the following features are provided and supported on the general purpose Linux:
• The ETH port can be configured with a static IP address or use DHCP.
• The Virtual Network Interface between Linux and the PACEngine allows Linux to access the PACS OPC UA
server without using the external network.
• Example Python script allows Web interface to connect to PACEngine OPC UA server.
• Example Python script allows browsing of OPC UA tag space.
• Example Python script allows Get/Set of tag data.
• Example Python script allows Get and Store of tag data in a sample sqlite database.
• Install standard Ubuntu Linux packages to create fully custom applications.
• Factory Reset allows the user to restore Linux to its original state, with the exception of the /home directory.

IC695CPE400

IC695CPE400
