Description
Product Overview

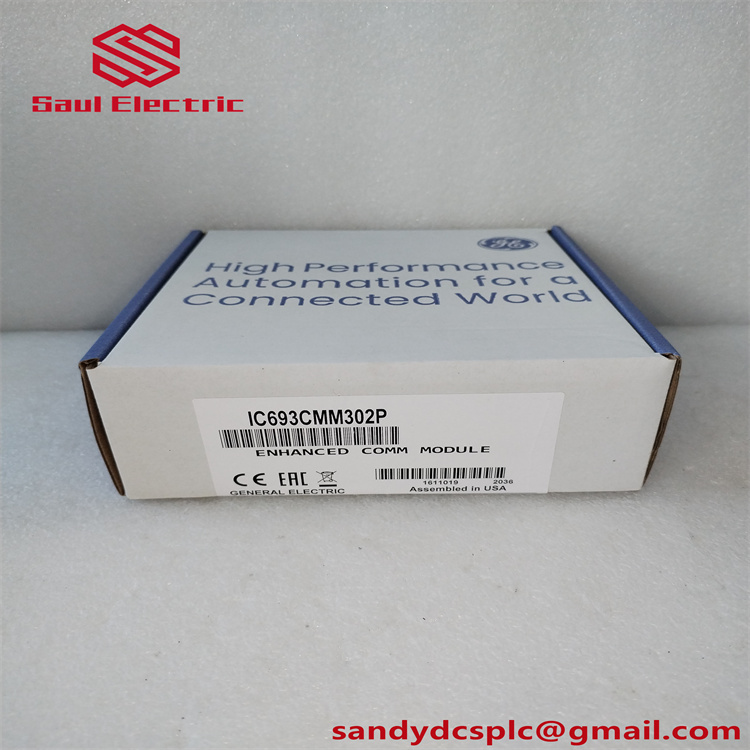

The GE IC693CMM302P is an Enhanced Genius Communications Module (GCM+) designed for GE Fanuc Series 90-30 Programmable Logic Controllers (PLCs), enabling seamless integration of distributed I/O systems and peer-to-peer communication in industrial automation environments. As a single-slot intelligent module, the GE IC693CMM302P supports Genius bus protocol with up to 31 devices, facilitating real-time data exchange across manufacturing lines, process plants, and power generation facilities.
Key features include 128 bytes of transmit/receive global data capacity, compatibility with %G, %I, %Q, %AI, %AQ, and %R registers, and LED diagnostics for operational status monitoring. The GE IC693CMM302P is optimized for CPU baseplate installation to minimize sweep impact time, though it can also be deployed on expansion or remote baseplates. Its non-volatile memory retains configuration data during power outages, while 1,500V RMS isolation ensures immunity to electrical noise.
With RS-232/RS-485 connectivity and support for peer-to-peer and master-slave communication, the GE IC693CMM302P enhances system flexibility in applications requiring multi-device coordination. Its hot-swap capability (with compatible CPUs) and tool-less module installation reduce downtime during maintenance, making it ideal for mission-critical operations.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE IC693CMM302P |
| Manufacturer | GE Fanuc (Emerson Automation Solutions) |
| Product Type | Enhanced Genius Communications Module (GCM+) for Series 90-30 PLCs |
| Bus Protocol | Genius Bus (1.5 Mbps data rate) |
| Supported Devices | Up to 31 Genius-compatible devices per module |
| Global Data Capacity | 128 bytes transmit + 128 bytes receive |
| Communication Interfaces | RS-232 and RS-485 |
| Power Supply | 5V DC (via backplane; <300 mA typical) |
| LED Indicators | OK (green), COMM (amber) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -25°C to +70°C (-13°F to +158°F) |
| Humidity | 5% to 95% non-condensing |
| Vibration/Shock Resistance | 5–10 Hz (0.2-inch displacement), 10–200 Hz (1g); 5g shock (10ms duration) |
| Compatibility | Series 90-30 CPUs (v5.0+ firmware), CPU/expansion/remote baseplates |
Main Features and Advantages
Scalable Distributed Control: The GE IC693CMM302P supports multi-module configurations, allowing a single PLC to communicate with up to 62 devices (2 modules × 31 devices) via independent Genius buses. This scalability is critical for large-scale systems in manufacturing, where synchronized control of robotics, conveyors, and quality sensors is essential.
Reliable Data Exchange: With 128 bytes of global data capacity, the module enables high-speed transmission of discrete and analog signals, ensuring real-time coordination between PLCs, HMIs, and third-party devices. Its bus error logging feature identifies communication anomalies, reducing troubleshooting time in process industries like pharmaceuticals and chemicals.
Flexible Network Architecture: The GE IC693CMM302P supports peer-to-peer and master-slave communication, making it suitable for both centralized and decentralized control setups. It can interface with Genius I/O blocks for data monitoring (though not control) and integrates with industrial PCs for advanced analytics.
Industrial-Grade Durability: Built with IP20-rated protection, the module resists dust and accidental contact, while its -25°C to +70°C storage temperature range ensures long-term reliability in extreme environments. The 1,500V RMS isolation between logic and field circuits safeguards against voltage spikes common in power generation applications.
Cost-Effective Maintenance: The tool-less design and hot-swap capability enable rapid module replacement without system downtime. The LED diagnostics provide immediate feedback on power and communication status, streamlining maintenance in water treatment plants and other critical infrastructure.
Application Areas
Manufacturing Automation: The GE IC693CMM302P coordinates robotics, conveyor systems, and vision inspection sensors in automotive assembly lines. Its Genius bus connectivity ensures synchronized control of discrete I/O points, while the 128-byte data buffer supports high-resolution analog signal processing for quality control.
Process Industries: In chemical and petrochemical plants, the module interfaces with valve actuators, pH sensors, and distributed control systems (DCS). Its bus error logging helps maintain regulatory compliance by tracking deviations in high-purity environments, minimizing production delays.
Power Generation: Used in thermal and renewable energy plants, the GE IC693CMM302P monitors turbine sensors, generator exciters, and grid-connected switchgear. Its remote I/O support facilitates decentralized control in large-scale power grids, enhancing system reliability.
Water/Wastewater Management: The module controls pump stations, chlorination systems, and level sensors in water treatment facilities. Its rack addressing flexibility accommodates expanding infrastructure, while the IP20-rated enclosure simplifies maintenance in humid or corrosive environments.
Related Products
- GE IC693CMM311: High-performance communication module supporting Ethernet/IP and Modbus TCP, ideal for integrating legacy systems with modern industrial networks.
- GE IC693CPU350: High-reliability CPU module compatible with IC693CMM302P, offering 80KB user memory and advanced diagnostics for complex control tasks.
- GE IC693CHS392: 10-slot expansion baseplate for I/O scalability, often paired with IC693CMM302P in distributed control systems.
- GE IC693PWR330: High-capacity power supply module ensuring stable 5V DC power for IC693CMM302P and connected I/O modules.
- GE IC693BEM330: FIP remote I/O scanner module for integrating IC693CMM302P with distributed I/O networks in oil/gas applications.
- GE IC693CBL302: 15-meter shielded expansion cable for connecting IC693CMM302P to the main CPU baseplate.
Installation and Maintenance
Installation Preparation:
- Hardware Setup: Install the GE IC693CMM302P in a CPU baseplate slot (Slot 1 recommended) and secure it with the module clamp. Connect the GE IC693CBL302 expansion cable to the Genius bus port. Configure the dip switch for unique rack addressing (1–7) and ensure the CPU’s firmware is updated to v5.0 or higher.
- Software Configuration: Use GE Proficy Machine Edition to define Genius bus parameters, map global data registers, and enable communication diagnostics. Verify module recognition via the PLC’s status LEDs.
- Safety Checks: Power on the system and confirm the OK LED is illuminated. Test communication by exchanging data with a connected Genius device (e.g., I/O block) and monitor for COMM LED activity.
Maintenance Recommendations:
- Routine Inspections: Monthly checks include visual verification of LED status, cleaning dust from the enclosure, and tightening terminal connections to 0.3–0.5 N·m torque.
- Advanced Maintenance: Annually, use GE’s diagnostic software to review bus error logs and replace any faulty cables or connectors. Avoid installing regular Genius modules (GCMs) in systems with IC693CMM302P, as they are incompatible.
- Firmware Management: Periodically download the latest firmware from GE’s support portal to ensure compatibility with newer system components.
Product Guarantee
The GE IC693CMM302P is backed by a 12-month warranty covering manufacturing defects, with GE’s global technical support team available 24/7 for troubleshooting and repair services. In-stock units ensure rapid delivery within 3 business days, while custom configurations or bulk orders are fulfilled within 4 weeks. The product adheres to international standards (UL, CE, CSA), guaranteeing reliability in mission-critical applications.
For detailed installation guides and troubleshooting resources, refer to the GE Fanuc Series 90-30 System Manual or contact our technical support team for personalized assistance.
