Description
Product Overview

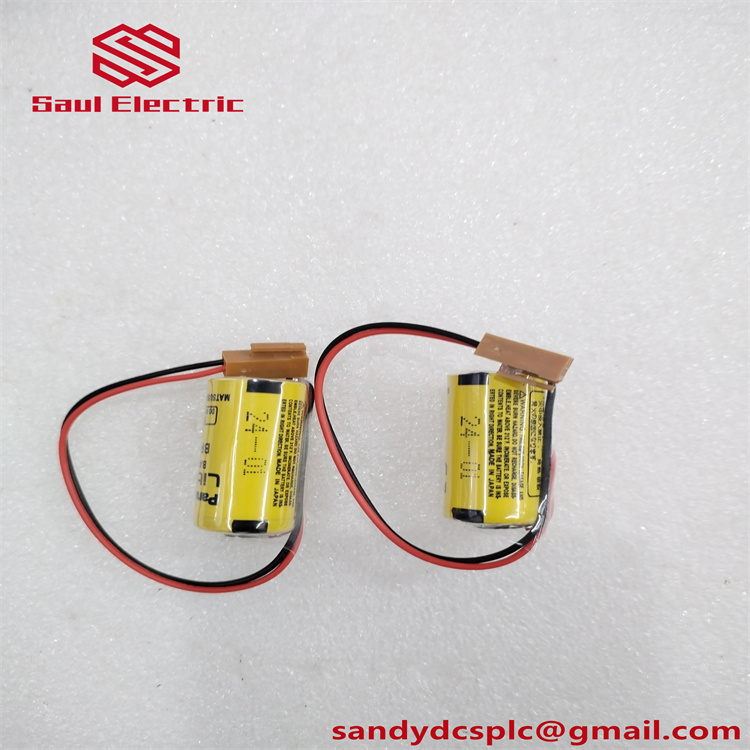

The GE IC693ACC301 is a high-reliability lithium backup battery designed for GE Fanuc’s Series 90-30 Programmable Logic Controllers (PLCs). Engineered to preserve critical program and data integrity during power outages, this battery ensures continuous operation of industrial automation systems in manufacturing, power generation, and water treatment facilities. With a 3V DC output and 1200mAh capacity, the GE IC693ACC301 maintains the volatile memory (RAM) of Series 90-30 CPUs, preventing loss of user programs, configuration settings, and real-time operational data26.
Built for longevity, the GE IC693ACC301 features a 10-year shelf life and a 1-year typical operating life (depending on CPU usage and ambient conditions)23. Its lithium chemistry offers stable performance across a wide storage temperature range of -40°C to +85°C, ensuring resilience in extreme environments. The battery mounts securely on a plastic clip inside the power supply cover and connects via a wire leads connector, providing seamless integration with Series 90-30 PLCs27. A low-battery warning LED on the PLC’s power supply module alerts operators when replacement is imminent, minimizing downtime risks3.
As a key component of GE Fanuc’s Series 90-30 platform, the GE IC693ACC301 supports mission-critical applications where data retention is non-negotiable. Its hot-swap capability allows replacement while the PLC remains powered, ensuring uninterrupted memory preservation during maintenance procedures36. The battery’s compact design (17.2mm × 33.5mm) optimizes space within control panels, making it ideal for retrofitting legacy systems or new installations requiring reliable backup power26.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE IC693ACC301 |
| Manufacturer | GE Fanuc (now part of Emerson Automation Solutions) |
| Product Type | Lithium Backup Battery for PLC Memory Retention |
| Voltage | 3V DC |
| Capacity | 1200mAh |
| Shelf Life | 10 years |
| Operating Life | 1 year (typical, dependent on CPU usage and temperature) |
| Storage Temperature | -40°C to +85°C |
| Operating Temperature | 0°C to +25°C |
| Dimensions | 17.2 mm (Diameter) × 33.5 mm (Height) |
| Weight | 50 grams |
| Mounting | Plastic clip inside power supply cover |
| Connector Type | Wire leads with Berg-style connector |
| Compliance | UL, CE, CSA certifications |
| Life Cycle Status | Discontinued (available through surplus/refurbished channels) |
Main Features and Advantages
Long-Lasting Performance: The GE IC693ACC301 delivers a 10-year shelf life and 1-year operational lifespan, reducing frequent replacements and maintenance costs. Its lithium chemistry ensures stable energy output even in high-temperature environments, outperforming traditional alkaline batteries26.
Critical Data Protection: By maintaining RAM contents during power interruptions, the GE IC693ACC301 safeguards user programs, ladder logic, and diagnostic data. This is vital for applications like process control systems and machine automation, where data loss could lead to production delays or safety risks37.
Easy Integration: The battery’s plug-and-play design allows quick installation on Series 90-30 PLCs. Its hot-swap capability enables replacement without powering down the system, eliminating downtime during maintenance36.
Real-Time Diagnostics: A low-battery LED indicator on the PLC’s power supply module provides visual alerts, allowing proactive replacement before memory corruption occurs. This feature, combined with system reference bit monitoring, ensures operators can trigger alarms or notifications via HMIs37.
Wide Compatibility: The GE IC693ACC301 supports multiple Series 90-30 CPU models, including the CPU 311, 313, 323, 331–362, and 374. Its universal connector design ensures compatibility with both legacy and modern control systems36.
Application Areas
Manufacturing: The GE IC693ACC301 protects PLC memory in assembly lines, robotics, and conveyor systems, ensuring uninterrupted production during brief power outages. Its long shelf life makes it suitable for facilities with infrequent maintenance schedules25.
Power Generation: In power plants, the battery safeguards turbine control logic and grid stability algorithms stored in PLC memory. This is critical for maintaining operational continuity during transient voltage fluctuations or planned outages57.
Water/Wastewater Treatment: The GE IC693ACC301 preserves pump control sequences and chemical dosing parameters in treatment plants, preventing process disruptions caused by short-term power loss. Its high-temperature tolerance suits harsh industrial environments56.
Oil and Gas: On offshore platforms and refineries, the battery ensures safety interlock programs and emergency shutdown logic remain intact during power disruptions, minimizing risks to personnel and equipment57.
Related Products
Installation and Maintenance
Installation Preparation:
- Hardware Setup: Remove the power supply cover and locate the plastic clip inside. Insert the GE IC693ACC301 into the clip, ensuring the wire leads connector mates securely with the PLC’s interface.
- Safety Checks: Verify the battery voltage using a multimeter (should read ≥2.8V). Replace if voltage is below 2.7V to avoid memory loss.
- Hot-Swap Procedure: If replacing during operation, ensure the PLC remains powered to prevent RAM data loss. Use insulated tools to avoid short circuits36.
Maintenance Recommendations:
- Annual Replacement: Replace the GE IC693ACC301 every 12 months or when the BATT LED activates, whichever comes first. This ensures consistent memory retention even in low-temperature environments23.
- Environmental Monitoring: Maintain ambient temperatures between 0°C and +25°C to extend battery life. Avoid exposing the battery to humidity or corrosive gases26.
- Firmware Sync: After replacement, verify that the PLC’s backup memory matches the current program using Proficy Machine Edition (PME) software8.
Product Guarantee
The GE IC693ACC301 is backed by a 12-month warranty covering defects in materials and workmanship. While the product is discontinued, surplus and refurbished units are available with the same warranty terms. GE’s technical support team provides 24/7 assistance for installation guidance and compatibility checks. In-stock units ship within 3 business days, with custom configurations (e.g., bulk orders) delivered within 4 weeks26.
For detailed wiring diagrams and safety guidelines, refer to the GE Fanuc Series 90-30 User Manual or contact GE’s customer service. Always validate compatibility with your specific PLC model and application requirements before deployment.
