GE IC670ALG310 Isolated Analog Voltage-Source Output Module(XIONGBA)

Price:$999

Brand ModelGE IC670ALG310

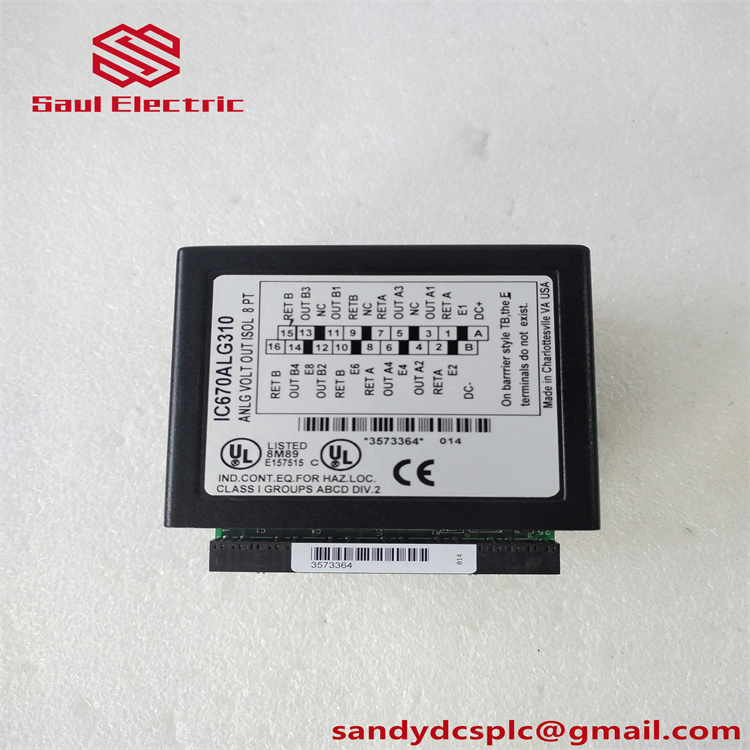

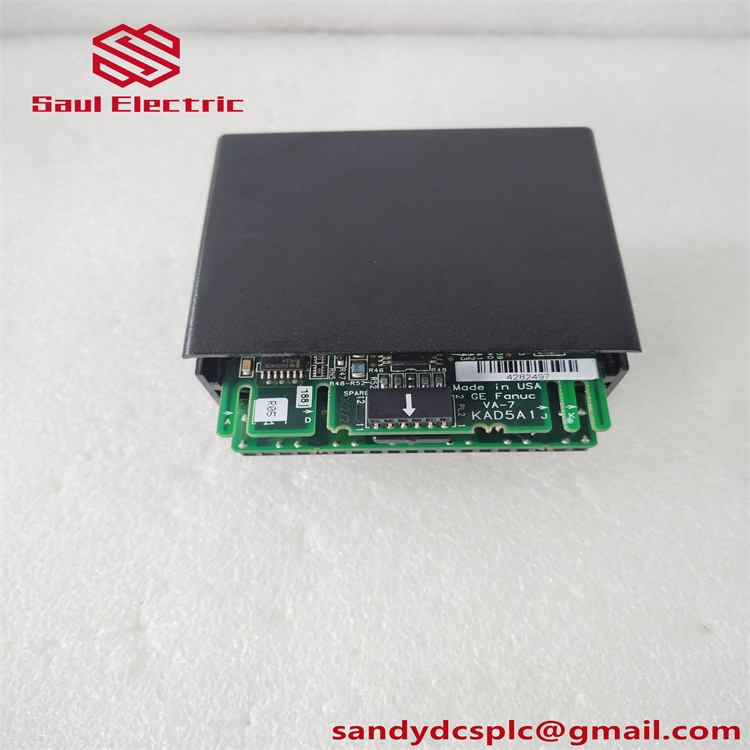

Product Name: GE Fanuc Field Control IC670ALG310 8-Point Isolated Analog Voltage-Source Output Module
Warranty: 1 year
Size: 10.2 cm (H) × 10.2 cm (W) × 12.7 cm (D) (approximate)
Weight: 454 grams
Origin: United States of America
Inventory: Spot
Delivery Time: Goods in stock will be dispatched within 3 days after payment
Order Time: Goods will be dispatched within one month after payment

Category: Brand:
  • Need Help?
  • +86 18030182217
  • +86 18030182217
  • sandydcsplc@gmail.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

Product Overview

The GE IC670ALG310 is a high-performance 8-point isolated analog voltage-source output module designed for industrial automation applications, engineered for GE Fanuc’s Field Control Series. This module integrates advanced signal conditioning and data conversion capabilities, making it ideal for precise control of process variables in manufacturing, power generation, and water treatment systems. It supports -10V to +10V DC output ranges across 8 isolated channels, with 14-bit digital resolution and ±0.05% full-scale accuracy, ensuring reliable control of actuators, valves, and variable frequency drives (VFDs).



Engineered for reliability in harsh environments, the GE IC670ALG310 features 2,500Vrms channel-to-channel isolation to protect against electrical noise and ground loops, while LED indicators provide real-time status updates for power, communication, and channel health. Its 1.5-millisecond response time enables rapid adjustments to process changes, critical for applications requiring tight control loops. The module operates on 18-30VDC power and draws 170mA typical current, ensuring compatibility with standard industrial power systems.



As part of GE Fanuc’s Field Control Series, the GE IC670ALG310 interfaces with a Bus Interface Unit (BIU) (e.g., IC670GBI002) to communicate with host PLCs or computers via the Genius Bus protocol. This modular design allows seamless integration into distributed control systems, supporting applications such as turbine speed regulation, motor control, and process optimization. The module’s field-calibration capability enables on-site adjustments to maintain accuracy over time, while flash memory storage preserves calibration data during power outages.

Technical Specifications

Parameter Name Parameter Value
Product Model GE IC670ALG310
Manufacturer GE Fanuc (now part of Emerson Automation Solutions)
Product Type Isolated Analog Voltage-Source Output Module
Output Signal -10V to +10V DC (configurable per channel)
Output Channels 8 isolated channels (2 groups of 4)
Digital Resolution 14 bits
Accuracy ±0.05% of full scale
Linearity ±0.1% of full scale
Response Time 1.5 milliseconds per channel
Isolation 2,500Vrms between channels and ground
Power Supply 18–30VDC (170mA typical current)
Over-Range Fault Detection ±10.25V DC
Open-Wire Detection 50mV threshold for under/over-range conditions
Operating Temperature 0°C to +60°C
Weight 454 grams
Mounting DIN rail or panel-mounted via terminal block (e.g., IC670CHS002E)

Main Features and Advantages

High-Precision Signal Control: The GE IC670ALG310 delivers 14-bit resolution and ±0.05% accuracy, ensuring precise control of analog actuators in critical processes. Its field-calibration capability allows users to adjust scaling parameters on-site, eliminating the need for factory recalibration.



Isolated Channel Design: With 2,500Vrms channel isolation, the module minimizes cross-talk and noise interference, making it suitable for high-noise environments. This isolation also protects the module from ground loops, enhancing system reliability.



Flexible Configuration: Each channel supports user-configurable scaling (e.g., -10V to +10V, 0V to +10V) and can be individually configured as active or inactive, providing flexibility for diverse control strategies. The module supports both word and bit data types, enabling compatibility with legacy and modern control systems.



Advanced Diagnostics: Built-in over/under-range alarms and open-wire detection alert operators to 异常 conditions, preventing damage to connected devices. The module’s LED status indicators enable quick visual diagnosis of power, communication, and channel health, reducing troubleshooting time.



Scalable System Integration: As part of the Field Control Series, the GE IC670ALG310 works with Genius Bus-compatible BIUs (e.g., IC670GBI002) to support distributed control networks. This scalability allows users to expand I/O capacity incrementally, making it suitable for small-scale machinery to large industrial systems.

Application Areas

Manufacturing: The GE IC670ALG310 controls motor speedvalve positioning, and temperature regulation in production lines, ensuring efficient and consistent operations. Its high-resolution output supports precise adjustments to robotic arms and conveyor systems, optimizing throughput.



Power Generation: In power plants, this module regulates turbine speedgenerator excitation, and grid stability metrics. Its isolated design safeguards against electrical noise in high-voltage environments, while Genius Bus connectivity facilitates integration with supervisory control systems.



Water/Wastewater Treatment: The GE IC670ALG310 manages pump speedchemical dosing rates, and filtration system pressure. Its -10V to +10V output range accommodates diverse actuators, ensuring reliable operation in harsh water treatment environments.



Building Automation: Integrating with HVAC systems, the module controls chiller compressorsdamper actuators, and energy distribution. Its field-calibration capability allows on-site adjustments to optimize energy efficiency in commercial buildings.

Related Products

  1. GE IC670GBI002: Bus Interface Unit (BIU) for connecting GE IC670ALG310 to Genius Bus networks, enabling communication with host PLCs or computers.
  2. GE IC670ALG320: 4-channel analog current/voltage output module, complementing the GE IC670ALG310 in hybrid control systems requiring both voltage and current outputs.
  3. GE IC670CHS002E: I/O terminal block for GE IC670ALG310, providing secure wiring connections for analog outputs.
  4. GE IC670ALG240: 16-channel analog current source input module, expanding the system’s capability to handle diverse sensor inputs.
  5. GE IC670ALG620: RTD input module for temperature monitoring, enhancing the system’s versatility in process control applications.

Installation and Maintenance

Installation Preparation:



  • Hardware Setup: Mount the GE IC670ALG310 on a DIN rail using the terminal block (e.g., IC670CHS002E). Connect 18–30VDC power to the terminal block and wire -10V to +10V signals to the output channels.
  • Configuration: Use Proficy Machine Edition (PME) or Genius Handheld Monitor (HHM) to set output scaling (-10V to +10V) and configure communication parameters with the BIU. Enable channel active/inactive settings as needed.
  • Safety Checks: Verify grounding and cable connections. Ensure output voltages do not exceed ±10.25V to prevent damage.



Maintenance Recommendations:



  • Monthly Inspections: Clean dust from the enclosure and inspect LED indicators for power and communication status. Tighten terminal connections to 0.37–0.45 lb·ft torque if loose.
  • Annual Checks: Test output signals using a calibrated voltage source and recalibrate if necessary. Replace the BIU backup battery (if applicable) every 5 years to maintain data retention.
  • Firmware Updates: Download the latest firmware from GE’s support portal to address compatibility issues and enhance functionality. Regular updates ensure optimal performance with newer software versions.

Product Guarantee

The GE IC670ALG310 is backed by a 12-month warranty covering defects in materials and workmanship. GE’s global technical support team provides 24/7 troubleshooting and replacement parts, ensuring minimal downtime. In-stock units typically ship within 3 business days, while custom configurations require 2–4 weeks. The product meets international standards (CE, UL, CSA) and is manufactured in the United States, ensuring reliability and compliance with industrial requirements.



For detailed wiring diagrams, programming guides, and safety information, refer to the GE Fanuc Field Control User Manual or contact GE’s technical support. Always verify compatibility with your specific application requirements before deployment.
