Description
Product Overview

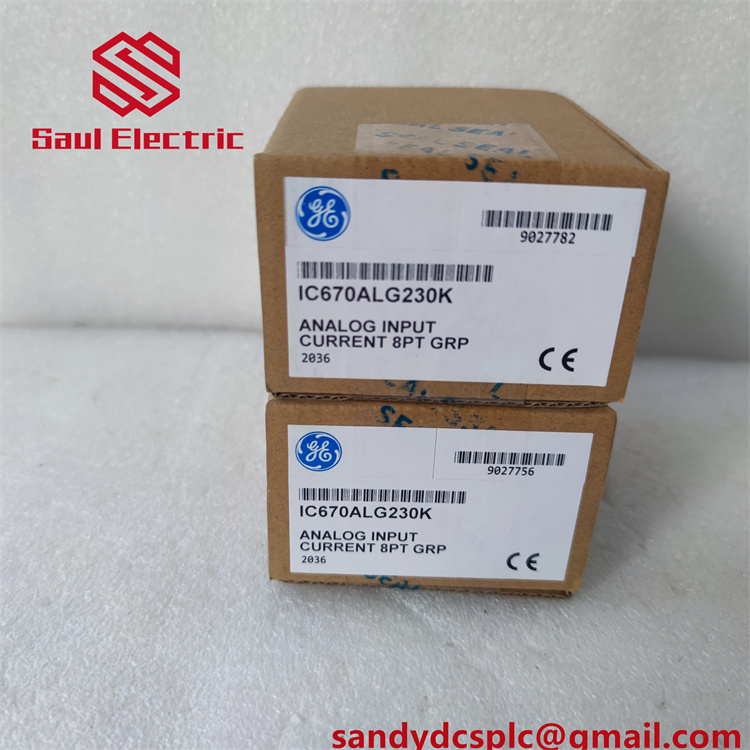

The GE IC670ALG230 is a high-performance 8-point analog current source input module designed for industrial automation applications, specifically engineered for GE Fanuc’s Field Control Series. This module integrates advanced signal conditioning and data conversion capabilities, making it ideal for monitoring critical process variables in manufacturing, power generation, and water treatment systems. It supports 0-20mA/4-20mA current inputs across 8 single-ended channels, with a 12-bit digital resolution and 5.0 µA analog resolution, ensuring precise measurement of signals from sensors, transmitters, and variable frequency drives (VFDs)116.
Engineered for reliability in harsh environments, the GE IC670ALG230 features short-circuit and overload protection to safeguard against electrical faults, while LED indicators provide real-time status updates for power, communication, and I/O health. Its 60 microseconds per channel conversion time enables high-speed data acquisition, critical for applications requiring rapid response to process changes. The module operates on 18-30VDC power and draws 50mA typical current, ensuring compatibility with standard industrial power systems219.
As part of GE Fanuc’s Field Control Series, the GE IC670ALG230 interfaces with a Bus Interface Unit (BIU) (e.g., IC670GBI002) to communicate with host PLCs or computers via the Genius Bus protocol. This modular design allows seamless integration into distributed control systems, supporting applications such as turbine monitoring, motor control, and process optimization. The module’s non-isolated design simplifies wiring while maintaining robust performance in environments with moderate electrical noise1618.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE IC670ALG230 |
| Manufacturer | GE Fanuc (now part of Emerson Automation Solutions) |
| Product Type | Analog Current Source Input Module |
| Input Signal | 0-20mA/4-20mA (configurable per channel) |
| Input Channels | 8 single-ended channels |
| Digital Resolution | 12 bits |
| Analog Resolution | 5.0 µA |
| Conversion Time | 60 microseconds per channel |
| Input Impedance | 249.75–250.25 Ω |
| Power Supply | 18–30VDC (50mA typical current) |
| Isolation | None (non-isolated to ground/logic) |
| Over-Range Fault Detection | 20.000–20.500mA |
| Open-Wire Detection | 2.0mA typical (for 4-20mA scaling) |
| Operating Temperature | 0°C to +60°C |
| Weight | 454 grams |
| Mounting | DIN rail or panel-mounted via terminal block (e.g., IC670CHS002E) |
Main Features and Advantages
High-Precision Signal Conditioning: The GE IC670ALG230 delivers ±0.05% full-scale accuracy and ±0.025% non-linearity, ensuring reliable measurement of low-level signals in demanding applications. Its 1st-order RC input filter (160Hz cutoff) minimizes noise interference, enhancing signal integrity in noisy industrial environments216.
Flexible Configuration: Each channel supports 0-20mA/4-20mA input scaling, allowing seamless integration with diverse sensors and transmitters. The module’s grouped single-ended input architecture simplifies wiring for cost-effective system designs, while software-selectable input logic (positive/negative) provides additional flexibility119.
Robust Protection and Monitoring: Built-in open-wire detection and over-range fault indication alert operators to 异常 conditions, preventing damage to connected devices. The module’s LED status indicators enable quick visual diagnosis of power, communication, and channel health, reducing troubleshooting time1619.
Scalable System Integration: As part of the Field Control Series, the GE IC670ALG230 works with Genius Bus-compatible BIUs (e.g., IC670GBI002) to support distributed control networks. This scalability allows users to expand I/O capacity incrementally, making it suitable for small-scale machinery to large industrial systems1118.
Cost-Effective Design: The GE IC670ALG230 eliminates the need for external signal converters through its dual-range current input capability, reducing component costs and system complexity. Its non-isolated design further lowers installation costs while maintaining performance in moderate-noise environments116.
Application Areas
Manufacturing: The GE IC670ALG230 monitors motor load currents, process pressures, and temperature gradients in production lines, enabling predictive maintenance and energy optimization. Its high-speed conversion supports real-time adjustments to conveyor systems and robotic arms, ensuring efficient throughput1619.
Power Generation: In power plants, this module tracks turbine vibration levels, generator output currents, and grid stability metrics. Its 4-20mA compatibility interfaces with legacy instrumentation, while Genius Bus connectivity facilitates integration with supervisory control systems1819.
Water/Wastewater Treatment: The GE IC670ALG230 manages pump efficiency, chemical dosing rates, and flow meter outputs in treatment facilities. Its open-wire detection safeguards against sensor failures, preventing process disruptions in critical water distribution networks1619.
Building Automation: Integrating with HVAC systems, the module monitors chiller compressor currents, airflow rates, and energy consumption patterns. Its 0-20mA input capability supports compatibility with modern smart sensors, enabling data-driven building management1619.
Related Products
- GE IC670GBI002: Bus Interface Unit (BIU) for connecting GE IC670ALG230 to Genius Bus networks, enabling communication with host PLCs or computers.
- GE IC670ALG320: 4-channel analog output module for closed-loop control applications, complementing the GE IC670ALG230 in process automation systems.
- GE IC670CHS002E: I/O terminal block for GE IC670ALG230, providing secure wiring connections for analog inputs.
- GE IC670ALG240: 8-channel analog current source input module with 16-bit resolution, ideal for high-precision applications requiring enhanced signal accuracy.
- GE IC670ALG620: RTD input module for temperature monitoring, expanding the system’s capability to handle diverse sensor types.
Installation and Maintenance
Installation Preparation:
- Hardware Setup: Mount the GE IC670ALG230 on a DIN rail using the terminal block (e.g., IC670CHS002E). Connect 18–30VDC power to the terminal block and wire 0-20mA/4-20mA signals from sensors/transmitters to the input channels.
- Configuration: Use Proficy Machine Edition (PME) or Genius Handheld Monitor (HHM) to set input scaling (0-20mA/4-20mA) and configure communication parameters with the BIU.
- Safety Checks: Verify grounding and cable connections. Ensure input currents do not exceed 30mA to prevent damage218.
Maintenance Recommendations:
- Monthly Inspections: Clean dust from the enclosure and inspect LED indicators for power and communication status. Tighten terminal connections to 0.37–0.45 lb·ft torque if loose.
- Annual Checks: Test input signals using a calibrated current source and recalibrate if necessary. Replace the BIU backup battery (if applicable) every 5 years to maintain data retention.
- Firmware Updates: Download the latest firmware from GE’s support portal to address compatibility issues and enhance functionality. Regular updates ensure optimal performance with newer software versions618.
Product Guarantee
The GE IC670ALG230 is backed by a 12-month warranty covering defects in materials and workmanship. GE’s global technical support team provides 24/7 troubleshooting and replacement parts, ensuring minimal downtime. In-stock units typically ship within 3 business days, while custom configurations require 2–4 weeks. The product meets international standards (CE, UL, CSA) and is manufactured in the United States, ensuring reliability and compliance with industrial requirements219.
