Product Overview

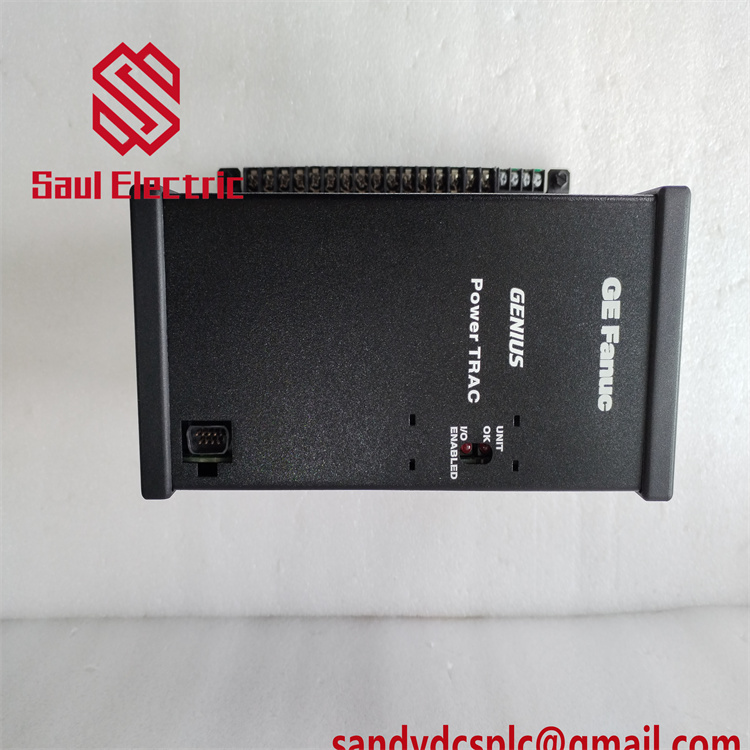

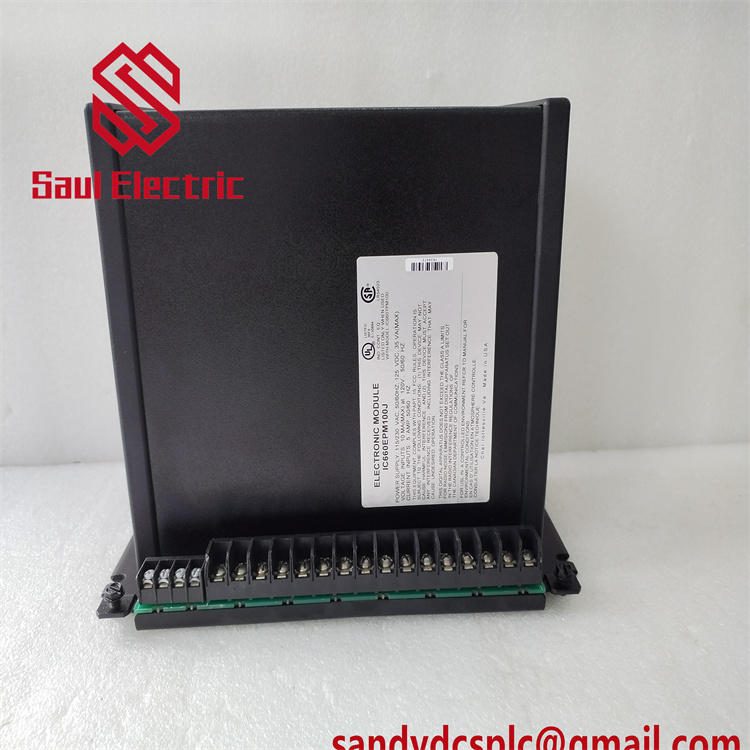

The GE IC660EPM100J is a high-performance Genius I/O PowerTrac Block designed for industrial power monitoring and automation applications. As part of GE Fanuc’s Genius I/O series, this module integrates advanced power analysis and data transmission capabilities, making it ideal for monitoring single-phase or three-phase power systems in manufacturing, energy, and water treatment facilities. It supports 115/230VAC or 125VDC inputs and features dual-voltage compatibility, ensuring flexibility in diverse power environments.
Engineered to calculate critical power parameters, the GE IC660EPM100J monitors voltage and current inputs from potential and current transformers, storing digitized waveform values to compute metrics such as kilowatt hours, active power, RMS voltage, reactive power, and power factor. These calculations are transmitted to a host PLC or computer at 2-second intervals, enabling real-time system optimization. The module also supports local data visualization via a Genius Handheld Monitor (HHM), allowing operators to access critical metrics directly at the device level.
The GE IC660EPM100J is designed for scalability and ease of integration. It connects to a Genius Bus and can be installed up to 7,500 feet away from the host system, making it suitable for distributed control scenarios. Its modular design separates the electronics assembly (IC660EPM100J) from the terminal block (sold separately, e.g., IC660TBM100), ensuring quick replacement without disrupting wiring or configuration. This modularity also supports field upgrades and simplifies maintenance, reducing downtime in mission-critical applications.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE IC660EPM100J |
| Manufacturer | GE Fanuc (now part of Emerson Automation Solutions) |
| Product Type | Power Monitoring and Control Module |
| Input Voltage | 115/230VAC (50/60Hz) or 125VDC |
| Input Channels | Voltage: 1–3 PT inputs; Current: 3 line CT + 1 neutral CT inputs |
| Output Data Rate | 2 updates per second |
| Communication Protocol | Genius I/O Bus |
| Compatibility | Requires terminal block (e.g., IC660TBM100) for operation |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +125°C (-40°F to +257°F) |
| Relative Humidity | 5–95% non-condensing |
| Weight | 141.44 ounces (4.01 kg) |
| Mounting | DIN rail or panel-mounted via terminal block |
Main Features and Advantages
Comprehensive Power Analysis: The GE IC660EPM100J provides real-time monitoring of active/reactive power, power factor, and energy consumption, enabling predictive maintenance and energy efficiency improvements. Its digitized waveform storage supports detailed diagnostics for transient events, ensuring precise fault detection.
Dual-Voltage Flexibility: With 115/230VAC or 125VDC input compatibility, the module adapts to global power standards, eliminating the need for external converters. This flexibility reduces system complexity and installation costs.
Modular Design for Easy Maintenance: The separable electronics assembly (IC660EPM100J) and terminal block (IC660TBM100) allow quick replacement of faulty components without rewiring, minimizing downtime. The terminal block remains permanently mounted, ensuring stable connections during maintenance.
Scalable Communication: Integrated Genius I/O Bus connectivity supports long-distance installations (up to 7,500 feet) and seamless integration with GE Fanuc PLCs or third-party systems. The module can operate as a stand-alone device or part of a larger distributed control network, offering deployment flexibility.
Enhanced Reliability: Built with short-circuit and overload protection, the GE IC660EPM100J safeguards against electrical faults. Its IP20-rated enclosure protects against dust and accidental contact, while LED indicators provide real-time status updates for power, communication, and I/O health.
Application Areas
Manufacturing: The GE IC660EPM100J monitors power consumption in production lines, optimizing energy usage for motors, pumps, and HVAC systems. Its real-time data transmission enables predictive maintenance, reducing equipment downtime and operational costs.
Power Generation: In power plants, this module tracks generator output, grid stability, and transformer performance. It supports three-phase delta/wye configurations, making it suitable for monitoring complex power systems in renewable energy and conventional power stations.
Water/Wastewater Treatment: The GE IC660EPM100J manages pump stations and filtration systems by monitoring motor efficiency and energy usage. Its dual-voltage capability accommodates both low-voltage sensors and high-voltage actuators, ensuring reliable operation in harsh environments.
Building Automation: Integrating with HVAC and lighting systems, the module optimizes energy distribution in commercial buildings. Its local HHM interface allows facility managers to adjust settings on-site, enhancing operational agility.
Related Products
- GE IC660TBM100: Terminal block required for GE IC660EPM100J operation, providing fixed wiring connections for voltage/current inputs.
- GE IC660BPM100: Complete PowerTrac Block including electronics assembly and terminal block, offering plug-and-play functionality for simplified installation.
- GE IC660BBA100: Analog I/O module for integrating additional sensor inputs (e.g., temperature, pressure) into the Genius I/O system.
- GE IC660UEM001-DF: Ethernet module for enabling Modbus TCP/SRTP communication with remote devices or HMIs.
- GE IC660ERM002: Expansion receiver module for extending I/O capacity in distributed control systems.
Installation and Maintenance
Installation Preparation:
- Hardware Setup: Mount the GE IC660EPM100J on a DIN rail using the terminal block (IC660TBM100). Connect 115/230VAC or 125VDC power and wire voltage/current inputs from transformers to the terminal block.
- Configuration: Use Proficy Machine Edition (PME) or the Genius HHM to set up parameters (e.g., power system type, data update rate). Configure communication settings for integration with the host PLC or computer.
- Safety Checks: Verify grounding and cable connections. Ensure input voltages fall within the specified range (115–230VAC or 125VDC) to prevent damage.
Maintenance Recommendations:
- Monthly Inspections: Clean dust from the enclosure and inspect LED indicators for power and communication status. Tighten terminal connections to 0.37–0.45 lb·ft torque if loose.
- Annual Checks: Test input/output signals using a multimeter and recalibrate if necessary. Replace the backup battery (if applicable) every 5 years to maintain data retention.
- Firmware Updates: Download the latest firmware from GE’s support portal to address compatibility issues and enhance functionality. Regular updates ensure optimal performance with newer software versions.
Product Guarantee
The GE IC660EPM100J is backed by a 12-month warranty covering defects in materials and workmanship. GE’s global technical support team provides 24/7 troubleshooting and replacement parts, ensuring minimal downtime. In-stock units typically ship within 3 business days, while custom configurations require 2–4 weeks. The product meets international standards (CE, UL, CSA) and is manufactured in the United States, ensuring reliability and compliance with industrial requirements.
