Description

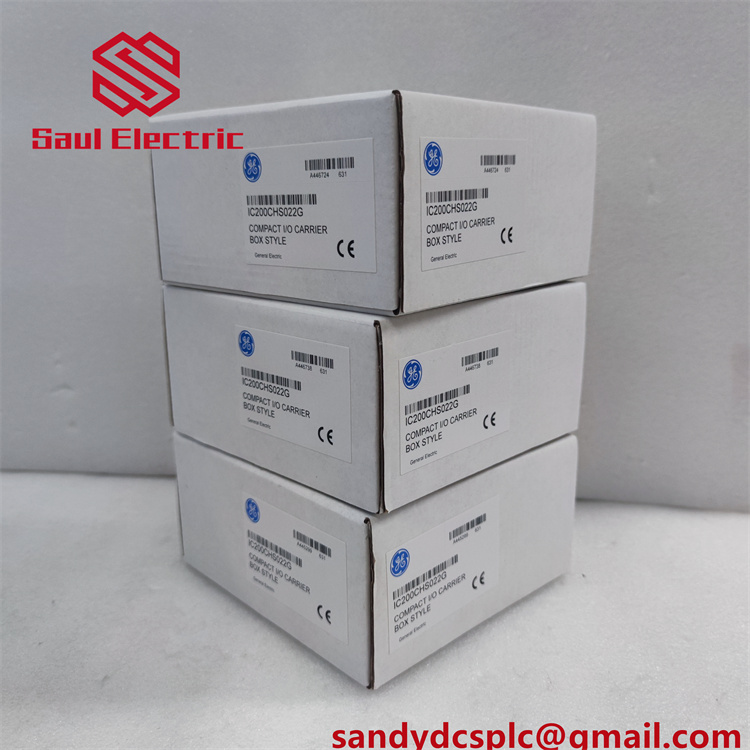

GE IC200CHS022 is a compact I/O carrier module designed for industrial automation systems, part of GE Fanuc’s VersaMax™ series. Serving as the backbone for field wiring and I/O module integration, this module provides 36 IEC box-style terminals for connecting sensors, actuators, and other industrial devices. Engineered for flexibility and reliability, the GE IC200CHS022 supports a wide voltage range (0–264 VAC) and current ratings (2 A per point, 8 A for power/ground), making it suitable for diverse applications in manufacturing, energy, and process industries. Its modular design ensures seamless compatibility with all VersaMax I/O modules, enabling scalable automation solutions .
The GE IC200CHS022 features a rugged IP20-rated enclosure with DIN rail or panel mounting options, ensuring stability in harsh environments (0–60°C operating temperature). The carrier’s integrated card holder securely fastens I/O modules, while its foldable wiring card simplifies terminal access during installation. The module also supports single or double-wire connections (AWG #14–22 solid/stranded copper), reducing wiring complexity and downtime .
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE IC200CHS022 |
| Manufacturer | General Electric (GE) |
| Product Type | Compact I/O Carrier Module |
| Terminals | 36 IEC box-style terminals (A1–A18, B1–B18) |
| Voltage Rating | 0–264 VAC (300 VAC transient withstand) |
| Current Rating | 2 A per point, 8 A per power/ground |
| Wire Compatibility | AWG #14–22 (single), AWG #18 (double) |
| Mounting | 35 mm DIN rail or panel |
| Dimensions | 66.8 mm × 70 mm × 163.5 mm (2.63″ × 2.75″ × 6.44″) |
| Weight | 0.24 kg (0.53 lbs) |
| Operating Temperature | 0–60°C (32–140°F) |
| Isolation | 250 VAC continuous (channel-to-channel) |
| EMC Compliance | EN 61000-6-2/6-4 |
| Life Cycle Status | Active (current production) |
Key Features and Advantages
Flexible Wiring Architecture: The GE IC200CHS022’s 36 terminals support mixed signal types (discrete, analog, or specialty I/O), allowing integration of diverse industrial devices. Its dual-wire capability (AWG #18) enables terminal shorting for simplified wiring configurations, reducing installation time by up to 30% compared to traditional single-wire setups .
Rugged Industrial Design: With 250 VAC channel isolation and transient voltage protection (300 VAC), the module ensures stable performance in high-EMI environments. Its extended temperature range (0–60°C) and IP20 rating make it suitable for chemical plants, offshore platforms, and food processing facilities where dust, moisture, and vibration are common .
Modular Scalability: As part of the VersaMax ecosystem, the GE IC200CHS022 works seamlessly with GE’s full range of I/O modules (e.g., analog, digital, communication), enabling scalable control systems. Its hot-swap-compatible design allows module replacement without system downtime, critical for continuous operations .
Efficient Installation: The carrier’s keying dials and male-female backplane connectors ensure quick, tool-free module alignment, while the hinged card holder provides easy access to terminals during maintenance. The DIN rail mounting requires minimal spacing (2″ vertical, 1″ horizontal), optimizing cabinet space .
Application Areas
Manufacturing: Used in assembly lines to interface PLCs with proximity sensors, solenoid valves, and conveyor systems. The GE IC200CHS022’s high current capacity supports direct connection to industrial actuators, reducing the need for intermediate relays .
Power Generation: Integrates with turbine control systems to monitor temperature, pressure, and flow sensors. Its transient voltage protection safeguards against grid surges, ensuring reliable data acquisition in power plant environments .
Process Industries: Deployed in chemical reactors and water treatment plants for real-time process monitoring. The module’s wide voltage range accommodates legacy equipment while supporting modern smart sensors .
Packaging Machinery: Enables precise control of labeling, filling, and sealing machines by interfacing with stepper motors and vision systems. The carrier’s compact size fits into space-constrained control panels .
Related Products
- GE IC200CHS002: Box-style I/O carrier with 36 terminals, ideal for general-purpose applications requiring higher channel density .
- GE IC200CHS025: Spring-style I/O carrier for quick-connect wiring, reducing installation time by 50% .
- GE IC200ALG260: 8-channel analog input module for voltage/current signals, pairs with GE IC200CHS022 for process monitoring .
- GE IC200MDL640: 16-channel 24 VDC digital input module, supports discrete sensor integration .
- GE IC200EBI001: Ethernet interface module enabling Modbus/TCP communication between GE IC200CHS022 and SCADA systems .
- GE IC200PWR001: 24 VDC power supply module for VersaMax systems, ensures stable power delivery .
Installation and Maintenance
Installation Preparation:
Mount the GE IC200CHS022 on a grounded 35 mm DIN rail, leaving 2″ vertical and 1″ horizontal clearance for heat dissipation. Use shielded cables (AWG #14–22) and torque terminals to 0.8 N·m to prevent loosening. Configure I/O modules via dip switches or GE’s Proficy Logic Developer software .
Mount the GE IC200CHS022 on a grounded 35 mm DIN rail, leaving 2″ vertical and 1″ horizontal clearance for heat dissipation. Use shielded cables (AWG #14–22) and torque terminals to 0.8 N·m to prevent loosening. Configure I/O modules via dip switches or GE’s Proficy Logic Developer software .
Maintenance Advice:
Inspect terminals quarterly for corrosion or loose connections. Clean dust from the enclosure using compressed air. Replace the module if physical damage or signal drift is detected. GE recommends annual calibration for analog modules paired with GE IC200CHS022 to maintain accuracy. The carrier’s modular design allows field replacement without rewiring .
Inspect terminals quarterly for corrosion or loose connections. Clean dust from the enclosure using compressed air. Replace the module if physical damage or signal drift is detected. GE recommends annual calibration for analog modules paired with GE IC200CHS022 to maintain accuracy. The carrier’s modular design allows field replacement without rewiring .
Product Guarantee
GE provides a 12-month warranty for the GE IC200CHS022, covering defects in materials and workmanship. Global technical support is available 24/7 for installation guidance and troubleshooting. Premium service plans include priority repairs and onsite maintenance for mission-critical applications. The module complies with UL, CE, and IEC 61000 standards, ensuring industrial-grade reliability .
Brand Model: GE IC200CHS022
Product Name: Compact I/O Carrier Module (VersaMax Series)
Warranty: 1 year
Size: 66.8 mm × 70 mm × 163.5 mm (2.63″ × 2.75″ × 6.44″)
Weight: 0.24 kg (0.53 lbs)
Origin: USA
Inventory: Spot/Futures
Delivery time: Goods in stock will be dispatched within 3 days after payment
Order time: Goods will be dispatched within one month after payment
Product Name: Compact I/O Carrier Module (VersaMax Series)
Warranty: 1 year
Size: 66.8 mm × 70 mm × 163.5 mm (2.63″ × 2.75″ × 6.44″)
Weight: 0.24 kg (0.53 lbs)
Origin: USA
Inventory: Spot/Futures
Delivery time: Goods in stock will be dispatched within 3 days after payment
Order time: Goods will be dispatched within one month after payment
