Description
Product Overview
The GE HYDRAN 201Ti is a compact, advanced online dissolved gas-in-oil (DGA) monitoring transmitter designed to detect early signs of insulation degradation, arcing, or overheating in power transformers, generators, and oil-filled electrical equipment. As part of GE’s globally recognized HYDRAN series, this intelligent device interfaces seamlessly with controllers like the HYDRAN H201Ci-1 to provide real-time analysis of fault gases such as hydrogen (H₂), carbon monoxide (CO), and acetylene (C₂H₂), enabling predictive maintenance and minimizing unplanned downtime 28.
The GE HYDRAN 201Ti is a compact, advanced online dissolved gas-in-oil (DGA) monitoring transmitter designed to detect early signs of insulation degradation, arcing, or overheating in power transformers, generators, and oil-filled electrical equipment. As part of GE’s globally recognized HYDRAN series, this intelligent device interfaces seamlessly with controllers like the HYDRAN H201Ci-1 to provide real-time analysis of fault gases such as hydrogen (H₂), carbon monoxide (CO), and acetylene (C₂H₂), enabling predictive maintenance and minimizing unplanned downtime 28.

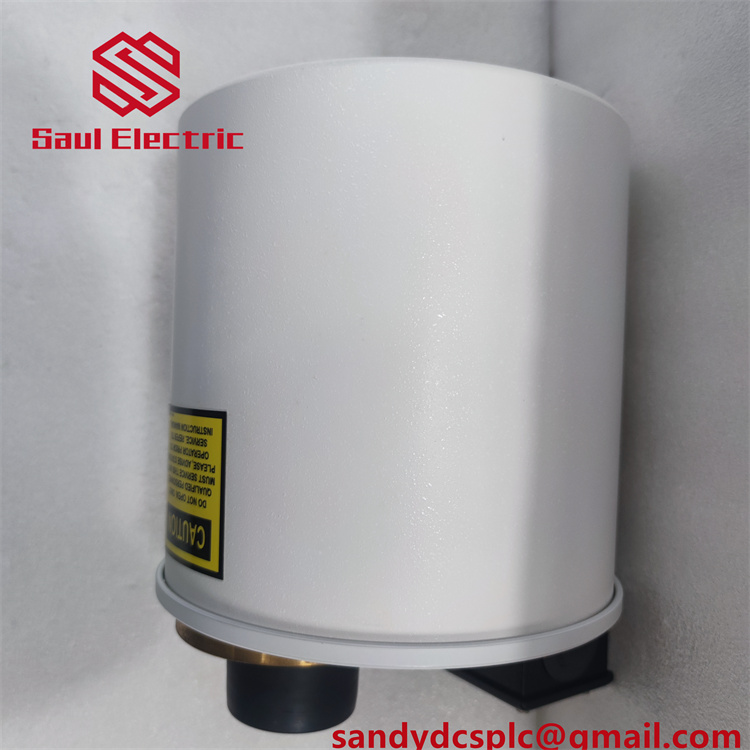

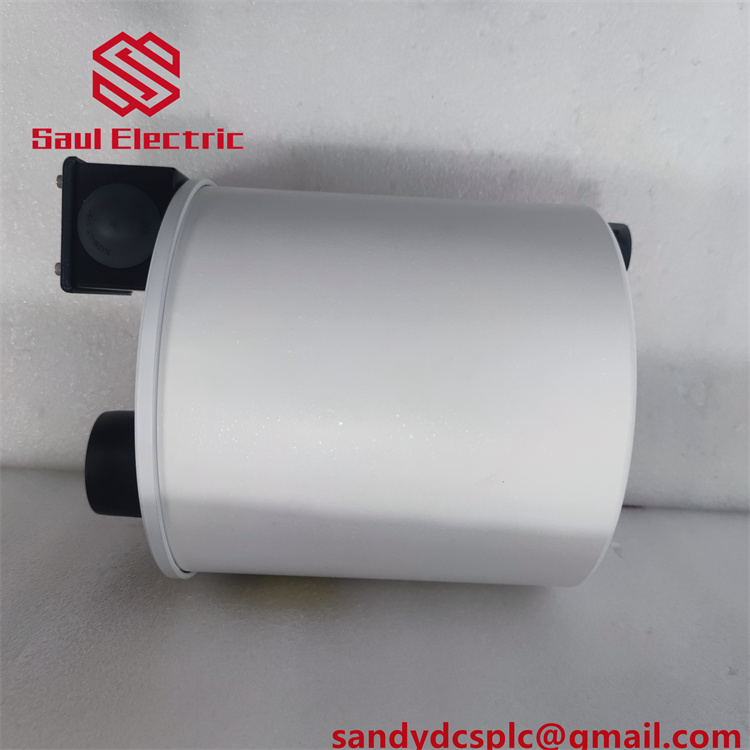

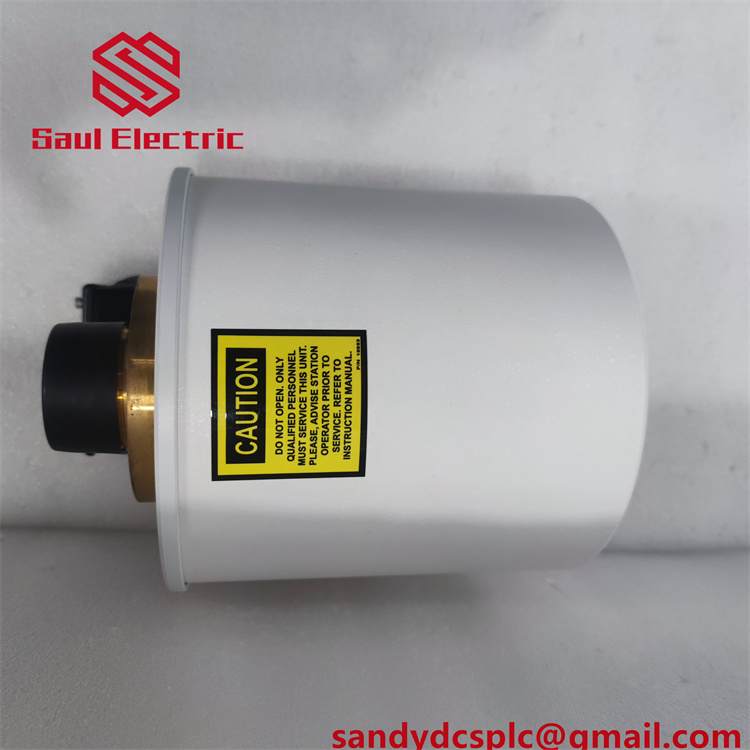

Engineered with a NEMA 4X-rated cylindrical enclosure (178mm diameter × 180mm length), the GE HYDRAN 201Ti withstands extreme temperatures (-40°C to +80°C) and harsh environments, including offshore platforms and utility-scale power plants. Its no-moving-parts design eliminates maintenance-intensive components like pumps or filters, while the vacuum-resistant gas extraction membrane ensures continuous, reliable gas sampling directly from the transformer oil valve 813. The device features a composite gas sensor that responds 100% to hydrogen and is sensitive to CO, C₂H₂, and ethylene, aligning with IEEE C57.104 standards for DGA interpretation 210.
With a backlit LCD display and RS-485 Modbus connectivity, the GE HYDRAN 201Ti allows remote monitoring of gas trends, configurable alarm thresholds, and self-diagnostics. It supports both Hydran proprietary protocols and Modbus RTU, enabling integration with SCADA systems or GE’s Perception™ software for centralized data analysis 810.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE HYDRAN 201Ti |
| Manufacturer | GE (General Electric) |
| Product Type | Single-Channel Gas Monitoring Transmitter |
| Gas Detection | H₂ (100% response), CO (18±3% sensitivity), C₂H₂ (8±2% sensitivity), C₂H₄ (1.5±0.5% sensitivity) 4 |
| Measurement Range | 0–2,000 ppm (H₂ equivalent) |
| Accuracy | ±10% of reading ±25 ppm (H₂) |
| Response Time | 10 minutes (90% of step change) |
| Communication | RS-485 Modbus RTU, Hydran proprietary protocol |
| Power Supply | 115/230V AC (50/60Hz) or 24V DC (via controller) 1622 |
| Enclosure Rating | NEMA 4X (IP66 equivalent) |
| Dimensions | 178mm (D) × 180mm (L) |
| Weight | 5.6 kg (installation weight) |
| Certifications | CE, UL 508, CSA C22.2, IEC 61131-2 |
Main Features and Advantages
Precision Gas Analysis: The GE HYDRAN 201Ti delivers ppm-level accuracy in detecting hydrogen and other fault gases, providing actionable insights into transformer health. Its composite gas sensor covers all major failure root causes, including overheated insulation, arcing, and partial discharges 210.
Rugged Industrial Design: Built with a NEMA 4X-rated enclosure and conformal-coated circuitry, the transmitter withstands extreme temperatures, humidity, and vibrations. Its compact size (178mm diameter × 180mm length) and direct mounting on transformer valves eliminate the need for additional piping or pumps 813.
Flexible Integration: The GE HYDRAN 201Ti supports Modbus RTU and RS-485 connectivity, enabling seamless integration with SCADA systems, cloud platforms, and GE’s Perception™ software for trend analysis and remote diagnostics. It also allows network scalability when paired with HYDRAN H201Ci controllers 810.
Proactive Diagnostics: Real-time LED indicators for gas alarms (high/high-high) and system health, combined with self-diagnostics and error logging, ensure rapid fault identification. The device performs a monthly self-test to verify sensor integrity and trigger service alerts if issues arise 28.
Ease of Use: With plug-and-play compatibility with GE’s HYDRAN H201Ci controllers, the GE HYDRAN 201Ti requires no field calibration. Local configuration via the front-panel keypad and downloadable firmware updates simplify setup and ensure long-term performance 68.
Application Areas
Power Generation: The GE HYDRAN 201Ti is critical for monitoring power transformers in utility-scale plants, providing early warning of insulation breakdown and arcing to prevent catastrophic failures. It supports condition-based maintenance strategies, reducing downtime and optimizing asset lifecycle management 210.
Industrial Facilities: Deployed in petrochemical plants and manufacturing facilities, this transmitter safeguards large transformers in high-value equipment by detecting overheating and partial discharges. Its remote monitoring capabilities enable centralized management of distributed assets 210.
Renewable Energy: In wind and solar farms, the GE HYDRAN 201Ti ensures reliable operation of transformers and generators, minimizing energy production losses due to unplanned outages. Its compatibility with cloud-based platforms allows real-time data analysis for predictive maintenance 210.
Transmission Grids: Used in high-voltage substations, the transmitter detects faults in transformer oil before they escalate, ensuring grid stability and compliance with regulatory standards. Its robust design makes it suitable for offshore and remote installations 210.
Related Products
- GE HYDRAN H201Ci-1: Single-channel controller that interfaces with the GE HYDRAN 201Ti for gas concentration analysis and alarm management 821.
- GE HYDRAN H201Ci-4: Four-channel controller for multi-sensor applications, ideal for monitoring large transformer banks 8.
- GE HYDRAN M2-X: Advanced gas-in-oil monitor with expanded gas detection capabilities, suitable for critical transformers 8.
- GE Perception™ Fleet Software: Analytics platform for centralized data management and trend analysis of GE HYDRAN 201Ti readings 28.
- GE H201Ci-C: Communication controller enabling networked monitoring of up to four HYDRAN 201Ti sensors 821.
Installation and Maintenance
Installation Preparation:
Mount the GE HYDRAN 201Ti directly on the transformer’s dissolved gas monitoring valve using the supplied brass adapter. Ensure the valve is fully open and the sensor is positioned vertically to prevent sediment accumulation. Connect power (115/230V AC or 24V DC via controller) and RS-485/USB cables per the wiring diagram in the GE HYDRAN 201Ti User Manual 67. Verify proper grounding and shielded cabling to minimize electromagnetic interference.
Mount the GE HYDRAN 201Ti directly on the transformer’s dissolved gas monitoring valve using the supplied brass adapter. Ensure the valve is fully open and the sensor is positioned vertically to prevent sediment accumulation. Connect power (115/230V AC or 24V DC via controller) and RS-485/USB cables per the wiring diagram in the GE HYDRAN 201Ti User Manual 67. Verify proper grounding and shielded cabling to minimize electromagnetic interference.
Maintenance Recommendations:
- Monthly Checks: Inspect LCD display for alarm status and compare gas readings against baseline data.
- Annual Calibration: Perform factory-recommended calibration of the HYDRAN 201Ti sensor to maintain accuracy.
- Firmware Updates: Regularly download the latest firmware from GE’s support portal to access enhanced diagnostic features and address obsolescence 68.
Product Guarantee
The GE HYDRAN 201Ti is backed by a 12-month warranty against manufacturing defects, covering parts and labor. GE’s global technical team provides 24/7 troubleshooting support and remote diagnostics to ensure optimal performance. In-stock units ship within 3 business days, while custom configurations require 4–6 weeks 813. The transmitter meets international safety and reliability standards (UL, CE, IEC), ensuring compliance with industrial requirements.
