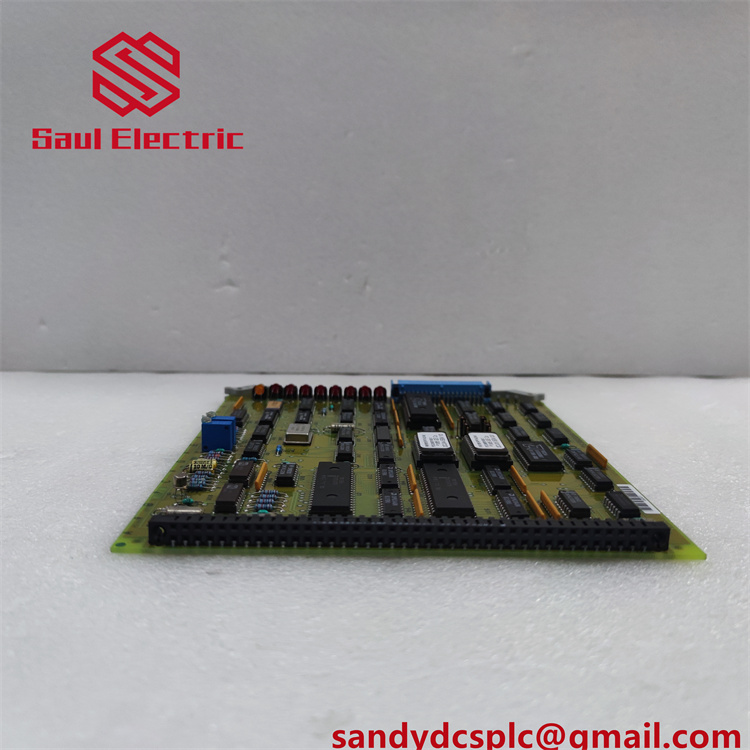

GE DS3800HIODIHIG Digital I/O Board
Product Overview
The GE DS3800HIODIHIG is a high-performance Digital Input/Output (I/O) Board designed for GE’s Mark IV Speedtronic turbine control system, serving as a critical interface for binary signal communication in industrial gas and steam turbine applications. As part of the DS3800HIOD series, this module integrates seamlessly with Mark IV microprocessor controllers, HMIs, and network devices to enable real-time data exchange, signal conditioning, and control logic execution in mission-critical environments .
Engineered with dual modular connectors and triple modular redundancy (TMR) architecture, the GE DS3800HIODIHIG supports industrial-standard digital signals (5V, 12V, or 24V DC), ensuring compatibility with legacy sensors, actuators, and modern automation systems. Its dual-sided PCB houses over 20 integrated circuits, including AM26LS30 dual differential drivers and AM26LS33 quad differential receivers, which facilitate noise-resistant signal transmission across long cable distances. The module features three LED indicators (two red, one green) for real-time status monitoring of power, data transmission, and fault conditions, enhancing diagnostic visibility during operation .
While the Mark IV series is legacy technology, the GE DS3800HIODIHIG remains indispensable for maintaining industrial infrastructure in power plants, offshore platforms, and heavy manufacturing facilities. Its field-configurable jumpers allow users to adjust voltage thresholds, signal conditioning parameters, and communication protocols without hardware modifications, making it adaptable to diverse control scenarios .
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE DS3800HIODIHIG |
| Manufacturer | General Electric (GE) |
| Product Type | Digital Input/Output (I/O) Board |
| Compatibility | GE Mark IV Speedtronic Turbine Control System |
| Signal Standards | 5V, 12V, or 24V DC (field-configurable via jumpers) |
| Connectors | 2 x 10-pin connectors, 1 x 40-pin ribbon cable connector |
| Indicators | 3 LEDs (2 red, 1 green) for power, data, and fault status |
| Jumpers | 6 configurable jumpers for voltage thresholds, signal conditioning, and protocols |
| Power Supply | +5V DC ±10%, ±15V DC ±10% (inferred from Mark IV system standards) |
| Operating Temperature | -30°C to +55°C |
| Physical Dimensions | 9 in x 5.5 in x 1.5 in (228.6 mm x 139.7 mm x 38.1 mm) |
| Weight | 0.63 lbs (0.286 kg) |
| Warranty | 1 year (third-party suppliers, e.g., AX Control, Amikon) |
| Expansion Capability | Vertical pin connector for daughterboard integration |
Key Features and Advantages
Legacy System Compatibility: The GE DS3800HIODIHIG supports 5V, 12V, or 24V DC signals, ensuring seamless integration with aging Mark IV systems while providing backward compatibility for legacy sensors and actuators . Its dual modular connectors enable long-distance signal transmission (up to 500 meters for 10Base5), critical for distributed control setups in power generation and oil refineries .
Rugged Industrial Design: Built with EMI shielding and surge protection, the module withstands extreme temperatures, voltage spikes, and mechanical vibrations. Its retention levers simplify maintenance by allowing quick removal and replacement without tools, reducing downtime during repairs .
Diagnostic Visibility: Three LED indicators provide real-time feedback on power status, data integrity, and fault conditions, enabling rapid troubleshooting. For example, a steady red LED alerts operators to communication errors, while green LEDs signal normal operation .
Field-Configurable Flexibility: Six jumpers allow users to adjust voltage thresholds, signal conditioning parameters, and communication protocols, making the GE DS3800HIODIHIG adaptable to diverse control scenarios. This flexibility is ideal for retrofitting legacy systems with modern sensors or actuators .
High-Speed Switching: Designed for fast and reliable data transfer, the board supports high-speed digital signals, making it suitable for time-sensitive applications like turbine speed control and safety interlocks .
Application Areas
The GE DS3800HIODIHIG excels in industrial environments requiring reliable digital signal communication and legacy system compatibility:
- Power Generation: Manages binary signals between turbine control modules, HMIs, and grid synchronization systems, ensuring stable energy production and grid stability.
- Oil & Gas: Enables real-time monitoring of wellhead pressure switches, pump relays, and safety interlocks in offshore platforms and refineries, supporting compliance with environmental and operational standards.
- Heavy Machinery: Facilitates high-speed data exchange between distributed control systems (DCS) and field devices in mining crushers and conveyor systems, enhancing operational efficiency.
- Industrial Automation: Integrates with GE’s Mark IV I/O modules (e.g., DS3800HIOD1G1G digital I/O boards) to enable seamless communication in manufacturing plants, optimizing material handling and process control .
Related Products
DS3820DMCB1 – GE CIRCUIT BOARD in Stock Buy | Repair
DS3820DMVB1 – GE CIRCUIT BOARD in Stock Buy | Repair
DS3820AISA – GE CIRCUIT BOARD TURBINE CONTROL
ds3820aira – analog i/o module
DS3820AIQA – GE CIRCUIT BOARD MARK IV
DS3820AIPA – Analog I/O Module
ds3800xvia1a1 – voltage indicator ge mark iv
DS3800NPPB1L1H Power Supply Board – Mark IV
Installation and Maintenance
Installation Preparation: Verify compatibility with the Mark IV system and ensure the control rack’s DIN rail is securely mounted. Align the GE DS3800HIODIHIG with the backplane connector and engage retention levers for a secure fit. Use GE’s TriStation software to configure jumpers for voltage thresholds, signal conditioning, and communication protocols. Anti-static wrist straps are recommended during handling to prevent ESD damage .
Maintenance Recommendations: Regularly inspect connectors for corrosion and clean dust from vents to maintain optimal airflow. Monitor LED indicators for 异常 statuses (e.g., steady red for faults) and address issues promptly. Perform firmware updates as recommended by GE or third-party suppliers. For hardware replacement, retain original jumper settings and terminal configurations for reference. Periodically test diagnostic functions to ensure LED and jumper responsiveness .
Product Assurance
The GE DS3800HIODIHIG is backed by a 1-year warranty covering defects in materials and workmanship, provided by third-party suppliers like AX Control and Amikon. Global technical support is available through authorized service networks, offering troubleshooting assistance, firmware updates, and replacement parts. This ensures minimal downtime and sustained performance for legacy systems.
