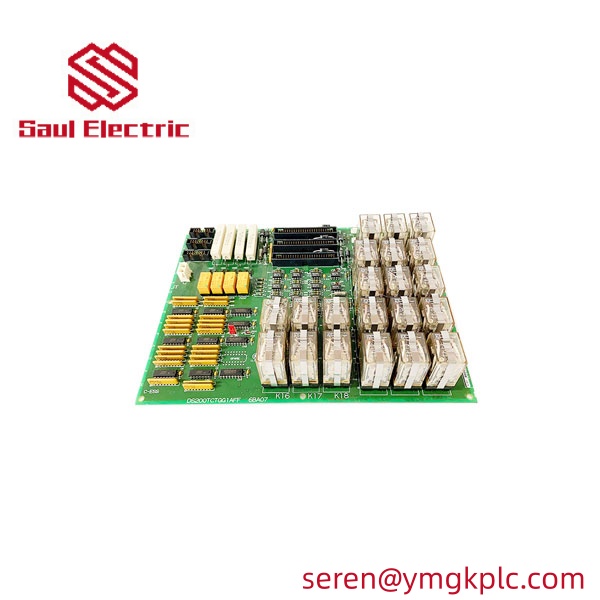

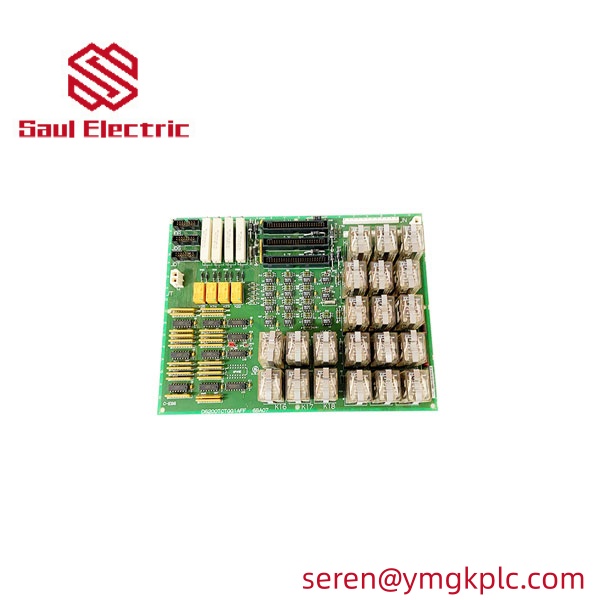

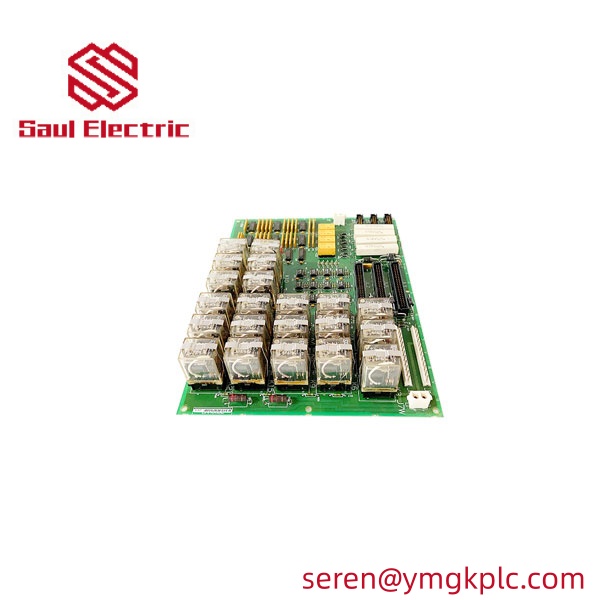

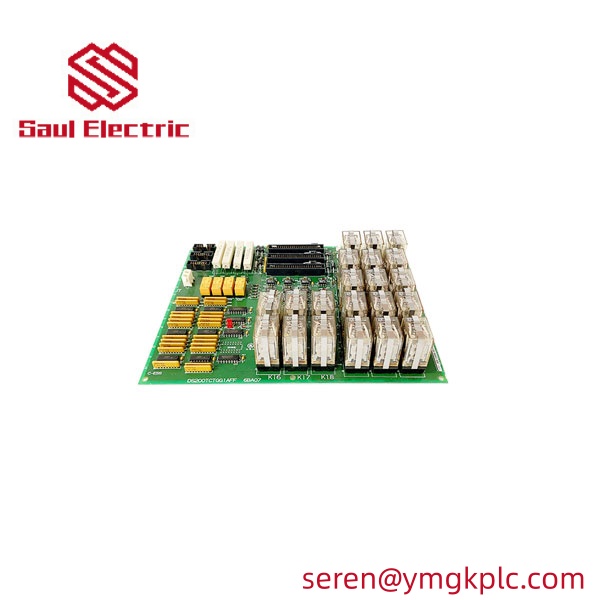

GE DS200TCTGG1AFF | Mark V Speedtronic Turbine Emergency Trip Board

Description

1. Product Overview

The GE DS200TCTGG1AFF is a critical safety-instrumented Turbine Trip Board (TCTG) designed for the renowned Mark V Speedtronic heavy-duty gas and steam turbine control platforms. Positioned at the very heart of the system’s emergency hardware layers (typically within the protective core), this board is responsible for processing emergency trip logic and overspeed diagnostics independent of the primary control processors.

The specific configuration string DS200TCTGG1AFF indicates its manufacturing and engineering profile: DS200 designates the baseline industrial circuit block; TCTG identifies its functional blueprint as a dedicated Emergency Trip circuit; G1 maps it to Group 1 hardware scaling; and the AFF suffix represents GE’s progressive hardware revisions. The “AFF” revision incorporates upgraded timing-delay capacitors and enhanced transient voltage surge suppressors (TVSS) to prevent false or nuisance turbine trips caused by external line noise or grid disturbances.

Key Applications:

• Emergency Overspeed Protection: Continuous hardware-level parsing of magnetic speed pickup (MPU) pulse frequencies to prevent rotor catastrophic failure.
• Emergency Stop (E-Stop) Execution: Physical routing interface for manual control room crash buttons and local enclosure trip handles.
• Hydraulic Trip Solenoid Driving: Delivering high-current initiation pulses to de-energize and dump the primary hydraulic fluid header, dropping the fuel stop valves instantly.

2. Technical Features

3. Procurement Process

1. Revision Co-dependency Review: We verify your panel’s exact layout and matching software configurations to ensure the AFF version drops in flawlessly without voting mismatch conflicts.
2. Formal Commercial Quotation: Receive a detailed line-item quote containing competitive technical pricing, immediate warehouse availability status, and air-freight schedules.
3. Compliance Processing: Verification of industrial end-user certificates and international customs documentation.
4. Sales Agreement: Issuance of a formal Proforma Invoice (PI) to initiate safe corporate funding.
5. Secure Remittance: Safe corporate payment accepted strictly via standard wire transfer (T/T).
6. Pre-Shipment Quality Testing: Every card goes through a strict 100% component alignment evaluation, trace isolation inspection, and structural connector pin validation.
7. Premium ESD Containment: Sealed inside multi-layer anti-static shielding film and nested within specialized impact-resistant foam boxing for overseas security.
8. Global Distribution: Fast, priority door-to-door delivery executed via DHL, FedEx, or UPS straight to your power station or maintenance center.

4. Products Showcase (Photos & Video)

5. Related Models

• GE DS200TCPDG1BEC (Relay Output Board)
• GE DS200TCRAG1ACC (Digital Power Distribution Board)
• GE DS200TCDAG1B (Digital I/O Board Module)
• GE DS200TCPSG1A (Master Power Supply Board)

6. Warranty & After-Sales

• 12-Month Total Operational Warranty: Comprehensive 1-year global industrial warranty protecting your assets against any electrical or manufacturing defects.
• 100% Originality Guarantee: We contract and supply strictly authentic, genuine General Electric control hardware for high-criticality systems.
• Customs Technical Logistics: Full administrative management of international tracking IDs, proforma tracking, and automated custom classification manifests.

7. FAQ

Q: What is the exact function of the TCTG board compared to standard relay output boards?

While general relay boards (like the TCRA) handle non-critical sequencing like turning on auxiliary pumps, the TCTG (Turbine Trip Board) is dedicated strictly to machine safety. It directly interprets overspeed frequencies and interface signals that command the turbine to shut down during catastrophic conditions. It is engineered with faster reaction times and rigorous fail-safe logic.

Q: Can the DS200TCTGG1AFF board be replaced online while the turbine is generating power?

No. Under absolutely no circumstances should this board be pulled or serviced while the unit is running. Because it controls the active turbine trip solenoids and resides within the emergency voting loops, touching or hot-swapping this card will cause an immediate, uncontrolled turbine trip, and risks damaging the delicate protective core backplane.

Q: Why is the “AFF” suffix critical when ordering this replacement board?

GE’s Mark V systems operate on highly strict “triple-modular redundant” (TMR) or specialized protective voting architectures. If you introduce a different revision level board (e.g., an older “ACC” revision) into a core that expects an AFF board, the timing differences or circuit differences can cause the diagnostic software to throw constant vote mismatches or trip errors. Matching the exact suffix ensures standard, seamless safety execution.
