Description
Product Overview

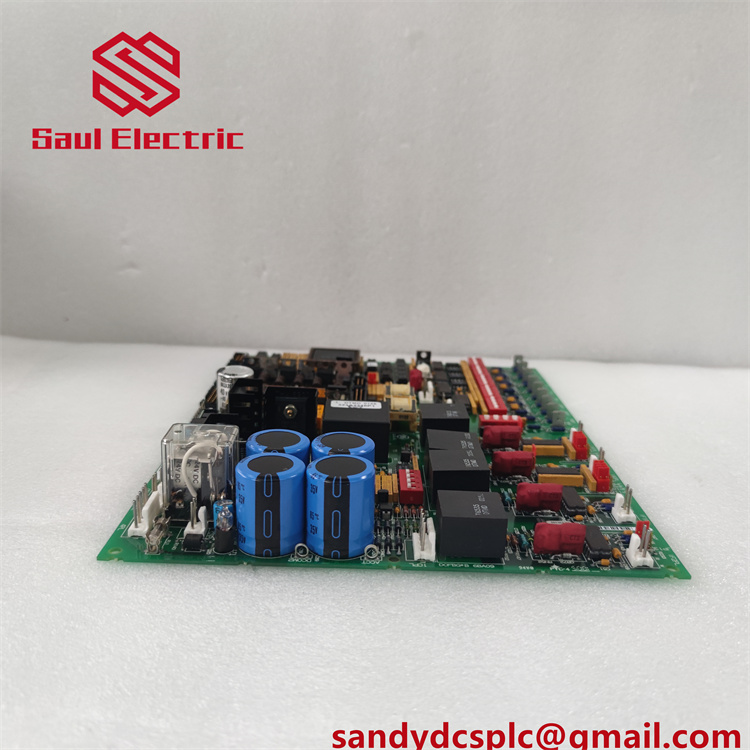

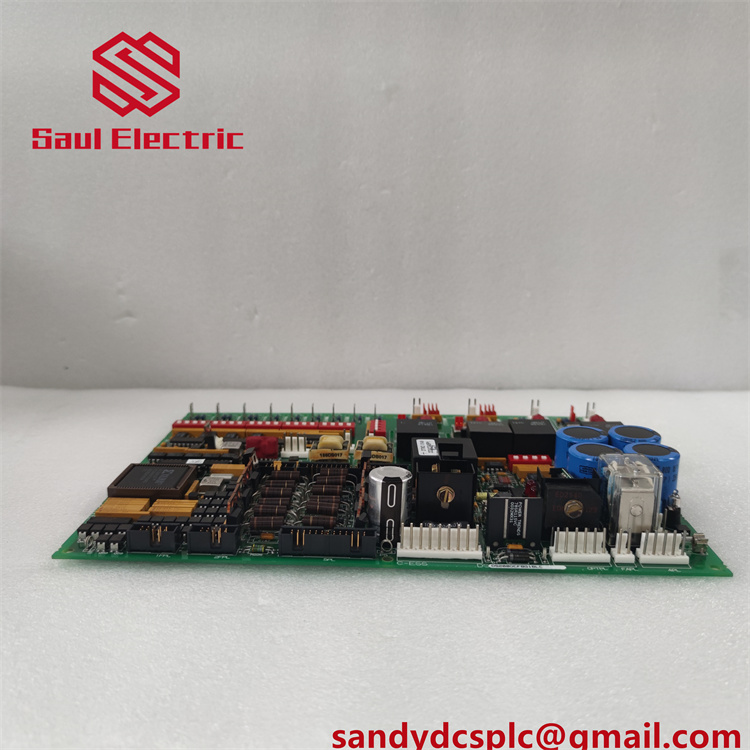

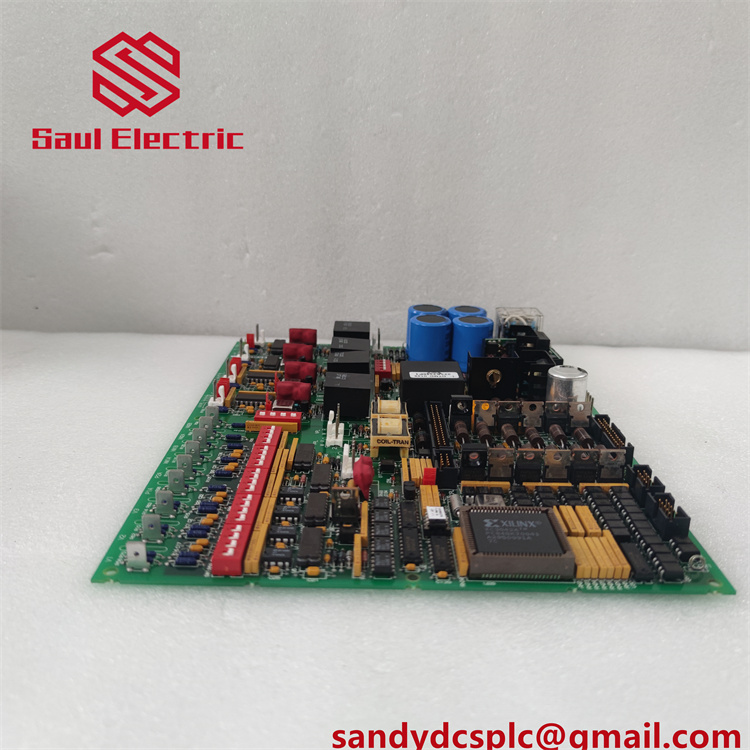

The GE DS200DCFBG1BLC is a Power Supply Board designed for GE’s Mark V series turbine control systems, serving as a critical component in industrial automation and power generation. Engineered to provide stable DC voltage outputs, this module supports the power requirements of digital and analog control circuits within gas/steam turbine systems. Its rugged design and advanced regulation technology make it suitable for harsh industrial environments, including high-temperature and high-vibration settings.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE DS200DCFBG1BLC |
| Manufacturer | GE (General Electric) |
| Product Type | Power Supply Board for Mark V Turbine Control Systems |
| Output Voltages | +5V DC (±5%), ±15V DC (±5%) |
| Input Voltage Range | 85–132V AC or 110–190V DC (via internal rectification) |
| Power Rating | 150W continuous |
| Protection Features | Overvoltage, short-circuit, and over-temperature protection |
| Housing Material | Metal chassis with conformal coating for EMI/RFI shielding |
| Dimensions | 228mm (W) × 267mm (H) × 102mm (D) |
| Weight | 3.2 kg |
| Certifications | CE, UL 508, CSA C22.2, IEC 61131-2 |
| Compatibility | GE Mark V systems (e.g., DS200 系列 I/O modules, EX2100 excitation systems) |
| Operating Temperature | -40°C to +70°C (non-condensing) |
| Instruction Manual | GEI-100251B (Mark V Power Supply Manual) |
Main Features and Advantages
- Dual Voltage Outputs: Supplies +5V DC for digital logic (e.g., microprocessors) and ±15V DC for analog components (e.g., op-amps), ensuring seamless integration with Mark V control modules.
- Rugged Industrial Design: Conformal-coated circuitry and metal housing protect against dust, moisture, and vibration, ideal for offshore platforms or power plants.
- Hot-Swap Capability: Enables replacement without system shutdown, reducing maintenance downtime.
- Real-Time Diagnostics: LED indicators for power status, overload, and fault conditions (e.g., green for normal operation, red for errors).
Application Areas
- Power Generation: Supports turbine excitation systems, generator control, and load regulation in utility-scale power plants.
- Oil & Gas: Powers compressor drives, wellhead automation, and process control in refineries and offshore facilities.
- Industrial Machinery: Integrates with robotic systems, conveyor controls, and precision motion equipment.
- Renewable Energy: Used in wind turbine control systems and energy storage management.
Related Products
Installation and Maintenance
Installation Steps:
- Mount the board in a Mark V rack using captive screws, ensuring proper grounding.
- Connect input voltage (AC/DC) to the terminal block per the wiring diagram in GEI-100251B.
- Verify output voltages using test points before connecting to load circuits.
- Ensure shielded cables are used to minimize electromagnetic interference.
Maintenance Tips:
- Monthly Checks: Monitor LED indicators and measure output voltages with a multimeter.
- Annual Inspections: Tighten terminal connections and inspect for corrosion, especially in humid environments.
- Component Replacement: Replace electrolytic capacitors every 5–7 years to prevent voltage ripple degradation.
Product Guarantee
- Warranty: 12-month warranty against manufacturing defects.
- Delivery: In-stock items ship within 3 business days; custom orders may take 4–6 weeks.
- Support: GE’s global technical team provides 24/7 troubleshooting and firmware updates.
- Compliance: Meets industrial standards for safety and reliability (UL, CE, IEC).
