Description
Product Overview
The GE 469-P5-HI-A20-E is an advanced motor management relay designed by GE Multilin, belonging to the SR 469 series platform. Engineered for medium to large AC motors in industrial applications, this relay delivers comprehensive protection, control, and monitoring with adaptive features to optimize motor performance and reduce downtime. Its modular design supports drawout or fixed mounting, making it suitable for both new installations and retrofitting existing motor control centers.
Key functions include thermal overload protection with voltage-dependent curves, stator differential protection, and broken rotor bar detection through advanced motor current signature analysis (MCSA)216. The relay features 12 RTD inputs for real-time temperature monitoring of motor windings and bearings, ensuring precise thermal modeling and early fault detection. With support for Modbus RTU, DeviceNet, and IEC 61850 communication protocols19, it enables seamless integration into smart grid systems for remote diagnostics and SCADA integration. The enhanced front-panel LCD display (40-character) and Enervista software provide intuitive configuration and real-time metering of voltage, current, torque, and power quality parameters.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 469-P5-HI-A20-E |
| Manufacturer | General Electric (GE Multilin) |
| Product Type | Motor Management Relay |
| Control Power | 90–300 VDC / 70–265 VAC (48–62 Hz) |
| Phase CT Input | 5 A (universal for phase and ground fault detection) |
| RTD Inputs | 12 channels (3-wire, supports Pt100, Ni100, Ni120, Cu10) |
| Communication Protocols | Modbus RTU, DeviceNet, IEC 61850 |
| Digital I/O | 9 isolated inputs, 6 relay outputs |
| Protection Functions | Overcurrent, under/overvoltage, phase unbalance, reverse power, backspin detection |
| Environmental Range | Operating: -25°C to +60°C; Storage: -40°C to +85°C |
| Dimensions | 310 mm (H) x 220 mm (W) x 95 mm (D) (drawout design for easy maintenance) |
| Weight | ~6.8 kg |
| Certifications | UL, CSA, CE |
| Conformal Coating | Optional (for harsh environments) |
| Waveform Capture | 128 cycles with 12 samples/cycle for fault analysis |
Main Features and Advantages
Adaptive Motor Protection:
The GE 469-P5-HI-A20-E dynamically adjusts protection thresholds based on motor-specific parameters, such as acceleration time and thermal capacity, reducing false tripping during startup and optimizing steady-state operation. Its broken rotor bar detection continuously monitors motor health, while starter failure monitoring ensures reliable control of contactors216.
The GE 469-P5-HI-A20-E dynamically adjusts protection thresholds based on motor-specific parameters, such as acceleration time and thermal capacity, reducing false tripping during startup and optimizing steady-state operation. Its broken rotor bar detection continuously monitors motor health, while starter failure monitoring ensures reliable control of contactors216.
Comprehensive Diagnostics:
Equipped with enhanced event recording, the relay captures up to 256 events with detailed fault data, including pre-trip voltage/current waveforms. The motor health report provides actionable insights into winding temperature trends and bearing conditions, enabling predictive maintenance. The data logger tracks parameters like motor load and power factor at user-defined intervals (1 second to 1 hour), supporting long-term performance analysis37.
Equipped with enhanced event recording, the relay captures up to 256 events with detailed fault data, including pre-trip voltage/current waveforms. The motor health report provides actionable insights into winding temperature trends and bearing conditions, enabling predictive maintenance. The data logger tracks parameters like motor load and power factor at user-defined intervals (1 second to 1 hour), supporting long-term performance analysis37.
Flexible Integration:

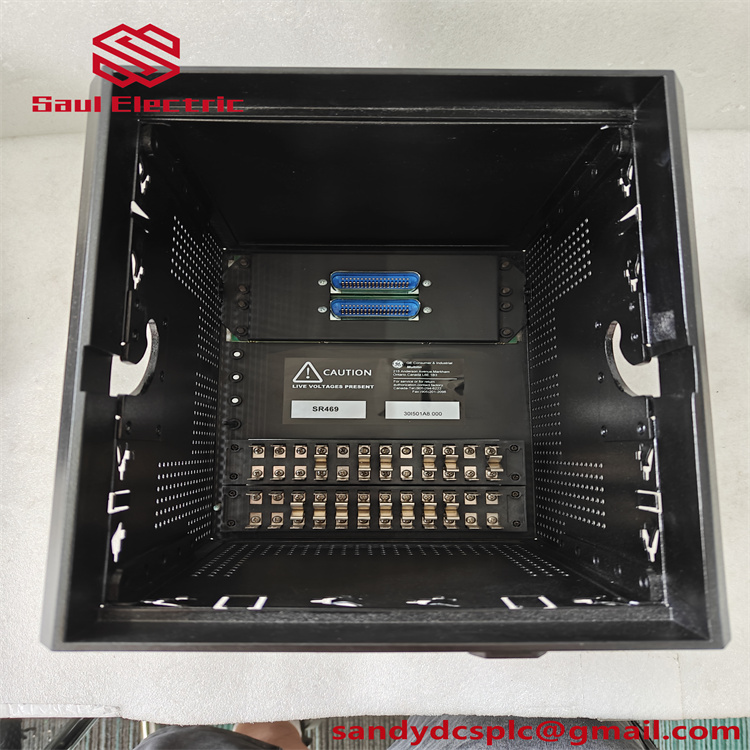

With dual-port Ethernet and support for IEC 61850, the relay ensures seamless integration into modern substation automation systems. Its universal CT inputs (1 A/5 A) eliminate the need for external adapters, simplifying installation. The optional conformal coating enhances durability in high-humidity or corrosive environments, while the drawout design allows quick replacement without rewiring715.
With dual-port Ethernet and support for IEC 61850, the relay ensures seamless integration into modern substation automation systems. Its universal CT inputs (1 A/5 A) eliminate the need for external adapters, simplifying installation. The optional conformal coating enhances durability in high-humidity or corrosive environments, while the drawout design allows quick replacement without rewiring715.
User-Friendly Interface:

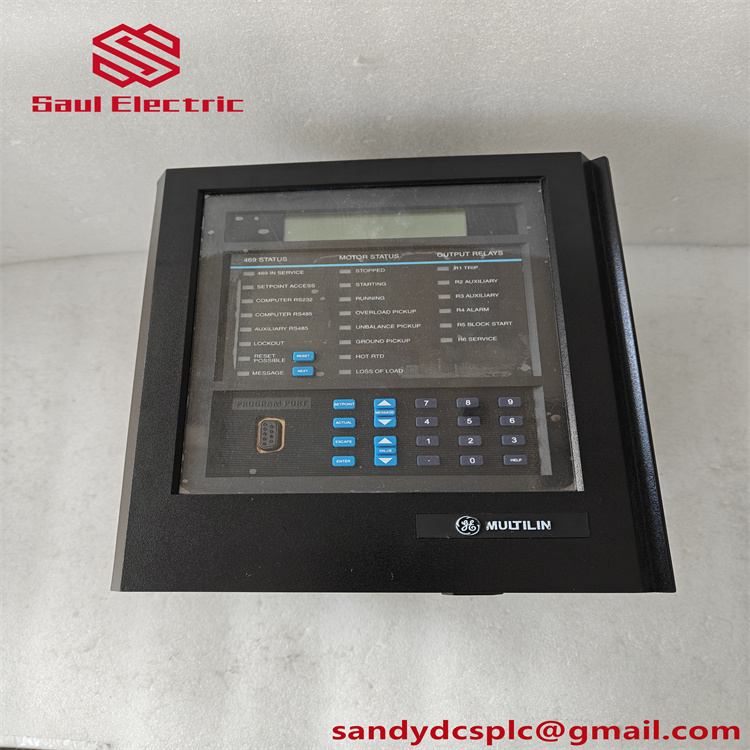

The enhanced faceplate features dedicated status LEDs for motor running, alarm, and trip conditions. The LCD display supports multi-line text for parameter viewing and configuration, while the keypad allows on-site adjustments without additional software. The Enervista software suite simplifies remote management, including firmware updates and setting backups312.
The enhanced faceplate features dedicated status LEDs for motor running, alarm, and trip conditions. The LCD display supports multi-line text for parameter viewing and configuration, while the keypad allows on-site adjustments without additional software. The Enervista software suite simplifies remote management, including firmware updates and setting backups312.
Application Areas
The GE 469-P5-HI-A20-E excels in industrial motor control systems across diverse sectors:
- Manufacturing: Protects pumps, fans, and conveyors in production lines, minimizing downtime and maintenance costs.
- Oil & Gas: Ensures reliable operation of compressors and blowers in harsh offshore and onshore environments.
- Mining: Safeguards large crushers and slurry pumps exposed to high vibration and dust.
- Water/Wastewater: Monitors motors in wastewater treatment plants, preventing damage from dry running or mechanical blockages.
- Power Generation: Supports critical auxiliary motors in thermal and renewable energy facilities, such as turbine cooling systems.
Its adaptive protection and remote monitoring capabilities make it ideal for applications requiring high availability and predictive maintenance. The relay’s IEC 61850 compliance also supports smart grid initiatives, enabling energy management and grid stability219.
Related Products
- GE 469-P5-HI-A20-E-H: Harsh environment variant with conformal coating for chemical exposure and extended temperature range (-40°C to +60°C)815.
- GE 869: Next-generation motor management relay with advanced metering and cybersecurity features, designed as a direct replacement for the 469 series2.
- GE 369 Plus: Lower-voltage motor protection relay for smaller motors, complementary for distributed control systems.
- GE IC693CPU350: Series 90-30 PLC controller for integrating motor management with plant-wide automation.
- GE 469-P5-LO-A20-E: Basic model with reduced I/O and communication options, suitable for cost-sensitive applications.
- GE Multilin 269 Plus: Motor protection relay for low-voltage applications, supporting basic overload and phase loss protection.
Installation and Maintenance
Installation Preparation:
Before installing the GE 469-P5-HI-A20-E, verify the control power supply matches the relay’s 90–300 VDC/70–265 VAC input range. Mount the relay in a clean, dry location with IP50-rated enclosure protection, away from strong magnetic fields. Use the GE Multilin Configurator software to program RTD inputs and protection settings, ensuring CT/VT wiring aligns with motor specifications.
Before installing the GE 469-P5-HI-A20-E, verify the control power supply matches the relay’s 90–300 VDC/70–265 VAC input range. Mount the relay in a clean, dry location with IP50-rated enclosure protection, away from strong magnetic fields. Use the GE Multilin Configurator software to program RTD inputs and protection settings, ensuring CT/VT wiring aligns with motor specifications.
Maintenance Advice:
- Routine Checks: Inspect LED indicators monthly for fault signals. Clean dust from vents quarterly to maintain thermal performance.
- Firmware Updates: Regularly update firmware via GE’s online portal to access new diagnostic features and security patches.
- RTD Calibration: Verify temperature readings annually using a reference thermometer to ensure accuracy.
- Environmental Monitoring: Use the relay’s ambient temperature sensor to schedule maintenance during periods of low motor activity.
Product Warranty
GE provides a 1-year warranty for the GE 469-P5-HI-A20-E, covering defects in materials and workmanship. This includes free repair/replacement of faulty components and remote technical support. For mission-critical applications, GE offers premium service plans with extended warranties, onsite training, and 24/7 diagnostic support.
Brand model: GE 469-P5-HI-A20-E
Product Name: Motor Management Relay
Warranty: 1 year
Size: 310 mm (H) x 220 mm (W) x 95 mm (D)
Weight: ~6.8 kg
Origin: Canada
Inventory: Spot/Futures
Delivery time: Goods in stock will be dispatched within 3 days after payment
Order time: Goods will be dispatched within one month after paymen
Product Name: Motor Management Relay
Warranty: 1 year
Size: 310 mm (H) x 220 mm (W) x 95 mm (D)
Weight: ~6.8 kg
Origin: Canada
Inventory: Spot/Futures
Delivery time: Goods in stock will be dispatched within 3 days after payment
Order time: Goods will be dispatched within one month after paymen
