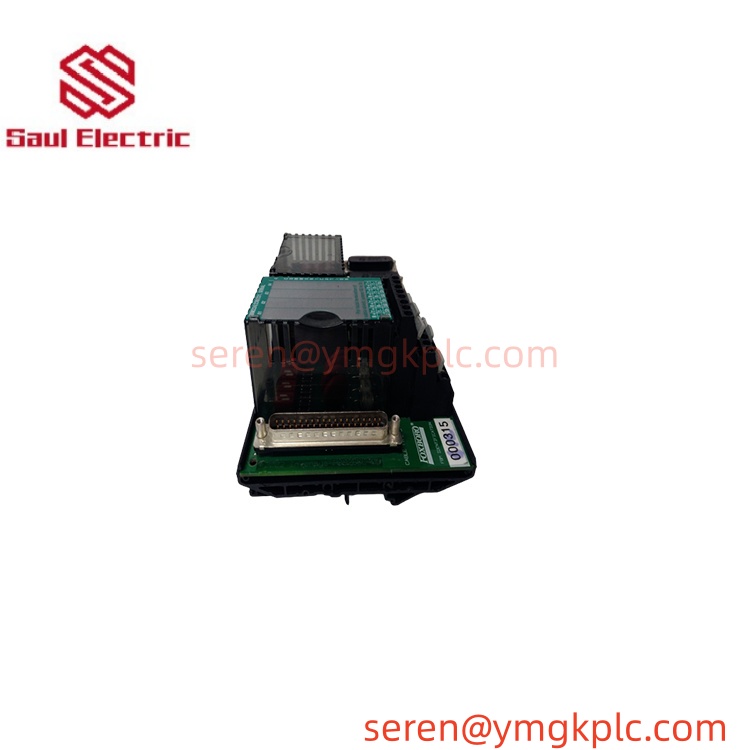

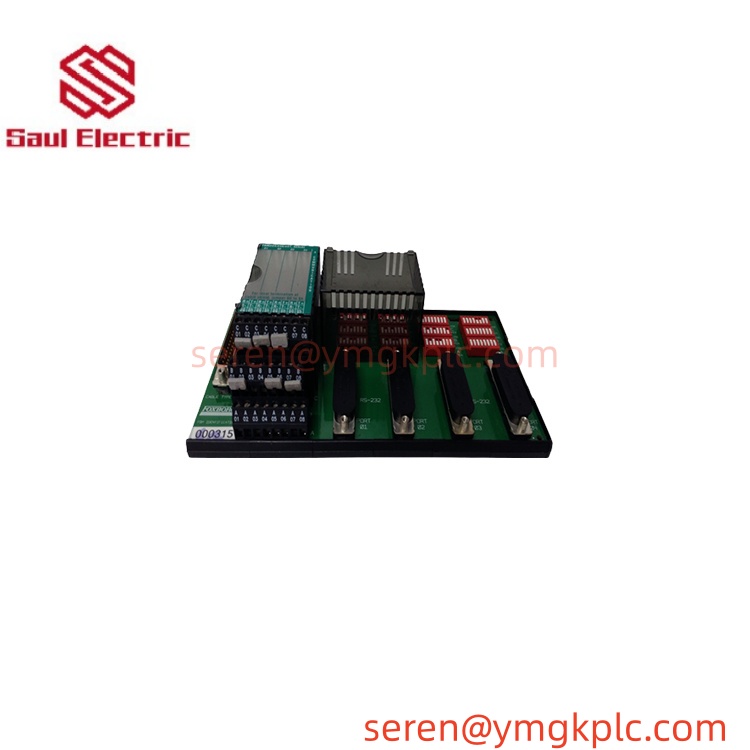

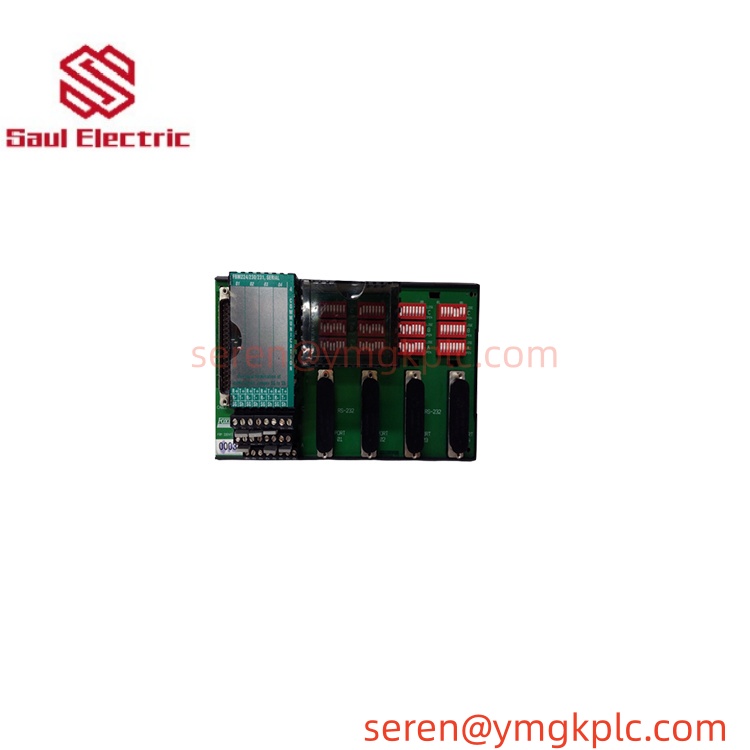

FOXBORO P0926GH | FBM224/230/231 Termination Assembly

Description

The P0926GH is identified in Foxboro documentation as a termination assembly for the FBM224 Modbus Communication Interface Module, while supplier and product records also associate it with FBM230 and FBM231 configurations. The Foxboro specification identifies P0926GH as a compression-screw termination assembly made from polyamide.

3. Key Technical Specifications

Foxboro’s published product specification lists P0926GH under the termination assemblies for the FBM224 family and describes the construction as polyamide with compression termination. The same specification gives three tiers of eight-position terminal blocks for RS-422/RS-485 connections.

One important procurement point: P0926GH is not the FBM itself. It is the termination assembly. Some aftermarket listings incorrectly describe the part as an input module, PLC module, or voltage monitor. The available Foxboro documentation supports identifying it as a termination assembly.

4. Product Introduction (Anti-Template)

When a Foxboro communication FBM needs to connect field wiring to the DCS architecture, the termination assembly becomes the physical interface between the installed cabling and the module. P0926GH is specified as a compression-screw termination assembly for the FBM224 communication interface and is also associated with FBM230 and FBM231 installations.

The distinction between the termination assembly and the electronic FBM matters during procurement. P0926GH does not perform the communication processing itself; it provides the connection point used by the associated module. Honestly, confusing the TA with the FBM is an easy way to order the wrong component during an emergency replacement.

5. QC, Procurement & Logistics SOP

1. Inbound Verification
   The part number P0926GH is checked against the purchase order, product label, packaging, and physical configuration. Because several Foxboro termination assemblies look similar, the exact suffix is verified before the item enters available inventory.
2. Live Rig Testing
   P0926GH is a passive termination assembly rather than an active processing module, so a conventional power-on test is not applicable to the TA itself. Inspection instead focuses on terminal integrity, connector condition, screw-clamp operation, insulation condition, and continuity where required. The associated FBM should be tested separately.
3. QA & Anti-Static Packaging
   Although the TA itself is passive, it should still be protected from contamination, mechanical impact, and moisture during storage and transportation. Terminal areas are protected from compression forces so the screw terminals and molded insulation are not damaged in transit.
4. Global Logistics & Export Compliance
   The commercial invoice should identify P0926GH according to its actual function as a Foxboro communication termination assembly. HS classification should be reviewed against the destination country’s tariff rules rather than relying on a generic PLC classification. For international shipments, rigid internal cushioning is recommended even for a relatively small component—the terminal hardware can be damaged if the part is allowed to move freely inside the carton.

6. Technical Pitfalls & Integration Warnings

1. Firmware Revision Mismatch
   Firmware is not the primary concern for P0926GH itself because it is a passive termination assembly. The real compatibility check concerns the associated FBM and system configuration. For example, ordering P0926GH while the actual requirement is a complete FBM230 module will not restore a failed communication channel.
2. DIP Switch / Configuration Errors
   Configuration settings belong to the associated communication module, not the passive P0926GH termination assembly. After replacing the TA, verify the paired FBM’s communication parameters, addressing, and system configuration. A correct terminal assembly cannot compensate for incorrect FBM settings.
3. Wiring / Terminal Incompatibility
   This is the critical risk. P0926GH is associated with FBM224/FBM230/FBM231 communication applications, but the signal type and wiring arrangement depend on the paired module. Foxboro documentation specifies different serial interfaces and terminal arrangements, so field wiring should be checked against the exact module and system drawing before reconnection.
4. ESD During Unboxing
   While P0926GH itself is passive, the associated communication FBM contains electronic circuitry. If the TA is being replaced as part of a larger communication-module maintenance job, keep the electronic FBM in ESD-safe packaging until installation. Do not treat the entire assembly as ordinary terminal hardware.

7. Frequently Asked Questions (FAQ)

Q1: “Is P0926GH the FBM224 communication module?”

No. P0926GH is the termination assembly associated with the communication module. Foxboro documentation lists P0926GH as the compression-screw termination assembly, while the FBM224 is the active communication interface module.

Q2: Which Foxboro modules use P0926GH?

The available product documentation associates P0926GH with:

• FBM224
• FBM230
• FBM231

The exact wiring and communication interface should be verified against the installed FBM before ordering.

Q3: “Does P0926GH need a power supply?”

No. It is a passive termination assembly. The power and communication processing functions belong to the associated FBM and DCS hardware.

Q4: Can I replace P0926GH while the system is running?

Do not assume that it is safe to disconnect the field wiring while the associated communication system is energized. The TA itself does not contain active electronics, but removing communication wiring can interrupt signals or create communication faults. Follow the plant’s approved isolation procedure.

Q5: Is P0926GH backward-compatible with other Foxboro termination assemblies?

Not automatically. Similar-looking Foxboro termination assemblies can have different terminal layouts and intended module pairings. Confirm the exact part number and associated FBM before substitution.

Q6: “How fast can you ship P0926GH?”

For confirmed physical stock, the unit can normally be prepared for export after part-number verification and packing inspection. Actual transit time depends on destination, customs clearance, and freight method. Air freight is generally more appropriate for an urgent plant-maintenance requirement.

Q7: What information should I send to verify the correct replacement?

Please provide:

• Existing termination assembly part number
• Photo of the P0926GH nameplate or label
• Paired FBM model number
• Cabinet or termination drawing, if available
• Quantity required
• Destination country
• Required delivery date

For a Foxboro I/A Series maintenance order, the paired FBM model is especially important. It prevents a visually similar termination assembly from being treated as a direct replacement when the field wiring is actually different.
