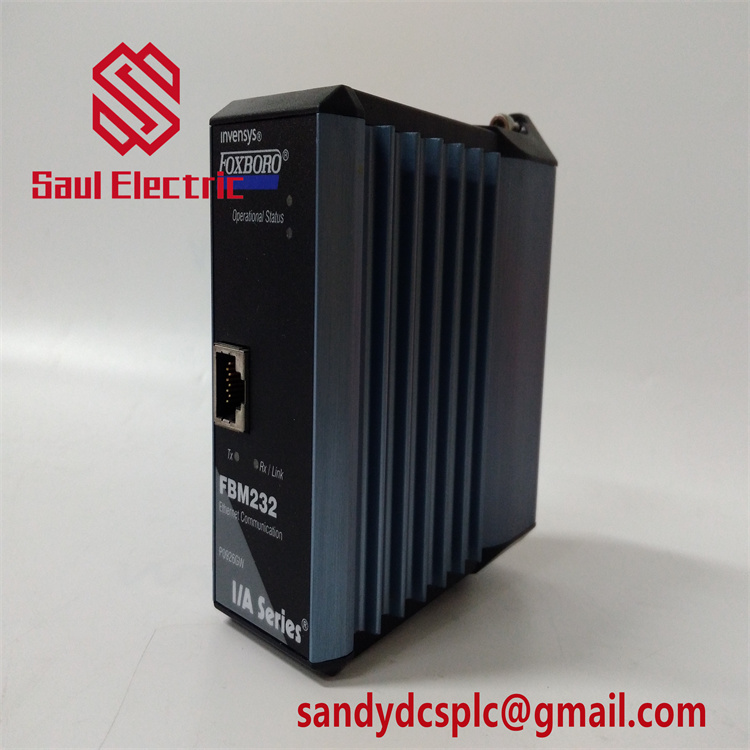

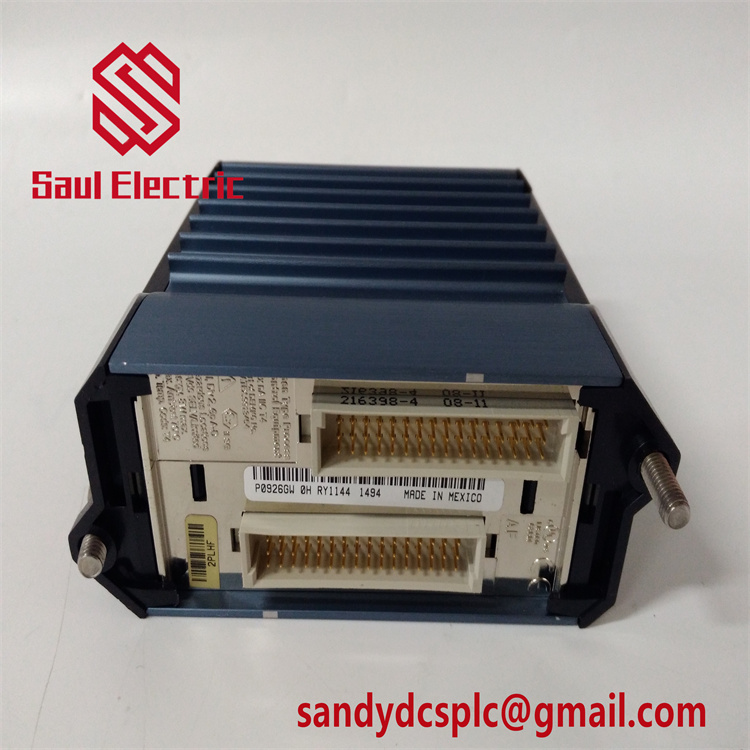

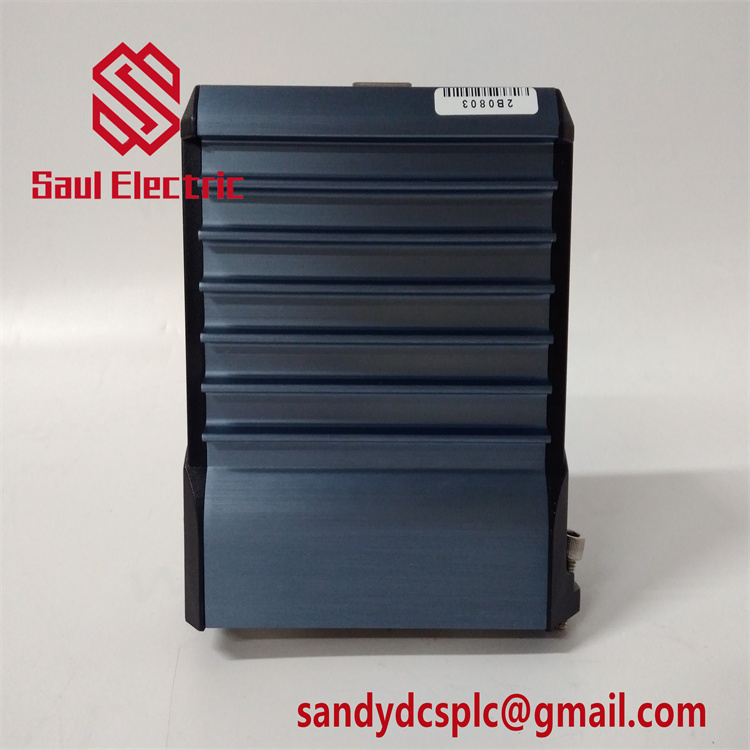

FOXBORO FBM232 P0926GW Ethernet Communication Module
Product Overview
The FOXBORO FBM232 P0926GW is a Field Device System Integrator (FDSI) module designed to bridge field devices with the Foxboro I/A Series Distributed Control System (DCS) via Ethernet connectivity. As part of Schneider Electric’s Foxboro portfolio, this module enables seamless integration of third-party devices into industrial automation systems, supporting real-time data exchange and control logic execution .
Key to its functionality is the 10/100 Mbps Ethernet interface, which connects to field devices through switches or hubs, supporting up to 64 external devices and 2000 DCI (Distributed Control Interface) block connections. The module’s software drivers, downloadable from Foxboro’s protocol library, translate device-specific protocols (e.g., Modbus TCP/IP) into standardized DCS data formats, ensuring compatibility with Foxboro’s Evo control database .
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | FBM232 P0926GW |
| Manufacturer | Foxboro (Schneider Electric) |
| Product Type | Ethernet Communication Module for DCS |
| Communication | 10/100 Mbps Ethernet (RJ-45), Modbus TCP/IP support |
| Power Supply | 24V DC (±5%/-10%), 7W maximum consumption |
| Environmental Rating | Class G3 (harsh environments), -20°C to +70°C operating temperature |
| Dimensions | 102 mm (H) × 45 mm (W) × 104 mm (D), 284 g weight |
| Certifications | CE, FCC, compatible with Class 1 Division 2/Zone 2 hazardous locations |
| Redundancy Support | System-level redundancy via Foxboro’s 2 Mbps fieldbus network |
| Data Handling | Up to 2000 analog/digital I/O points, 500 ms update frequency |
Key Features and Advantages
High-Speed Connectivity: The 10/100 Mbps Ethernet interface ensures rapid data transmission, critical for real-time process control in industries like oil & gas and power generation. Its Modbus TCP/IP compatibility simplifies integration with PLCs, HMIs, and third-party sensors .
Rugged Industrial Design: With conformal coating and Class G3 environmental certification, the FBM232 withstands dust, moisture, and vibrations in harsh settings such as offshore platforms and chemical plants. Its wide temperature range (-20°C to +70°C) supports deployment in extreme climates .
Flexible Configuration: The module’s XML-based configurator allows easy setup of IP addresses, scan rates, and device-specific parameters. It supports both DHCP (dynamic) and static IP addressing, accommodating diverse network architectures .
System-Level Redundancy: While the FBM232 itself is not hot-swappable, it integrates with Foxboro’s redundant 2 Mbps fieldbus network, ensuring continuous operation if one communication path fails. This redundancy is critical for mission-critical applications like emergency shutdown systems (ESD) .
Scalability: The FBM232 interfaces with Foxboro’s FCP 270/280 Field Control Processors and FCM 100ET Field Communications Modules, enabling scalable DCS expansions. It supports up to 64 field devices per module, ideal for large-scale industrial installations .
Application Areas
The FBM232 P0926GW excels in scenarios requiring reliable Ethernet-based DCS integration:
- Oil & Gas: Manages data from wellhead sensors, compressors, and flow meters in refineries and offshore platforms, ensuring compliance with API and IEC standards .
- Power Generation: Integrates steam turbine controls and generator monitoring systems, optimizing energy output while adhering to grid stability requirements .
- Chemical Processing: Connects batch reactors, distillation units, and safety interlocks, enforcing ISO 14001 environmental compliance through real-time diagnostics .
- Water/Wastewater: Monitors pump stations, treatment plants, and disinfection systems, enabling predictive maintenance and regulatory reporting .
Related Products
- FBM230: A serial communication module supporting RS-232/422/485 and Modbus RTU, suitable for retrofitting legacy devices .
- FBM233: An Ethernet module supporting UDP/IP and TCP/IP, designed for high-speed data exchange in IoT-enabled environments .
- FBM242: The successor model with enhanced cybersecurity features and extended memory, recommended for new installations .
- FCP 270/280: Field Control Processors that manage FBM232 data processing and redundancy .
- FCM 100ET: Field Communications Modules providing redundant fieldbus connectivity to the DCS .
Installation and Maintenance
Installation Steps:
- Mount the module on a modular baseplate (horizontal/vertical DIN rail or 19-inch rack).
- Connect 24V DC power to terminals J1/J2 and Ethernet cables to the RJ-45 port.
- Use Foxboro’s FDSI Configurator to load device drivers and configure IP settings.
- Integrate with the DCS via the 2 Mbps fieldbus connected to FCP/FCM modules .
Maintenance Recommendations:
- Regularly inspect for loose connections and clean vents to prevent dust buildup.
- Monitor diagnostic LEDs for communication errors (e.g., red LED for link failure).
- Schedule annual firmware updates via Foxboro’s ProAct software to address security patches.
- Replace faulty modules with Schneider-certified spares to maintain system integrity .
Product Warranty and Support
Foxboro guarantees the FBM232 P0926GW against defects for 1 year from purchase. Customers gain access to:
- Global technical support: 24/7 remote diagnostics and on-site troubleshooting.
- Documentation library: Datasheets, wiring diagrams, and application notes available on Schneider’s portal.
- Upgrade path: Transition to the FBM242 for improved performance and long-term compatibility .
